Mixvibes DVS Software with U46MK2 Sound Card

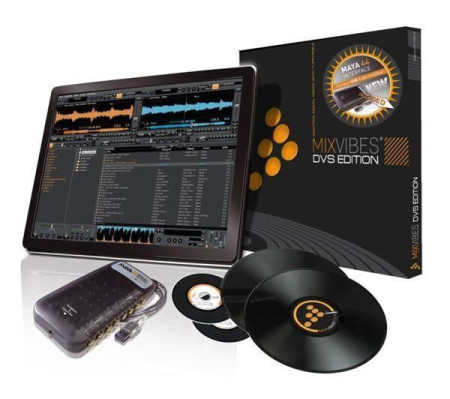

MixVibes U46 MK2 DJ Soundcard & Software The U46MK2 is an ideal audio interface for both DJs and musicians, compatible with all major DJ software applications. Connected to your laptop or desktop computer via USB, this 2 IN / 3 OUT stereo multi-channel soundcard is a perfect solution for any digital DJs. The package includes the next generation and innovative DJ software, MixVibes CROSS for both PC and MAC users.
More details:Product Ref: 14116
Multi purpose soundcard

Designed for DJs and musicians, this soundcard offers multiple outputs and inputs. 2 stereo line/phono inputs are available for encoding vinyl records or any line RCA source. One MIC input with +48V Phantom Power and gain control enable microphone recording. Another Hi-Z input has been designed for Bass or Guitar plug in. 6 line level analog outputs allow you to connect various external devices, even a 5.1 DVD surround system.

Software Included

MixVibes CROSS LE software is now bundled with the U46MK2. This new DJ software brings MixVibes know-how and experience to Mac OSX and Windows users. The first aim of CROSS LE is to reintegrate the DJ's music as the centrepiece of his performance by simplifying media browsing and offering intuitive features with crystal clear sound rendering.

Technical specs

Interface

USB Spec Ver1.1, USB Audio Class Spec Ver1.0
Analog Input Specifications

4 Channel Analog inputs / Line, Phono, Mic, Hi-Z input support
Line Input Level: -10dBV Unbalanced Nominal level, +6dBV Maximum level
Input Impedance - Line: 10K ohm
Phono: 47K ohm and 200pF
MIC: 6.8K ohm
Hi-Z: 200K ohm or better
+48V Phantom power support for Microphone input
Analog Output Specifications

6 Channel Analog outputs and Mix outputs
Line Output Level: -10dBV Unbalanced Nominal level, +6dBV Maximum level.
Output Impedance: 100 ohms
ADC Specifications

Dynamic Range: 85dB A-Weighted (Typical).
Frequency Response: 20 20 kHz (+/- 0.25dB MAX, @ fs=48 kHz).
Resolution: 18 Bits
DAC Specifications

Dynamic Range: 87dB A-Weighted (Typical).
Frequency Response: 20 20 kHz ((+/- 0.25dB MAX, @ fs=48 kHz).
Resolution: 20 Bits.
