MOTU Firewire Interface

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

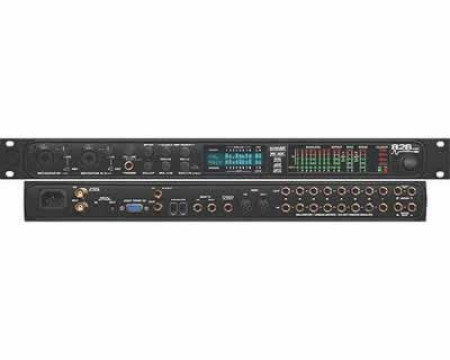

motu 828mkii
The 828mkII contains everything you need to turn your computer into a powerful 24-bit, 96kHz digital audio workstation. The 828mkII provides 20 inputs and 22 outputs, including 10 channels of pristine 96kHz analog recording and playback, combined with 8 channels of ADAT digital I/O and stereo S/PDIF. Expand your system by connecting additional 828 or 896 FireWire audio interfaces.

The 828mkII is equally well-suited for studio and stage, with or without a computer. As a computer interface, the 828mkII provides 20 separate inputs and 22 outputs, including separate main outs and headphone out. The two mic/guitar/instrument inputs feature analog, pre-amplified sends which allow you to insert your favorite outboard EQ, compressor, guitar amp, reverb or other effects processor before the signal goes digital. Use any input as a return.
You can add additional send/return loops using the 828mkII's new CueMix DSP' on-board mixing feature, a flexible DSP-driven 20-input/8-bus mixing and monitoring matrix that eliminates the need for an external mixer or patchbay. Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. Then monitor all of these live inputs via the 828mkII's main outs, headphone jack or any other output with virtually no monitoring latency and no processor drain on your computer. You can even create separate monitor mixes for the main outs, headphones and other outputs. Control everything from the included CueMix Console' software or directly from the 828mkII's front-panel.
Need to hit the road? The 828mkII operates as a stand-alone mixer, with no computer required. Need to tweak your mix? Do it on the spot with the 828mII's backlit LCD and front-panel controls. Every 828mkII setting can be accessed from the front panel.
Back in the studio, 8 channels of ADAT optical digital I/O, plus stereo S/PDIF, make the 828mkII an ideal companion for a digital mixer. All digital I/O connections support standard sample rates up to 96kHz.
The 828mkII includes 16-channels of MIDI input and output via the FireWire connection to the computer. Simply plug in your FireWire cable, and both MIDI and audio are ready to go. Connect any MIDI device, such as a controller keyboard, synth module, automated control surface or drum machine. Timing is sample-accurate with supporting software.
The 828mkII provides cross-platform compatibility with Mac OS 9, Mac OS X (version 10.2 or later) , Windows Me/2000/XP and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio/Sound Manager drivers. Or you can use the included AudioDesk workstation software for Macintosh, with 24-bit recording/editing and 32-bit mixing/processing/mastering.
The 828mkII provides DSP-driven digital mixing and monitoring for all 20 inputs. You can connect mics, guitars, synths and effects processors, and monitor everything from the 828mkII's main outs or headphone jack with no separate mixer needed and no latency.

The 828mkII supports up to four separate stereo monitor mixes assigned to any four digital or analog output pairs. For example, you could set up separate monitor mixes for the main outs and headphone outs, while two additional stereo buses could be used for send/return loops to reverb units or other outboard gear. Each mix can support all 20 inputs (8 TRS analog, 2 mic, 8 ADAT optical digital and stereo SPDIF digital).
Bounce BackA new "CueMix Bounce Back" feature lets you route one of the four CueMix DSP mixes back to the computer. This allows you to record, for example, your entire mix - including monitored inputs - back into the computer.
TalkbackCueMix Console provides Talkback and Listenback buttons. Talkback allows an engineer in the control room to temporarily dim all audio and talk to musicians in the live room. Conversely, Listenback allows musicians to talk to the control room. For Talkback, you can set up a dedicated mic in your control room and connect it to a mic input on your 828mkII. For Listenback, you can set up a dedicated listenback mic in the live room for the musicians and connect it to another mic input.

Stand-alone mixingThe 828mkII can function as a stand-alone digital mixer. Create up to four independent stereo mixes and adjust them on the fly with the front panel display.

Additional Information

UPCN/A
SKU828MKII
ManufacturerMotu
Product ConditionNew - On Clearance
ReturnableNo
