MXL REVELATION Variable Pattern Tube Studio Condenser Microphone.

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

mxl revelation
Images may show accessories or configurations not packaged with this item.

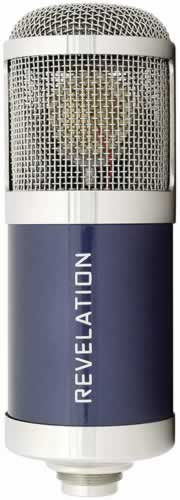

The MXL Revelation is an extraordinary studio microphone that delivers the warmth and intimacy of a quality tube microphone with extended clarity and punch for balanced recording. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube deliver warm, rich and transparent sound, and polar pattern selection is virtually limitless thanks to the variable knob.

Record vocals, instruments, percussion or use it as a room mic - the MXL Revelation can handle any recording task.

FEATURES INCLUDE:
• Variable polar pattern control: Omni, Cardioid, Figure 8
• Hand-selected EF86 pentode tube
• Custom body design minimizes resonance

SPECIFICATIONS:
• Type: Variable Pattern Tube Condenser Microphone
• Diaphragm: Dual Gold sputtered, 6 micron diaphragm
• Tube Type: EF86
• Frequency Response: 20 Hz-20 kHz
• Polar pattern: Continuously Variable
• Sensitivity: -40 dB re 1 V/Pa
• Output Impedance: 140 ohms
• Attenuation Switch: 0 dB, -10 dB
• High Pass Filter: 12 dB/octave @ 125Hz
• Equivalent noise: -18 dBA (A-weighted IEC 651)
• S/N Ratio: 76 dB
• Max SPL for .5% THD: 138 dB SPL

• Power Requirements: Revelation Power Supply Unit 110/220 VAC, 50/60Hz

• Size: 7 1/2" X 2 1/2"/190mm x 63.5mm (mic only)

• Weight: 2lbs/907g (mic only)
• Metal Finish: Dark Violet and Chrome

Additional Information

UPC801813139006
SKUREVELATION
ManufacturerMXL
Price$1,295.00
Product ConditionNew - On Clearance
