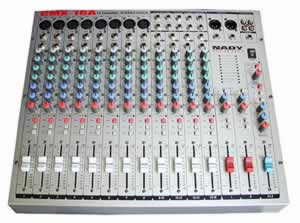

Nady CMX 16 16 Channel Stereo Mic/Line Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

nady cmx-16
This compact console and Rack-mountable mixer delivers top performance, full-functioned flexibility, and ultimate value, and meets the requirements of even the most demanding mixing applications.

FEATURES:
• Full frequency response, wide dynamic range and ultra low noise assures natural, transparent sound with maximum headroom
• 8 mono balanced (XLR and 1/4" TRS) and 8 balanced stereo (1/4" TRS) inputs (16 total)
• L-R Main Mix and G1-2 Group Sub-mix buses, with L-R, and G1-2 functions selectable on all channels and separately assign-able to master mixes with separate master faders
• 2 Aux Sends and 2 stereo Aux Returns with Aux Send and Aux Return controls
• 8 mono input channel Inserts allow independent connection of effects devices for each mono channel
• Tape In and Record Out RCA jacks with Tape Input Level control
• Separate Master Mix, Control Room and Headphone Outputs
• PFL, L-R, and G1-2 functions selectable on all channels and separately assign-able to master mixes and headphone and control room outputs for versatile monitoring capability
• Input Trim controls on all channel inputs
Balanced 1/4" TRS and XLR Stereo Outputs
• 3-band EQ on all channel Tape In and Record Out RCA jacks with Tape inputs assign-able to Master Mix or stereo Control Room/Headphone outputs
• Switch-able +48V phantom power on all mono inputs
• Pan pots on each mono channel and Balance pots on each stereo input
• 60 mm faders on all channels and master L/R and G1-2 bus mix for precise level control
• High-quality sealed pots with center detents for all Pan/Balance and EQ controls
• Peak LEDs on all input channels
• Super accurate 10-segment LED display bar-graph meters switch-able to display L/R or G1/G2 mix levels
• High strength steel casing and superior construction with only highest quality components for longest life and maximum reliability. Rack ears for rack-mounting supplied.
• External AC supply (PSU) for optimum signal integrity and superior transient response
• Dimensions & Weight: 15"x17.5"x 3.75" (381 x 495 x 95 mm), 14.85 lbs (6.75 Kg)

Additional Information

UPCN/A
SKUCMX-16
ManufacturerNady
Product ConditionNew - On Clearance
ReturnableNo
