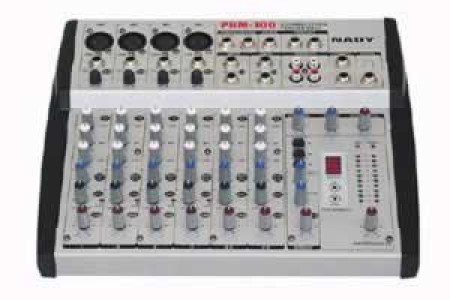

With 16 built-in selectable DSP echo and reverb effects, the PRM-100 offers superior performance, state-of-the-art features, versatility, and easy affordability. This mixer is ideal for any small venue live sound reinforcement applications.
FEATURES:• Excellent audio performance with low noise and powerful, full-spectrum transparent audio
• Built-in DSP (Digital Sound Processor) for ECHO (REVERB) with 16 natural sounding selectable preset level and echo intervals and separate Effects Send and individual channel Effects Return controls, and numeric LED display
• Input Trim controls on all channel inputs
• Peak LEDs on all input channels
• Pan pots on each mono channel and Balance pots on each stereo input
• Switch-able global 48V phantom power on mono channels
• High-quality sealed pots with center detents for all Pan/Balance and EQ controls
• Internal shielded AC supply with 115V(60Hz)/230V(50Hz) select switch
• Road-tough, all-steel construction. Rack ears supplied.
• Ultra-compact 2-bus stereo powered mixer delivers 100W/side @ 4 Ohms. Fan-cooled, bipolar amplifier design for longest life and maximum reliability.
• 4 mono input channels with balanced XLR Mic and 1/4" TRS Line inputs for maximum signal integrity
• 4 stereo input channels with balanced 1/4" TRS jacks for balanced or unbalanced inputs
• 3 band EQ for all input channels
Aux Send for external effects and monitoring
• Stereo Aux returns with master Aux Return control Balanced 1/4" TRS L/R Stereo Outputs
• Separate Master Mix, Control Room and Headphone Outputs
• Tape In and Record Out RCA jacks with Tape inputs assignable to Master Mix or stereo Control Room/Headphone outputs
• Super accurate 10-segment LED display bar-graph meter
• Dimensions & Weight: 9"x 7"x 2.5" (229 x 178 x 63.5 mm), 3.7 lbs (1.7 Kg)
