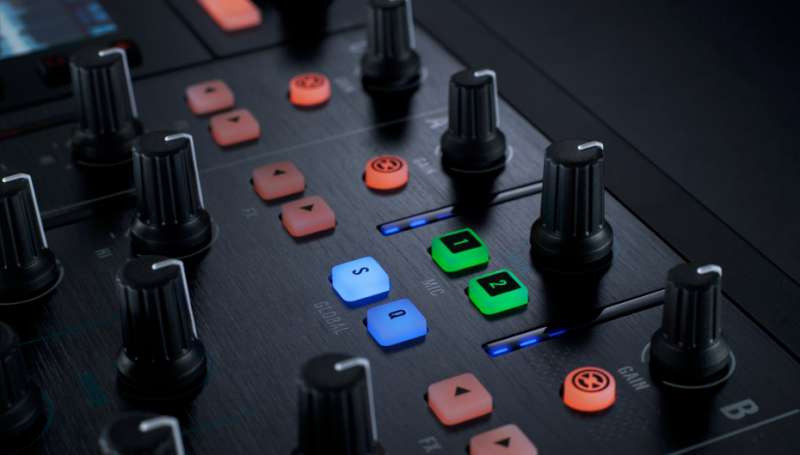

CONNECT WITH YOUR CROWD Get physical with the music. Touch-sensitive knobs, faders, and LED-guided touch strips bring TRAKTOR software to life on vivid full-color displays, keeping you focused on performance - not on your laptop. The S8's touch-and-see workflow means you connect with your music - and with your crowd.
HIGH-RESOLUTION DISPLAYS Two high-res color displays put TRAKTOR software in plain sight. Browsing, track info, effect, and filter values come into view directly in front of you. Keep an eye on the running track's ultra-crisp vector waveform. Or access Remix Decks in full view.
REMIX IN THE MOMENT Create your signature sound with responsive Remix Deck controls. Intuitively mix in sounds with 4+4 channel Remix Deck faders. Plus, live capture and trigger your own samples and loops using 16 color-coded performance pads.
Your style. Your sound. This is enhanced DJ performance.

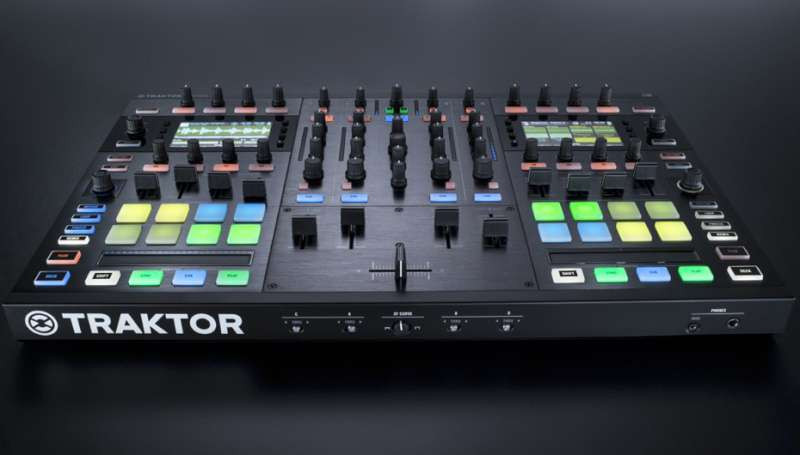

BUILT FOR PERFORMANCE Connect anything your setup needs - TRAKTOR KONTROL S8 boasts the most expansive connectivity on a DJ controller yet. The on-board 4-channel mixer features unique wear-resistant faders that offer unprecedented durability.
Plus, TRAKTOR Mode buttons on every mixer channel switch between TRAKTOR and stand-alone mode - ideal for handing the night over to the next DJ.
DESIGNED FOR TRAKTOR PRO SOFTWARE TRAKTOR KONTROL S8 is built for seamless control of the included TRAKTOR SCRATCH PRO 2* - the choice DJ software of countless professionals worldwide. Get in-depth control of your music with up to four software decks, customizable interface, timecode media, and advanced track library management.
*TRAKTOR SCRATCH timecode vinyl or CDs not included with TRAKTOR KONTROL S8 and must be purchased separately. SYSTEM REQUIREMENTS • Mac OS X 10.8 or 10.9 (latest update), Intel Core' i5, 4 GB RAM
• Windows 7 or 8 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel Core' i5 or AMD A-Series, 4 GB RAM
SUPPORTED AUDIO FORMATS • MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM WMA**, non-DRM AAC
** WMA playback supported only on Windows
GENERAL • Monitor with 1024 x 768 screen resolution, USB 2.0 or higher, OpenGL version 2.1 or higher, 1.5 GB free disc space, high-speed internet connection (for installation)
DIMENSIONS • Depth: 38.7 cm, Height: 6,6 cm, Width: 58,5 cm, Weight: 5 kg
HARDWARE SPECIFICATIONS Audio Inputs (A/D) • Channels 4 Stereo
• Sample Rate 48kHz
• Bit Resolution 24-bit
• Converter Cirrus Logic
Line Inputs • Full Scale Level +13 dBu
• DNR (a-weighted) 113 dB
• THD+N 0.001%
• Frequency Response 20 Hz - 20 kHz, +/- 0.1 dB
• Cross Talk @ 1kHz -116 dB
Mic Input • Full Scale Level @ 1 kHz -7.2 dBu
• DNR (a-weighted) @ 1 kHz 104 dB
• THD+N @ 1KHz 0.006%
• Frequency response 20 Hz - 20 kHz, +/- 0.6 dB
Phono Inputs • Input Impedance 47 KOhm
• Full Scale Level @ 1 kHz - 23.8 dBu
• DNR (a-weighted) @ 1 kHz 84 dB
• THD+N @ 1KHz 0.002%
• Crosstalk @ 1kHz -105 dB
Audio Outputs (D/A) • Channels 2 Stereo
• Sample Rate 48 kHz
• Bit Resolution 24-bit
• Converter Cirrus Logic
Line Outputs (XLR & 1/4" Booth) • Maximum Output Level +20 dBu
• DNR (a-weighted) 108 dB
• THD+N 0,001%
• Frequency Response 20 Hz - 20 kHz, +/- 0.2 dB
• Crosstalk @ 1kHz -115 dB
Line Outputs (RCA) • Maximum Output Level +14 dBu
• DNR (a-weighted) 108 dB
• THD+N 0,001%
• Frequency Response 20 Hz - 20 kHz, +/- 0.1dB
• Crosstalk @ 1kHz -117 dB
Headphone Output • Load Impedance 16 Ohms - 600 Ohms
• Maximum Output Level (32 Ohm load) +7.2 dBu
• DNR (a-weighted) 109 dB
• THD+N 0.07%
• Frequency Response 20 Hz - 20 kHz, +/- 0.2 dB
• Crosstalk @ 1kHz -63 dB
