Totevision LCD501X3 3 Rackmount LCD Panel W/Audio

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

no mfr listed lcd501x3
Images may show accessories or configurations not packaged with this item.

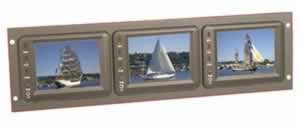

3 units LCD-501 in 19" standard rack mount panel, occupies 3 rack units, AC included.

• Wide operating power range (10 30VDC).
• Stereo headphone jack for private listening (no built-in speakers).
• Low power consumption.
• Case made of durable ABS plastic.
• Active matrix technology allows wide viewing angle.
• Active matrix technology eliminates distortion.
• A/C adaptor, Part No. AC-2000, included.

• Input Signal: NTSC/PAL (auto switching)
• Resolution: 600(H) x 234(V) dots
• Active Area: 102.6(H) x 73.9(V)
• Dot Pitch: 0.171(H) x 0.316(V)
• Brightness: 240 cd/m (Nit)
• Contrast Ratio: 120:1
• Viewing angle L/R/T/B: 55/55/15/35
• Power Requirements: 12VDC (1A, + pin)
• Power Consumption: 7 W (max.)
• Input Signal Level: 1.0V P-P (positive) 75 Ohm
• Audio Input Level: 1.0V P-P
• Audio output: 0.3 W
• Audio Input Impendance: 10K ohm
• Audio Band Width: 15 KHz
• Dimensions (WHD): 146 x 105 x 30.5mm/ 5.7" x 4.1" x 1.2"
• Actual visible screen size(WH): 102 x 74mm / 4" x 2.9"
• DIN Cable Connections: RCA video IN RCA right audio IN RCA left audio IN
• LCD-501 Weight: 363g / 12.8oz.
• LCD-501X3 Weight: 2.4 kg / 5.3 lbs

Additional Information

Product ConditionNew - On Clearance
