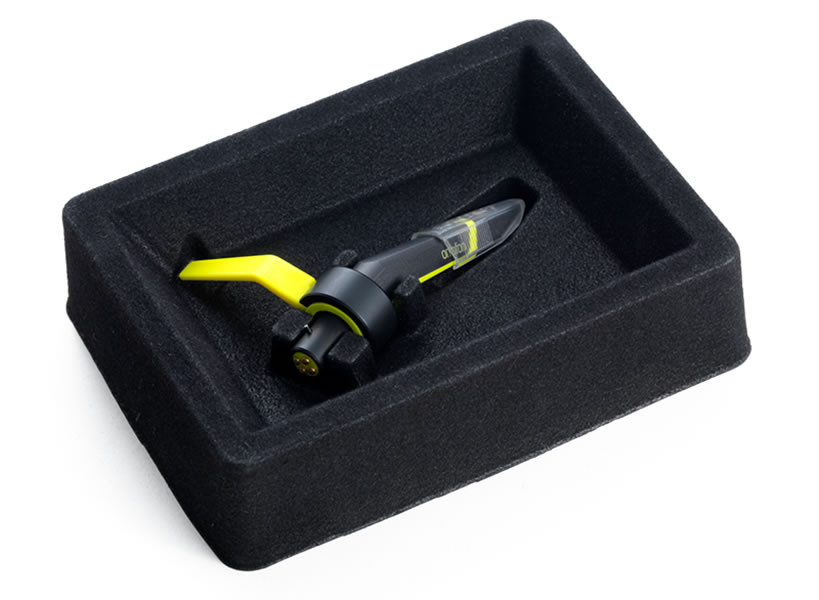

The best sound quality achievable for traditional vinyl playback! The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club. It features a special-elliptic stylus that allows for detailed sound quality that fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.
The CLUB's 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
The CLUB offers an outstanding platform for archival and sampling.
Also available in the Ortofon Concorde MkII CLUB Twin Pack with a FREE cartridge case and stylus cleaner brush. VIDEO
• Output voltage at 1000Hz, 5cm/sec. - 8 mV
• Channel balance at 1kHz - 1 dB
• Channel separation at 1kHz - 25 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Tracking ability at 315 Hz at recommmended tracking force - 100 m
• Compliance, dynamic lateral - 14 m/m N
• Stylus type - Spherical Elliptical r/R 13/25 m
• Tracking force range - 2 - 4 g
• Tracking force recommended - 3 g
• Cartridge weight - 18,5 g
• Replacement stylus unit -
STYLUS-CLUB In early 2018, Ortofon launched their next-generation Concorde MkII series:
MIX ,
DJ ,
CLUB ,
SCRATCH ,
DIGITAL and
ELITE - a clear product range for six applications and technological improvements for better performance.
• All models benefit from a replaceable reinforced finger lift, which is easily replaced if broken.
• The cartridge bodies have been broadened, to offer greater stability during performances.
• Replacement styli offer a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
• The Concorde MkII's unique 2-seqment body design creates a fresh and attractive aesthetic.
Which Ortofon Concorde MKII cartridge is right for me? •
The Concorde MIX offers a budget-friendly, yet high quality option capable of good all-round performance.
•
The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling.
•
The Concorde CLUB features a special Elliptical diamond and offers the best sound quality achievable for traditional vinyl playback and offers an outstanding platform for archival and sampling.
•
The Concorde SCRATCH allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output.
•
The Concorde DIGITAL offers great performance and tracking, with a technology designed to extend the life of timecode vinyl and minimize errors in decoding.
•
The Concorde ELITE features a Nude Elliptical diamond and a new unique Rubber Suspension, which allows for superior tracking performance and guarantees an improved and detailed sound quality. Musically, the Concorde ELITE exceeds the scale of the Concorde Series!
