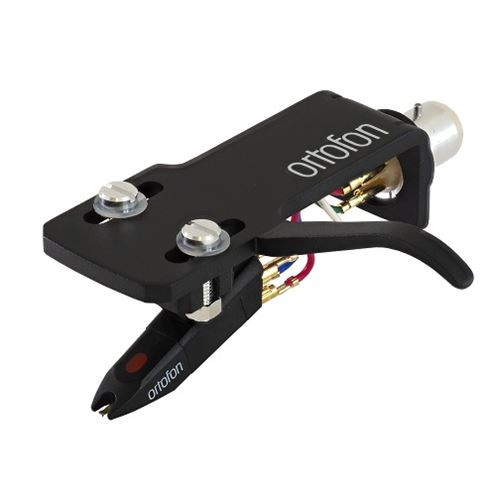

The OM Pro S on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
Features: • Universal mount fitting a wide range of S-shaped tonearms
• Correct Baerwald alignment with the major part of tonearms with universal mount
• Spherical stylus minimizes scratching
• Solid cantilever can survive hectic activity at the turntable
The OM Pro S is a consistent performer and a fine all-arounder! VIDEO
TECHNICAL DATA • Output voltage at 1000 Hz, 5cm/sec. 5 mV
• Channel balance at 1 kHz 2 dB
• Channel separation at 1 kHz 20 dB
• Channel separation at 15 kHz 15 dB
• Frequency range at - 3dB 20-20.000 Hz
• Frequency response 20-18.000 Hz + 3 / - 2 dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force 70 m
• Compliance, dynamic, lateral 7 m/mN
• Stylus type Spherical
• Stylus tip radius R 26 m
• Equivalent stylus tip mass 0,5 mg
• Tracking force range 3,0-5,0 g (30-50 mN)
• Tracking force, recommended 4,0 g (40 mN)
• Tracking angle 20
• Internal impedance, DC resistance 750 Ohm
• Internal inductance 450 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-600 pF
• Cartridge colour, body/stylus Black/Black
• Cartridge weight 5 g
• Replacement stylus unit PRO S
