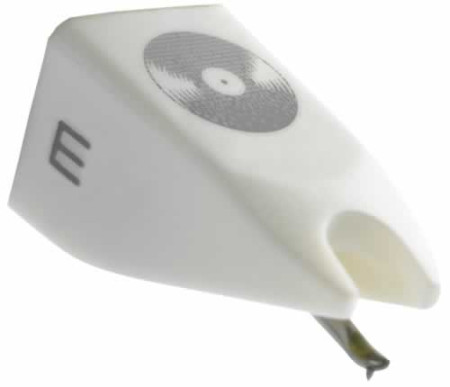

Replacement Stylus for the Ortofon Arkiv. The Arkiv provides accurate sound reproduction, with remarkably pristine highs and stereo imaging, to provide optimal quality when transferring vinyl to PC, CD, or other digital storage media.
With the overwhelming popularity of time coded vinyl solutions, PC-based music production/sampling, and personal digital music players, the Arkiv was created to conquer the task of extracting every last detail from vinyl records before they are finally transcribed into the digital domain.
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 2 dB
Channel separation at 1kHz - 23 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz +/- 2 dB
Tracking ability at 315 Hz at recommended tracking force - 80 m
Compliance, dynamic lateral - 9 m/m N
Stylus type - Special Elliptical
Stylus tip radius r/R 13/25 m
Tracking force range - 2.0-4.0 g (20-40 mN)
Tracking force recommended - 3.0 g (30 mN)
Tracking angle - 20
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde cartridge weight - 18.5 g
Compatible with the Ortofon ARKIV
