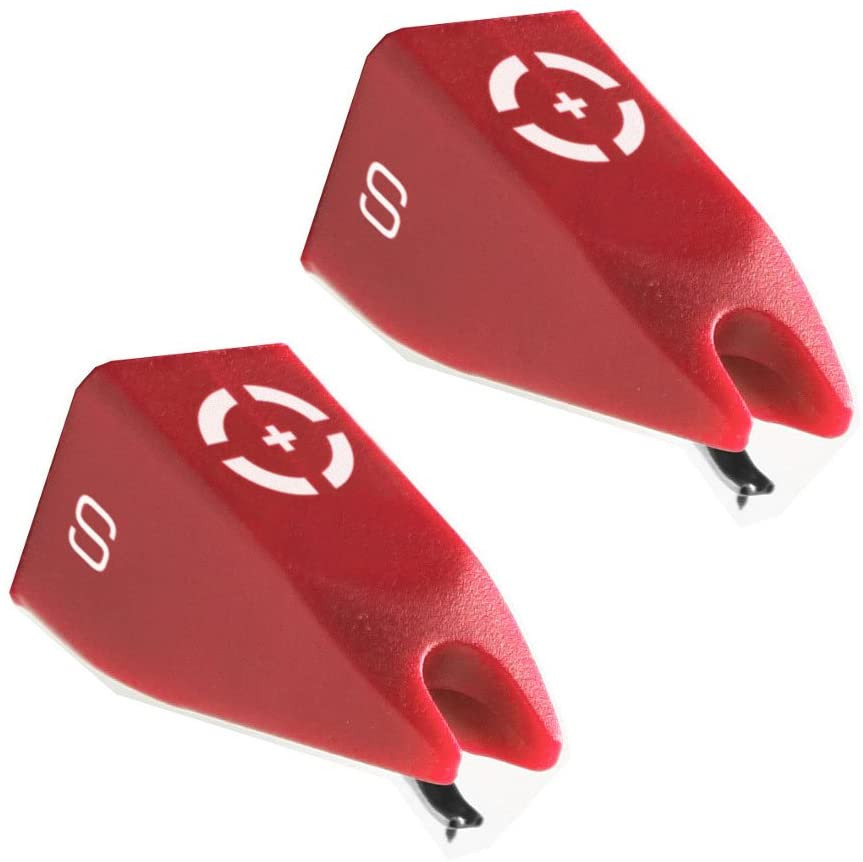

Red replacement stylus for Ortofon DigiTrack cartridge. The DigiTrack is the perfect marriage of easy and function. You can now manipulate MP3's with the style and feel of a turntablist and the tradition of a turntable. The DigiTrack responds to the DJs who make extensive use of timecoded vinyl applications.
With DigiTrack's low wear design and tailored frequency response increase the lifespan of timecoded vinyl records, and provides high quality sound reproduction for playing conventional vinyl records as well.
DigiTrack also features excellent groove-handling capabilities for scratch and mix performance, as well as increased output voltage for improved TCV performance and better sound quality from your mixer's phono preamps.
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Frequency response - 20-18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommended tracking force - 90 m
Compliance, dynamic lateral - 12 m/m N
Stylus type - Spherical
Tracking force range - 2.0-4.0 g (20-40 mN)
Tracking force recommended - 3.0 g (30 mN)
Concorde cartridge weight - 18.5 g
Compatible with the
Ortofon DIGITRACK 1st-generation cartridge.
What does "1st-generation cartridge" mean?In early 2018, Ortofon launched their next-generation Concorde MkII cartridge series:
MIX,
DJ,
CLUB,
SCRATCH and
DIGITAL. Though they may look similar to older models at first glance, the newer model cartridge bodies have been broadened.
Can I use this stylus with a newer 2nd-generation Ortofon MkII cartridge?No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this stylus with a different 1st-generation model Ortofon cartridge?Physically, each series of DJ styli for 1st-gen Concorde will fit on alternate 1st-gen cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using a DIGITRACK stylus with a NIGHTCLUB cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
