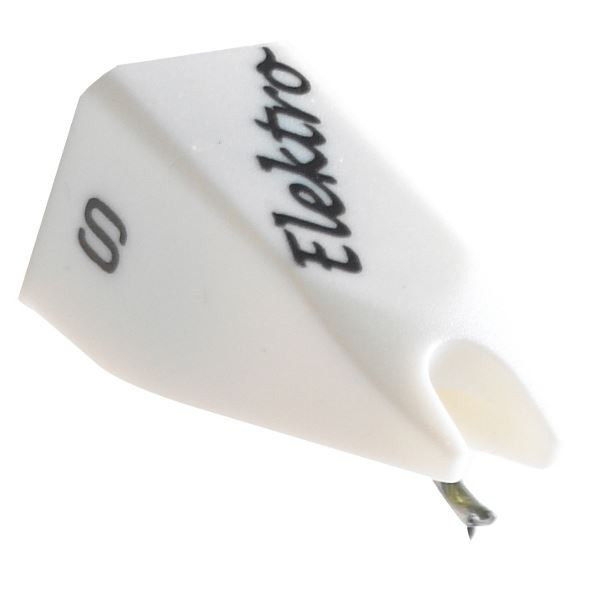

White replacement stylus for Ortofon OM ELEKTRO or CONCORDE ELEKTRO cartridges. Every professional ought to try the Elektro, a techno cartridge made by a team of highly qualified technicians and experienced and capable DJs. Despite its sleek white styling, the Elektro isn't just another pretty face. Also featuring a reinforced rubber suspension, the Elektro is the perfect hybrid needle for the artist who both mixes and scratches.
Enhanced tracking ability and excellent sound quality combine to form a unique balance of form and functionality. With bold, round sound, the Elektro brings your music to life, whether you're in the club or the studio
Unaffected by extreme sound pressure and repeated vibrations, it has a very high output. The musical performance is always first-rate and the tracking ability of the spherical diamond stylus is quite good.
Output voltage at 1000Hz, 5cm/sec. - 7.5 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-22.000 Hz
Frequency response - 20 18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommended tracking force - 80 m
Compliance, dynamic lateral - 6 m/m N
Stylus type - Spherical
Stylus tip radius - R 18 m
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force recommended - 4.0 g (40 mN)
Tracking angle - 20
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde cartridge weight - 18.5 g
Compatible with the
Ortofon ELEKTRO 1st-generation cartridge.
What does "1st-generation cartridge" mean?In early 2018, Ortofon launched their next-generation Concorde MkII cartridge series:
MIX,
DJ,
CLUB,
SCRATCH and
DIGITAL. Though they may look similar to older models at first glance, the newer model cartridge bodies have been broadened.
Can I use this stylus with a newer 2nd-generation Ortofon MkII cartridge?No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this stylus with a different 1st-generation model Ortofon cartridge?Physically, each series of DJ styli for 1st-gen Concorde will fit on alternate 1st-gen cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using a ELEKTRO stylus with a NIGHTCLUB cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
