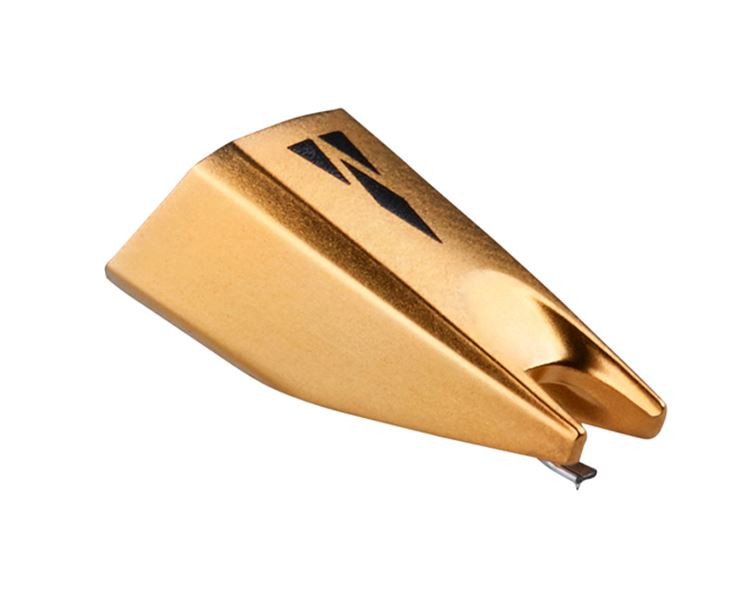

The Replacement Stylus for the 2nd-generation Concorde MkII ELITE flagship cartridgefeatures a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.
The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.
NOTE: The Nude Elliptical stylus is for listening, not for heavy back-cueing and scratching. Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 8,5 mV
Channel seperation at 1 kHz: 25 dB
Channel seperation at 15 kHz: 15 dB
Tracking ability at 315Hz at recommended tracking force: 100 m
Compliance, dynamic, lateral: 13 m/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 m
Tracking force range: 2.0-4.0 g
Tracking force, recommended: 3.0 g
Tracking angle: 20
Cartridge weight: stylus = 1 g
In early 2018, Ortofon launched their next-generation Concorde MkII series:
MIX ,
DJ ,
CLUB ,
SCRATCH and
DIGITAL - and then later the
ELITE - a clear product range for six applications and technological improvements for better performance. This stylus is recommended exclusively for the
Ortofon Concorde MkII ELITE .
Can I use this with an older 1st-Generation Ortofon cartridge? No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this with a different model Ortofon MkII cartridge? Physically, each series of DJ styli for Concorde MkII will fit on alternate MkII cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using CLUB stylus with SCRATCH cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
