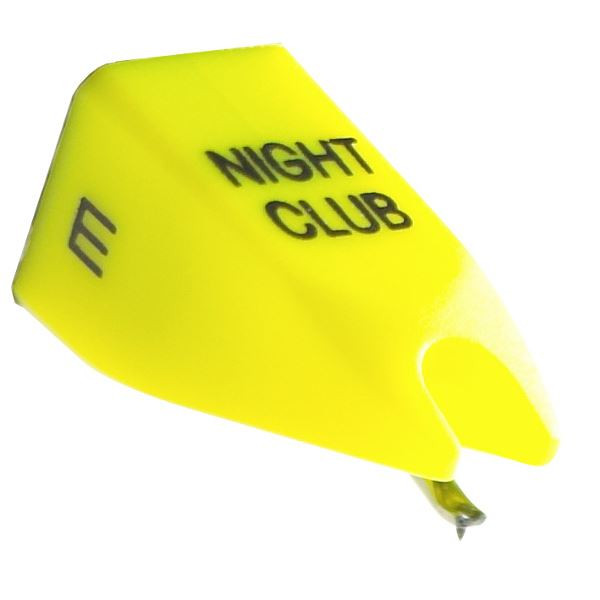

Replacement yellow stylus for Ortofon Concorde Night Club E and OM Night Club E.(Elliptical version). Nightclub E is equipped with Special Elliptical diamond. Perfect for usage in clubs. Superb sound quality. Club DJs and studio workers believe the Nightclub E to be an absolute high-end cartridge. It is indeed a no-nonsence performer with fascinating musical resources.
It's output is superb with a frequency responce rating high enough to compare the Nightclub E to any audiophile cartridge.
The special elliptical stylus guarantees sound with insignificant scratching.
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 23 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz +/- 1.5 dB
Tracking ability at 315 Hz at recommended tracking force - 65 m
Compliance, dynamic lateral - 20 m/m N
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 m
Tracking force range - 2.0-5.0 g (20-50 mN)
Tracking force recommended - 3.0 g (30 mN)
Tracking angle - 20
Internal impedance, DC resistance - 1000 Ohm
Internal inductance - 580 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde cartridge weight - 18.5 g
Compatible with the
Ortofon NightClub 1st-generation cartridge.
What does "1st-generation cartridge" mean?In early 2018, Ortofon launched their next-generation Concorde MkII cartridge series:
MIX,
DJ,
CLUB,
SCRATCH and
DIGITAL. Though they may look similar to older models at first glance, the newer model cartridge bodies have been broadened.
Can I use this stylus with a newer 2nd-generation Ortofon MkII cartridge?No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this stylus with a different 1st-generation model Ortofon cartridge?Physically, each series of DJ styli for 1st-gen Concorde will fit on alternate 1st-gen cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using a NIGHTCLUB NCE stylus with a DIGITRACK cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
