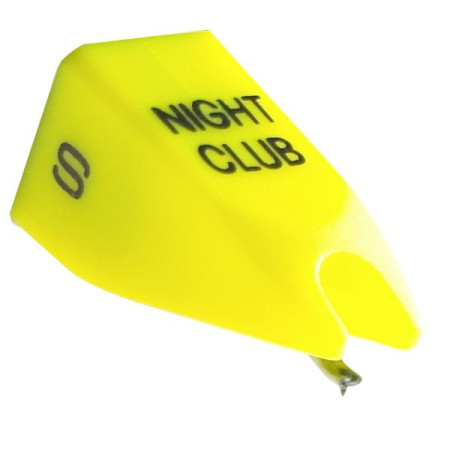

Replacement yellow stylus for Ortofon Concorde Night Club S and OM Night Club S (Spherical). The Nighclub S stylus is amongst the top performers in its category, Scratch and Mix. A spherical diamond and a customised design provide the basis for the cartridge's undeniable supremacy.
The stylus remains in the groove during the scratching and back-cueing, making it unfailingly reliable - even when giving a night-long performance.
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 23 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-22.000 Hz
Frequency response - 20-18.000 Hz +3 / - 2 dB
Tracking ability at 315 Hz at recommended tracking force - 80 m
Compliance, dynamic lateral - 7 m/m N
Stylus type - Spherical
Stylus tip radius - R 18 m
Tracking force range - 2.0-5.0 g (20-50 mN)
Tracking force recommended - 3.0 g (30 mN)
Tracking angle - 20
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde cartridge weight - 18.5 g
Compatible with the
Ortofon NightClub 1st-generation cartridge.
What does "1st-generation cartridge" mean? In early 2018, Ortofon launched their next-generation Concorde MkII cartridge series:
MIX ,
DJ ,
CLUB ,
SCRATCH and
DIGITAL . Though they may look similar to older models at first glance, the newer model cartridge bodies have been broadened.
Can I use this stylus with a newer 2nd-generation Ortofon MkII cartridge? No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this stylus with a different 1st-generation model Ortofon cartridge? Physically, each series of DJ styli for 1st-gen Concorde will fit on alternate 1st-gen cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using a NIGHTCLUB NCS stylus with a DIGITRACK cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
