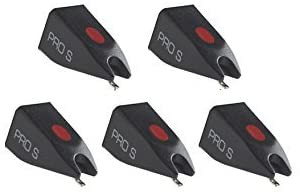

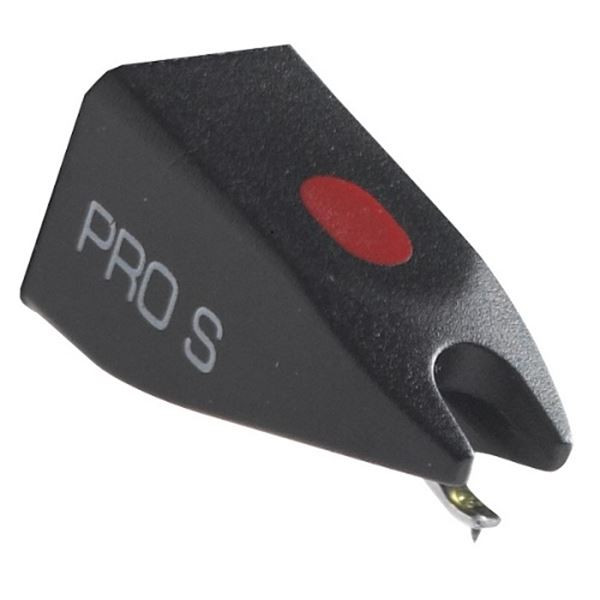

Replacement black stylus for Ortofon Concorde Pro S and OM Pro S. The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment. The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.
No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The sound quality is absolutely not to worry about.
The Pro S is a consistent performer and a fine all-arounder!
Output voltage at 1000Hz, 5cm/sec. - 5 mV
Channel balance at 1kHz - 2 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Frequency response - 20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force - 70 m
Compliance, dynamic lateral - 7 m/m N
Stylus type - Spherical
Stylus tip radius - R 18 m
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force recommended - 4.0 g (40 mN)
Tracking angle - 20
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde / OM cartridge weight - 18.5 g / 5.0 g
Compatible with the
Ortofon Pro S 1st-generation cartridge.
What does "1st-generation cartridge" mean? In early 2018, Ortofon launched their next-generation Concorde MkII cartridge series:
MIX ,
DJ ,
CLUB ,
SCRATCH and
DIGITAL . Though they may look similar to older models at first glance, the newer model cartridge bodies have been broadened.
Can I use this stylus with a newer 2nd-generation Ortofon MkII cartridge? No. Concorde MkI and Concorde MkII styli are not interchangeable and will not even fit physically.
Can I use this stylus with a different 1st-generation model Ortofon cartridge? Physically, each series of DJ styli for 1st-gen Concorde will fit on alternate 1st-gen cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using a PRO-S stylus with a NIGHTCLUB cartridge body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
