PowerMode' Series Power Amplifiers: The two-rack-space PowerMode 4 features four power amps rated to deliver 180 watts each into four 8-ohm speakers, with an innovative input section that offers numerous system hookup configurations. All four channels will operate full range or in stereo two-way or bridged modes, while channels 1 and 2 will also operate in parallel. Channels 3 and 4 have an 800-watt subwoofer output that enables a low-pass filter to drive frequencies below 120 Hz to a subwoofer (channels 1 and 2 run full range when this mode is engaged; channels 3 and 4 are bridged).

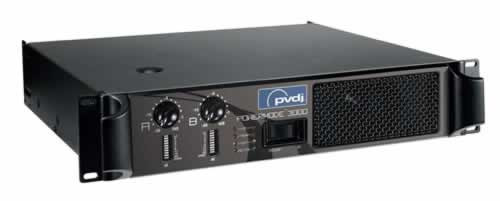

Both channels on the PowerMode 3000 and 2000 include a variable crossover, variable low-pass filter and an amp function switch that switches from highs, lows or full range. On all PowerMode amps, the front panel display includes LED indicators for signal presence and DDT active, as well as individual power LEDs that indicate fault conditions. They also feature circuitry to protect against shorts, improper loads, overdriven turn-on levels, high temperatures, DC and subsonic frequencies that could damage loudspeakers.
To ensure cool operating temperatures, the PowerMode 2000 and 3000 include two variable-speed cooling fans, while the PowerMode 4 has one variable-speed cooling fan. These amps ship with XLR-1/4" combination inputs; IEC mains connector, Speakon and binding post (2000 and 3000 models only) outputs; and our strong five-year warranty. The 2000 and 3000 also have 10-segment bar-graph LED displays.
• Built-in crossover variable from 40 to 300 Hz
• Variable low-cut filter from 20 to 100 Hz
• Rated Power bridged 4 ohms, 3050 watts; 1 kHz @ <0.1% T.H.D.
• Rated Power (1 x 2 ohms) 2150 watts @ 1 kHz @ <0.1% T.H.D.
• Rated Power (1 x 4 ohms) 1400 watts @ 1 kHz @ <0.05% T.H.D.
• Rated Power (1 x 8 ohms) 825 watts @ 1 kHz @ <0.05% T.H.D.
• Rated Power (2 x 2 ohms) 1500 watts per channel @ 1kHz <0.1% T.H.D. both channels driven
• Rated Power (2 x 4 ohms) 1100 watts per channel @ 1kHz <0.1% T.H.D. both channels driven
• Rated Power (2 x 8 ohms) 700 watts per channel @ 1kHz <0.1% T.H.D. both channels driven
• Frequency response: 10 Hz to 100 kHz; +0, -0.5 dB at 1 watt
• Weight 43 lbs. (2RU)
|Product Condition||New - On Clearance|
