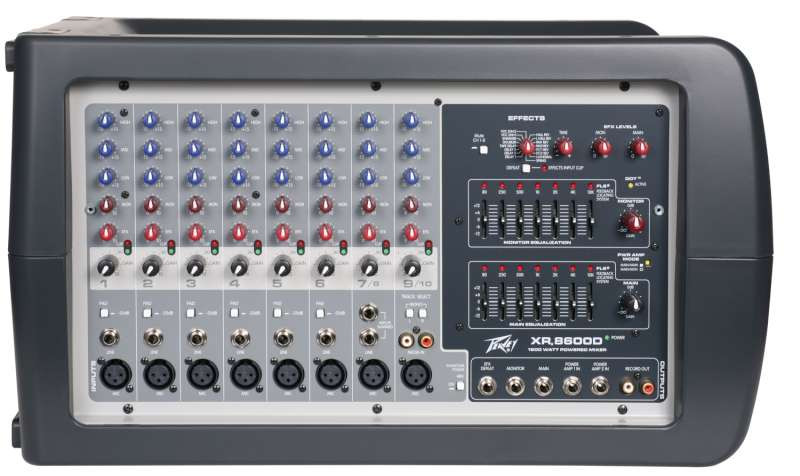

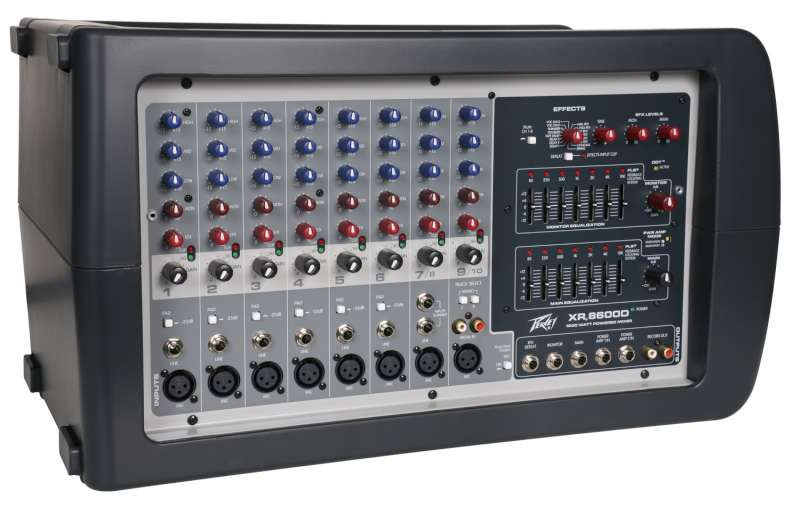

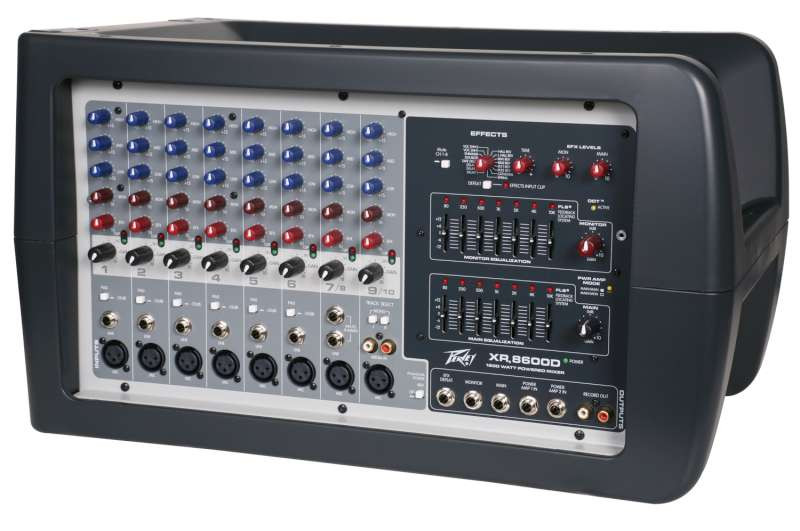

The XR8600D features eight ultra-low-noise mic preamps and ten line inputs, with 16 built-in DSP effects, monitor send and effects send on each channel, 7-band graphic EQ with patented FLS Feedback Locating System and two 600-watt power amps that can run in parallel in Dual Main mode-making the full 1,200 watts available to the main output-or used independently in Main/Monitor mode.
FEATURES: - 10 line inputs
- 3-band equalization on each channel
- Monitor send on each channel
- 25 dB pad: channels 1-6
- Dual main or main/monitor power amp mode switch
- Dedicated 7-band EQ for main/monitors with FLS'
- DSP-based effects
- 16 presets with parameter control
- Dual 600 Watt per channel internal power amplifiers
- DDT speaker protection with activity LED
- Mute switch for input channels 1-8
- Signal/clipping indicator on each channel
- 48 Volt phantom power
- 8 improved, low-noise, mic preamps
- Weight Unpacked: 25.13 lb(11.4 kg)
- Weight Packed: 31.31 lb(14.2 kg)
- Width Packed: 17.5"(44.45 cm)
- Height Packed: 25"(63.5 cm)
- Depth Packed: 17"(43.18 cm)
