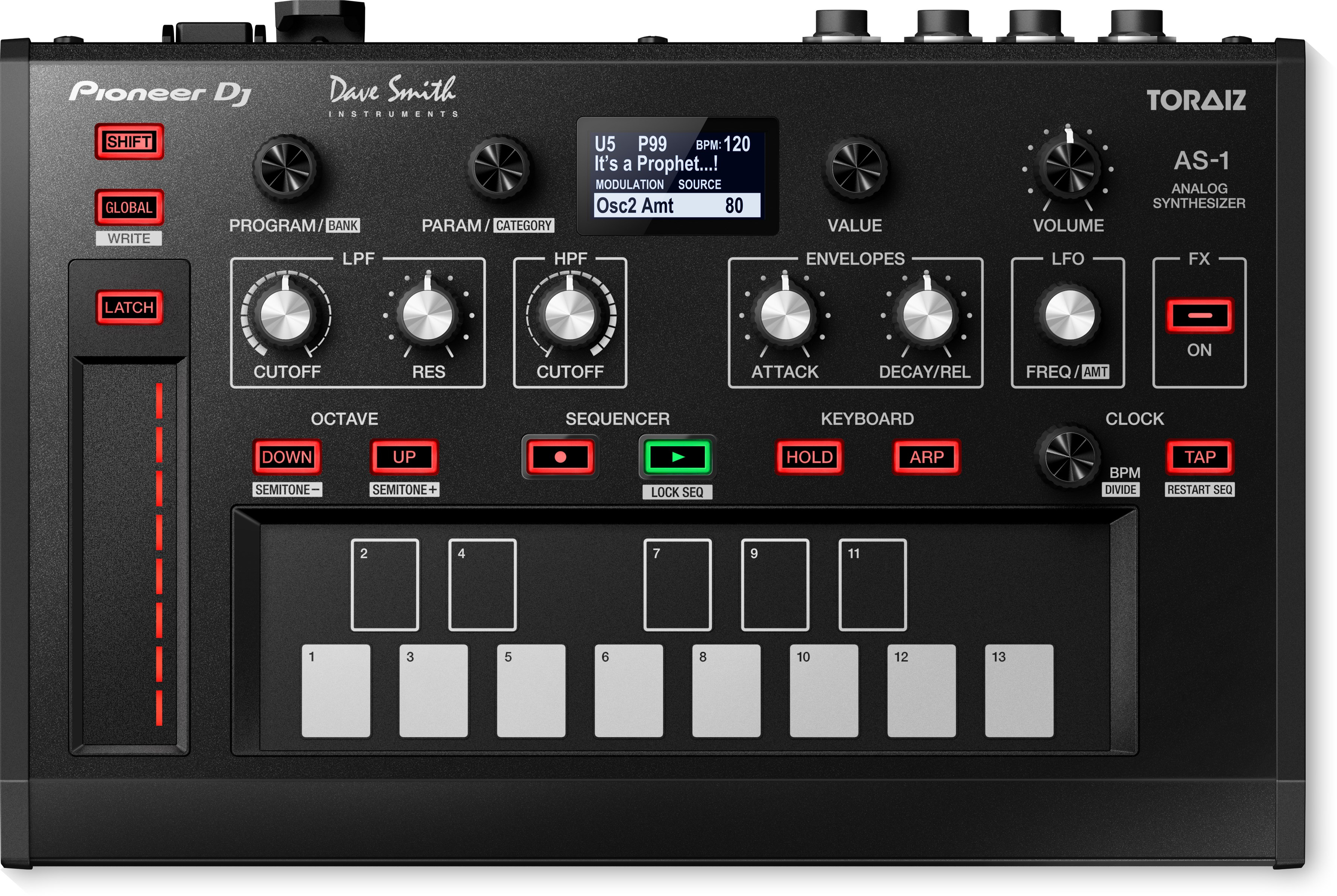

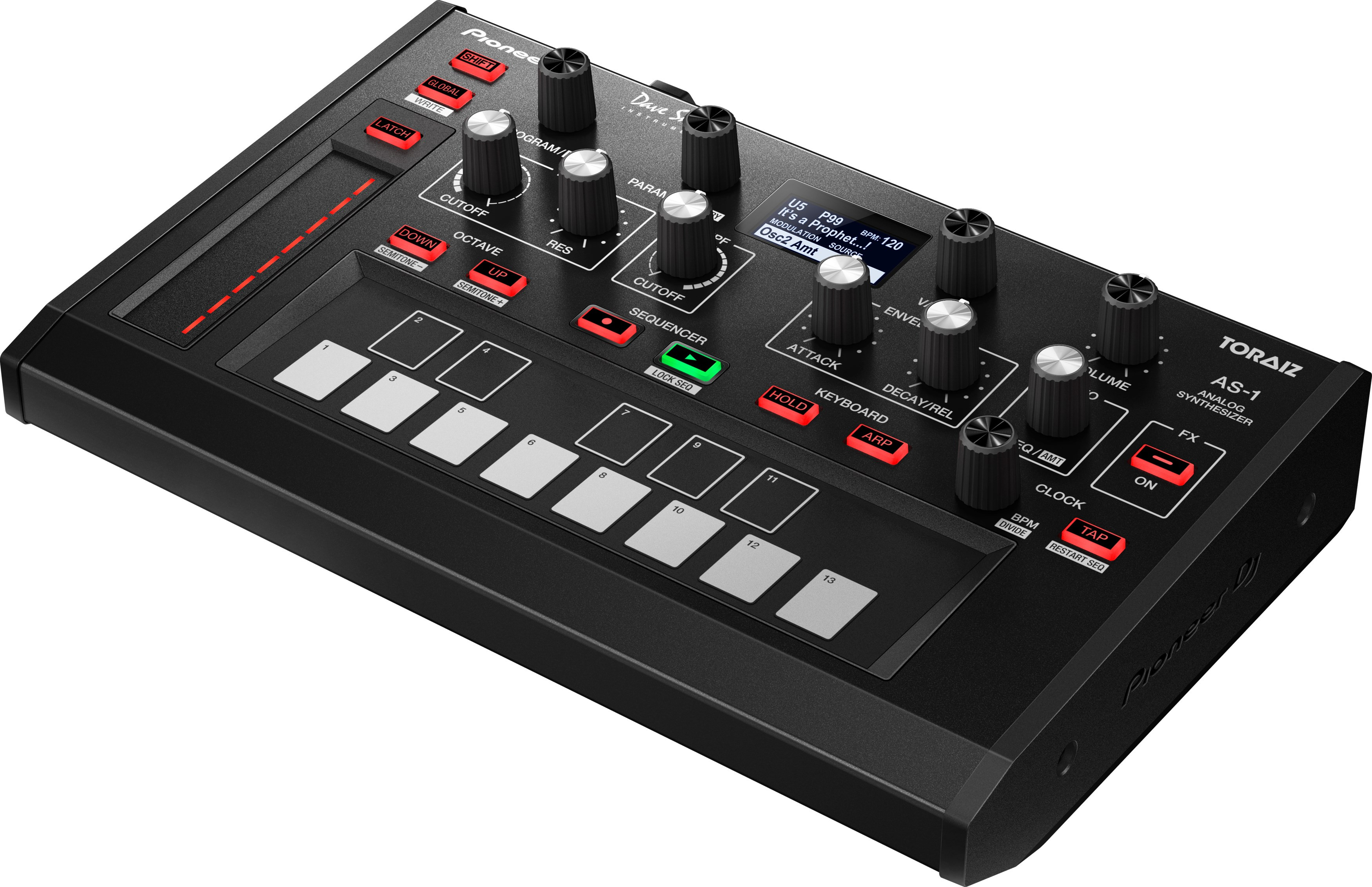

The second musical instrument in our TORAIZ range, the AS-1 is a monophonic analog synthesizer that brings new creative possibilities to the studio and the stage.
Its intuitive controls include parameter knobs that let you make both subtle and dramatic changes to the tone of your music to create your own personalised sound. Plus you can use the touchpad-style keyboard and slider to manipulate sounds during performances.
The TORAIZ AS-1 is driven by a fully programmable, true analogue synthesis engine based on the discrete analogue circuitry in Dave Smith Instruments' Prophet-6 synthesizer. It also inherits 7 on-board effects from the Prophet-6 synth as well as a brand new digital distortion.
SequencerParameters
• Key, Velocity, Slew (Off, On) for each step
• BPM (shared with arpeggiator)
• Time Divide (shared with arpeggiator)
Step Length
• Up to 64 steps

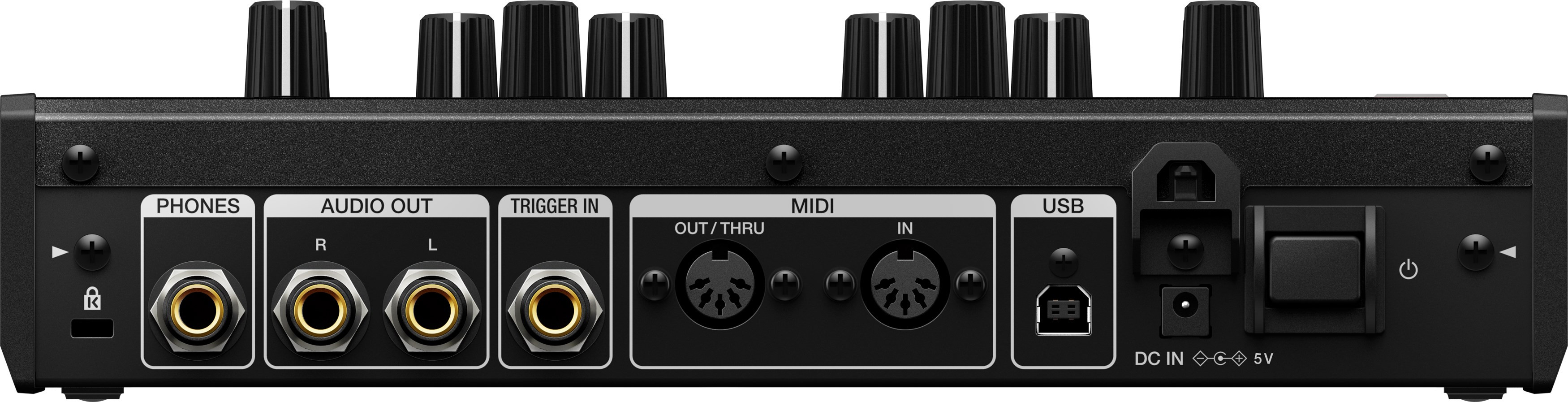

TerminalsOutputs
• 1 AUDIO OUT L/R (1/4 inch TS Jacks)
• 1 PHONES (1/4 inch stereo phone Jack)
MIDI
• 1 MIDI IN (5P DIN)
• 1 MIDI OUT/THRU (5P DIN)
USB
• 1 USB B port
Others
• 1 TRIGGER IN (1/4 inch TS jack)
Trigger Input
• Able to connect a general foot switch or input audio signals
• Able to set the operation from 4 types:
• Pedal
• Trigger
• Gate
• Trigger-Gate
Synthesis ParametersOscillator 1
• Frequency
• Pulse Width
• Sync (Off, On)
Oscillator 1 Shapes
• Triangle
• Sawtooth
• Variable-width Pulse
Oscillator 2
• Frequency
• Fine
• Pulse Width
• Key Follow (Off, On)
• Low Frequency (Off, On)
Oscillator 2 Shape
• Triangle
• Sawtooth
• Variable-width Pulse
Mixer
• Oscillator 1 Level
• Oscillator 2 Level
• Sub Level
• Noise Level
Low-pass Filter
• Cutoff
• Resonance
• Key Amount (Off, Half, Full)
• Velocity (Off, On)
High-pass Filter
• Cutoff
• Resonance
• Key Amount (Off, Half, Full)
• Velocity (Off, On)
Filter Envelope
• Low-pass Filter Amount
• High-pass Filter Amount
• Attack
• Decay
• Sustain
• Release
AMP Envelope
• Amount
• Velocity (Off, On)
• Attack
• Decay
• Sustain
• Release
Glide
• Rate
• Off, On
• Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)
LFO
• Frequency
• Sync (Off, On)
• Initial Amount
LFO Shapes
• Triangle
• Reverse Sawtooth
• Sawtooth
• Square
• Random
LFO Destination
• Oscillator 1 Frequency
• Oscillator 2 Frequency
• Oscillator 1 and 2 Pulse Width
• Low-pass Filter Cutoff
• High-pass Filter Cutoff
• VCA
Modulation Source
• Filter Envelope
• Oscillator 2 Amount
Modulation Destination
• Oscillator 1 Frequency
• Oscillator 1 Shape
• Oscillator 1 Pulse Width
• Low-pass Filter Cutoff
• High-pass Filter Cutoff
EffectsFX 1 Type
• Bucket-brigade Delay
• Distortion
• Ring Modulation
FX 2 Types
• Chorus
• Low Resonance Phaser
• High Resonance Phaser
• Maestro Phaser
Parameters
• Each effect has 2 adjustable parameters
ArpeggiatorMode
• Up
• Down
• Up + Down
• Random
• Assign
Range
• 1 3 octaves
Parameters
• BPM (shared with sequencer)
• Time Divide (shared with sequencer)
Performance ControlKeyboard
• 13-key touch keyboard
• 22 preset scales
• 9 octaves: C0 C9 (use with Oscillator 1 and 2 frequency parameters)
Slider Parameters
• Oscillator 1 Frequency
• Oscillator 2 Frequency
• Low-pass Filter Amount
• High-pass Filter Amount
• LFO Amount
• FX 1 Mix
• FX 2 Mix
OLED Display
• Able to access all parameters
MIDI Controllable ParametersAftertouch
• Amount
Aftertouch Destination
• Oscillator 1 Frequency
• Oscillator 2 Frequency
• Low-pass Filter Cutoff
• High-pass Filter Cutoff
• VCA
• LFO Amount
Pitch Bend Range
• Up to -/+ 12 semitones
MiscellaneousKey Mode
• Low
• High
• Last
• Low Retrigger
• High Retrigger
• Last Retrigger
Alternative Tuning
• 17 preset tunings
Dimensions: 10.53 x 7 x 2.7 in
Weight: 3.09 lbs
Included Accessories
• AC adaptor
• Power Cord
• Quick Start Guide
• Warranty
