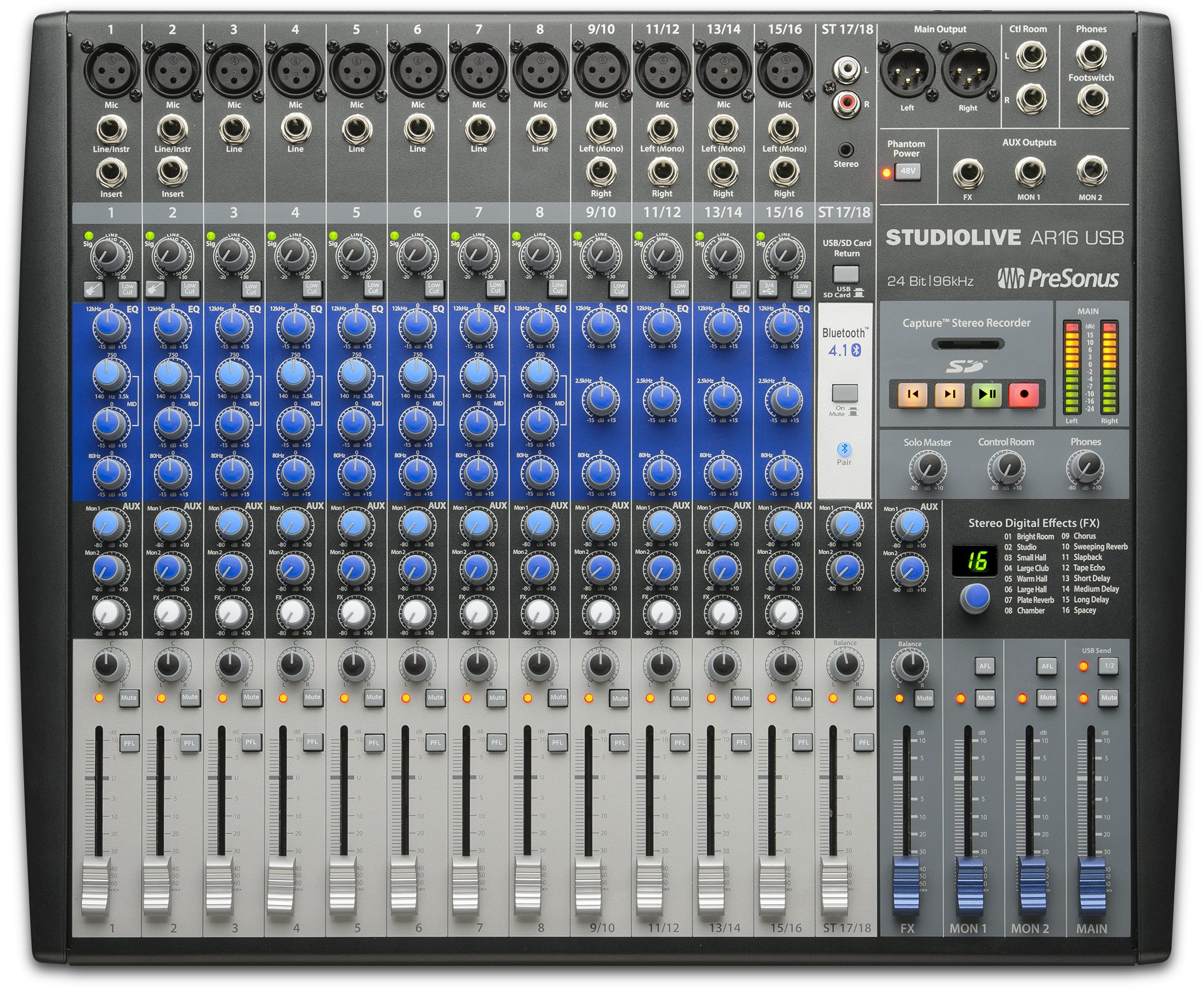

All of the connections and controls you needStudioLive AR16 USB mixers are packed with the connections and controls needed to mix and record live, in the studio, and in rehearsal. Each of the eight mono channels and four stereo channels includes a 60 mm fader for level control; a mic input with one of PreSonus' prized Class A preamps; three-band EQ; and more. Besides the main outputs, you get two monitor mix outputs, each with a dedicate bus, for feeding stage wedges, a headphone amp, or an in-ear system. Since the StudioLive AR16 USB is also a studio mixer, you also get control-room outputs with level control to feed your studio monitors.
Plug guitars and basses directly into the mixerMost mixers make you route acoustic and electric guitars and basses through external direct boxes before connecting to a mixer input. But with StudioLive AR mixers, Channels 1 and 2 have high-impedance instrument inputs, so you can plug a guitar or electric bass straight into the boardno direct box needed.
It's inputs; it's playback; it's the Super Channel!Our unique Super Channel (stereo Channel 17/18) allows you to connect four stereo analog and digital sources at once, enabling you to use the mixer with your high-tech devices. Plug a media player into the Super Channel's unbalanced RCA and 1/8-inch stereo inputs, play stereo audio from the onboard SD' recorder or from your USB-connected Mac or Windows PC. Use onboard Bluetooth 4.1 to pair your phone to your StudioLive AR mixer and instantly have wireless access to your music library for break music, backing tracks, or ear-training. Have a song you want the rest of the band to learn? Pair your phone and start rehearsing!
Record in the studio or at the gigwith or without a computerNaturally, you want to record your gigs, as well as producing studio projects, podcasts, and so on. It's smart to record your rehearsals, too. So StudioLive AR mixers offer two different ways to record. Connect a StudioLive AR16 USB mixer to your computer via USB 2.0, and you have an 18x4 multitrack digital recorder, ready to capture all input channels plus the main mix to a Mac or Windows PC with professional, 24-bit/96 kHz quality. An onboard stereo SD recorder lets you record the main mix without a computerjust hit Record and go. Recording can't get much easier than this!
Fly in backing tracks and play break music, too!Both the integrated USB recording interface and the SD recorder have multiple uses beyond simply recording. With just a few backing tracks, your small band can sound like a much larger act, so we enabled the USB interface to play back two stereo streams through the mixergreat for backing tracks, click tracks, or program music. Use the SD recorder to play up to 32 GB of MP3 and .WAV files for hours of program music or backing tracks without needing a computer. And don't forget the Bluetooth feature in the Super Channel, which lets you play break music straight from your smartphone. With several ways to get the job done, you can work the way you want to.
Integrated software makes recording a snapPreSonus StudioLive AR mixers are tightly integrated with state-of-the-art recording software to help you achieve your creative vision. Record with PreSonus' Capture' live-recording software, then edit in our award-winning Studio One Artist DAW (recording and production software); both are included free.

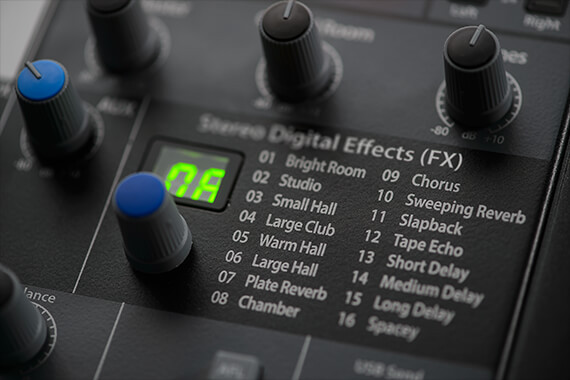

Sweeten with digital effects for a polished, professional-caliber soundTo get a great mix, you need high-quality effects. The StudioLive AR16 USB has you covered with an internal stereo effects processor with 16 presets, including an assortment of room, hall, and plate reverbs; chorus and delay effects; even a preset that emulates an acoustically treated studio room to provide a warmer, more intimate tone. A dedicated effects return, complete with master level fader and dedicated monitor sends, lets you adjust the amount of the effects in your main and monitor mixes. You can even bypass the effects with a footswitch (optional). It's just another way that StudioLive AR mixers enable you to build professional-quality mixes and recordings quickly and easily.
A complete solution that's compact, easy to use, and built for the roadCompact and built for the road, the StudioLive AR16 USB is an easy-to-use, all-in-one solution for audio mixing and recording. With a wide variety of connections, two ways to record, and a simple, elegant mixing surface, it will quickly become the heart of your live and studio sound systems.
Channels and Buses
18-channel mixer
8 mono and 4 stereo channels, each with:
60 mm level fader
Pan
Mute
PFL solo
1 stereo Super Channel (Ch. 17/18)
2 monitor buses with PFL solo
1 stereo effects bus
1 stereo effects return with:
60 mm master fader
Dedicated monitor sends
Effects bypass footswitch jack
Inputs and Outputs
2 instrument inputs
16 balanced line inputs
2 unbalanced inserts
12 balanced mic inputs with:
Class A microphone preamp
Global 48V phantom power
Stereo Super Channel with:
Stereo RCA inputs
1/8-inch stereo input
Switchable SD'/USB stereo playback
Bluetooth 4.1 input
L/R XLR main outputs
2 balanced TRS monitor outputs
1 balanced TRS effects output
L/R Control Room outputs with level control
Headphone output with level control
Signal Processing
Highpass filter on every channel
Mono channels: 3-band semi-parametric EQ with sweepable mid-band
Stereo channels: 3-band semi-parametric EQ
Stereo effects processor with 16 presets
Recording Options
18x4 24-bit/96 kHz, USB 2.0 audio recording interface
Record every channel plus the Main Mix
2x2 SD recorder
Record main mix
Supports SD' and SDHC' formats up to 32 GB
Integrated Software
Capture' recording software
Studio One 3 Artist recording and production software (DAW)

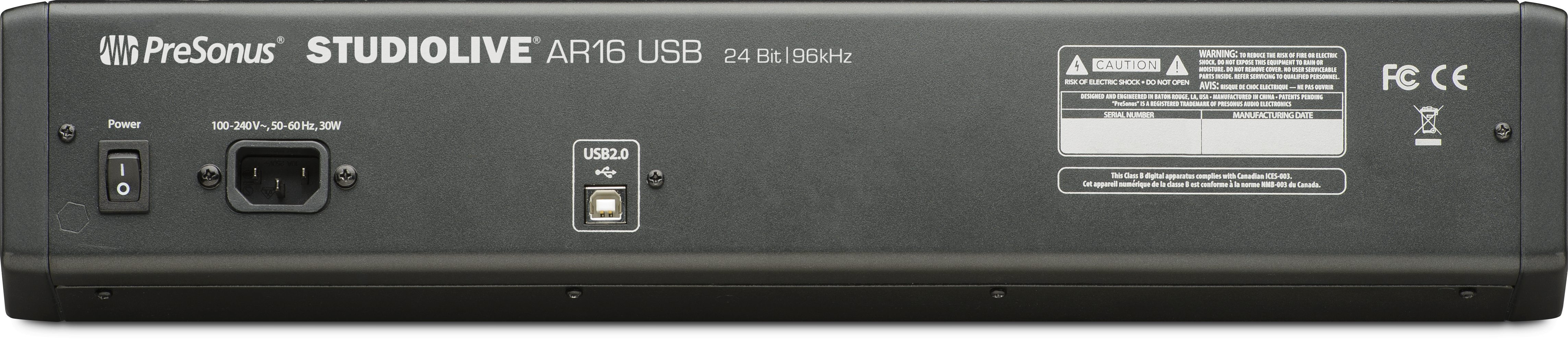

Power
Internal power supply
Standard IEC power connector
Physical
Sturdy metal construction
60 mm faders
Rackmount kit included
Computer system requirements:
Below are the minimum computer-system requirements for use with Capture' and Studio One.
Mac
Mac OS X 10.8.5
Intel Core' 2 Duo processor (Intel Core i3 or faster recommended)
Windows
Windows 7 x64/x86 SP1 +platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
Mac and Windows Systems
4 GB RAM (8 GB or more recommended)
30 GB hard-drive space (Studio One)
Internal or external 7200 RPM storage drive highly recommended
Monitor with 1366x768 resolution (high-dpi monitor recommended)
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
