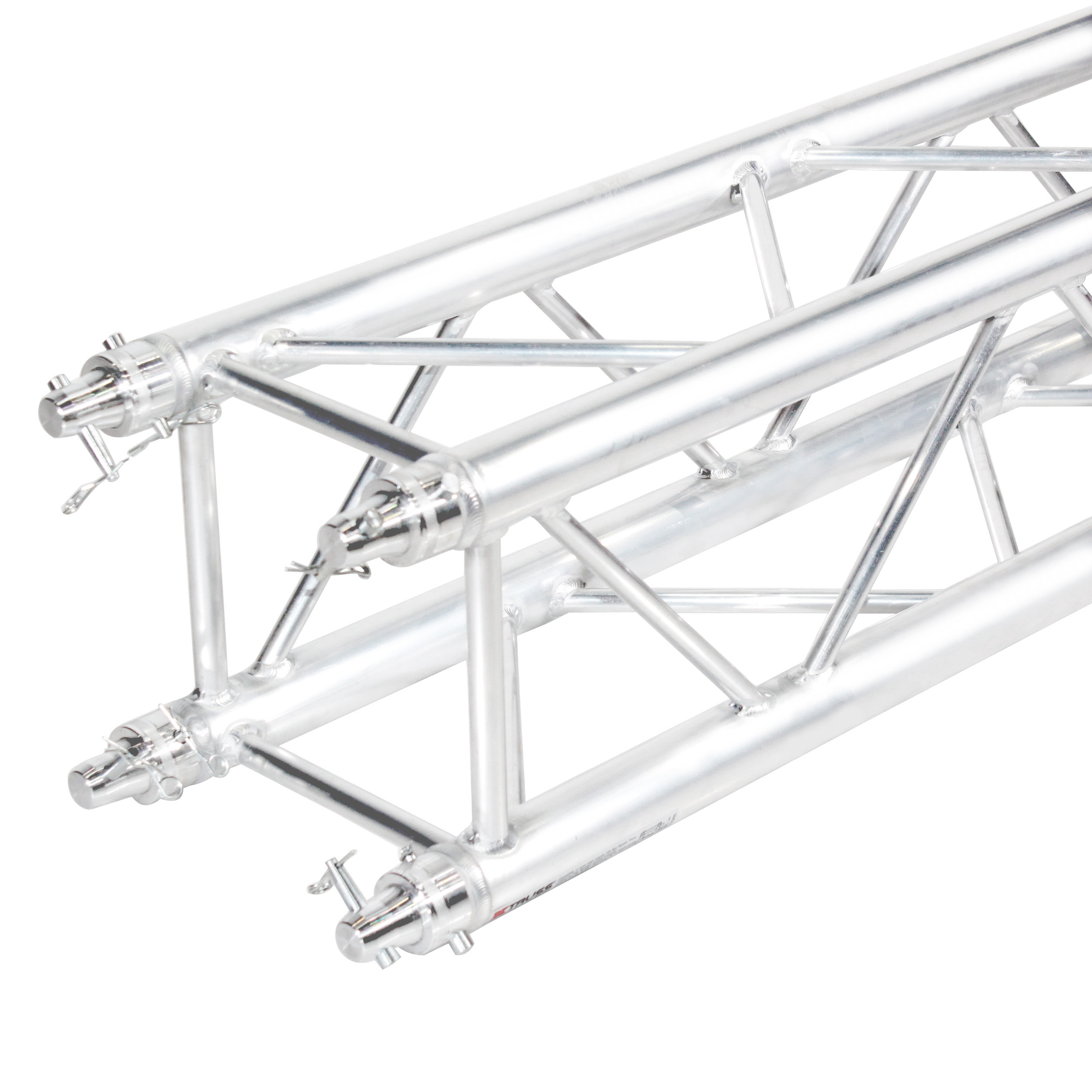

ProX KT-F34SQ820 8.20ft (2.5m) F34 Economy K-Truss Segment

The ProX KT-F34SQ820 is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.

KT-F34 SERIES DIMENSIONS
• Width: 11.42in / 290mm
• Height: 11.42in / 290mm
• Main Tube: 2in / 50mm
• Wall Thickness: .06in / 1.5mm
• Braces: .63in / 16mm
Actual Height: 9.84 ft. (3 Meter) F34 4Tube Truss Segment

Features
• Compatible in SIZE ONLY w/most major brands F34 Box Square Truss
• Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments!
• Tolerance Free Standard Conical connector
• Material: EN-AW T6-6061 Aluminium Display Grade Quality
• Constructed to the highest quality by certified welders
• K Series Trussing is an Economy Light-Structural Product primarily designed for display structures.
• The K-Truss' load capacity is 75% of the 2mm SQ series.
• Engineering Drawings and Design Copyright ? 2019 by ProX Live Performance Gear

To Fit:
Compatible in SIZE ONLY w/most major brands F34 Box Square Truss with conical connectors.
Not intended for replacement or substitute for any load-bearing truss segments!

Dimensions
98.40"L x 11.42"W x 11.42"H
Weight: 22.00 lbs
