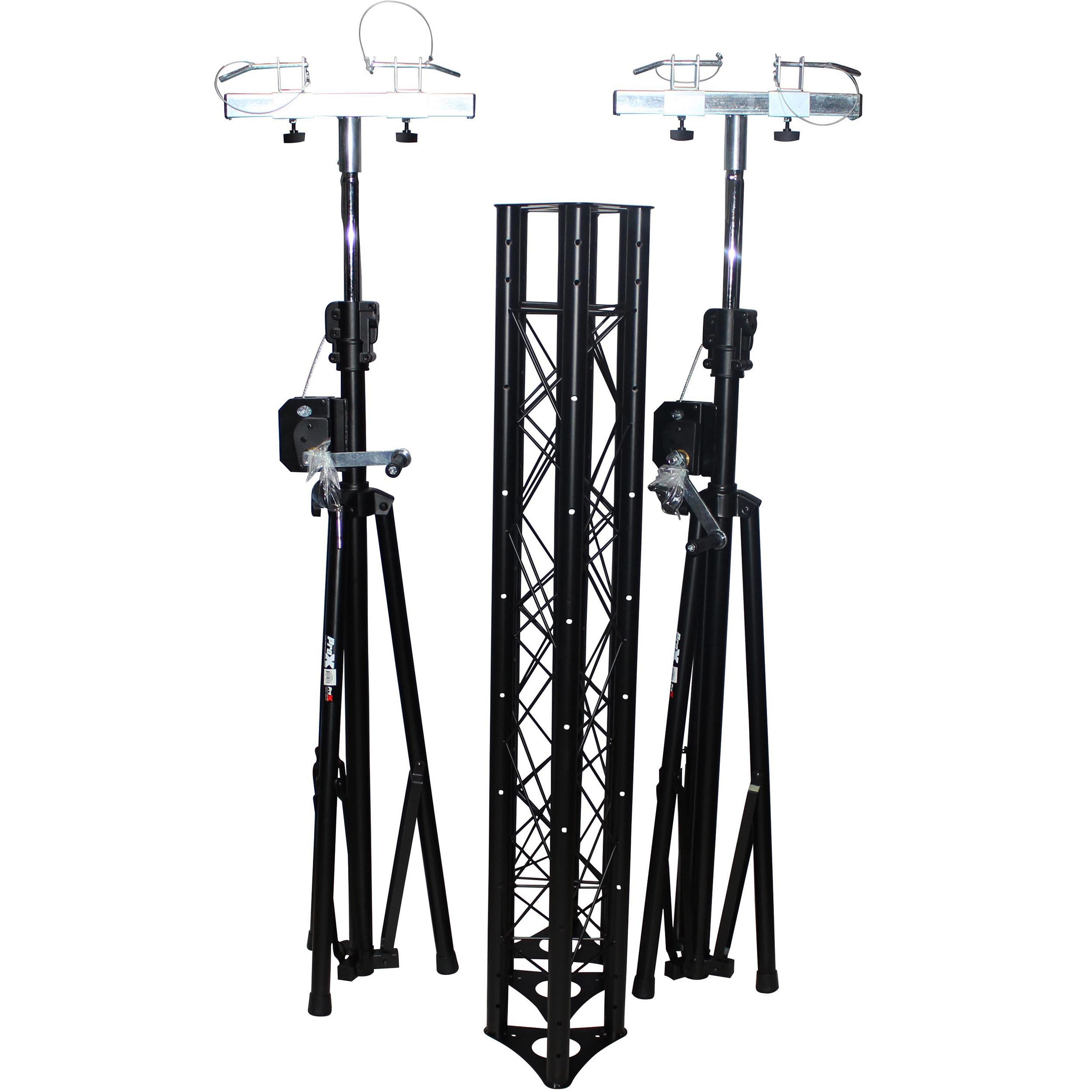

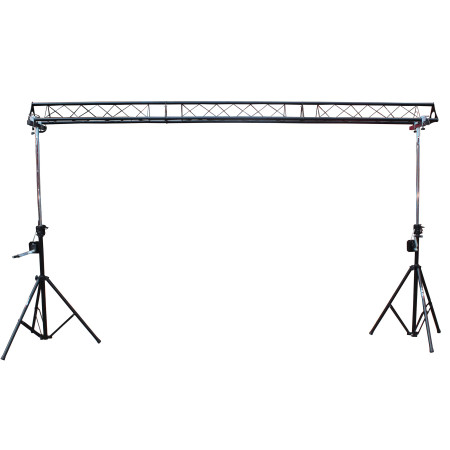

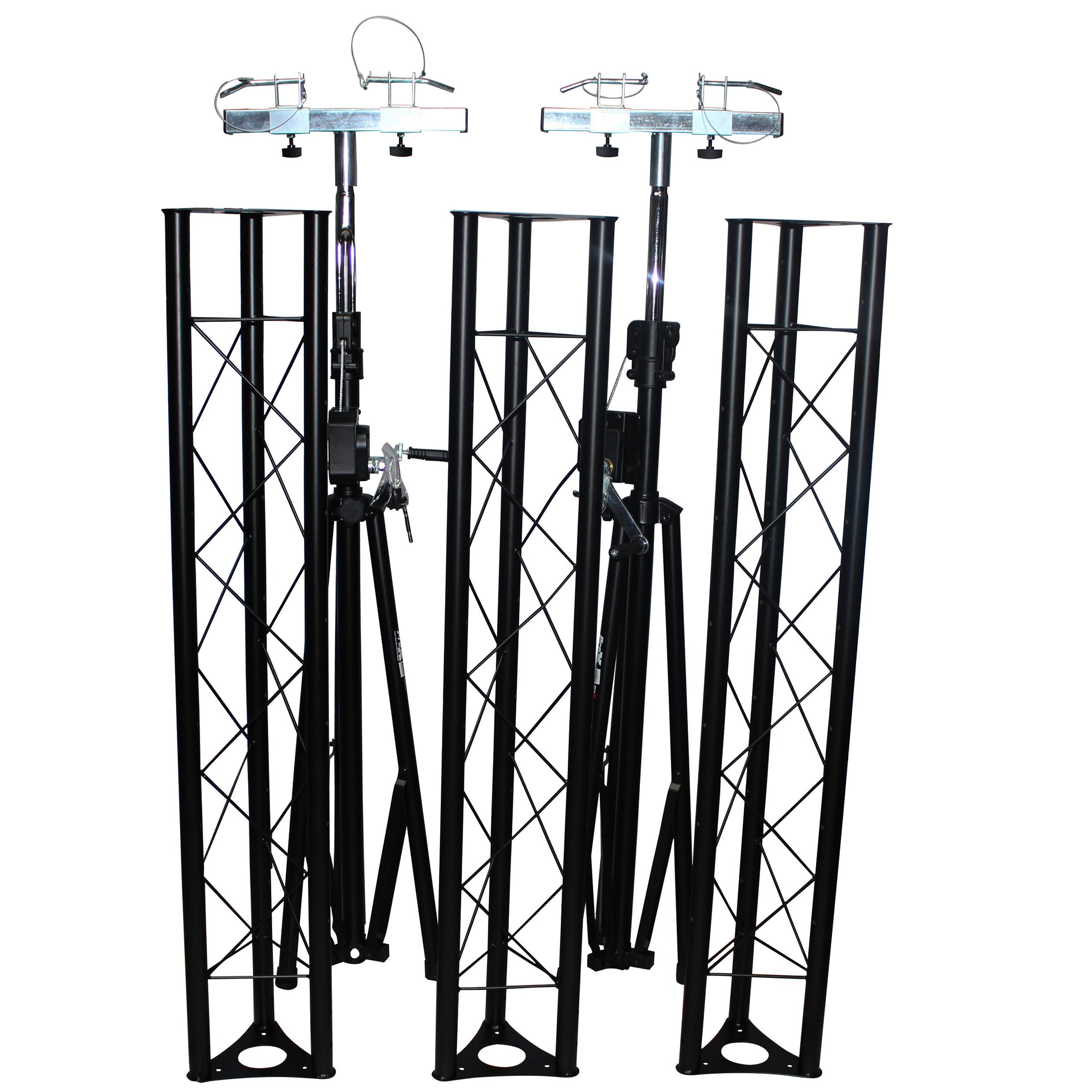

ProX T-LS35C Stage Complete Portable Crank Up System Lighting Triangle Truss System with 3x 57" Truss Sections for 5ft 10ft 15ft Wide 10ft Height Sections. Introducing the ProX T-LS35C, a versatile triangular crank truss system designed to meet your lighting needs. This package includes two robust crank-up stands and three 5-foot triangle truss sections, providing you with the flexibility to create spans ranging from 5 - 15 feet.
With a safe height range of 9-10 feet, this medium-duty truss stand ensures stability for your lighting setup. Included in the package are a pair of T-Adapters for hassle-free truss mounting, allowing you to securely attach up to 360 lbs of equipment evenly. The truss tubes boast a 35mm (1-3/8-inch) diameter, while the truss sections measure 6 inches in overall width and 57 inches in length.
VIDEO
• Sections Range from 5 Ft to 14 Ft. (57" per section)

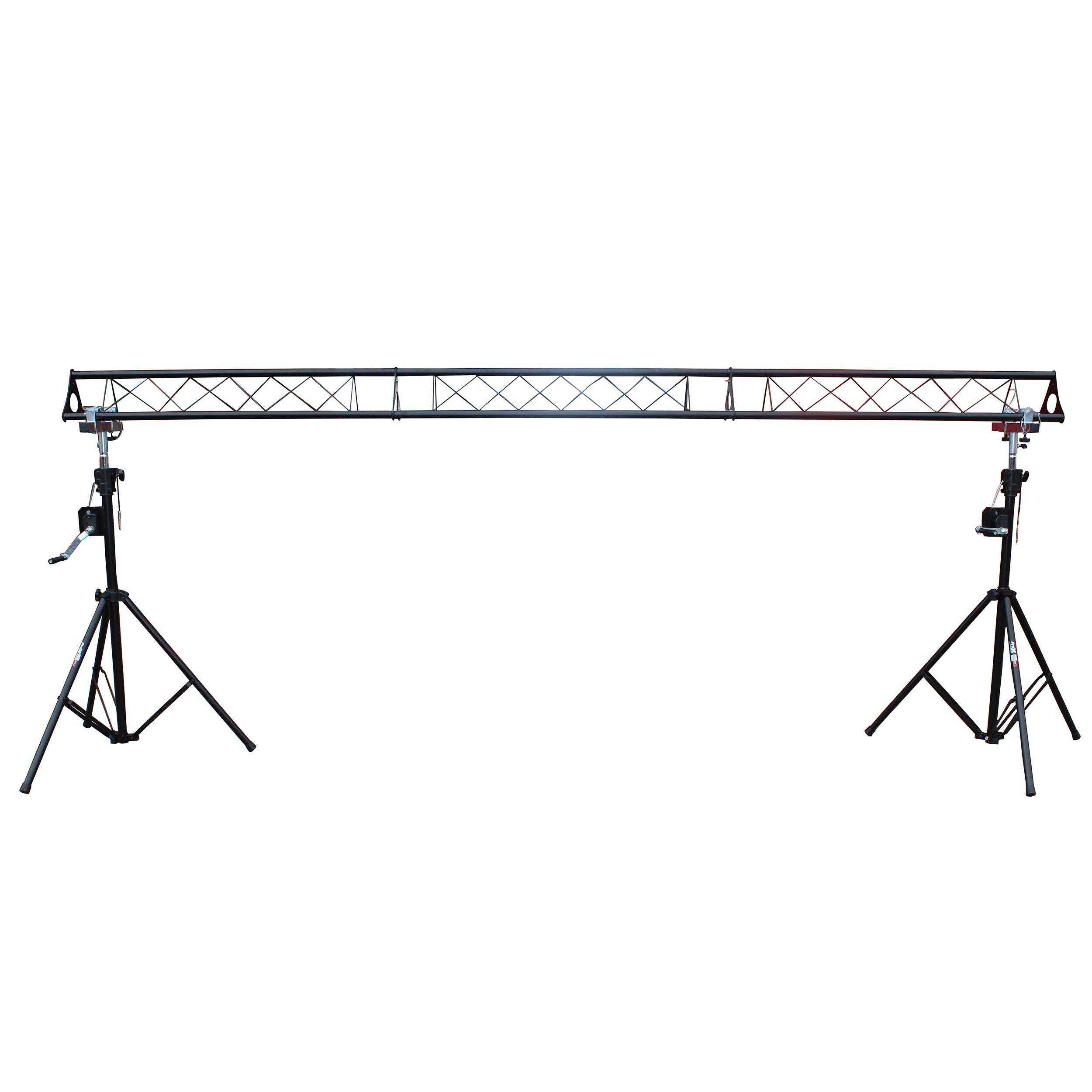

• Equipped with 5 Ft, 10 Ft, or 15 Ft. width configurations
• Complete portable multi-size lighting truss system

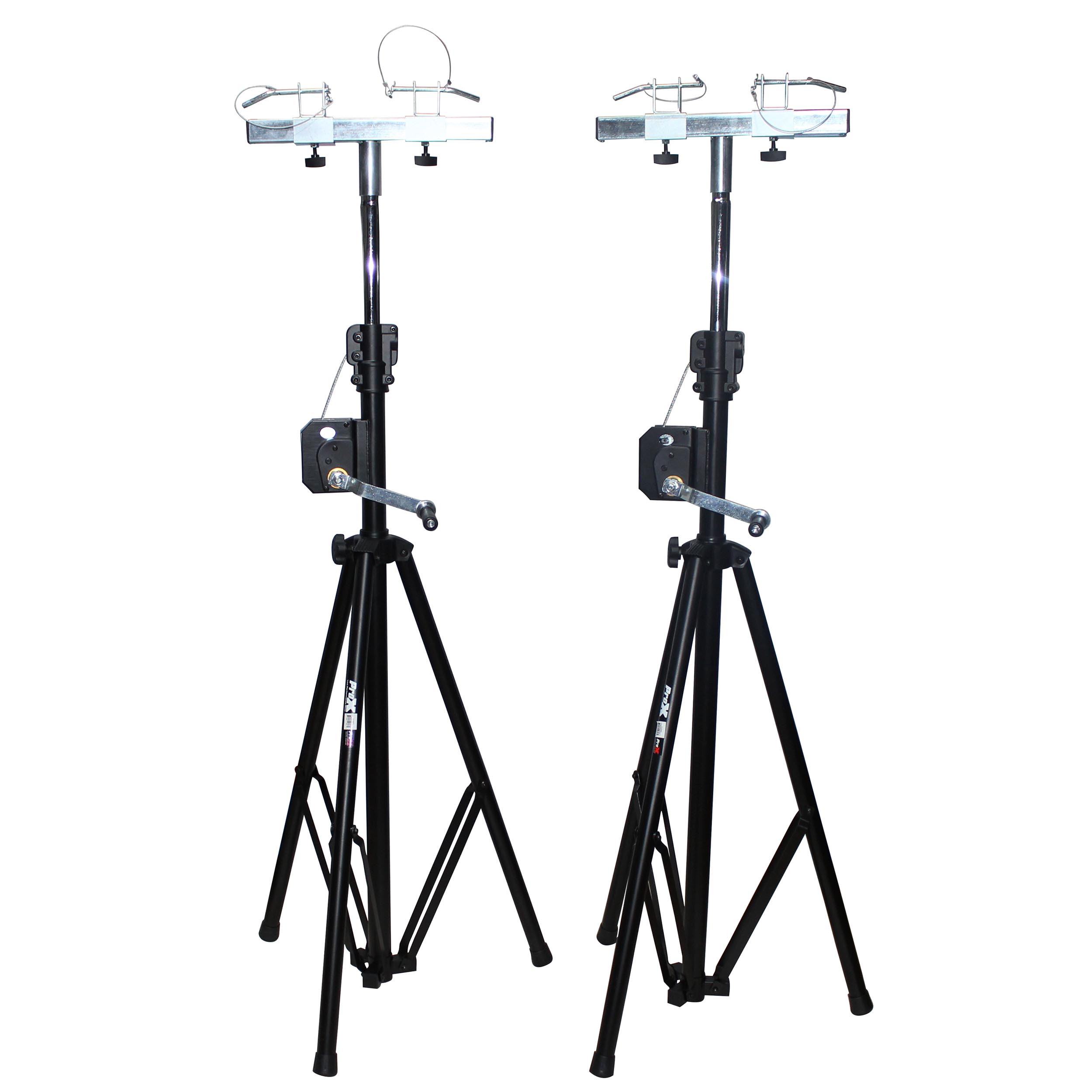

• Package includes (2) 10-foot Cranking System Stands + (2) T-Bars
• Max Load: Supports up to 360 lbs (evenly distributed)
• Tubing: 1.5-inch diameter
Basic Usage: • Ensure that the stand is positioned on hard stable surface, in suitable location, on firm ground and clear of overhead obstacles.
• Stabilize legs before lifting the tower or any load.
• When outdoors, secure the tower with braces or cables, in case of wind.
• Check the cable, it should not show damaged or flattened areas nor broken strands.
Using the Winch: • For Lifting the tower, turn the winch handle clockwise.
• For lowering the tower, turn the winch handle counter-clockwise.
Safety Notes: • Loading on truss and stands should comply with rated weights.
• Lock all the safety mechanisms (safety pins, knobs)
• Loads must be centered & balanced on each lifting unit.
• Safety chains must be installed on each item attached to unit.
• Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
• During transport, close all the sections and lock the lifting carriage.
• Do not attempt to move the stand when loaded or in extended position.
Service Notes: • Servicing and repairs must be made by qualified persons.
• Cable, pulleys and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
• Annual inspection by an authorized technician is suggested.
Exercise caution when loading this or any ProX truss system. Be sure to evenly distribute your fixtures or equipment for safety. Always use a safety cable or chain on all mounted fixtures.
Safety Instructions: To avoid problems, a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Observe all warnings and usage instructions in the full manual.
