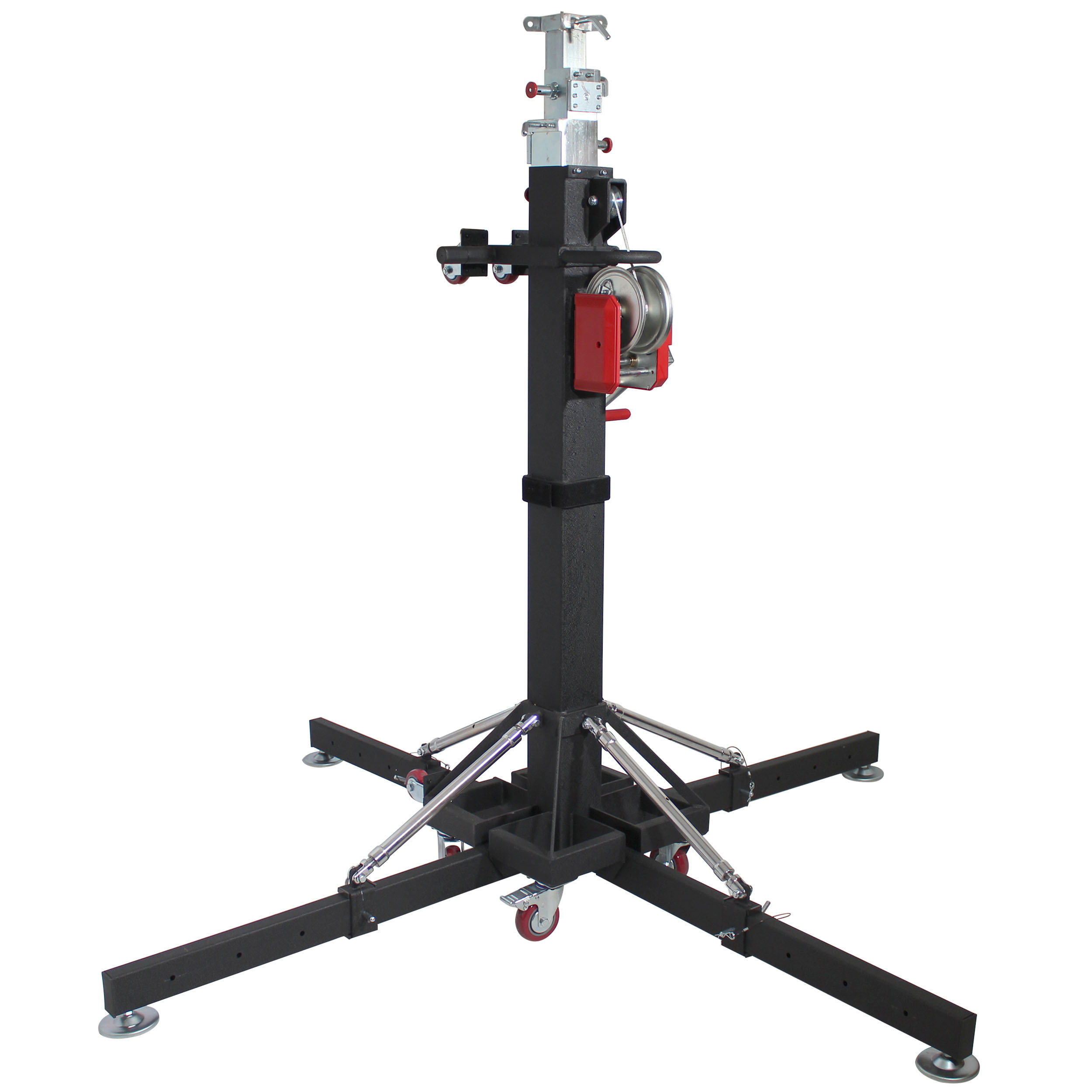

ProX XT-CRANK18FT-500 18ft Lighting Crank Truss Stand

The ProX XT-CRANK18FT-500 is designed to support truss pieces, constructions, speakers, or other gear. This stand rises to a maximum height of 18', weighs 229 lb, and can support up to 500 lbs. It requires a separately-purchased truss adapter to support truss sections.

It folds easily to a portable size for transport. It's equipped with a smooth, heavy-duty cranking mechanism. Perfect for a live band and mobile DJ applications, eliminate direct lifting and lowering of heavy loads.

This stand, in conjunction with another XT-Crank18FT-500 stand & any length truss with T-Adapters XT-TADAPTER-500 (all sold separately), allows you to mount and raise your lights to a maximum of 18 Ft. This combined system will support a maximum weight of 1000 lbs.

Features
• Max Vert Load: 500 lbs.
• Base Diameter: 83.85" / 7FT
• Weight: 230 lbs.
• Min Height: 74"
• Base Closed: 24" x 19"

SAFETY INSTRUCTIONS
To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Observe all warnings and usage instructions in the full manual. Use at your own risk.

Basic Usage:

1. Ensure that the stand is positioned on hard stable surface, in suitable location, on firm ground and clear of overhead obstacles.
2. Stabilize legs before lifting the tower or any load.
3. When outdoors, secure the tower with braces or cables, in case of wind.
4. Check the cable, it should not show damaged or flattened areas nor broken strands.

Using the Winch:

1. For Lifting the tower, turn the winch handle clockwise.
2. For lowering the tower, turn the winch handle counter-clockwise.

Safety Notes:

1. Loading on truss and stands should comply with rated weights.
2. Lock all the safety mechanisms (safety pins, knobs)
3. Loads must be centered & balanced on each lifting unit.
4. Safety chains must be installed on each item attached to unit.
5. Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
6. During transport, close all the sections and lock the lifting carriage.
7. Do not attempt to move the stand when loaded or in extended position.

Service Notes:

1. Servicing and repairs must be made by qualified persons.
2. Cable, pulleys and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
3. Annual inspection by an authorized technician is suggested.

Weight: 230.00 lbs
