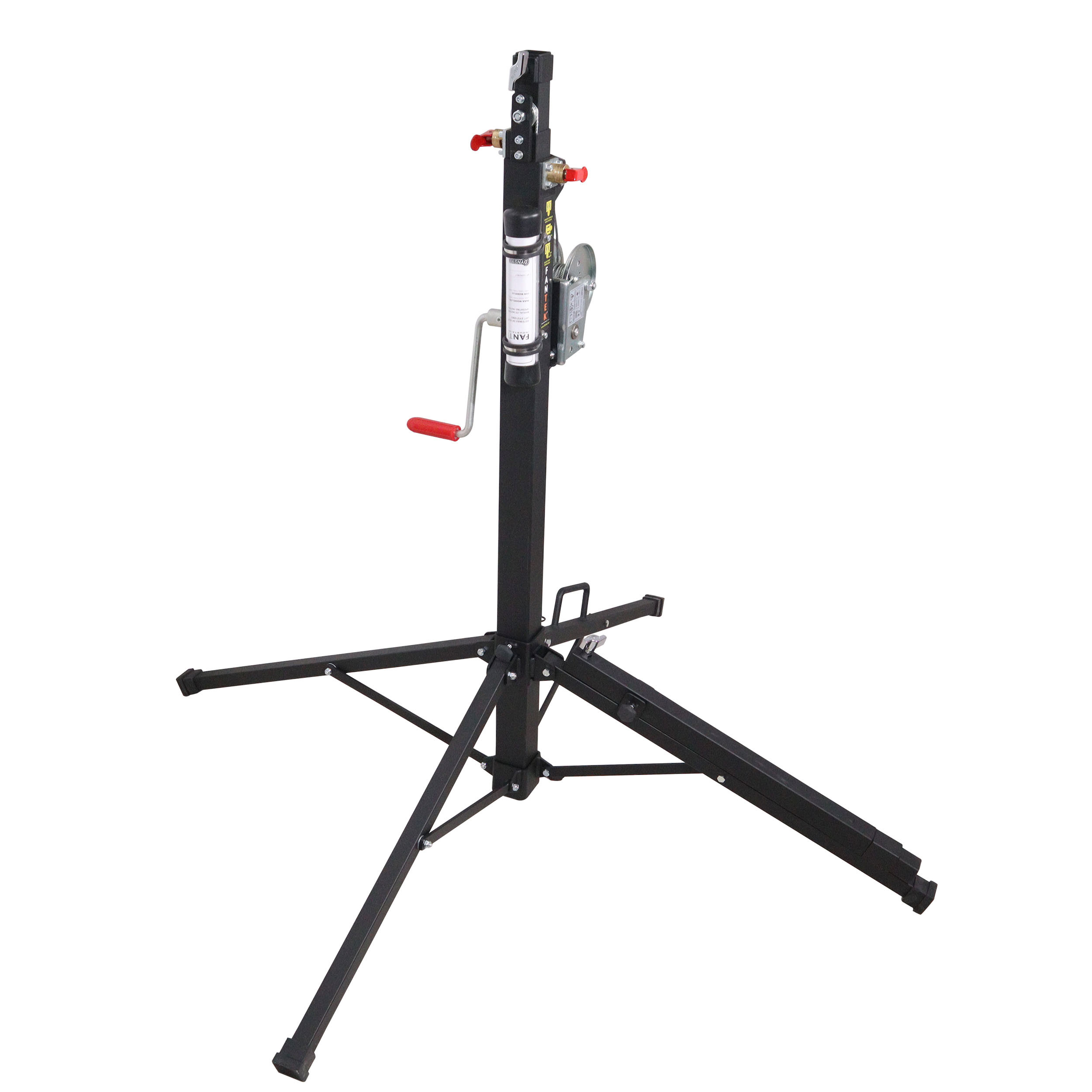

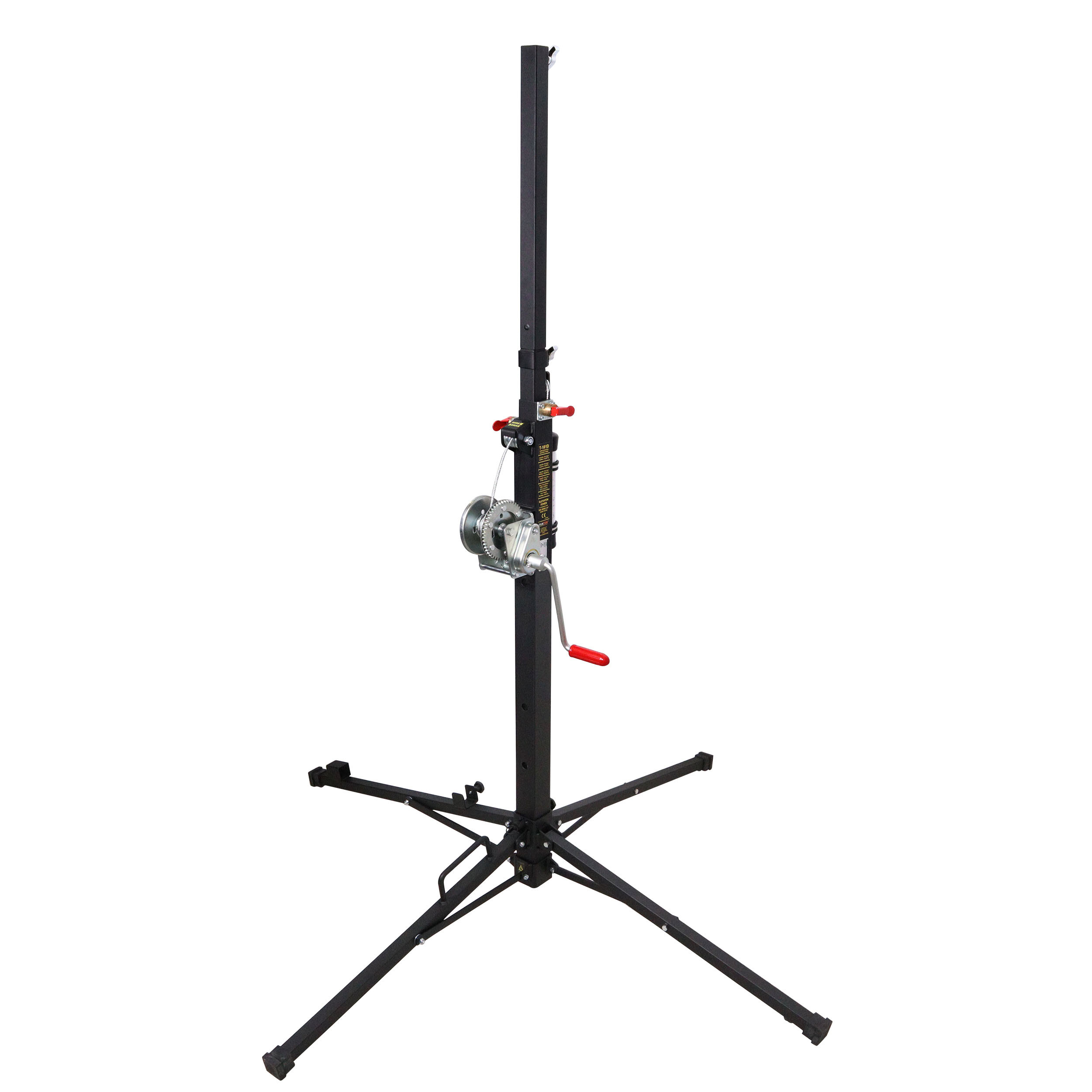

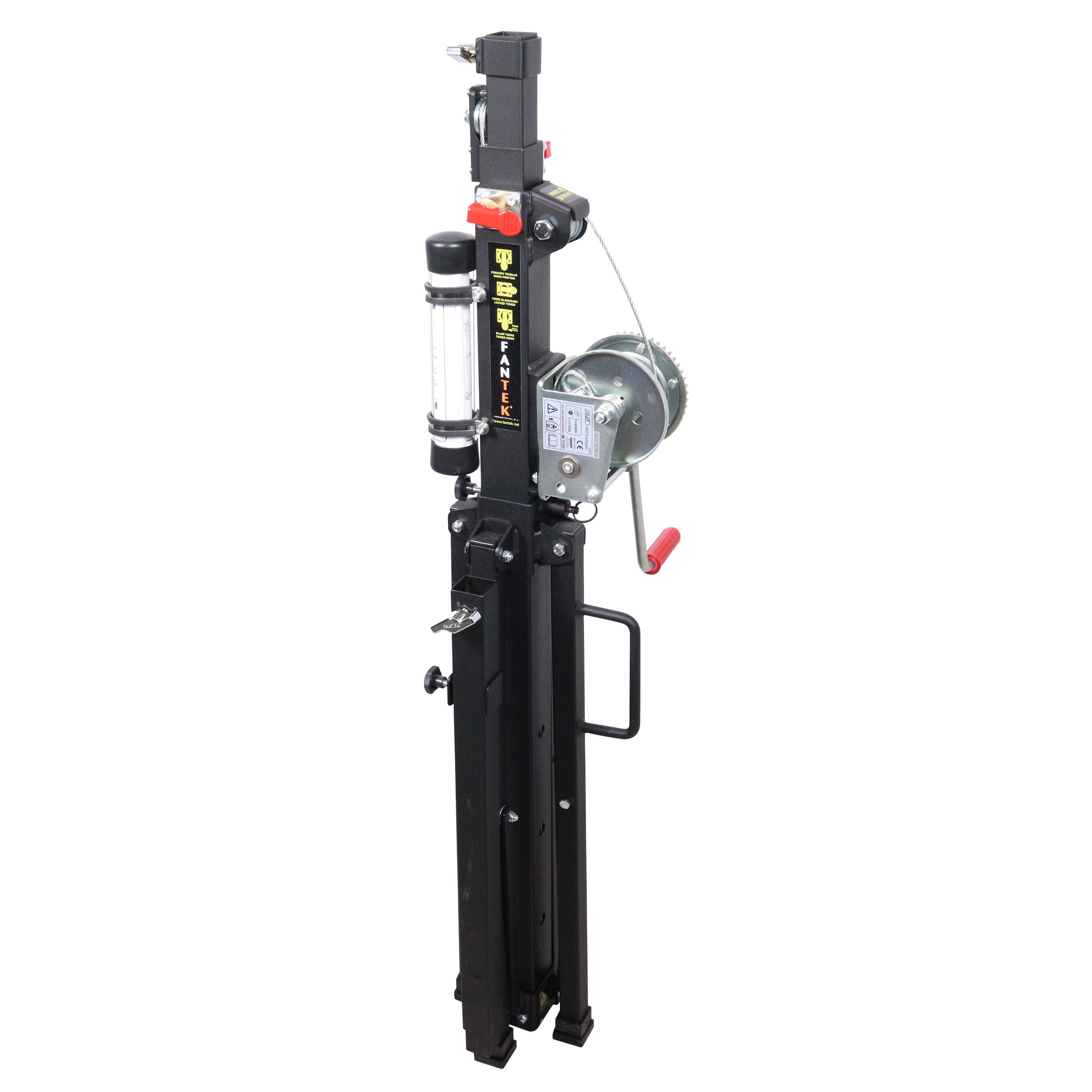

TheXTF-T101DTelescopic Top liftingTruss Tower by Fantek isMade in Spainis ready to lift aMax Load of220 lbs/ 100 kg at aMax Height of12.47 ft/ 3,8 meters.The XT-FT101D model is a top loading tower designed to lift vertical loads while keeping its compact size, which allows an easy transportation.

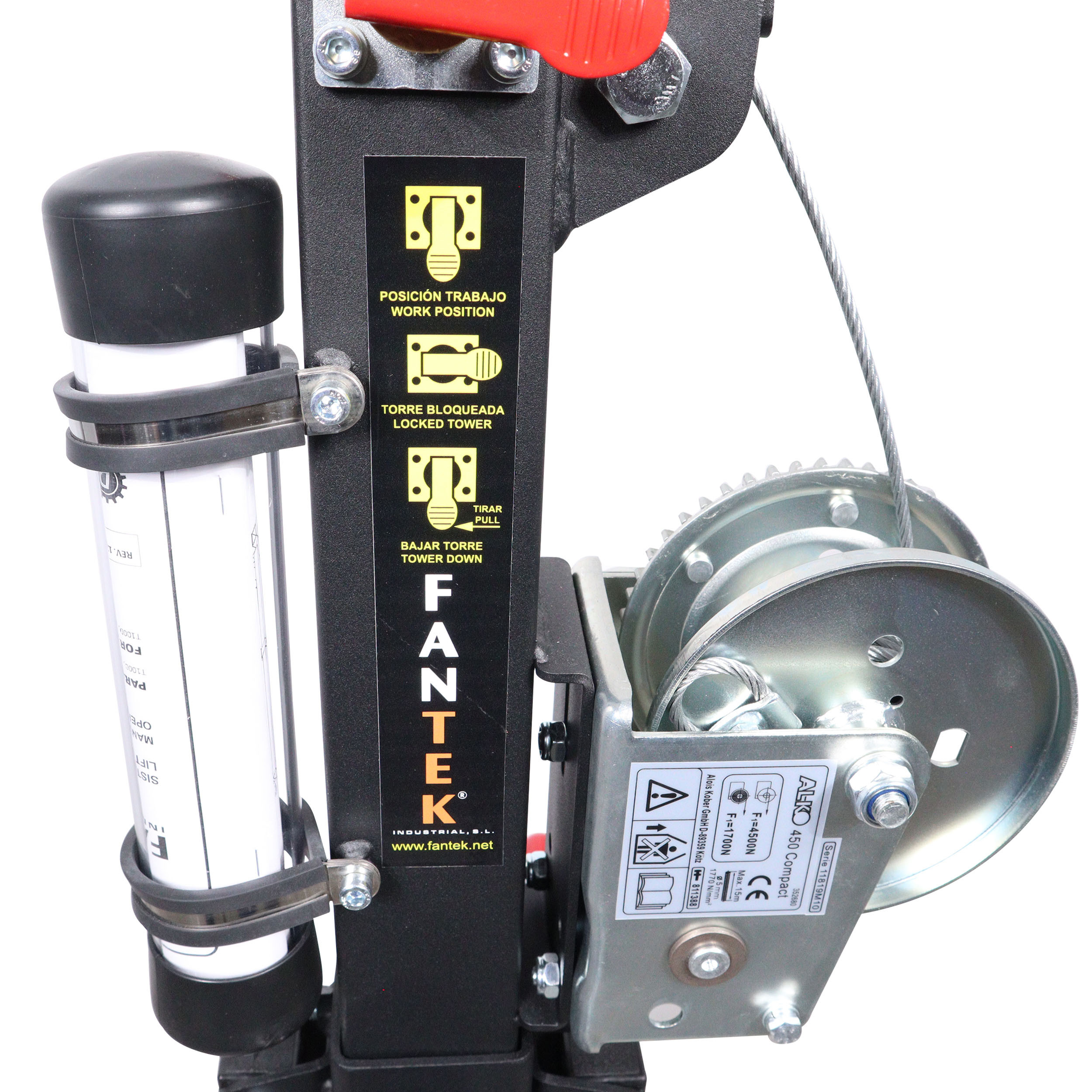

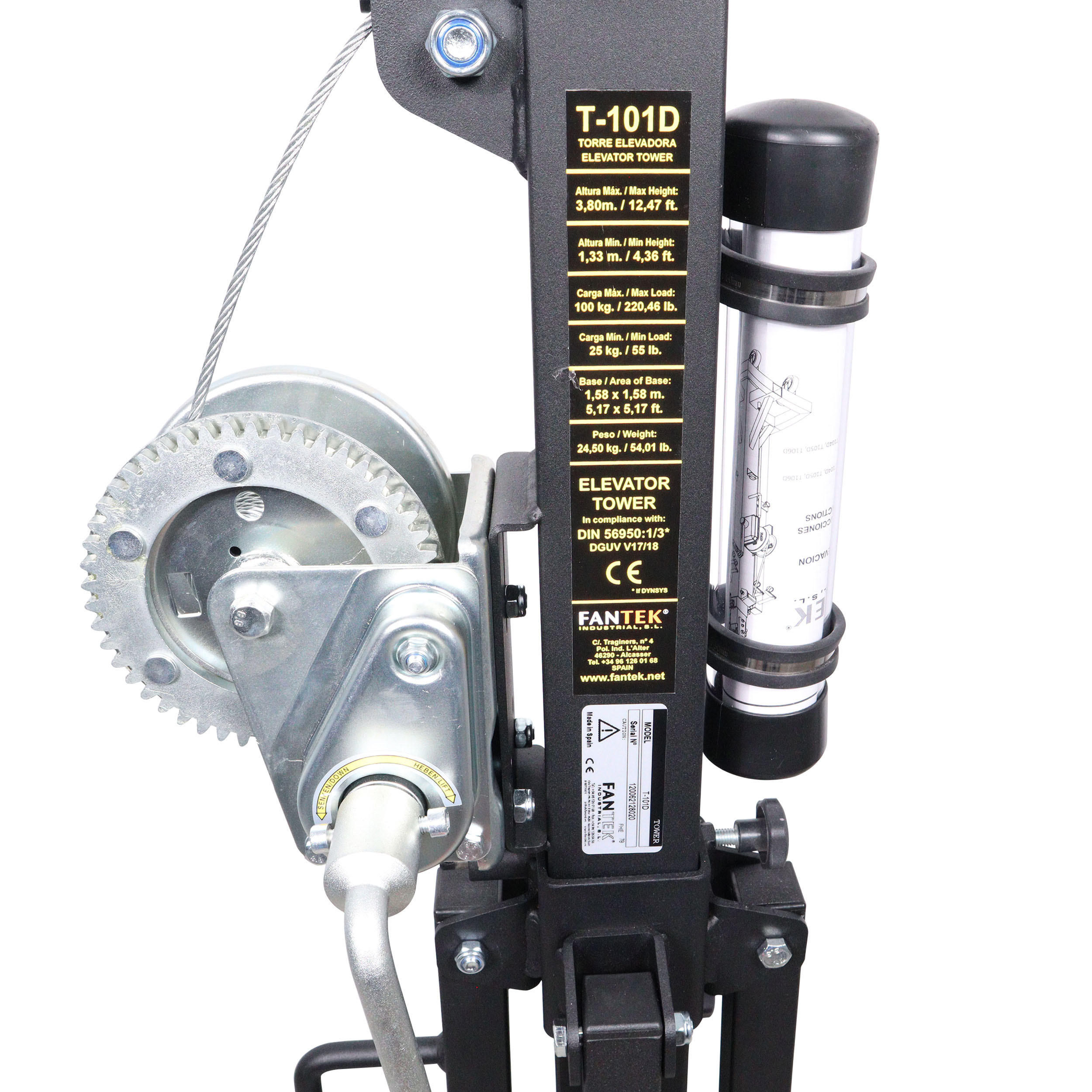

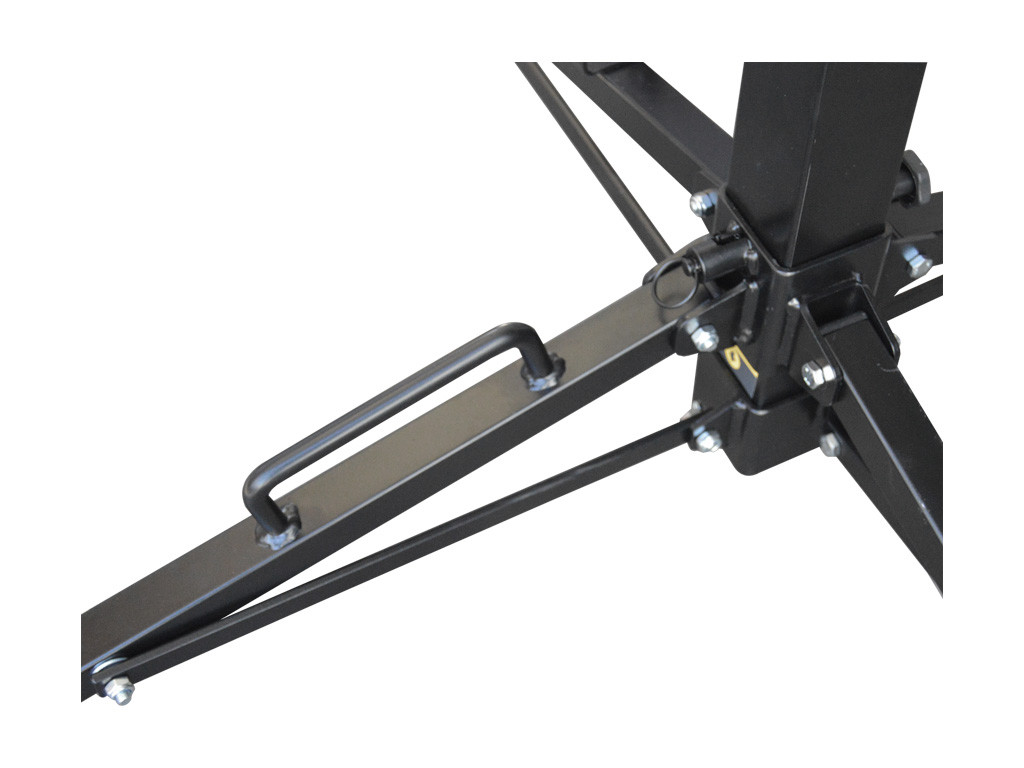

It is composed of three extensible steel profiles, lifted by a high-strength steel cable with grooved pulleys with SELOIL bearings. Automatic locking system comprised of self locking steel pins that fixes the tower to the deisred height. Legs with non-slip rubber feet. The entire system is operated with a manual winch.
Features• Folded Height: 4.59 ft
• Ext. Base Dims: 5.25 x 5.25 ft
• Folded Base Dims: 0.75 x 0.92 ft
• Unfolded Base:5.28 x 5.28 ft
• Max height: 12.47 ft
• Min. height:4.59 ft
• No. of Sections:3
• Min. Load: 55.12 lb
• Max Load:220 lb(mechanism mode)
• Winch: 771.62 lb
• Weight: 52.91 lb
Use With:
XTF-ATCOB | Mobile Support for trussand towers from T-1
Dimensions: 51.00"L x 13.00"W x 10.00"H
Weight: 55.00 lbs
