Special Order Item ordered from Poland. Estimated lead time is 90+ days.

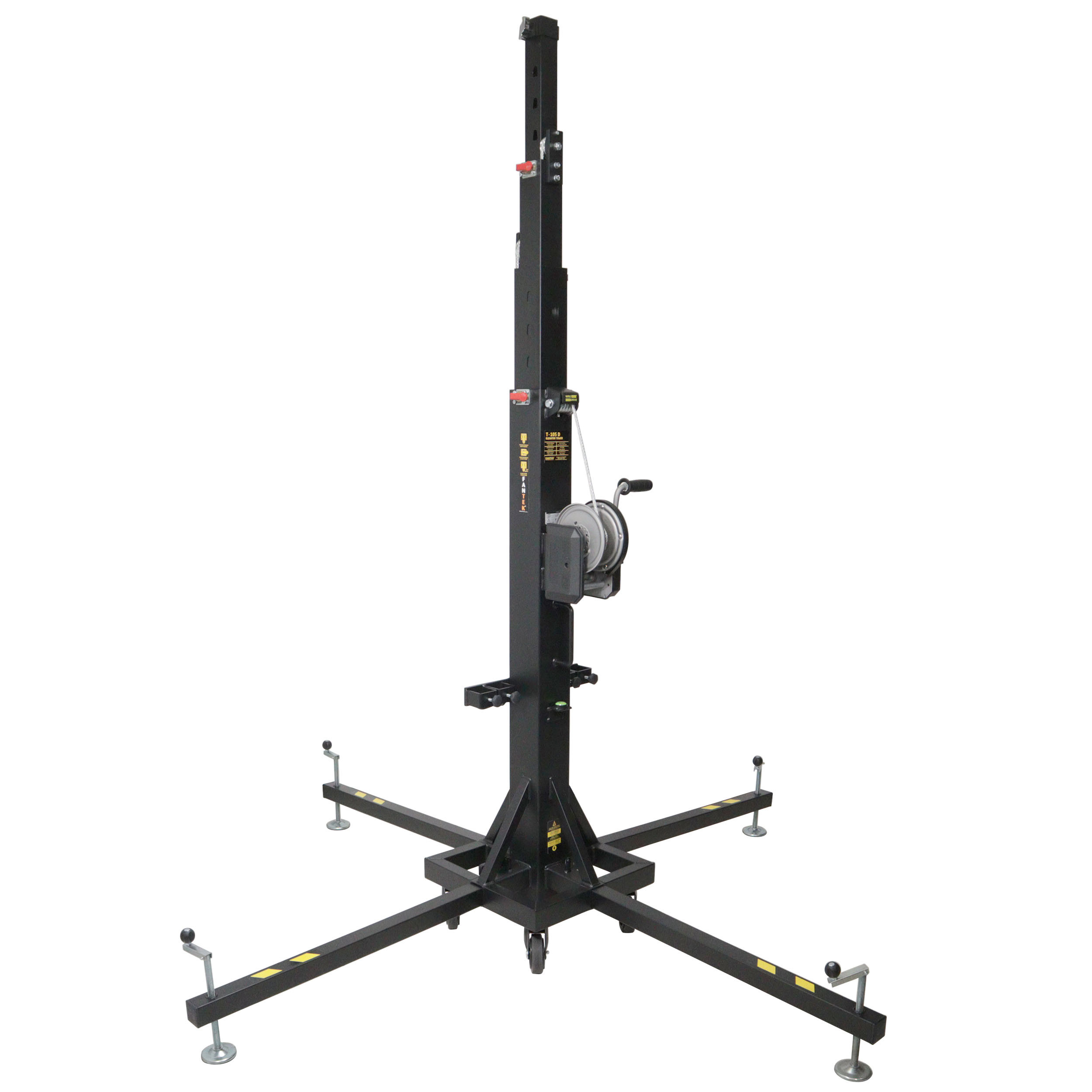

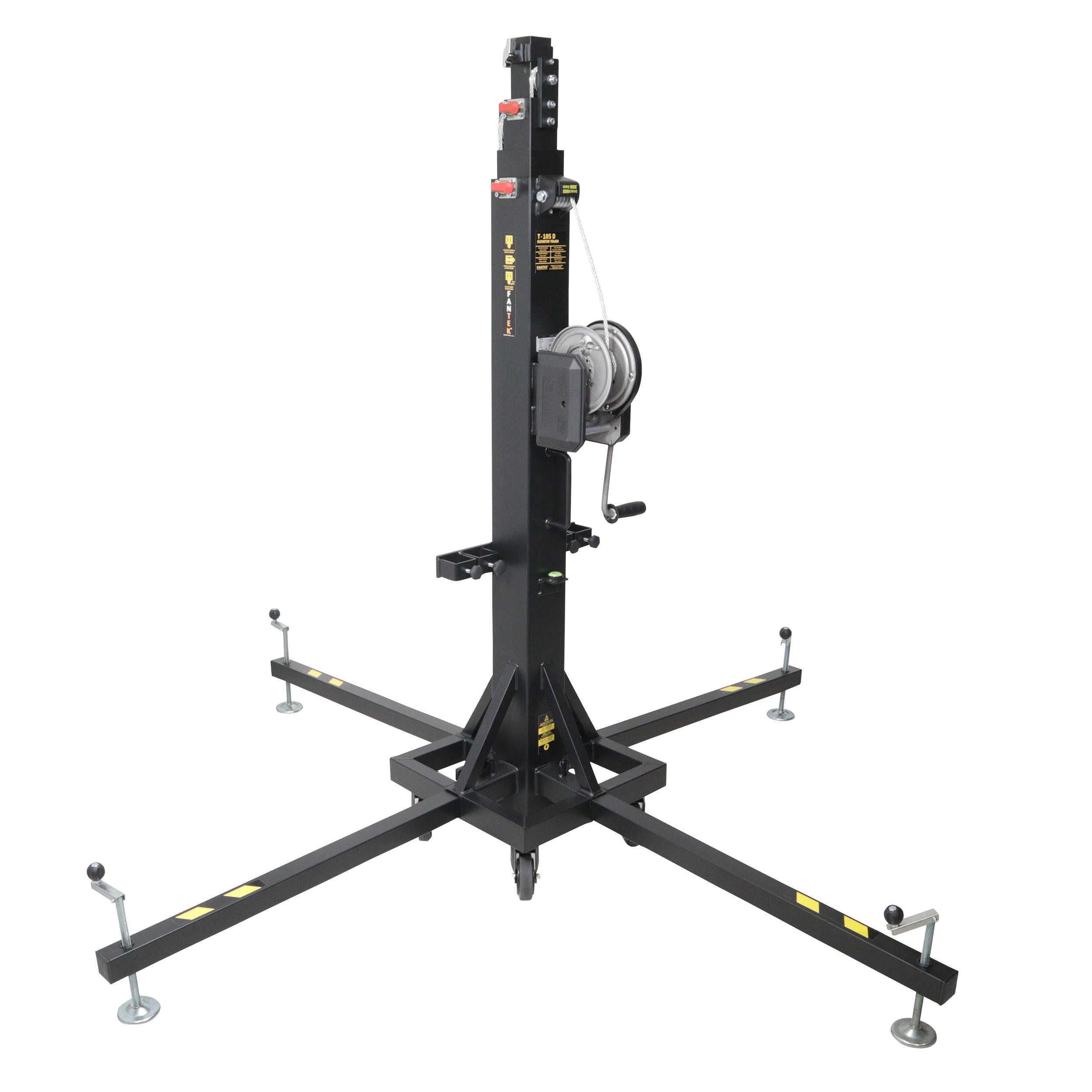

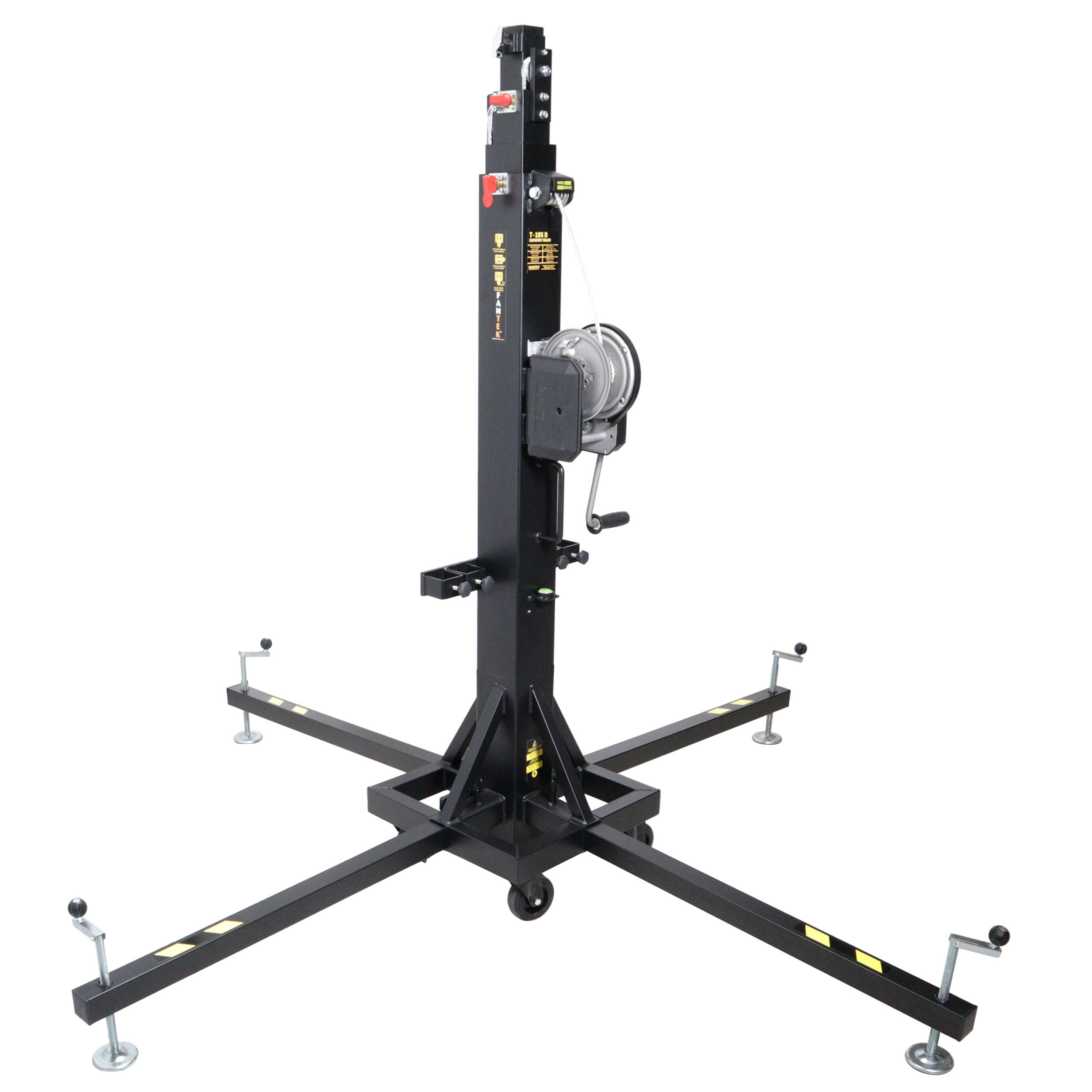

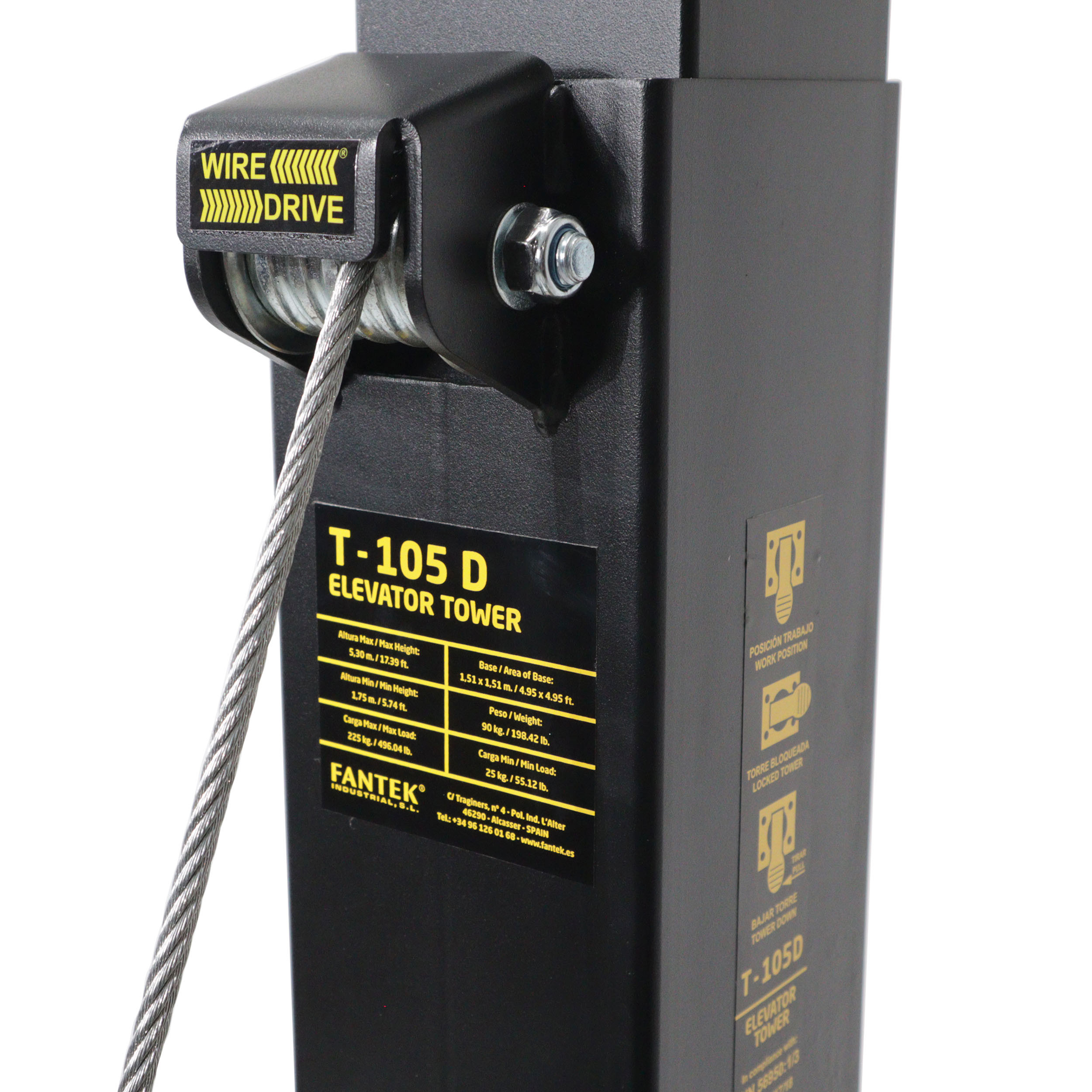

TheXTF-T105DTop Loading Lifting tower -is ready to lift a Maxload of496 lb/ 225 kg at a Max height of17 ft/ 5,18 meters. It is composed of four extensible steel profiles, lifted by high-strength steel cable with ribbed driven pulleys with SELOIL bearings.Fixing section of the tower to the height desired by automatic locking pin steel.Legs with non-slip rubber feet and levelers that allow its location on uneven terrain.The entire system is operated by a manually operated winch.The T 105 D performs as the best at intense use.Made in Spain by Fantek

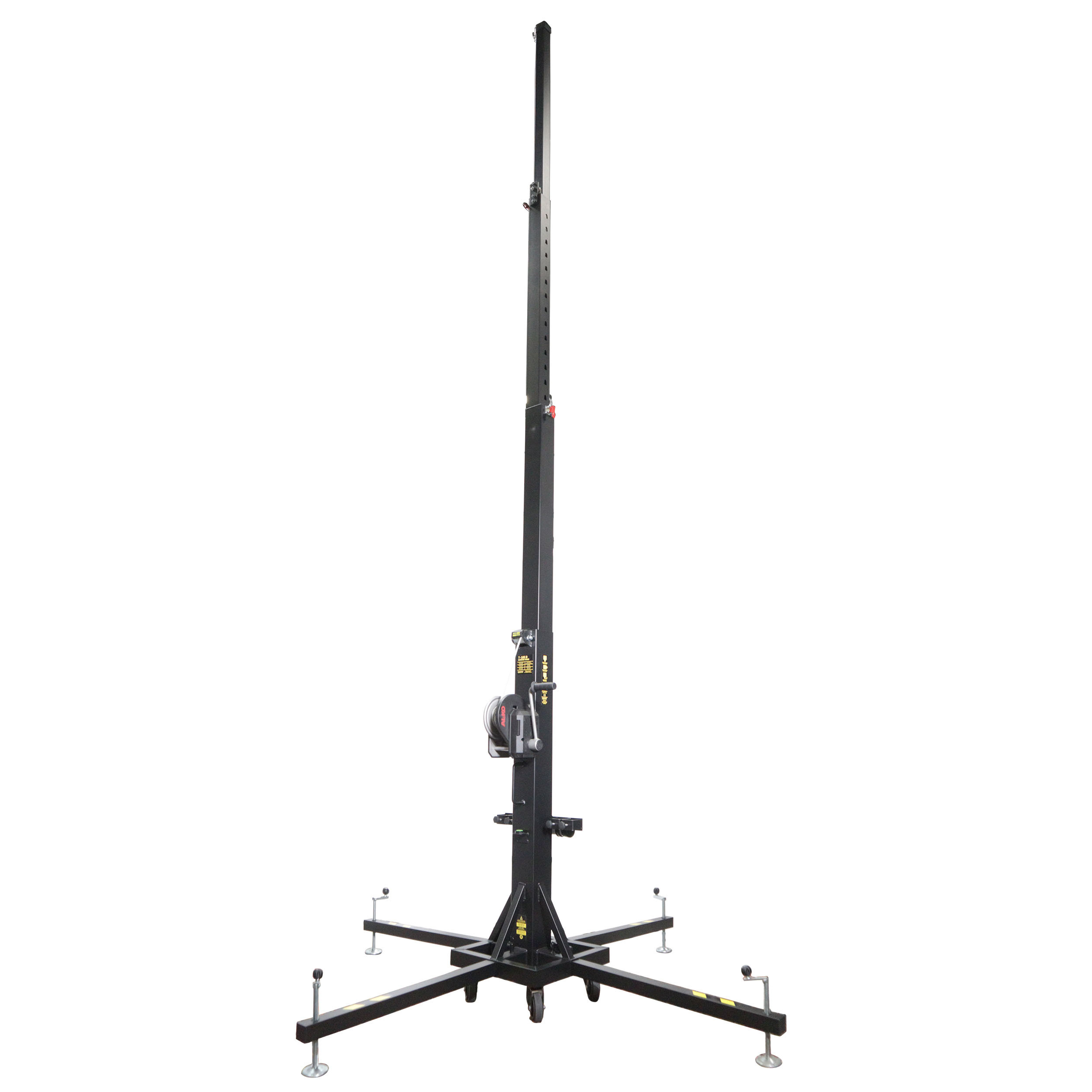

Features• Maximum Height 16.99 lb

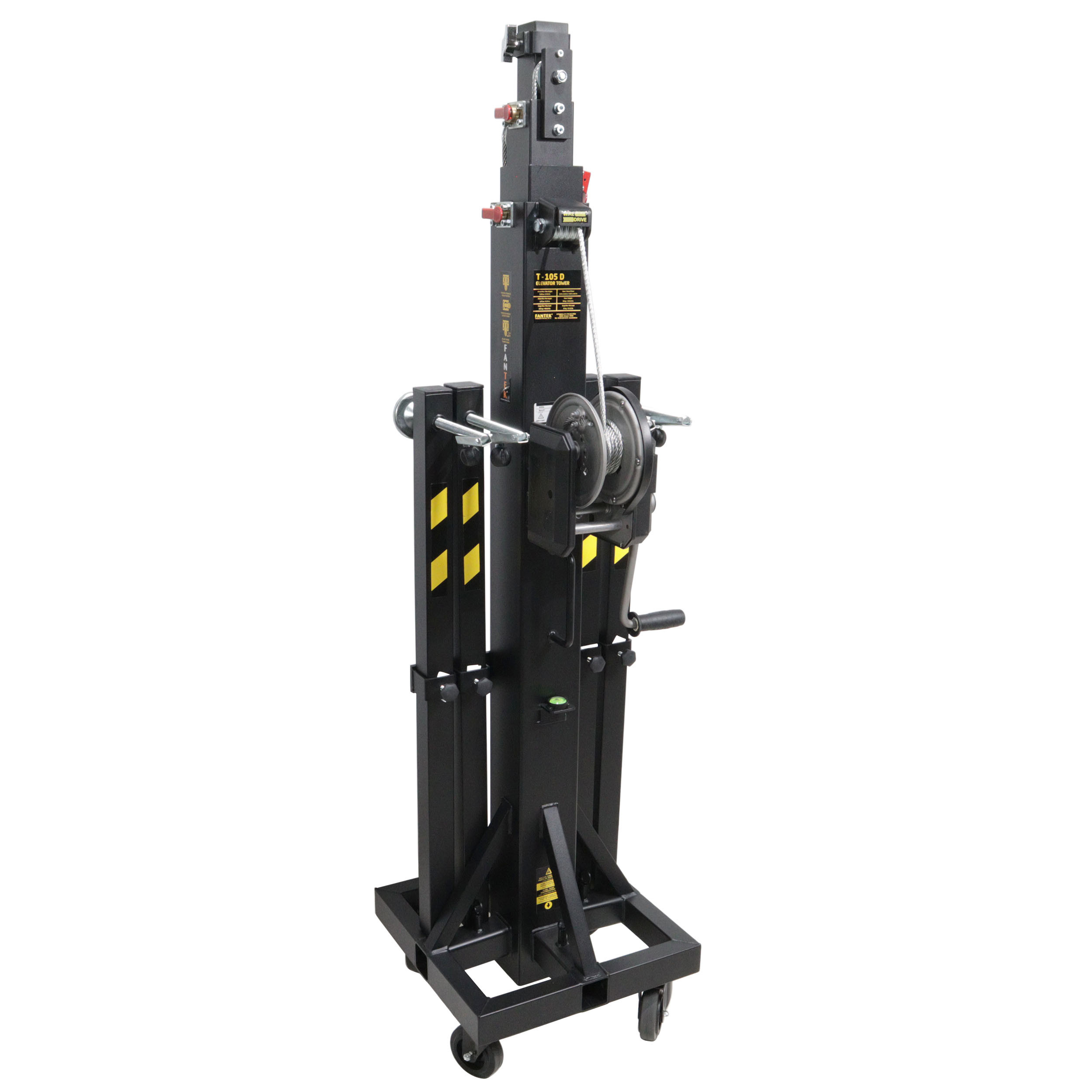

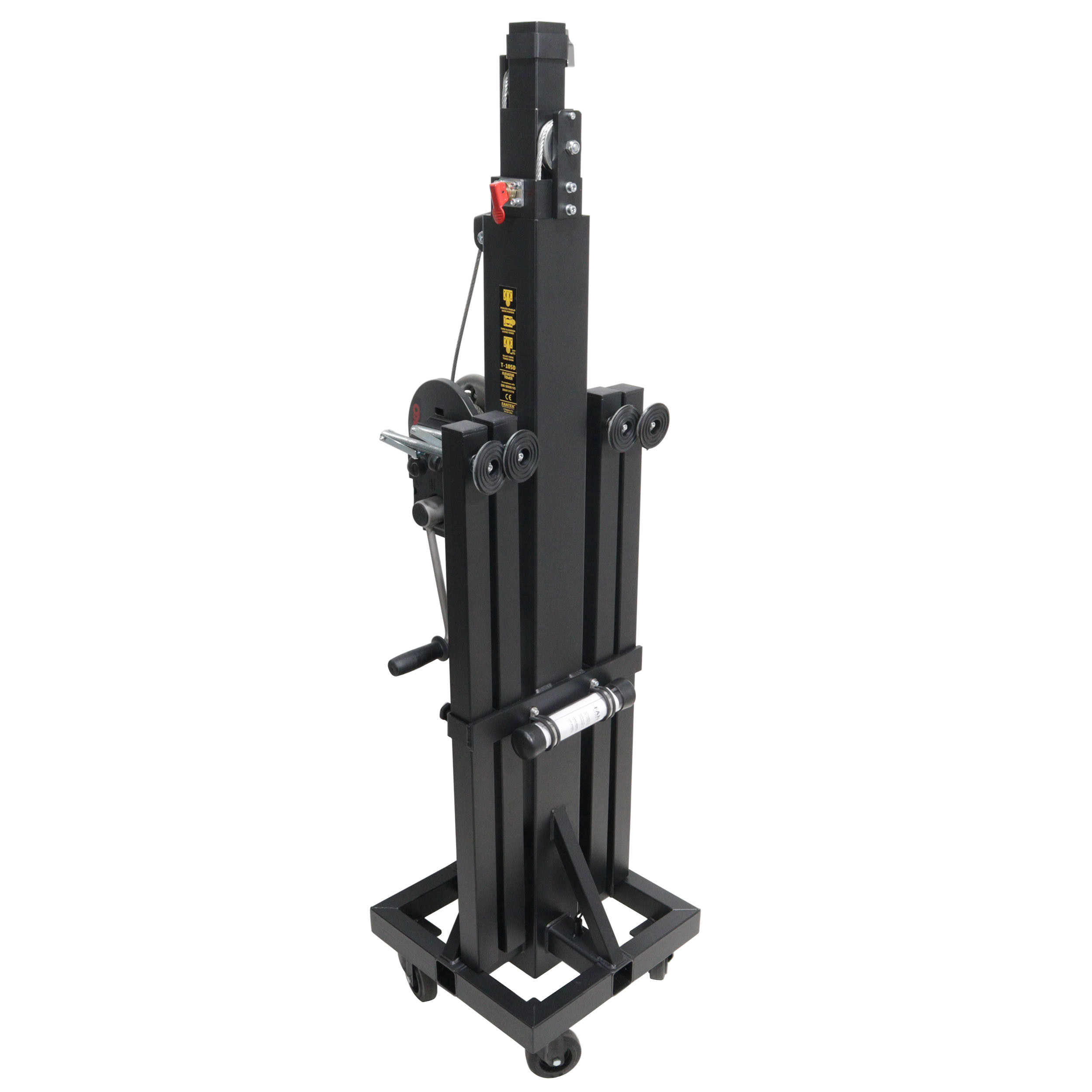

• Folded Height 5.80 lb
• Maximum Load 496.04 lb
• Minimum Load 55.12 lb
• Unfolded Base 5.09 ft (diameter)
• Winch 1984.16 lb
Use With:
XTF-ATCOB | Mobile Support for trussand towers from T-1
Dimensions: 18.00"L x 18.00"W x 69.00"H
Weight: 189.00 lbs
