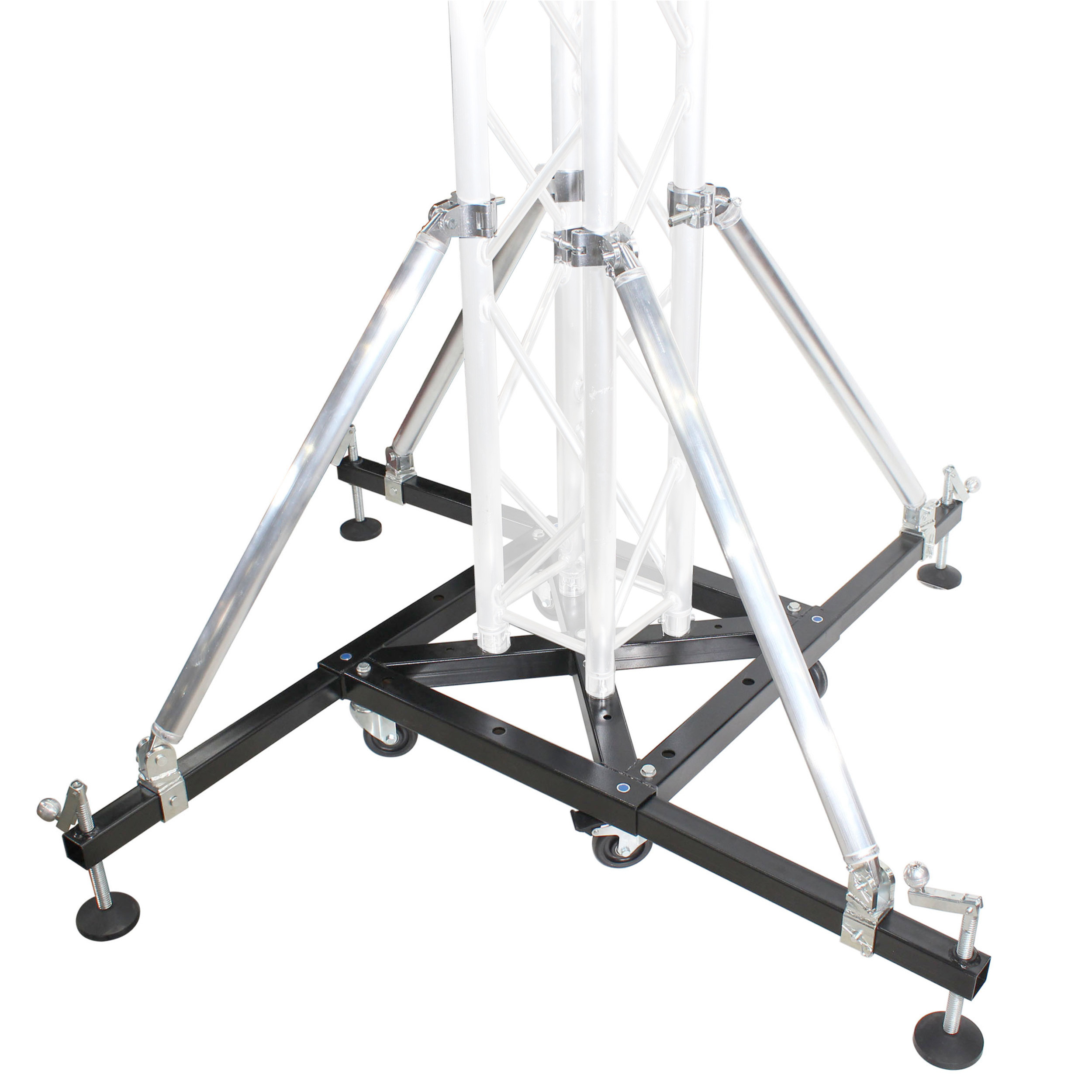

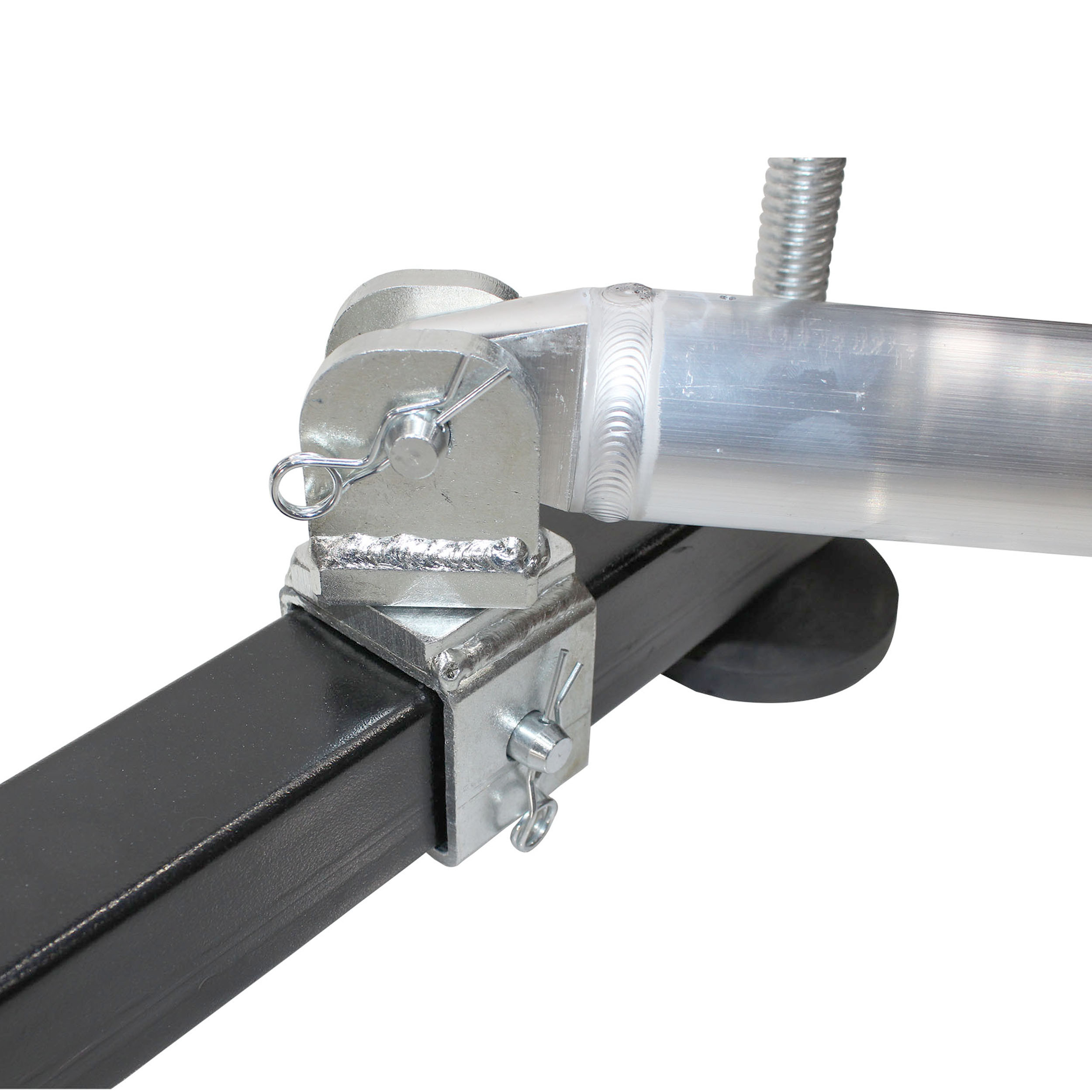

The ProX XT-GSBX PKG is a package of a four-legged outrigger truss basethat fits both F34 and F44 truss, with four diagonal aluminum bracing tubes. (Half Couplers are installed at the F34 position.) The outriggers are adjustable to one of two positions with a push-button release, the bracing tubes can be adjusted to accommodate the two positions by placement on the vertical trussing in the appropriate positions.(Truss not included).
In this package, you have everything you need for one complete leg in the building and flying a small to mediumscale truss support for light to middle-level stage installations without lift hoist capability. You get:
• 26" Black Steel Rigger Base, with extending outriggers and adjustable feet

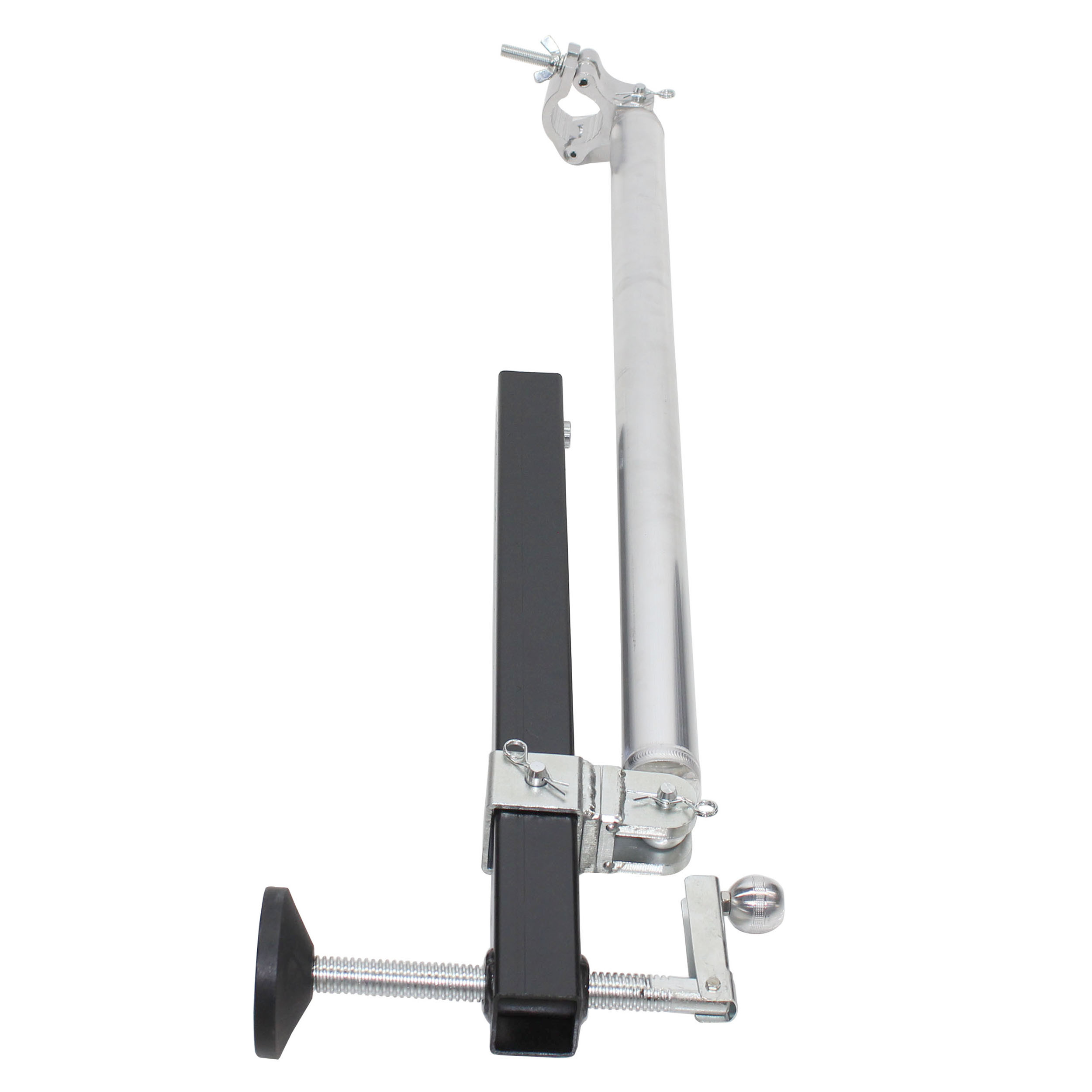

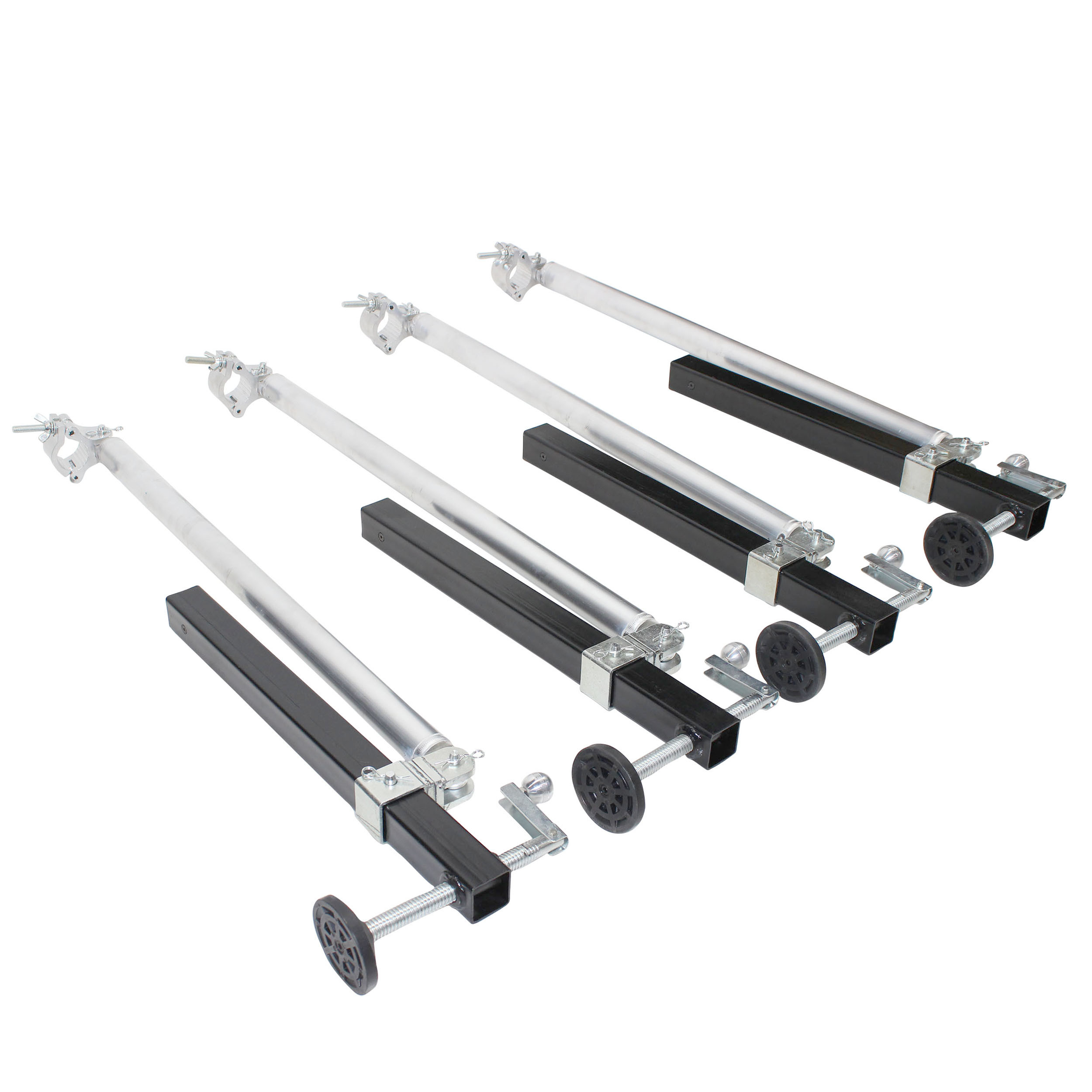

• 41" Outrigger Assist Tubes(4) with clamps
Features• Manufactured to Exacting Specifications in our Own Factory!
• 41" Aluminum Assist Tube with Clamp (EN-AWT6 6082 Aluminum)
• 26" Black Steel Rigger Base, with extending outriggers and adjustable feet
• Tolerance Free Standard Conical Connectors
• Constructed to the highest safety ratings by certified welders!
• TUV Certified Aluminium/Steel Welding
• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in
XT-SQ Series Dimensions:• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
IncludesXT-GSBX (1)
XT-GSOUTX (4)
To Fit:
F34 / F44 Truss
