The exclusive ProX XT-HEART984 is a 7 segment F34 truss package and is one of the most unique trussing elements you will find. Incorporate this into your truss designs and you will stand out from the competition.
ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

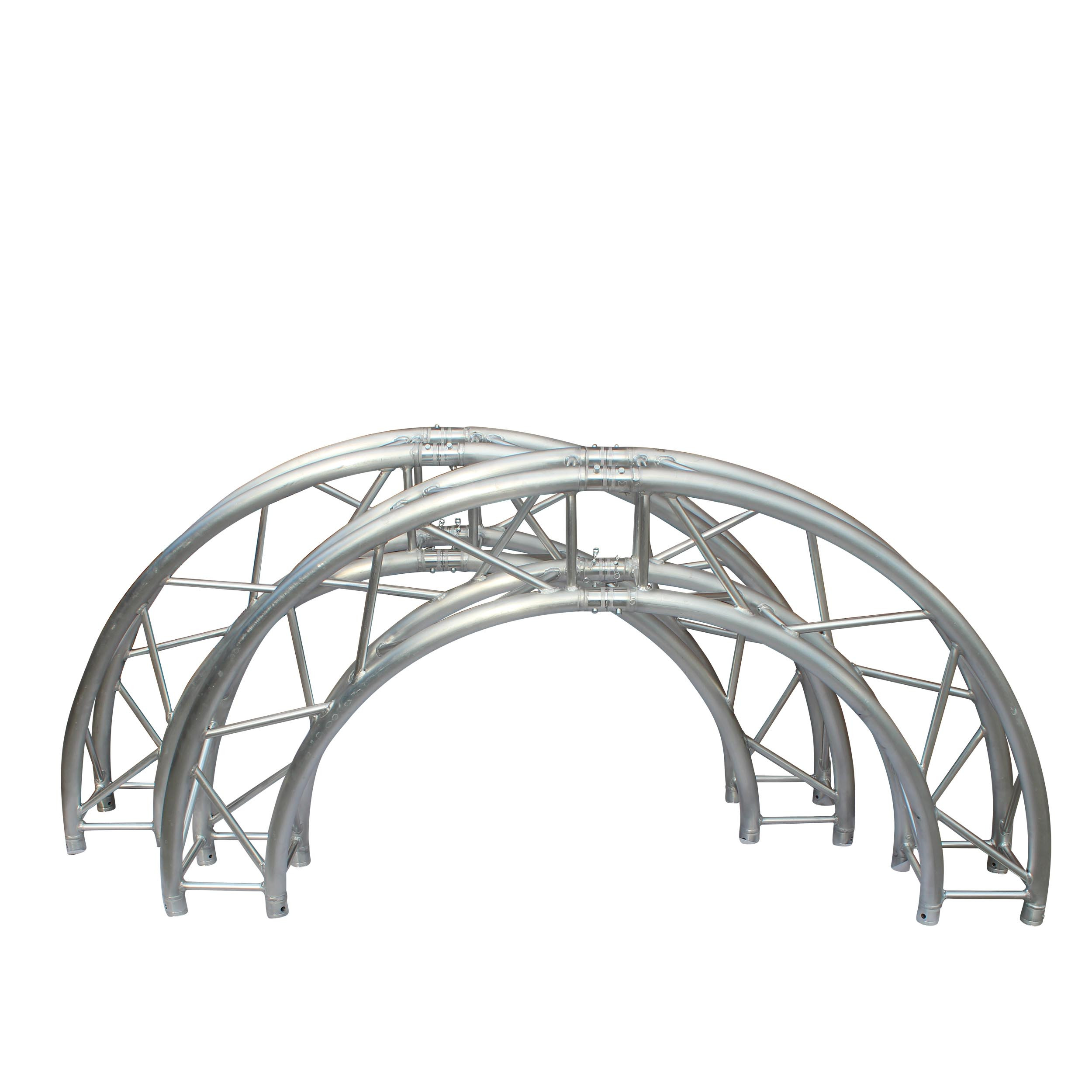

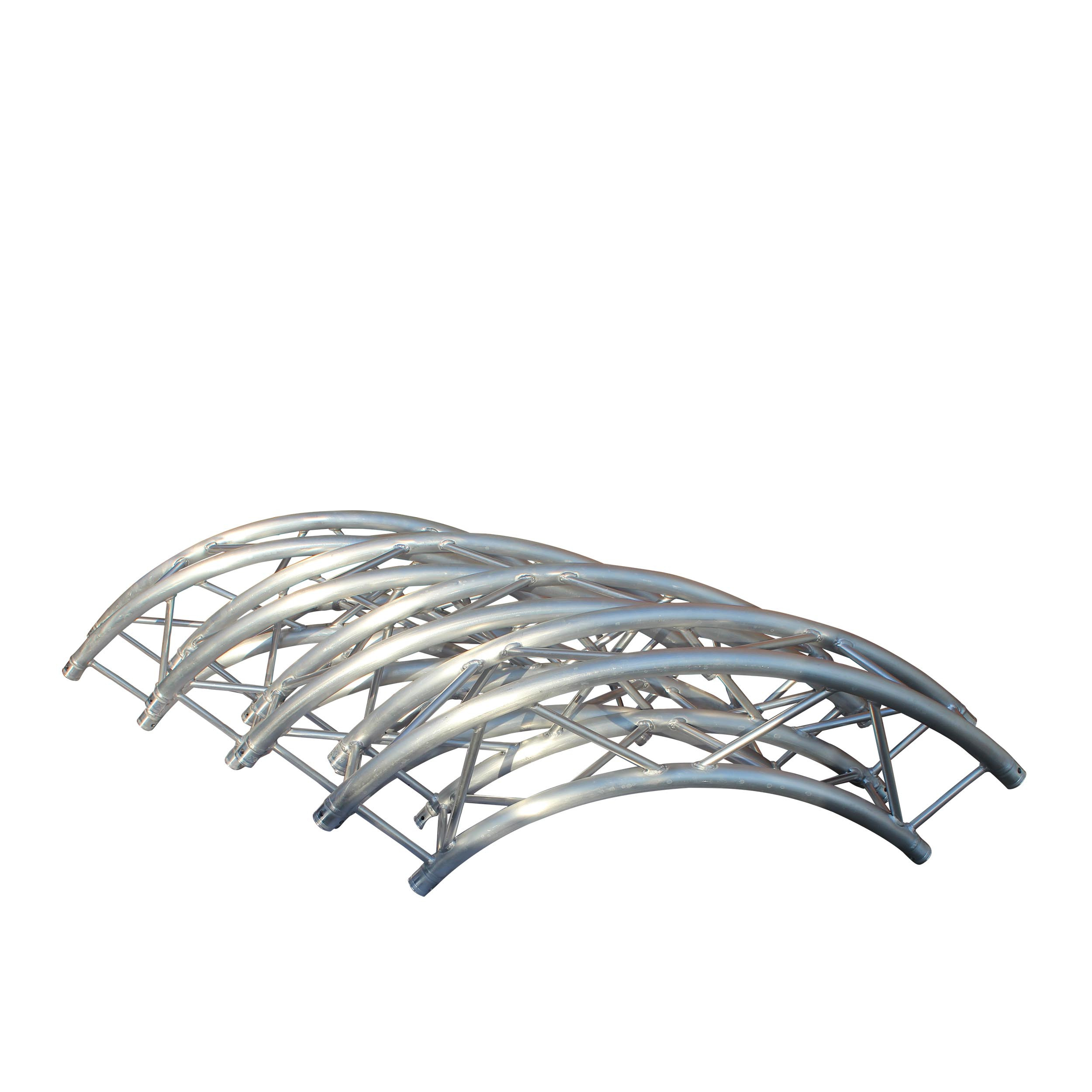

Includes• XT-CSQ656-4X90 (1) Square Frame Circular Truss 4 Segments 6.56 FT 2m

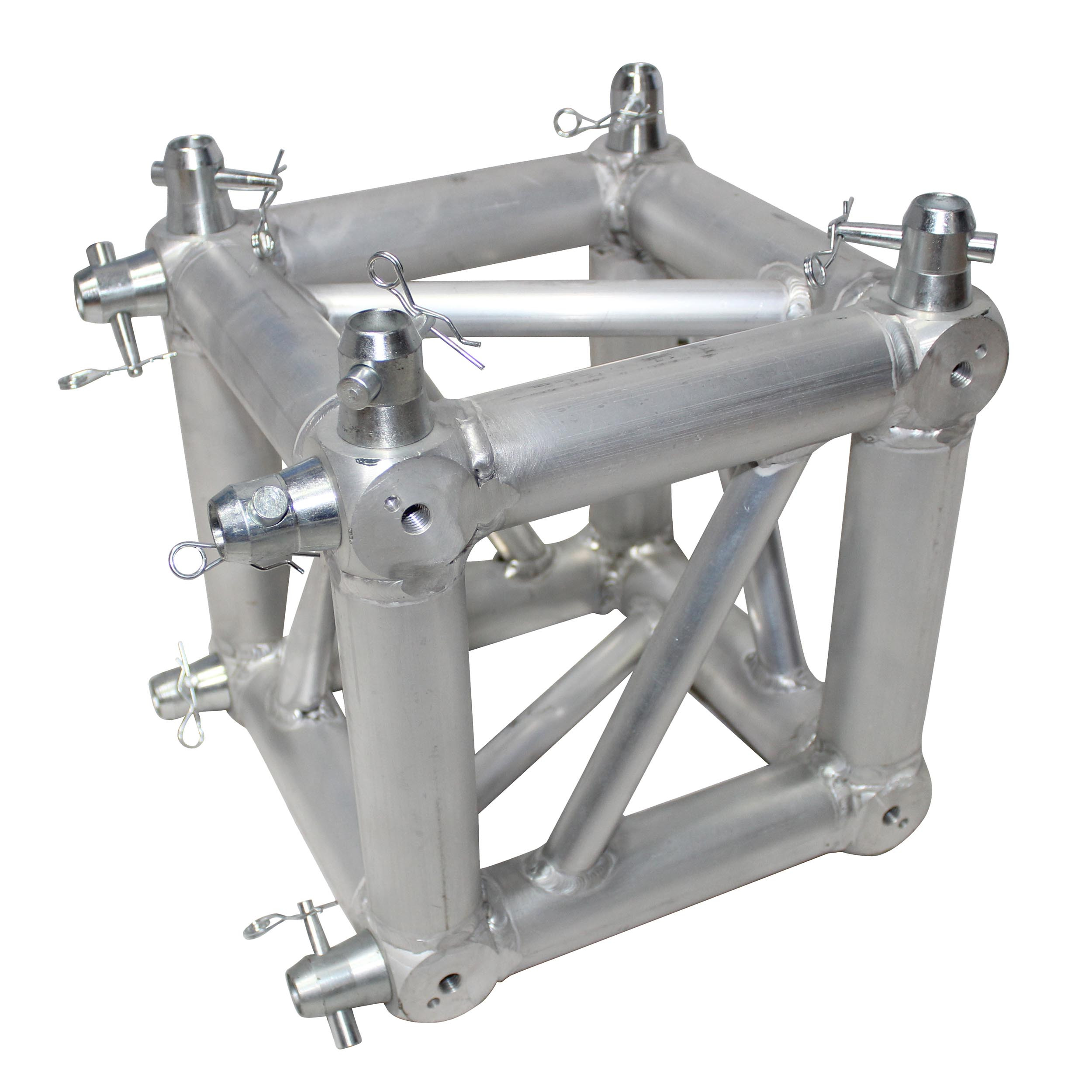

• XT-JB6W-2W (1) 6 Way Square Truss Junction Block - Includes 2 Way 8 Half Conical Couplers

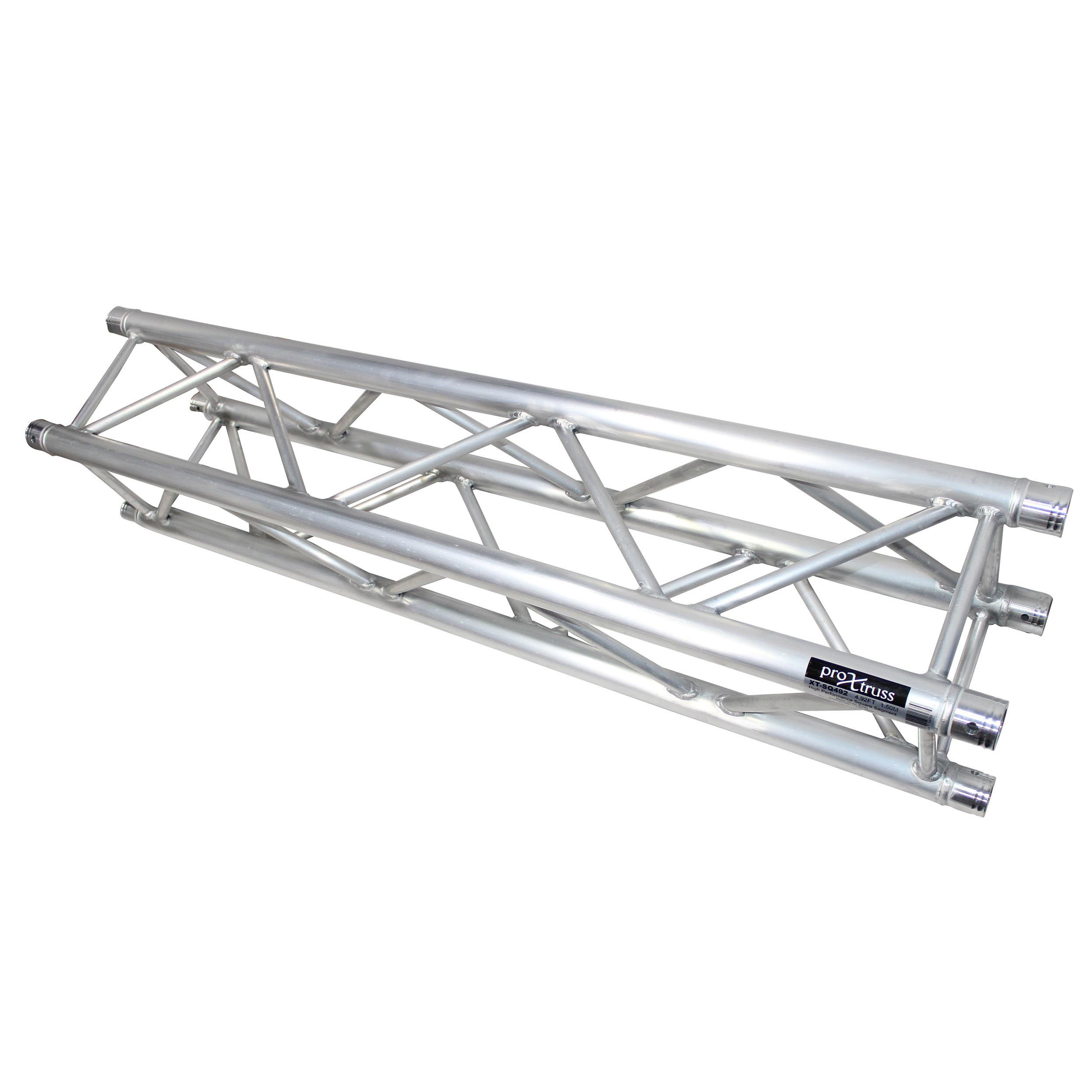

• XT-SQ492 (2) 4.92 Ft - 1.50 M F34 Square Truss Segment | 2 mm Wall
• XT-SQ164-2W90 (1) Square Truss Corner 2 Way 90 Degree
XT-SQ Series Dimensions• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
Features• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Material: EN-AWT6 6082 Aluminum
• TUV Certified Aluminium Welding
• Heart Dimensions: (Est.) 11ft (3.35m) Tall and 12.33ft (3.75m) Wide
• Outside: 290mm - 11 7/16"
• Tubing: 2"
• Bracing: 3/4"
• Includes all connecting hardware
To Fit:
Standard F34 Square Truss Configurations.
Dimensions: 12.00"L x 148.00"W x 132.00"H
Weight: 175.00 lbs
