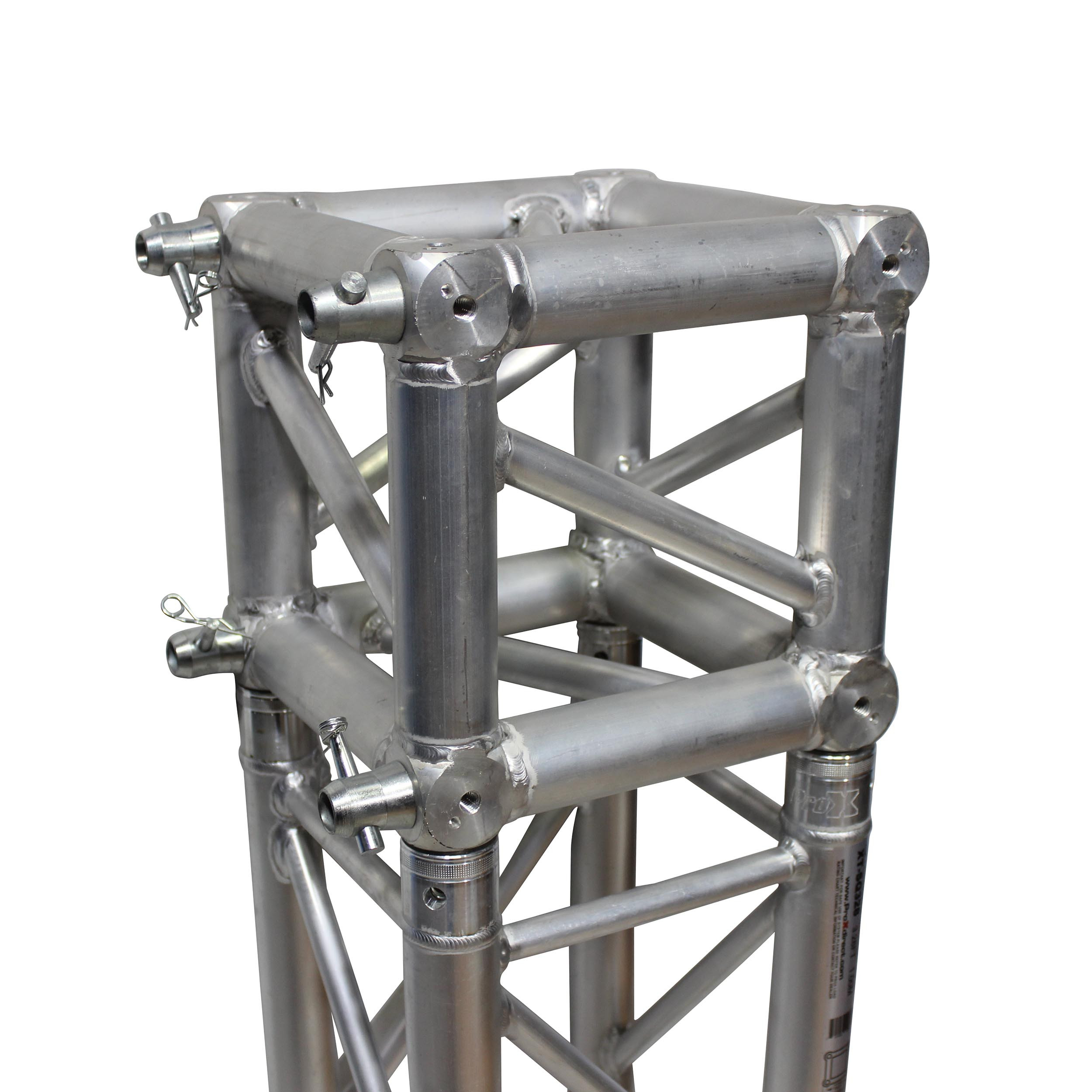

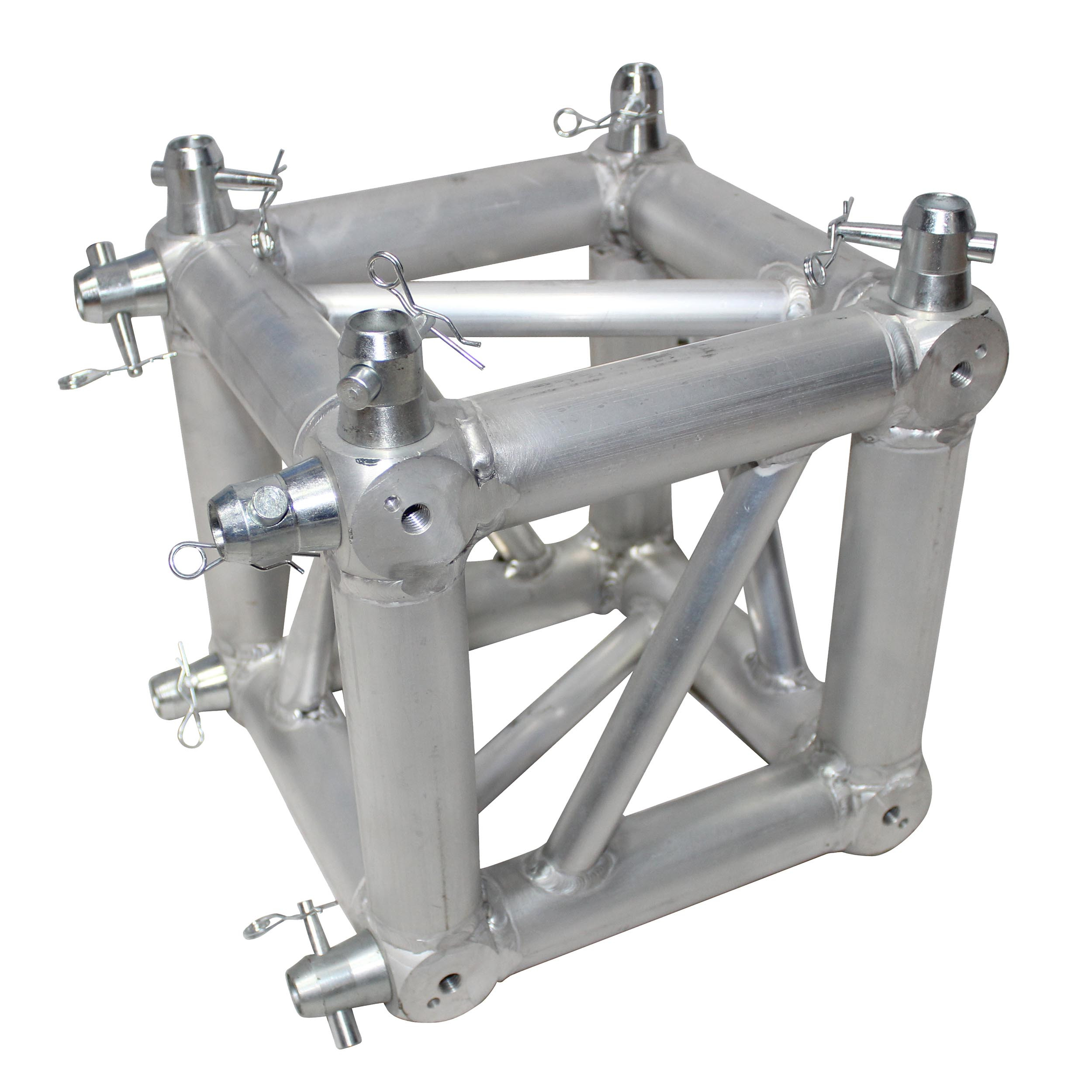

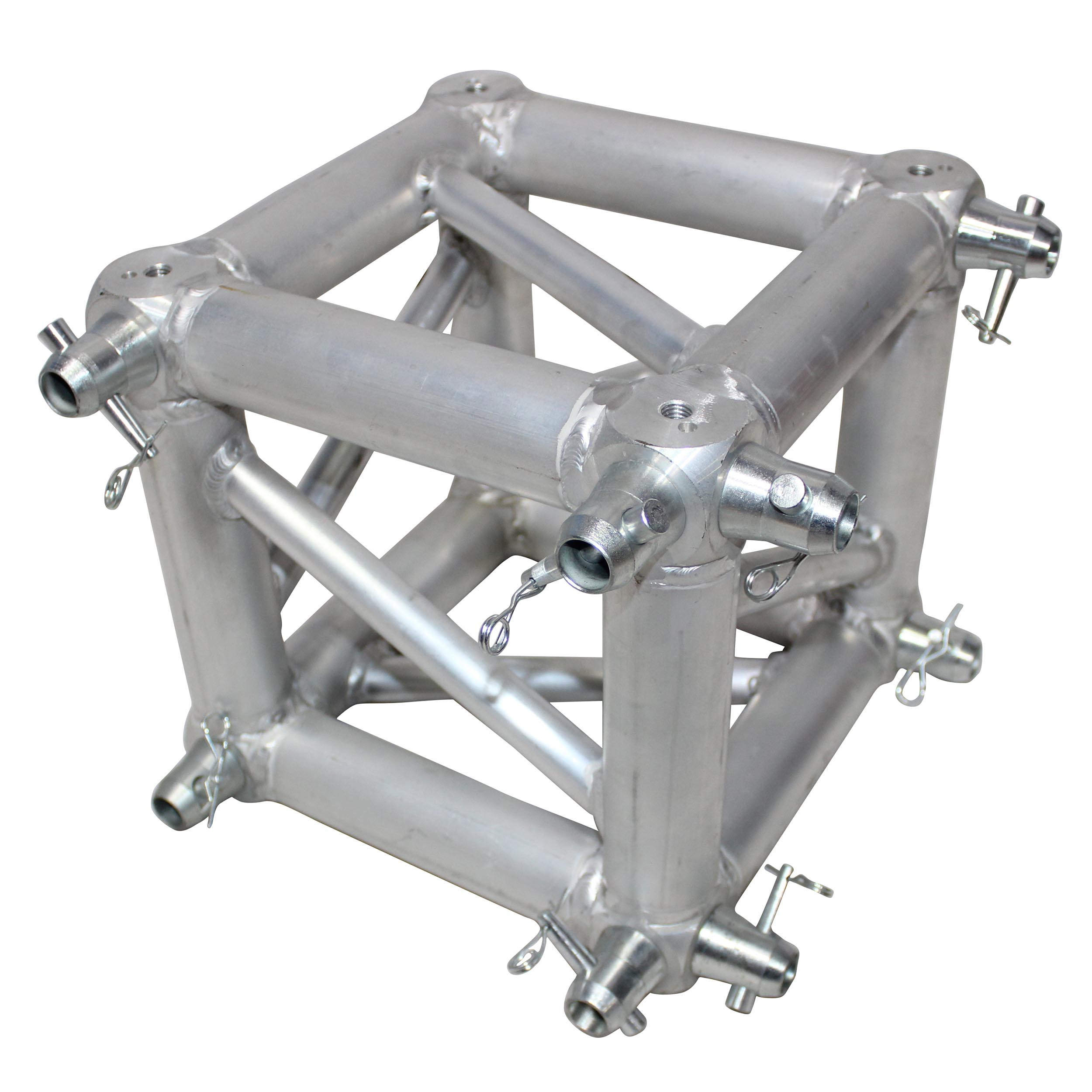

The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 2mm thick tube walls, this truss junction block is strong and can be used for many applications.
8 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103)
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
To Fit: Standard F34 Square Truss Configurations.
Dimensions: 11.45"L x 11.45"W x 11.45"H
Weight: 17.00 lbs
