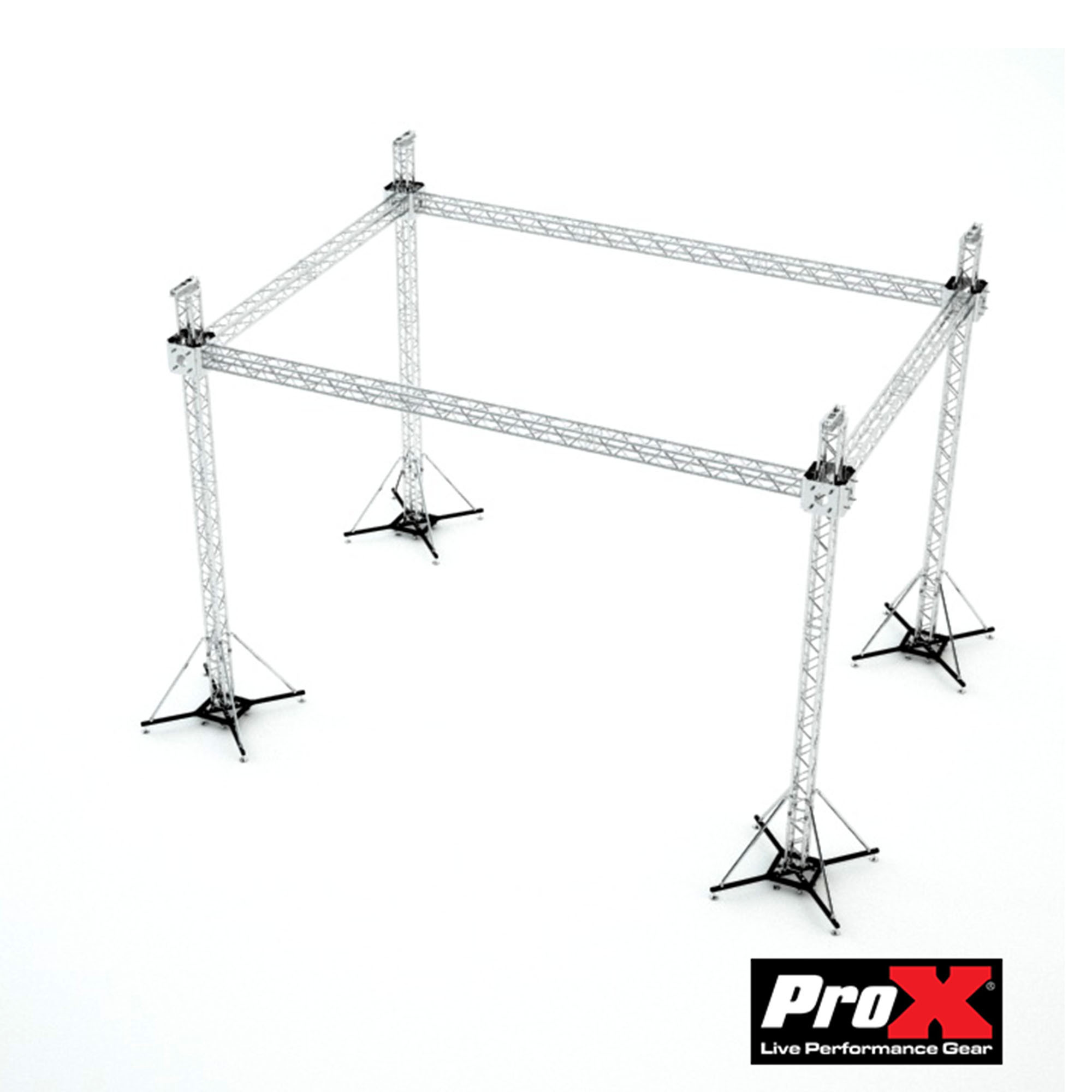

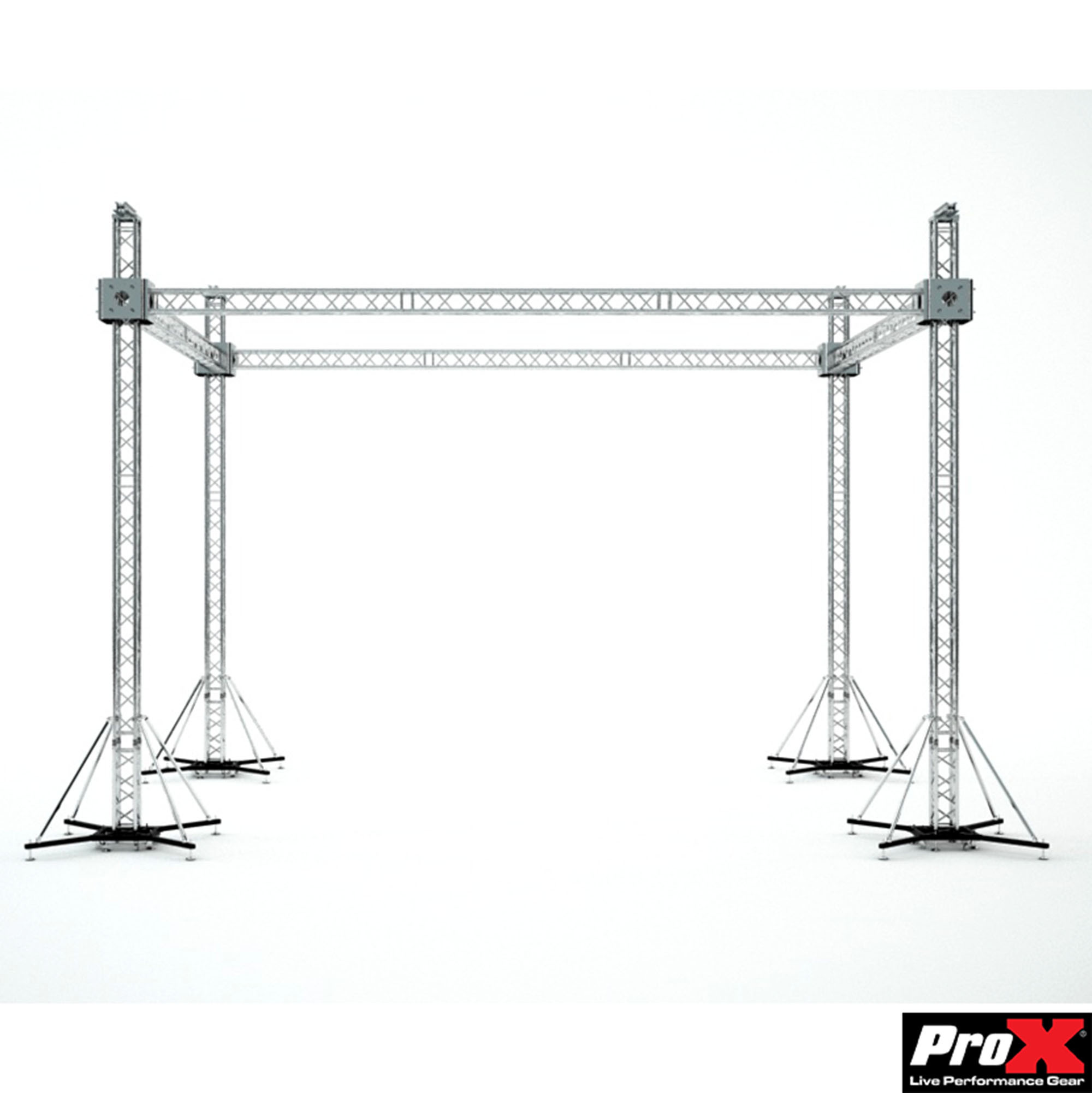

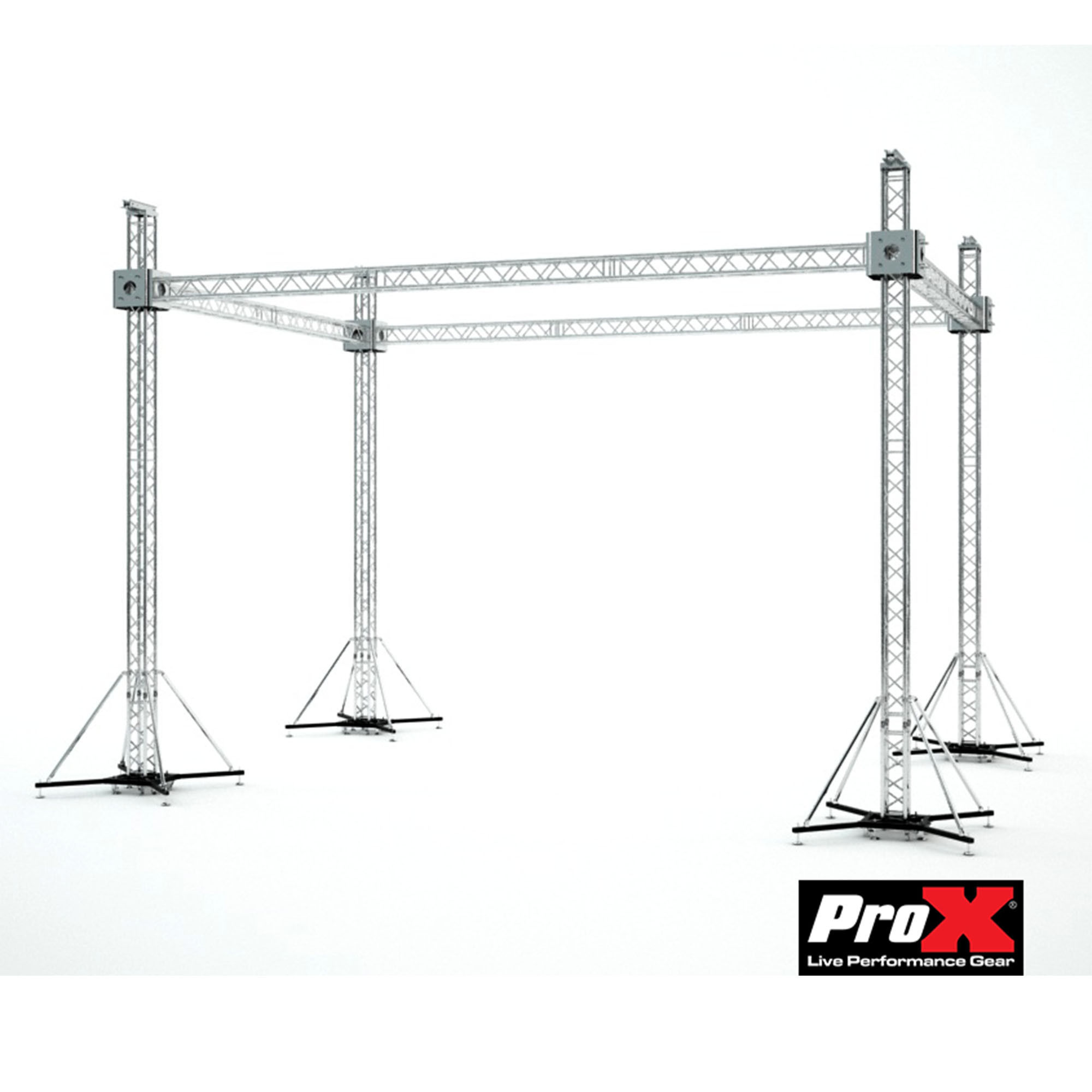

The ProX XTP-GS302023 Stage Roofing Systemis 30'W x 20'L x 23'H and Includes 4 Chain Hoists. The 30-foot by 20-foot trussing area is large enough to cover a small live band or alarge DJ production set up.
ProX XT-SQ series trussing isa ruggedand durable trussing package solution. Perfect for live outdoor or indoor productions, exhibitions, as well as nightclubs,and other permanent installations.ProX Live Performance Gear offers a wide varietyof single tubes, mounting plates, clamps and accessories that allowlimitless design configurations to suit your needs.Always consult an engineer for complex designs!
XT-SQF34 2MM Series Dimensions• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
Features• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding
Includes• 18 PcsXT-SQ984 9.84 Ft Truss Segment
• 4 PcsXT-SQ328 3.28 Ft Truss Segment
• 4 PcsXT-GSB MK2 Rigger Base, with extending legs
• 16 PcsXT-GSOUT3 3' Outrigger Brace Tubes with clamps
• 4 PcsXT-BLOCK Sleeve Block 4-Way Junction box
• 4 PcsXT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels
• 16 PcsXT-HINGE Hinge block set
• 2 SetsXT-MCH1TX2-30FT Pair of 1 Ton Manual Chain Hoists W/30 Ft (9 M) Chain
