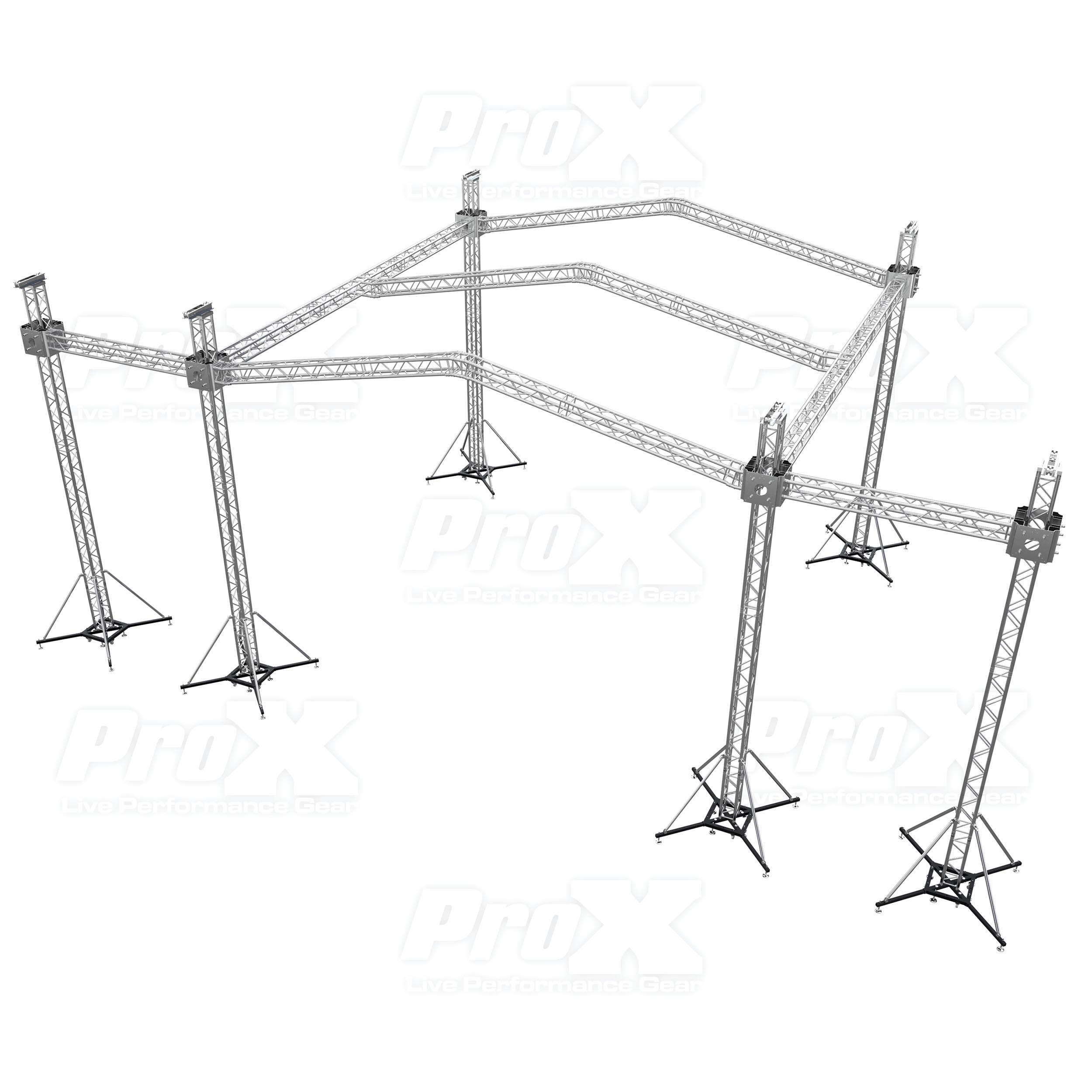

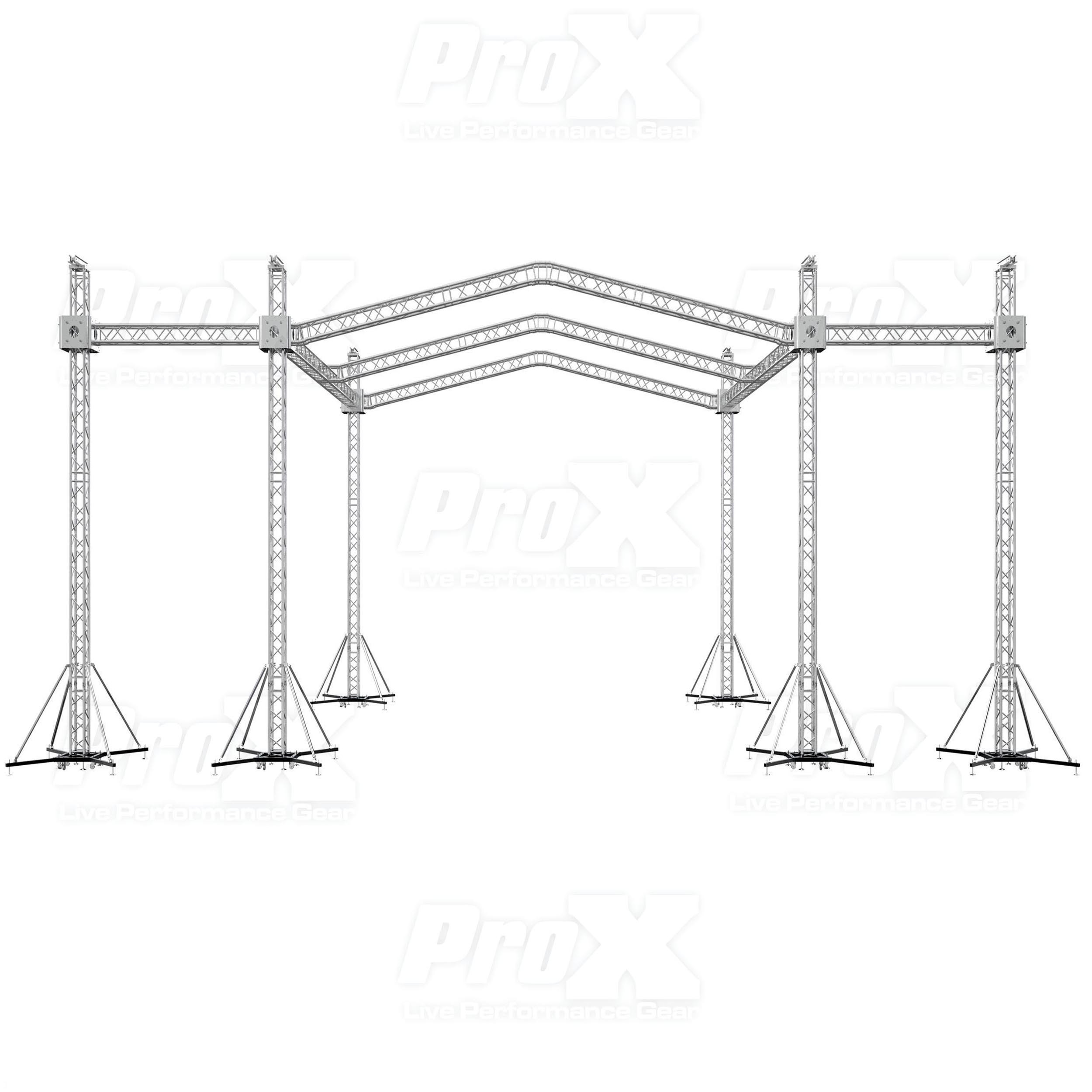

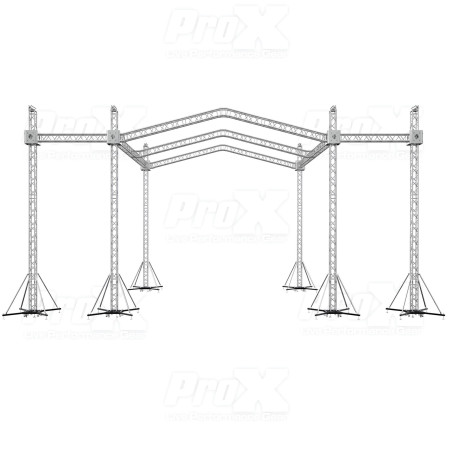

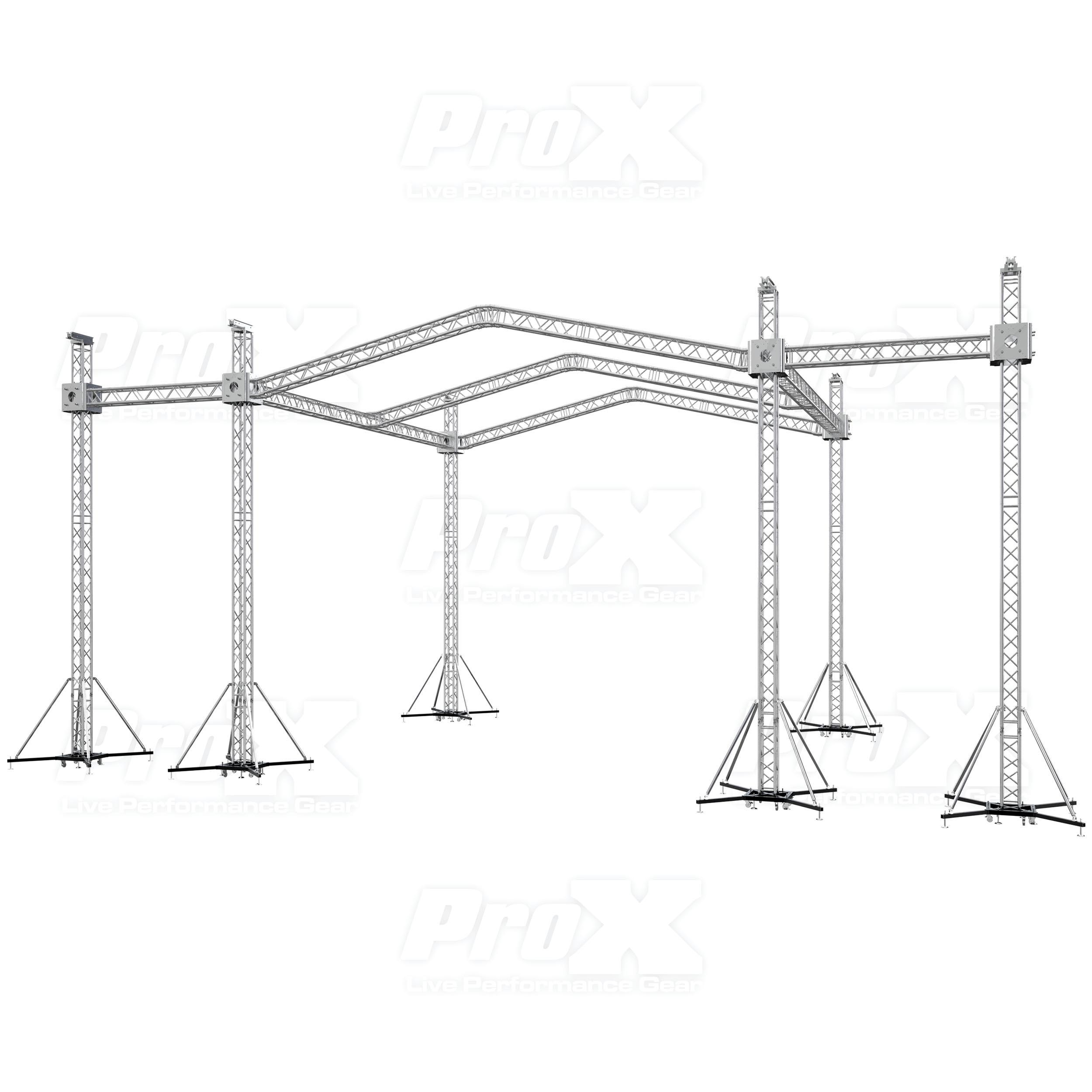

TheProX XTP-GS302023-PR3-12D Stage Roofing System with Speaker Wingsis 30'W x 20'L x 23'H andIncludes4 Chain Hoists. The 30-foot by 20-foot trussing area is large enough to cover a multi-person live band or a very large DJ production set up and the 7 foot wings are more than enough to hang speakers and lighting fixtures.
You can hang lighting, curtains, video screens and speakers from the truss system and adjust the height up to 23 feet high.Scalable to smaller staging needs.The entire structure is lifted and held in place with Six(6) chain hoist lifting stations that are the stands that support the entire system.The stage roof trussing is designed to hold lighting and audio gear evenly distributed around the stage roofing system.Guy wires required for most installations!
In this package, you have everything you need for a complete roofing solution:
• 6 -XTP-GSBPACK3Truss Tower Lift Systems,
• 12 -XT-SQ9849.84ft (3.00m) Square Truss Segment,
• 20 -XT-SQ705 ?7.15ft(2.15m) Square Truss Segment,
• 12 -XT-SQ12D9"(0.23m) 12D Corner,
• 2 -XT-JB6W-4W 6 Way Square Truss Junction Block,
• 8 -XT-SPFF105Spacer 105mm Female Coupler,
• 2 -XT-SQ6566.56ft(2.00m) Square Truss Segment,

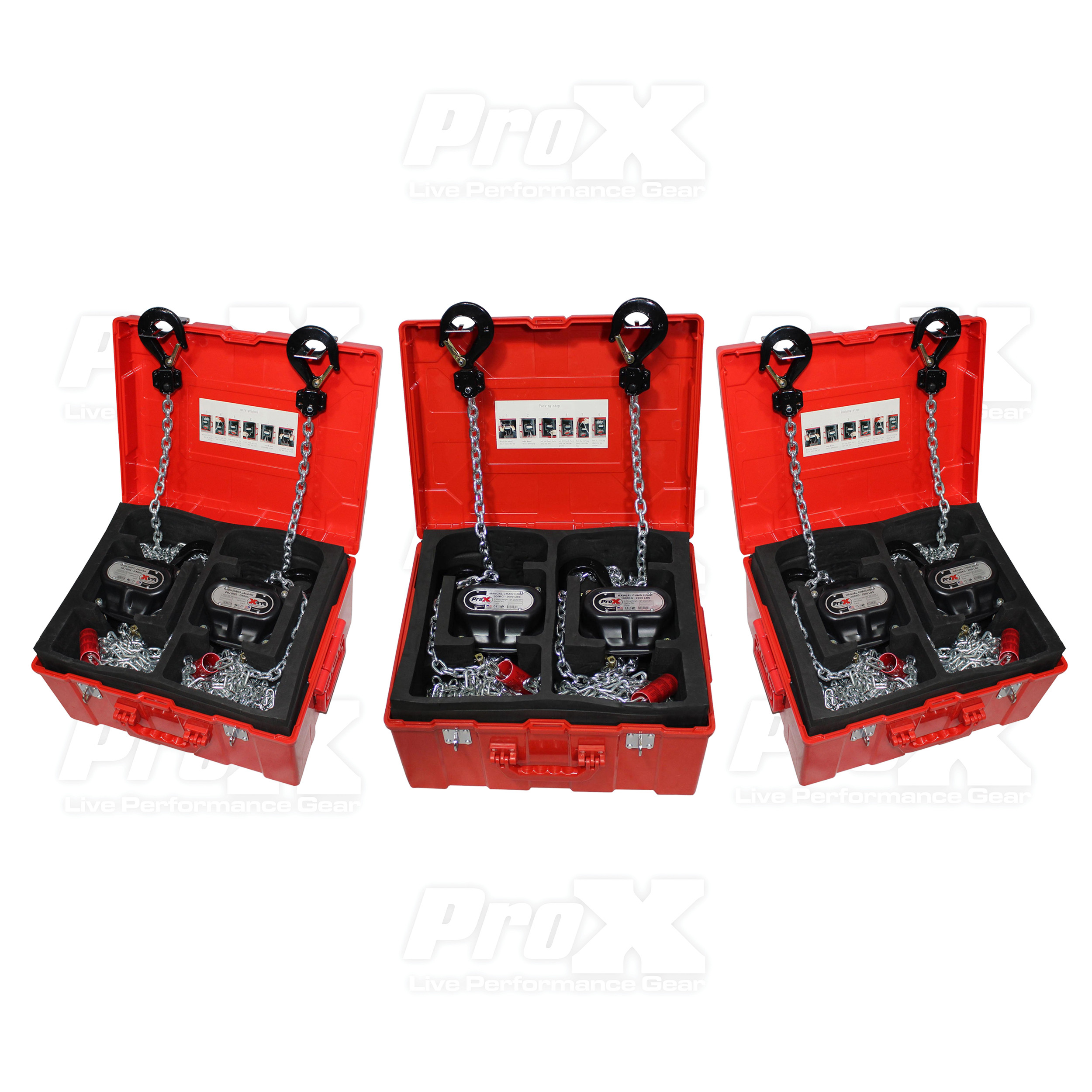

• 3 -XT-MCH1TX2-30FTSets of 2 1T Manual Chain Stage Hoist with 30ft Chain
XT-SQF34 2MM Series Dimensions• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
Features• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding
