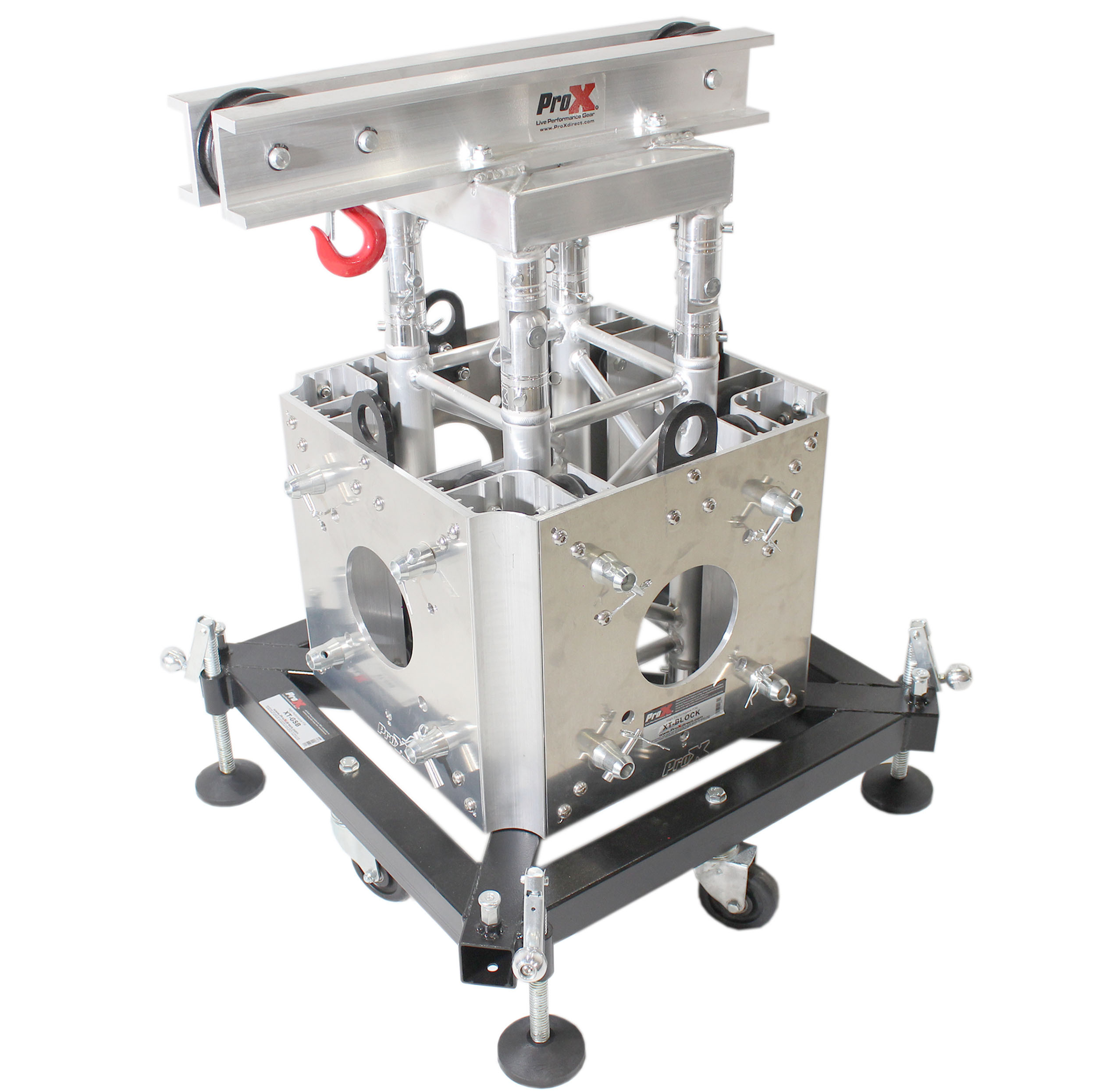

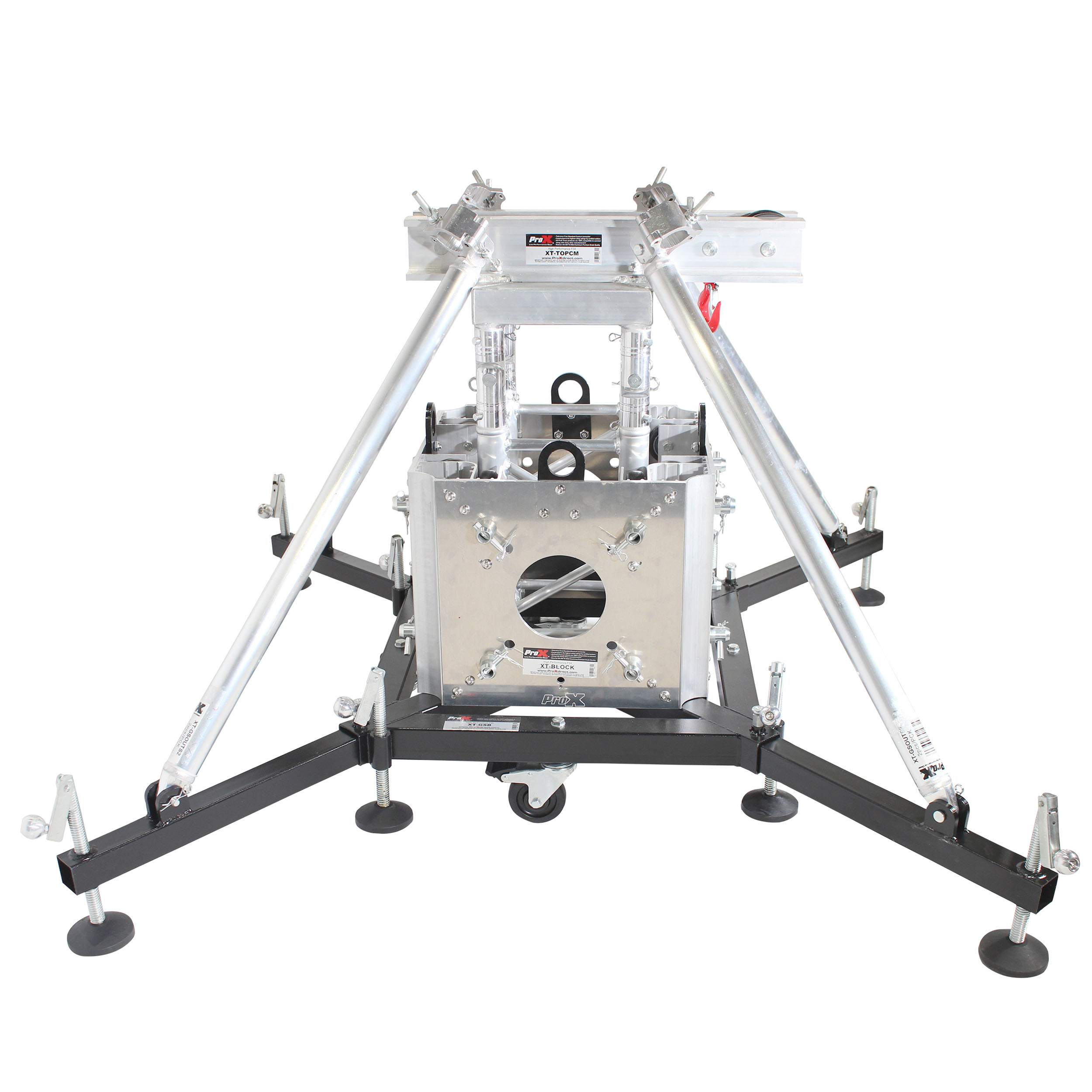

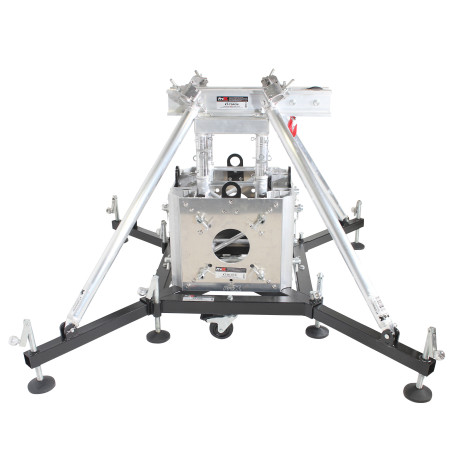

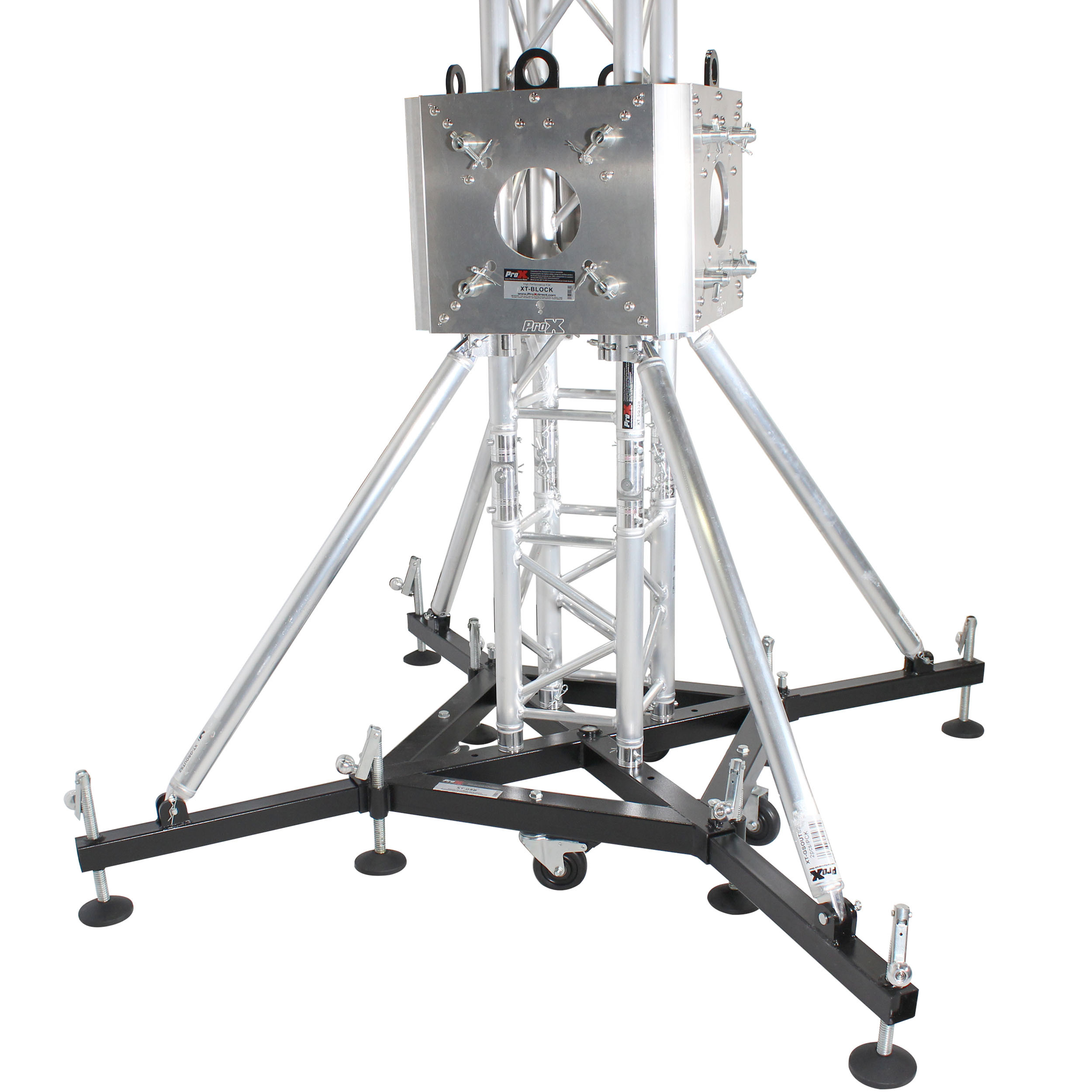

The ProX XTP-GSBPACK164is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 1.64' long square Truss. Complete with the Rigging Top.
In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. You get:

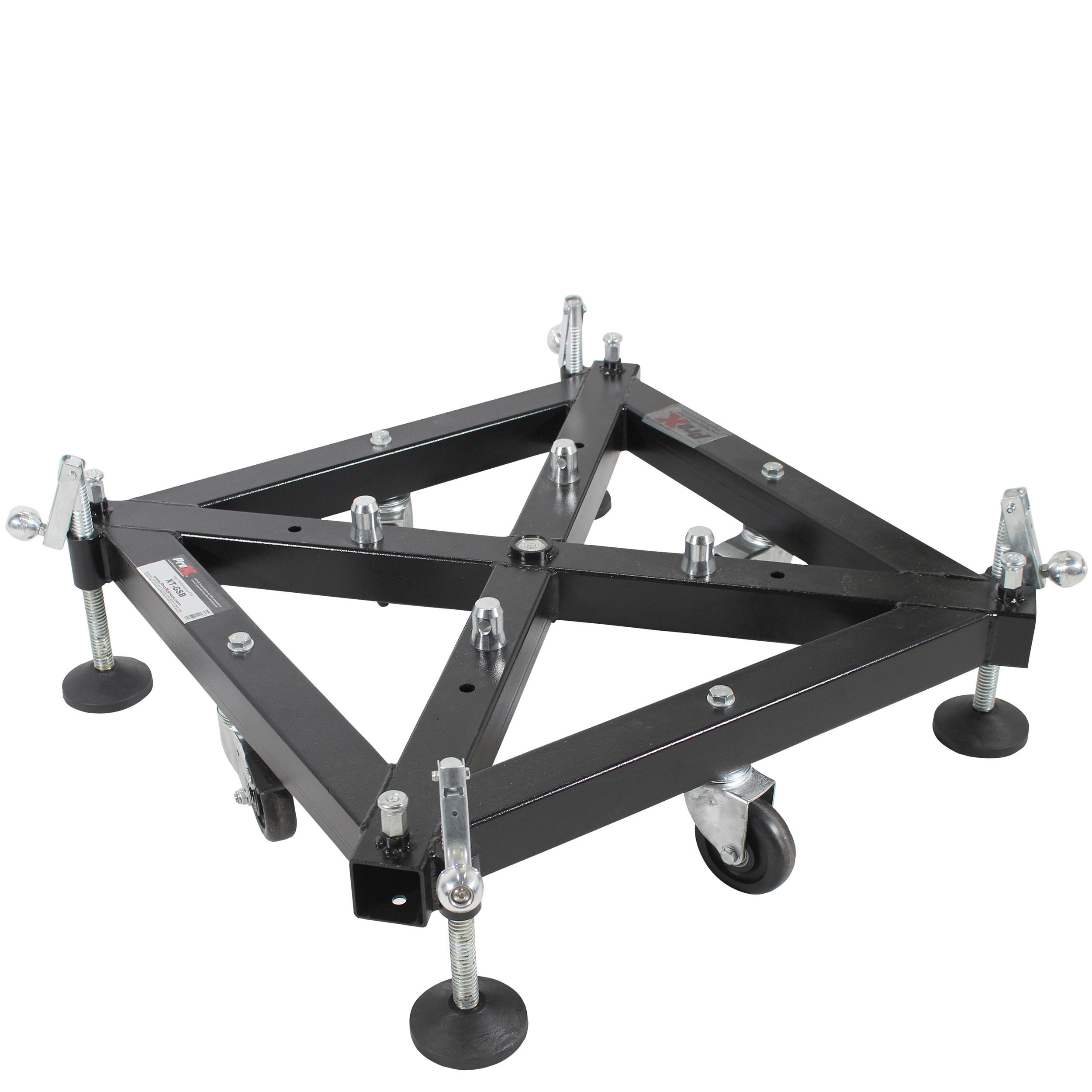

• XT-GSB MK2 Rigger Base, with extending legs

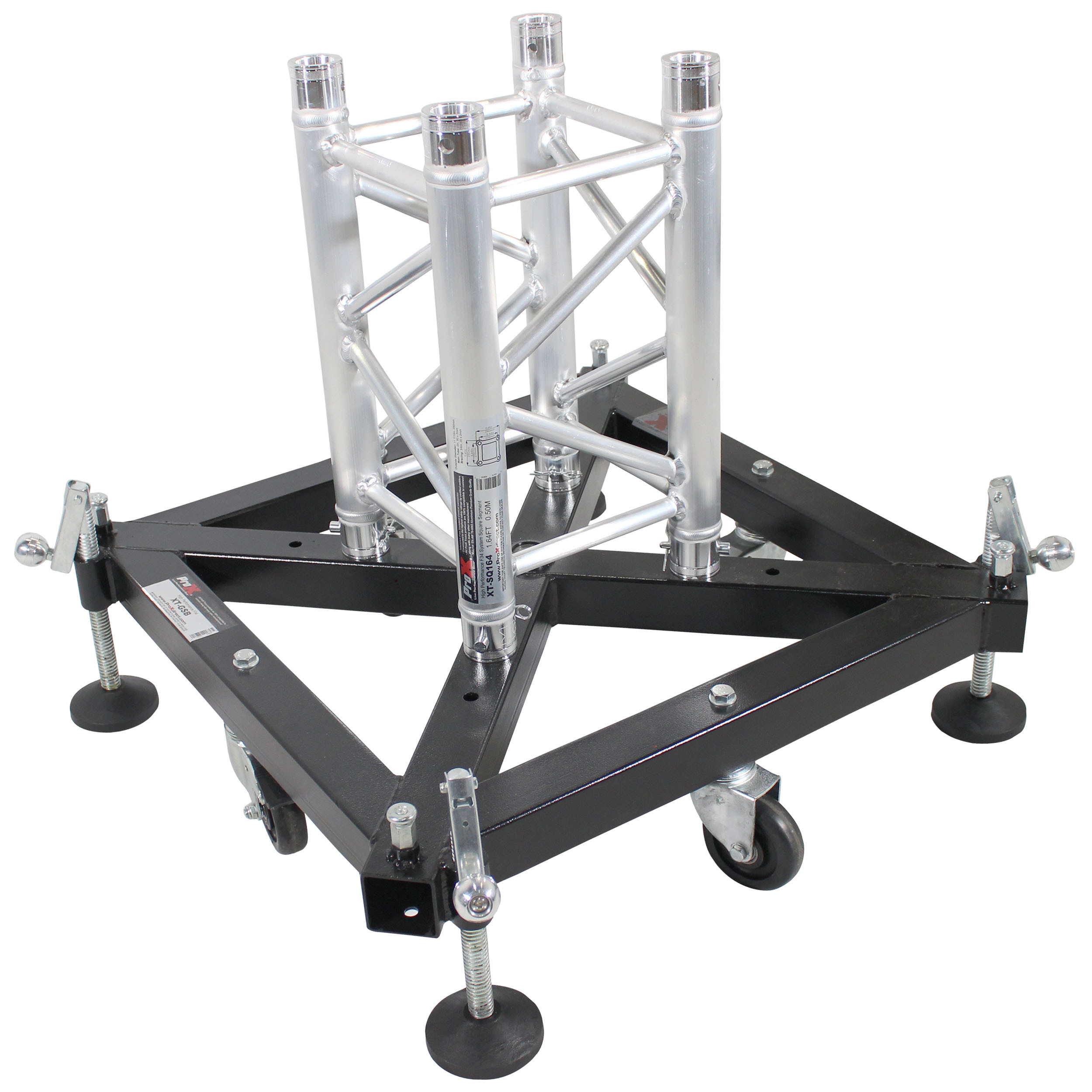

• XT-SQ164 1.64 ft Long Truss segment (Longer segments available separately)

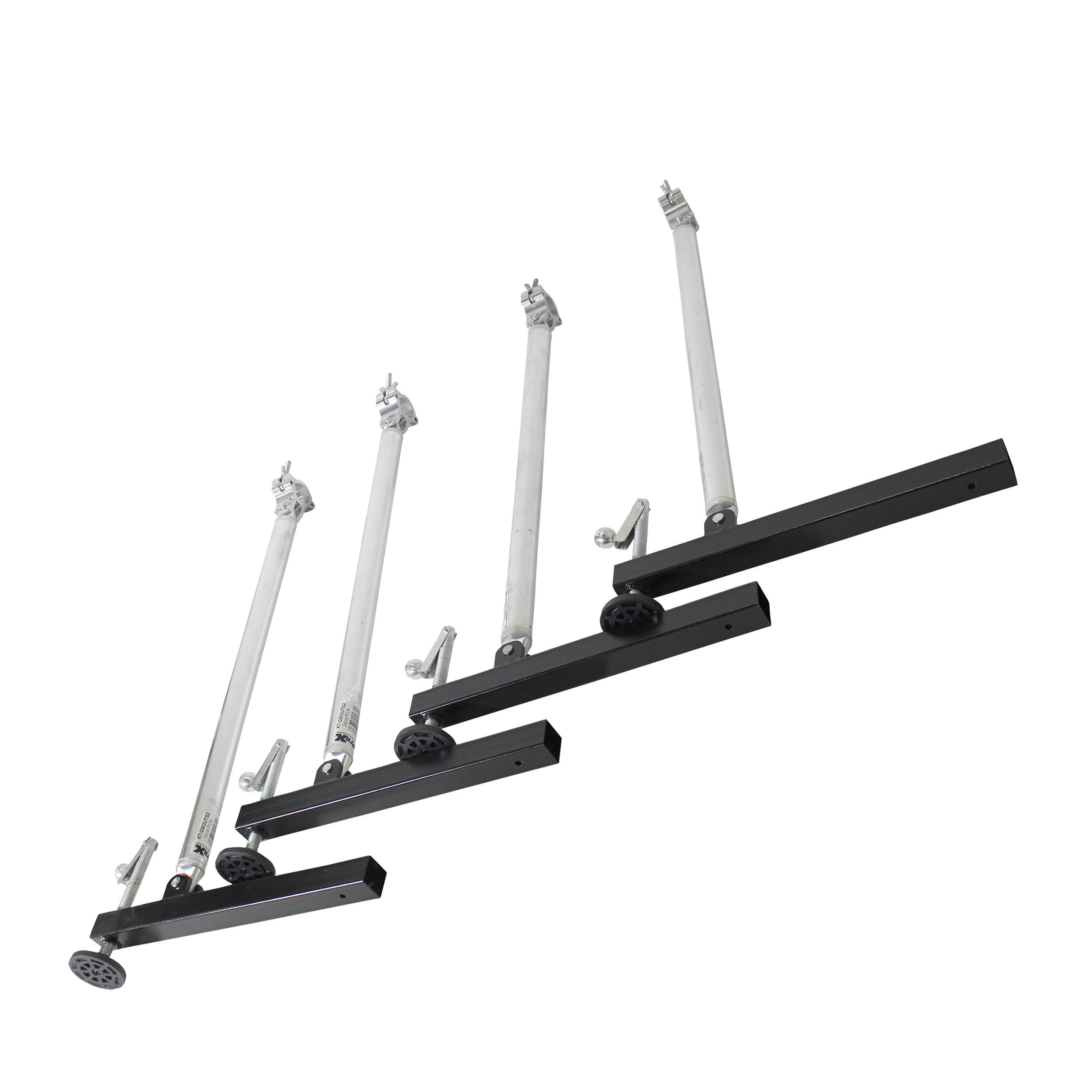

• XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps

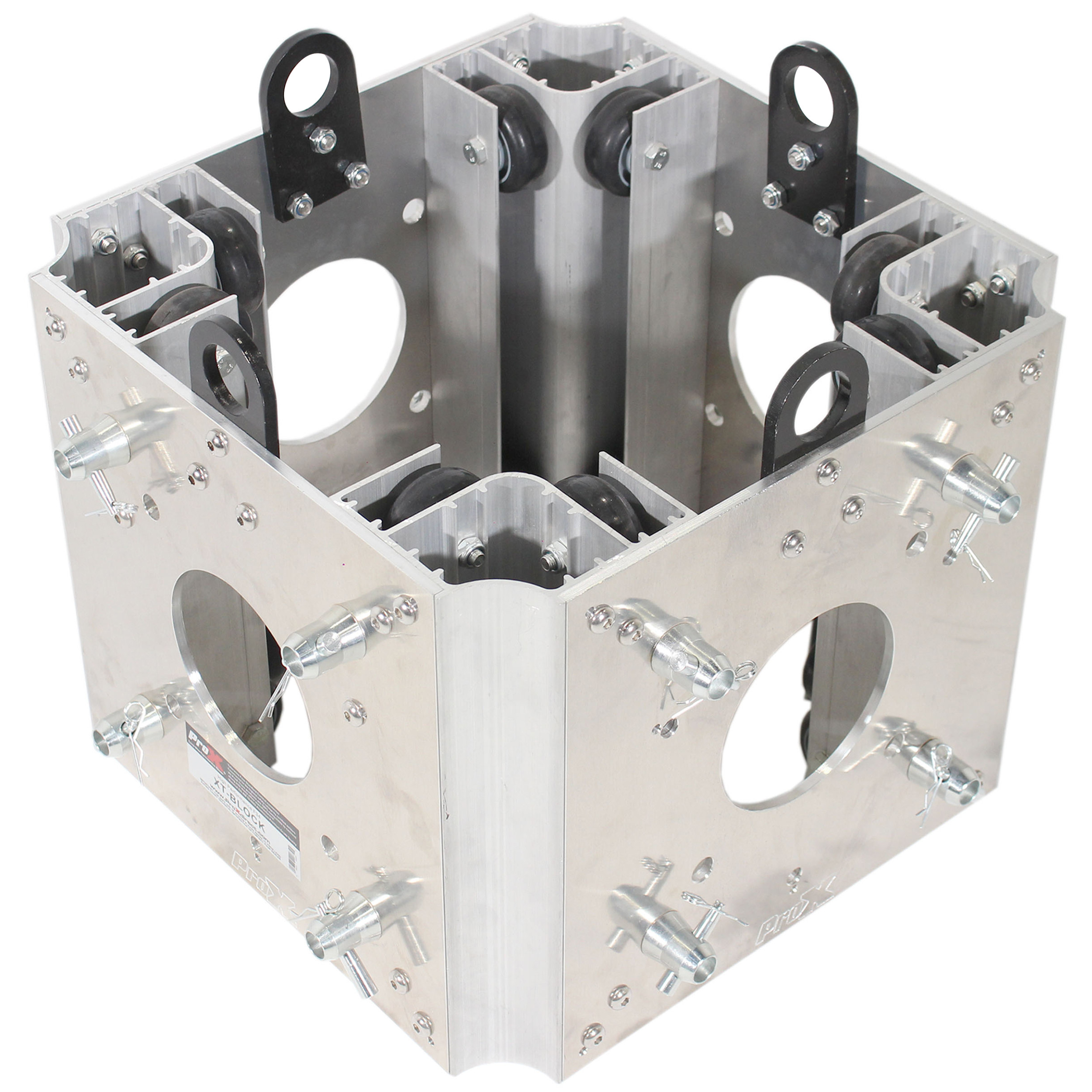

• XT-BLOCK Sleeve Block 4-Way Junction box

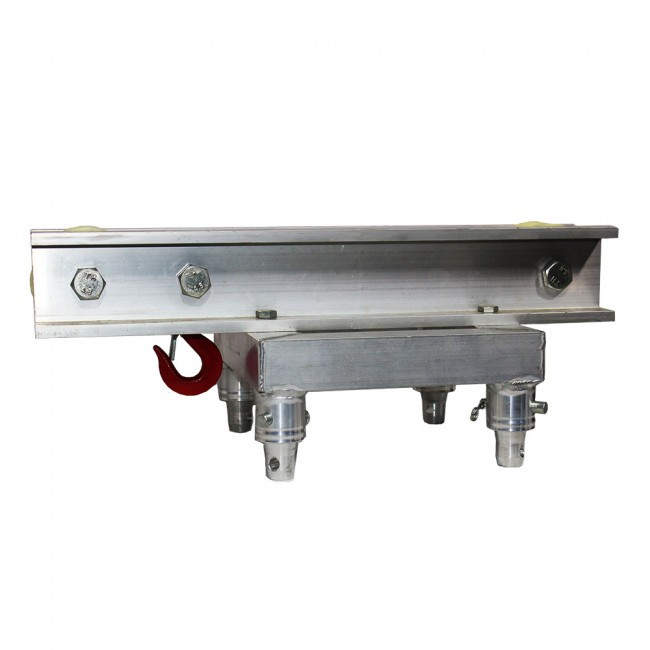

• XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels

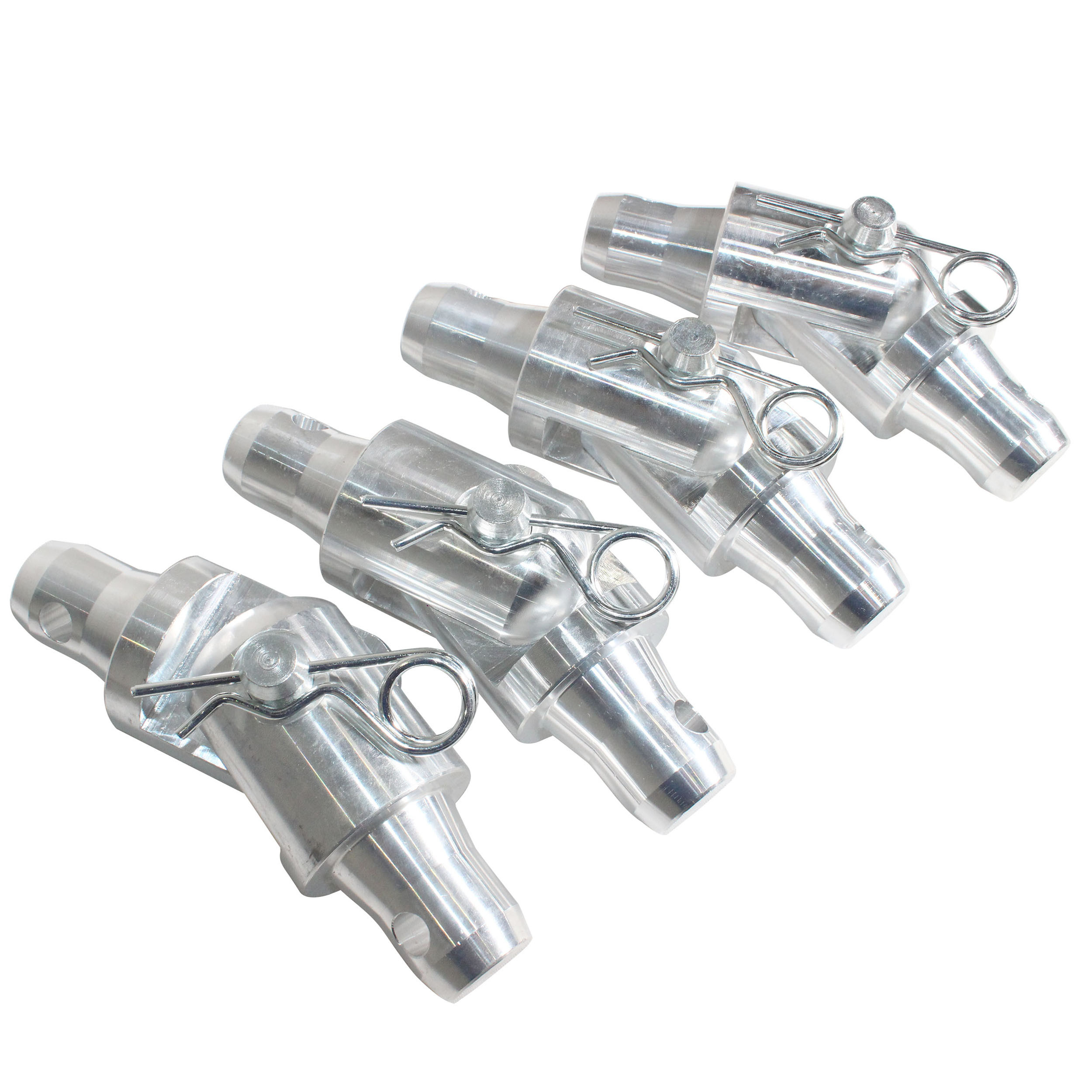

• XT-HINGE 4 Hinge block set
• (Lift Hoist NOTincluded)
ProX Trussing isa ruggedand durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs,and other permanent installations.ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.Always consult an engineer for complex designs!
Features• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per unit
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding
XT-SQF34 2MM Series Dimensions:• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9,5kg per 3.28 ft /1 meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
Includes:• XT-TOPCM (1) Top Truss Section for Electric Motor or Manual Chain Hoist
• XT-BLOCK-MK2 (1) Ground Support Sleeve Block for F34 Truss Systems
• XT-SQ164 (1) 1.64 Ft - 0.5 M F34 Square Truss Segment | 2 mm Wall
• XT-GSB MK3 (1) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
• XT-GSOUTS3 (4) 3 Ft. Outrigger Brace for Ground Support Truss Tower
• XT-HINGE (4) F31 F32 F34 Conical Single Tube Hinge Unit
To Fit:
Standard F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors
