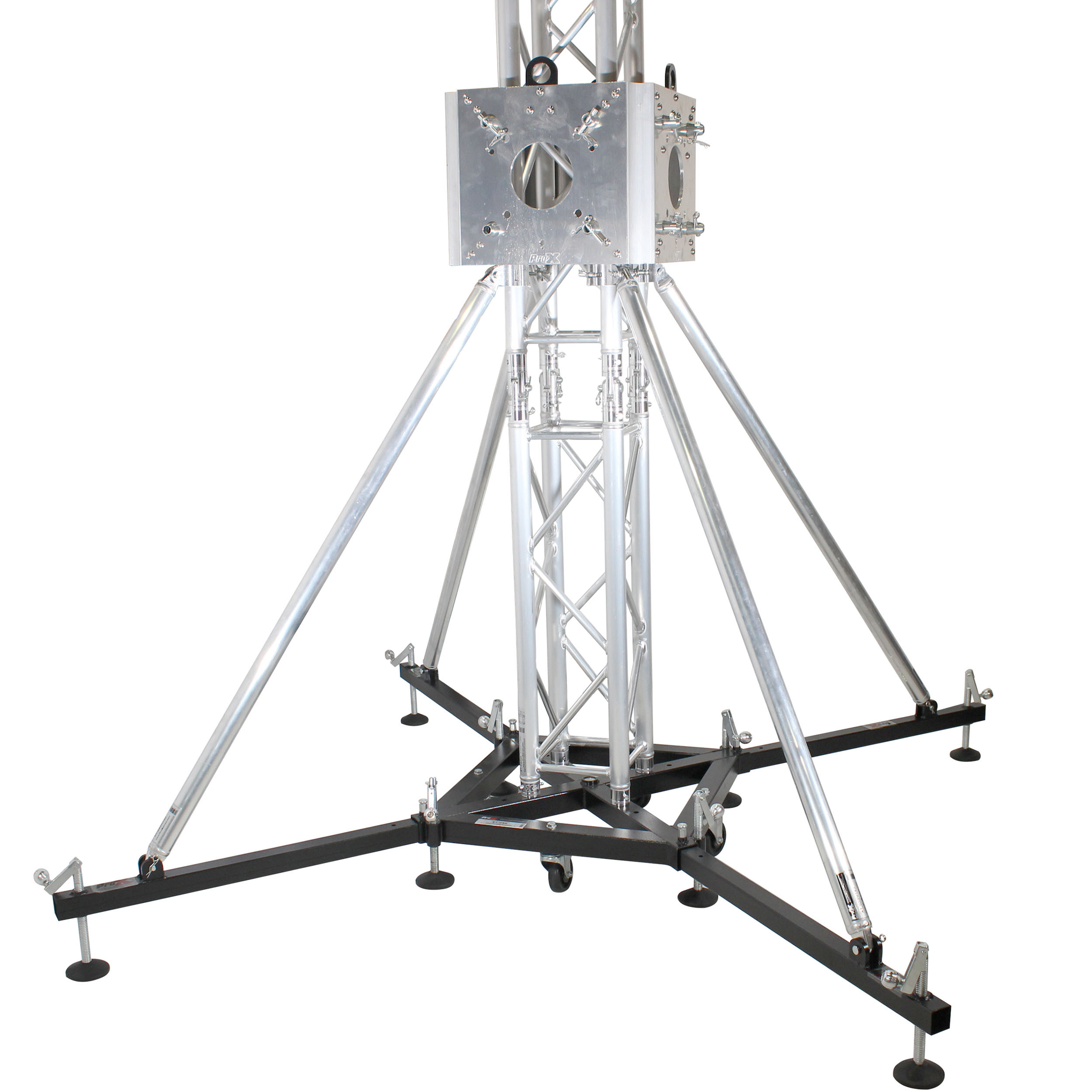

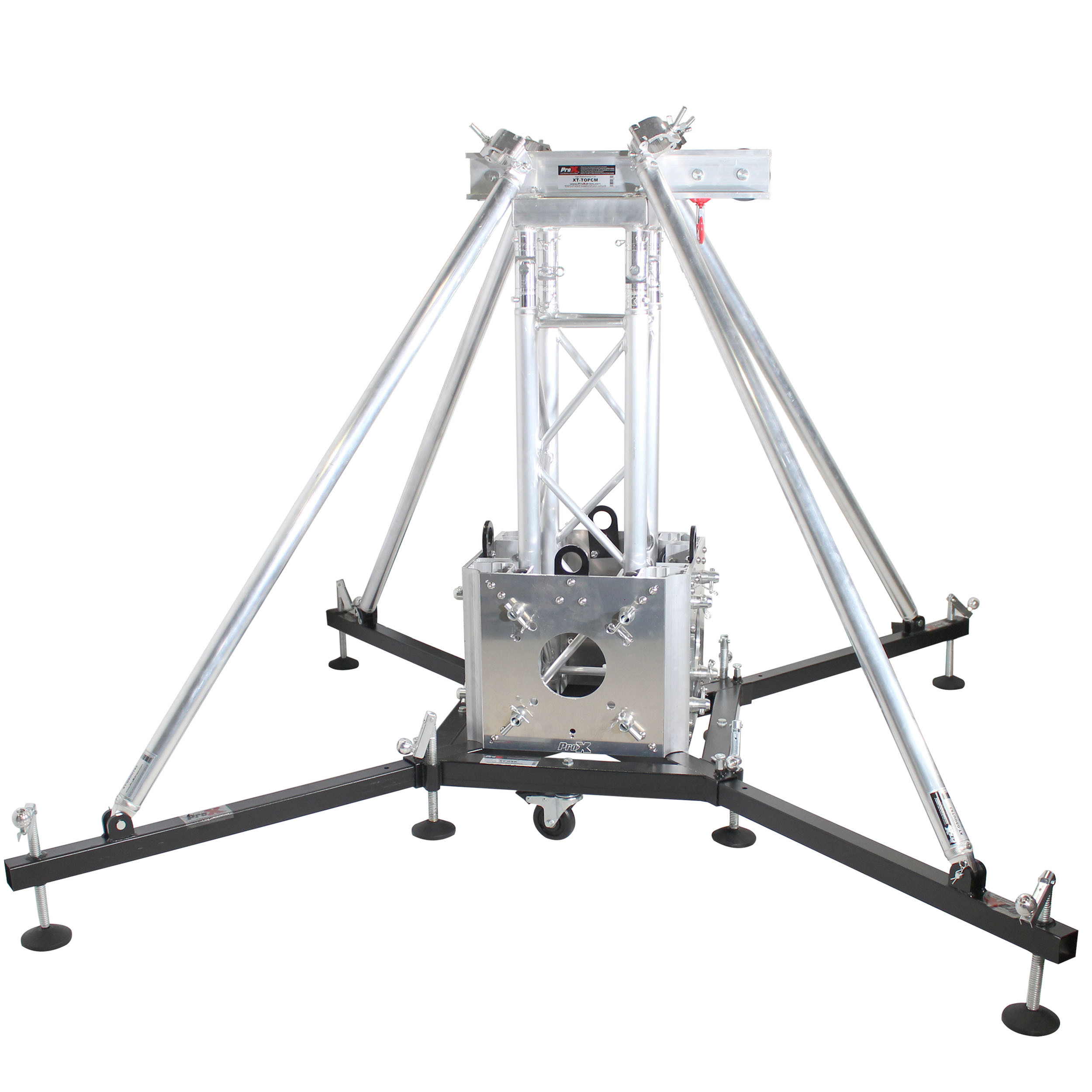

The ProX XTP-GSBPACK3 is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' long square Truss. Complete with the Rigging Top.

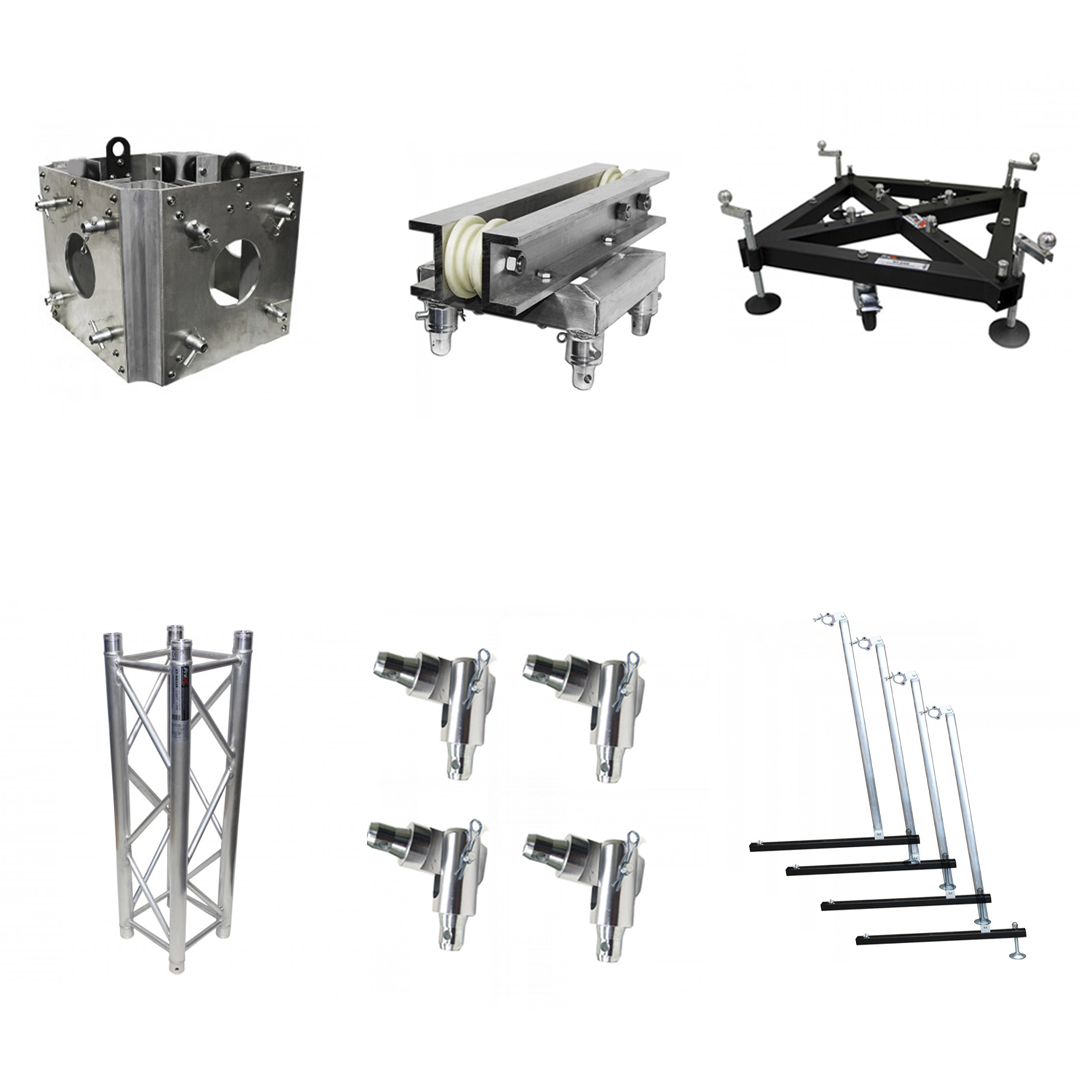

In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. You get:

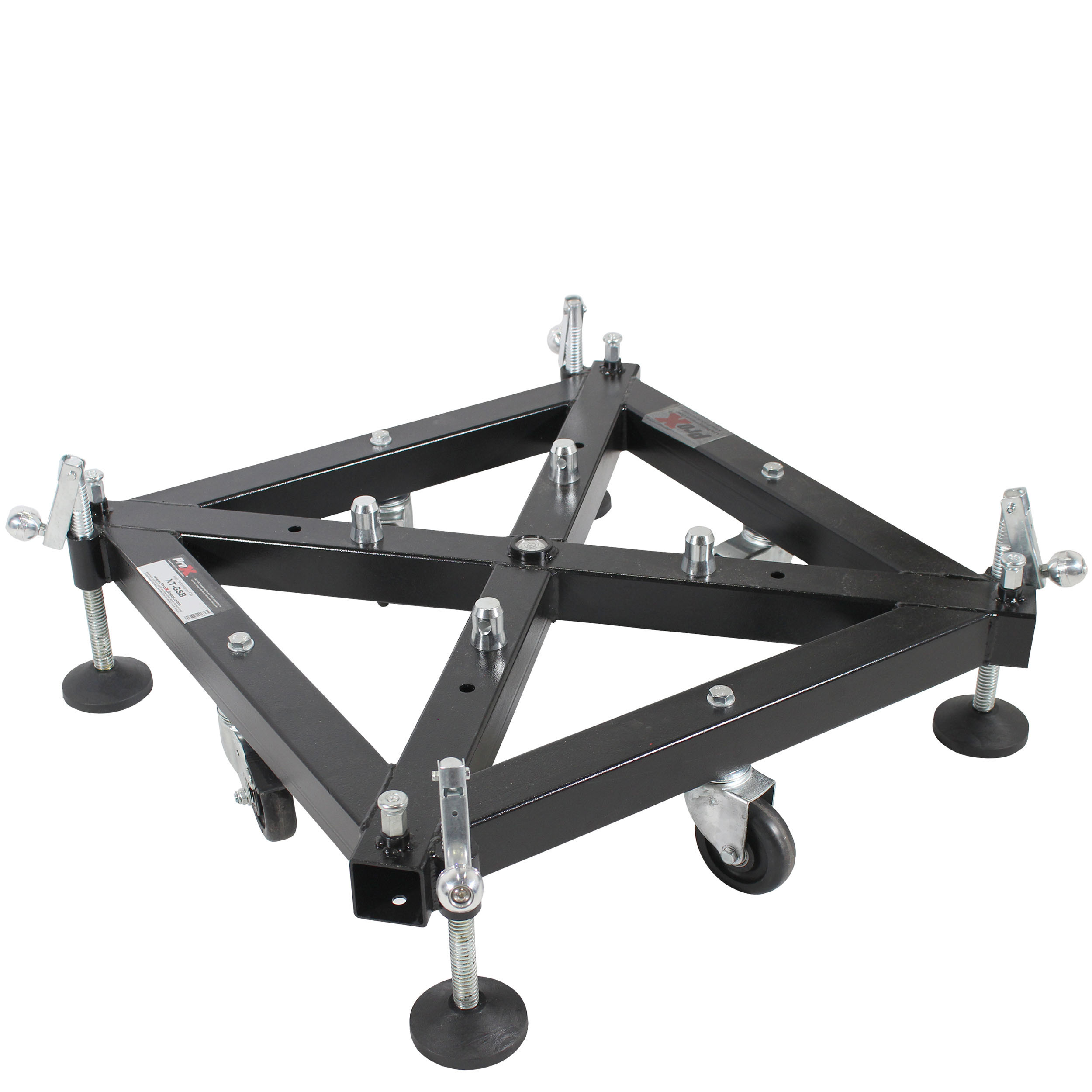

• XT-GSB MK2 Rigger Base, with Extendable Feet
• XT-SQ328 3.28 Ft Truss Segment (Longer segments available separately)
• XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps

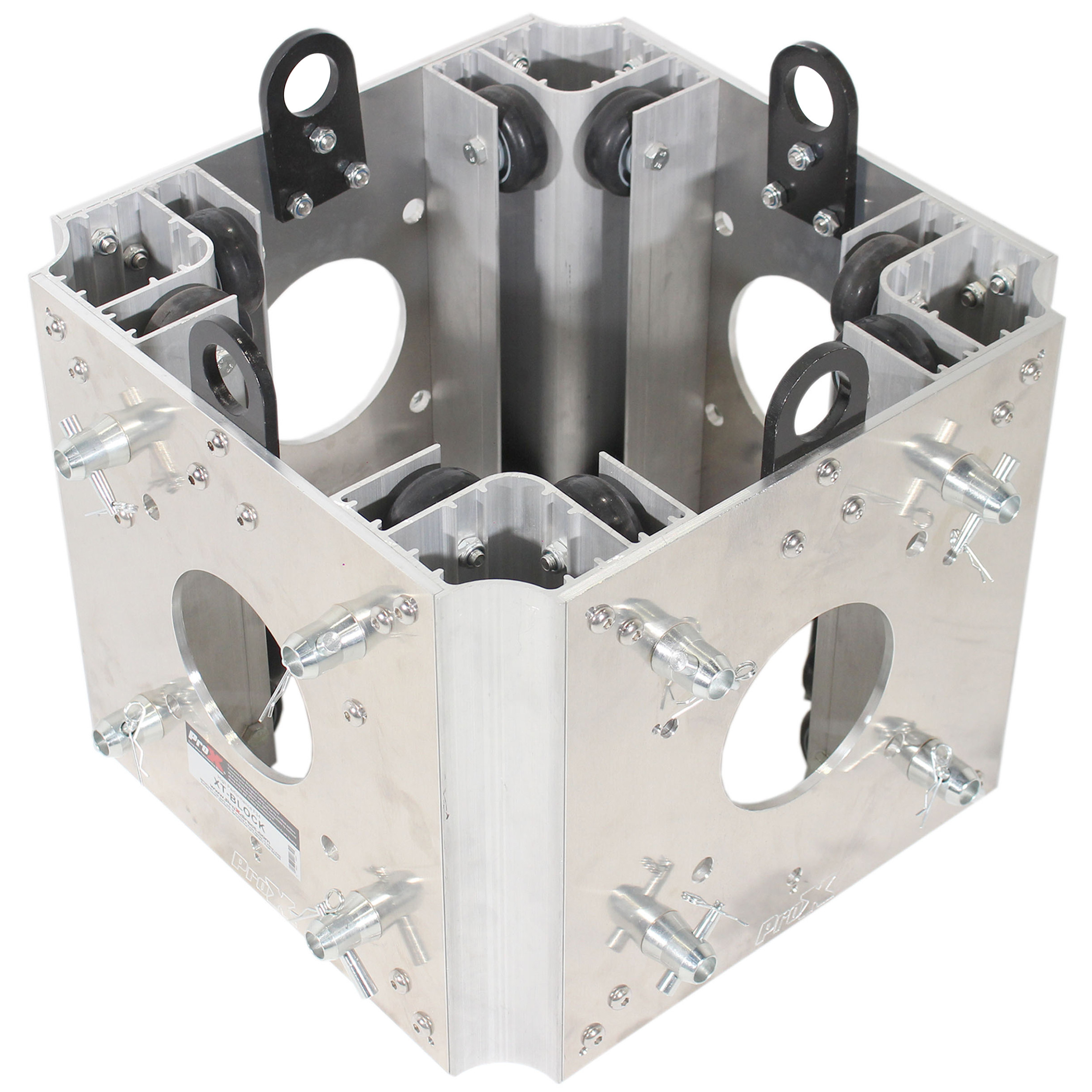

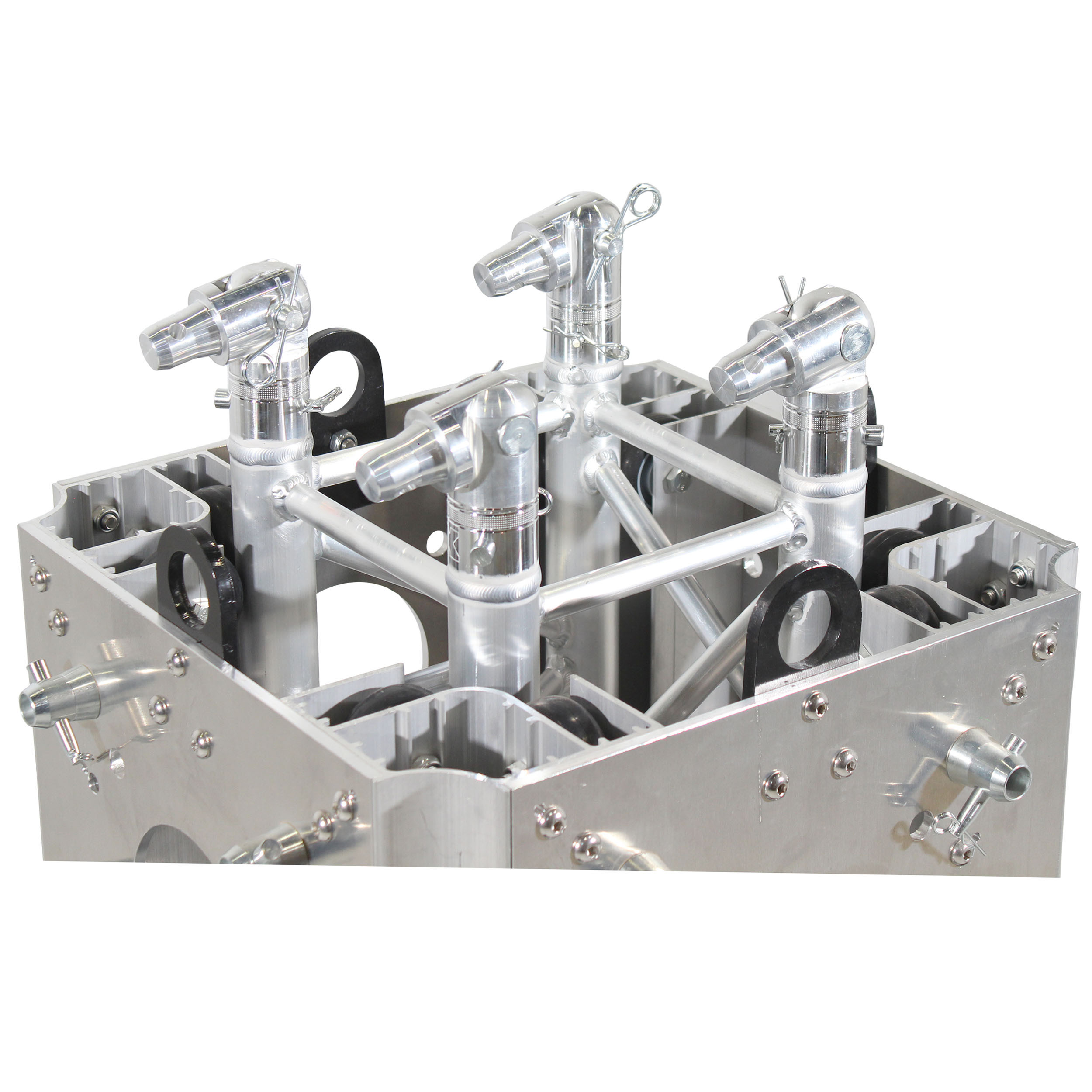

• XT-BLOCK Sleeve Block 4-Way Junction box

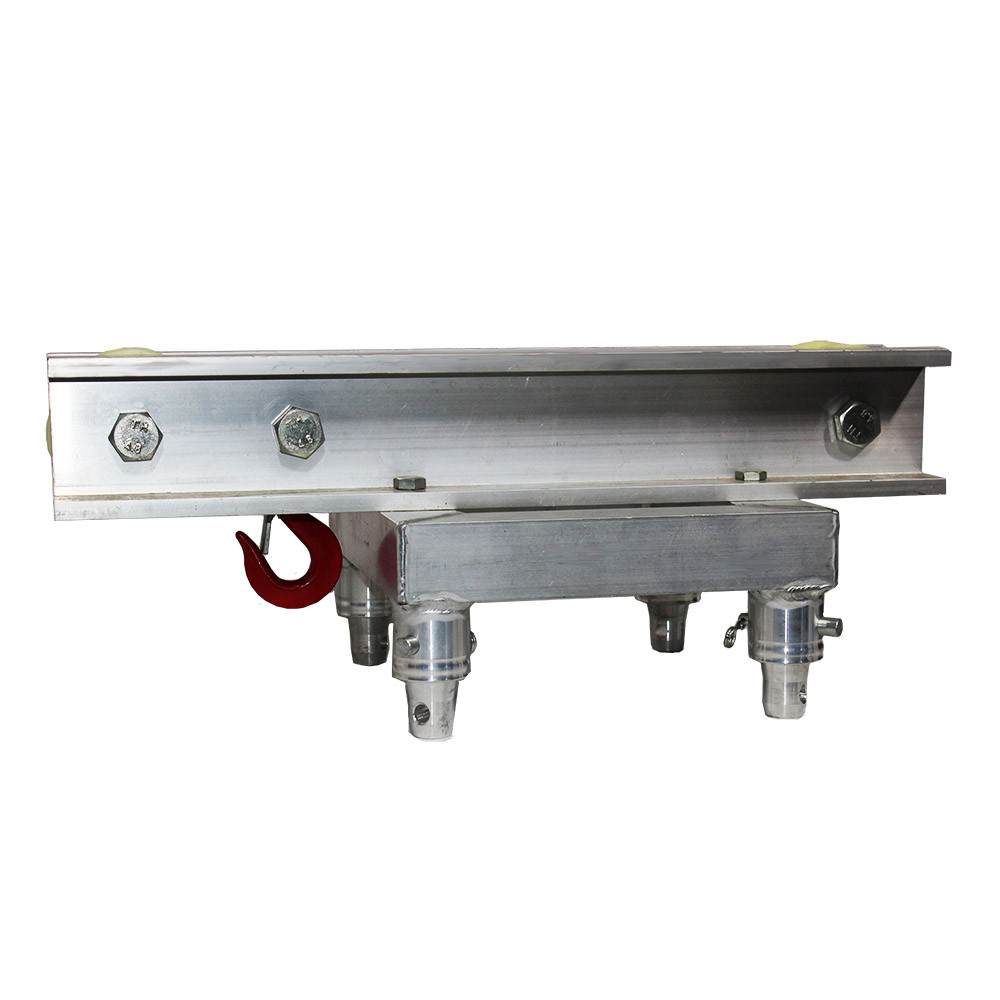

• XT-TOPCMTruss Top with I-Beam mount with chain Pulley wheels
• XT-HINGE 4 Hinge block set
• (Lift Hoist NOTincluded)
ProX XT-SQ series trussing isa ruggedand durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs,and other permanent installations.ProX offers a wide varietyof corners, base plates, connectors and accessories that allowlimitless design configurations to suit your needs.Always consult an engineer for complex designs!
Features• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per unit
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding
XT-SQF34 2MM Series Dimensions:• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9,5kg per 3.28 ft /1 meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
Includes:• XT-TOPCM (1) Top Truss Section for Electric Motor or Manual Chain Hoist
• XT-BLOCK-MK2 (1) Ground Support Sleeve Block for F34 Truss Systems
• XT-HINGE (4) F31 F32 F34 Conical Single Tube Hinge Unit
• XT-GSB MK3 (1) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
• XT-GSOUTS3 (4) 3 Ft. Outrigger Brace for Ground Support Truss Tower
• XT-SQ328 (1) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
To Fit:
Standard F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors
