ProX XTP-GSBPACK3 Pro Truss Tower Stage Lift System Package

In this package, you have everything you need (except for lift hoist) for one climbable leg in the building and flying of a large scale truss, supporting mid to heavy-grade level stage installations. You get:
• XT-GSB MK2 Rigger Base, with Extendable Feet
• XT-SQPL328 3.28ft Long LADDER Truss segment (Longer segments available at extra cost)
• XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps
• XT-BLOCK Sleeve Block 4-Way Junction box

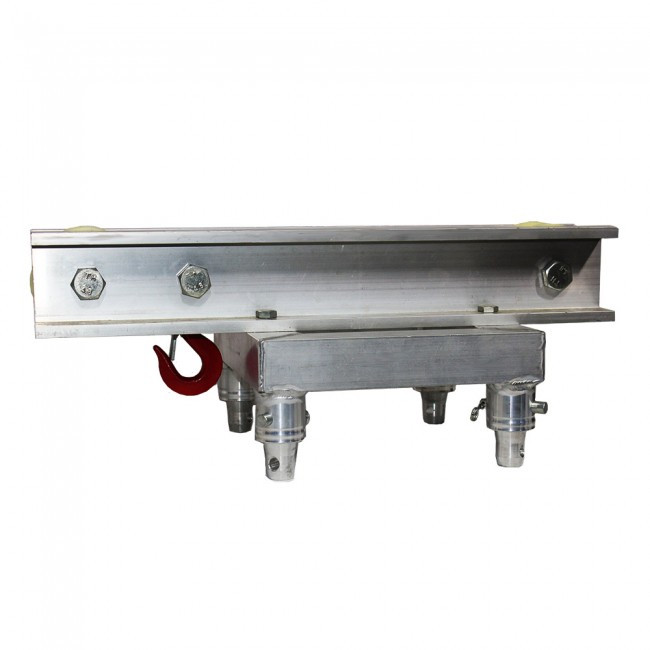

• XT-TOPCMTruss Top with I-Beam mount with chain Pulley wheels
• XT-HINGE 4 Hinge block set
• (Lift Hoist NOTincluded)

ProX XT-SQPLseries trussingisa ruggedand durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs,and other permanent installations where easy to climb corners are needed.ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.Always consult an engineer for complex designs!



Features
• Manufactured to Exacting Specifications in our Own Factory!
• Built to exacting specifications
• TV Certified Welding
• Compatible with most Conical Coupled trussing
• Includes tapered shear pins with clips

XT-SQPL Series Dimensions:
• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9.5kgper 3.28 ft/1meter
• Main Tube: 2in / 50mm
• Premium Tubing - Wall Thickness: 1/8in / 3mm
• Braces: .75in / 20mm
• Ladder Steps 2in / 50mm
• Ladder Step Spacing: 9.84in / 250mm
• Material: EN-AWT6 6082 Aluminum
• TV Certified Aluminium Welding

Includes:
• XT-TOPCM (1) Top Truss Section for Electric Motor or Manual Chain Hoist
• XT-BLOCK-MK2 (1) Ground Support Sleeve Block for F34 Truss Systems
• XT-HINGE (4) F31 F32 F34 Conical Single Tube Hinge Unit
• XT-GSB MK3 (1) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
• XT-GSOUTS3 (4) 3 Ft. Outrigger Brace for Ground Support Truss Tower
• XT-SQPL328 (1) 3.28 FT 1M F34 Professional Ladder Truss Segment 3mm Tubing

To Fit:
StandardF34 Square Conical Truss
