The ProX XT-SQ656BLK Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance.
It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs -- while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors, and accessories that add stability while expanding on limitless design configurations.
Powder coating provides a stronger finish that is more resistant to damage than paint! Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display. Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

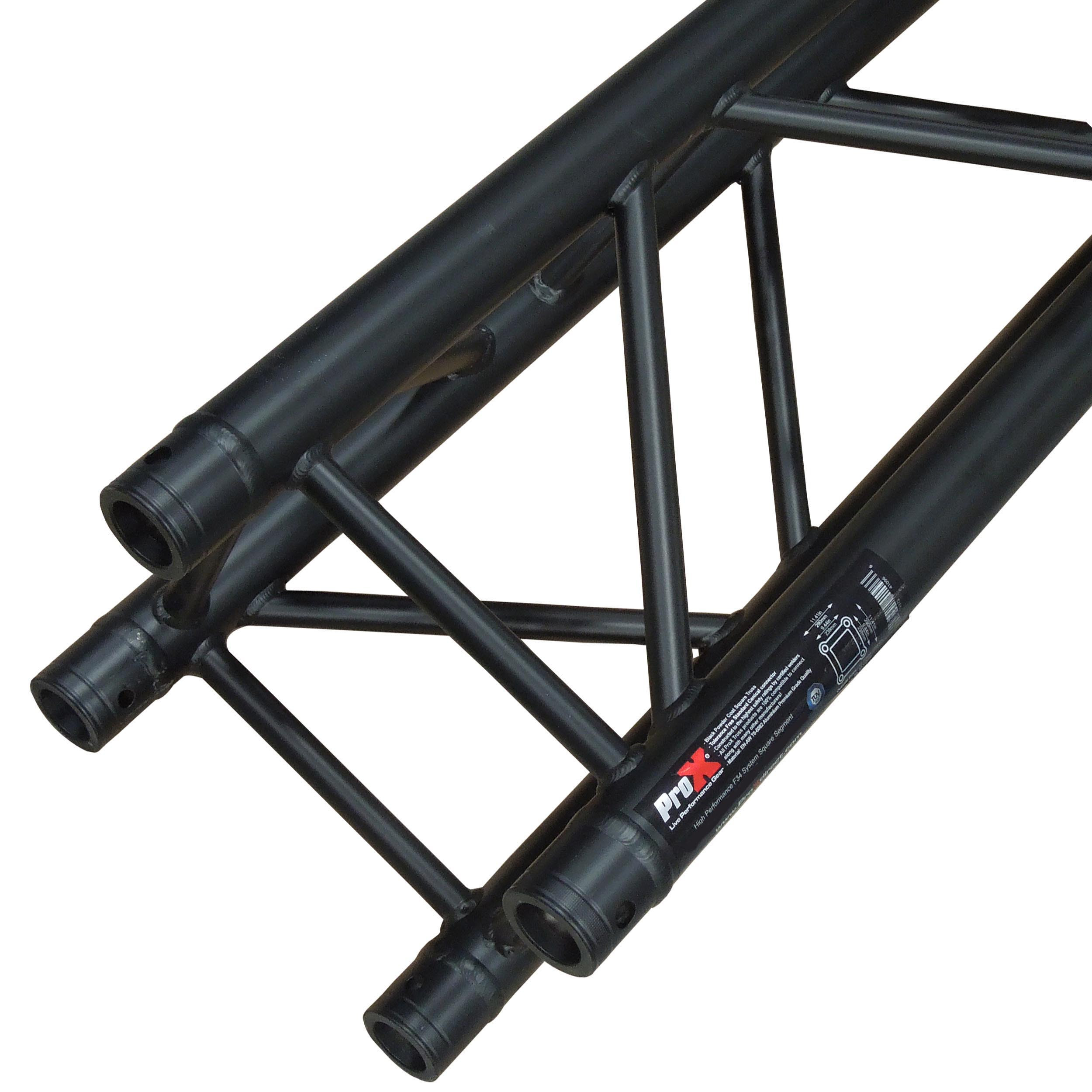

• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in / 2mm
• Constructed to the highest safety ratings by certified welder
XT-SQ SERIES DIMENSIONSHeight: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 5.0 lbs/ft / 7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum

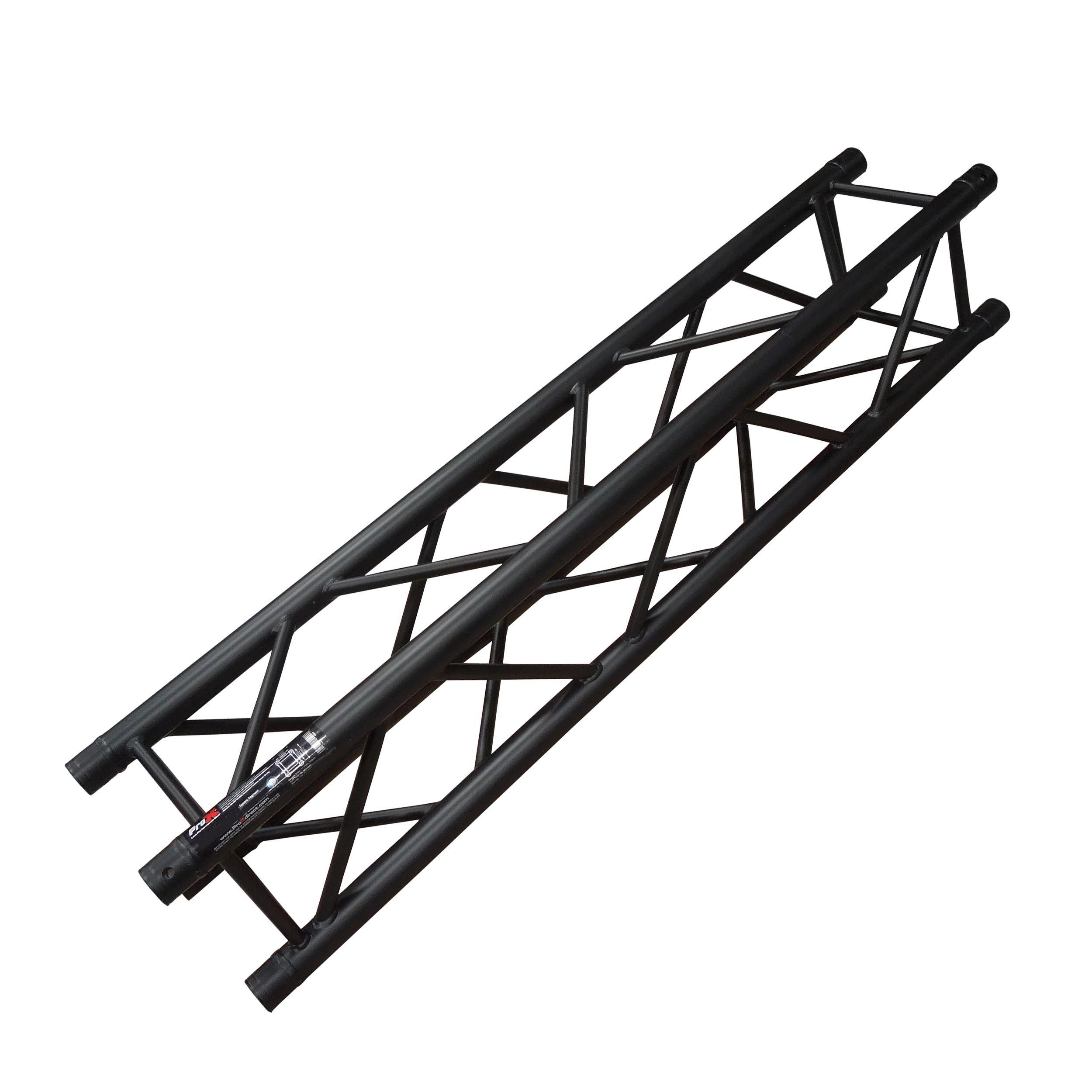

6.6 ft (2 Meter) Square Truss Segment
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
All ProX Trussproducts are 100% compatible to connect along with many other manufacturers.
