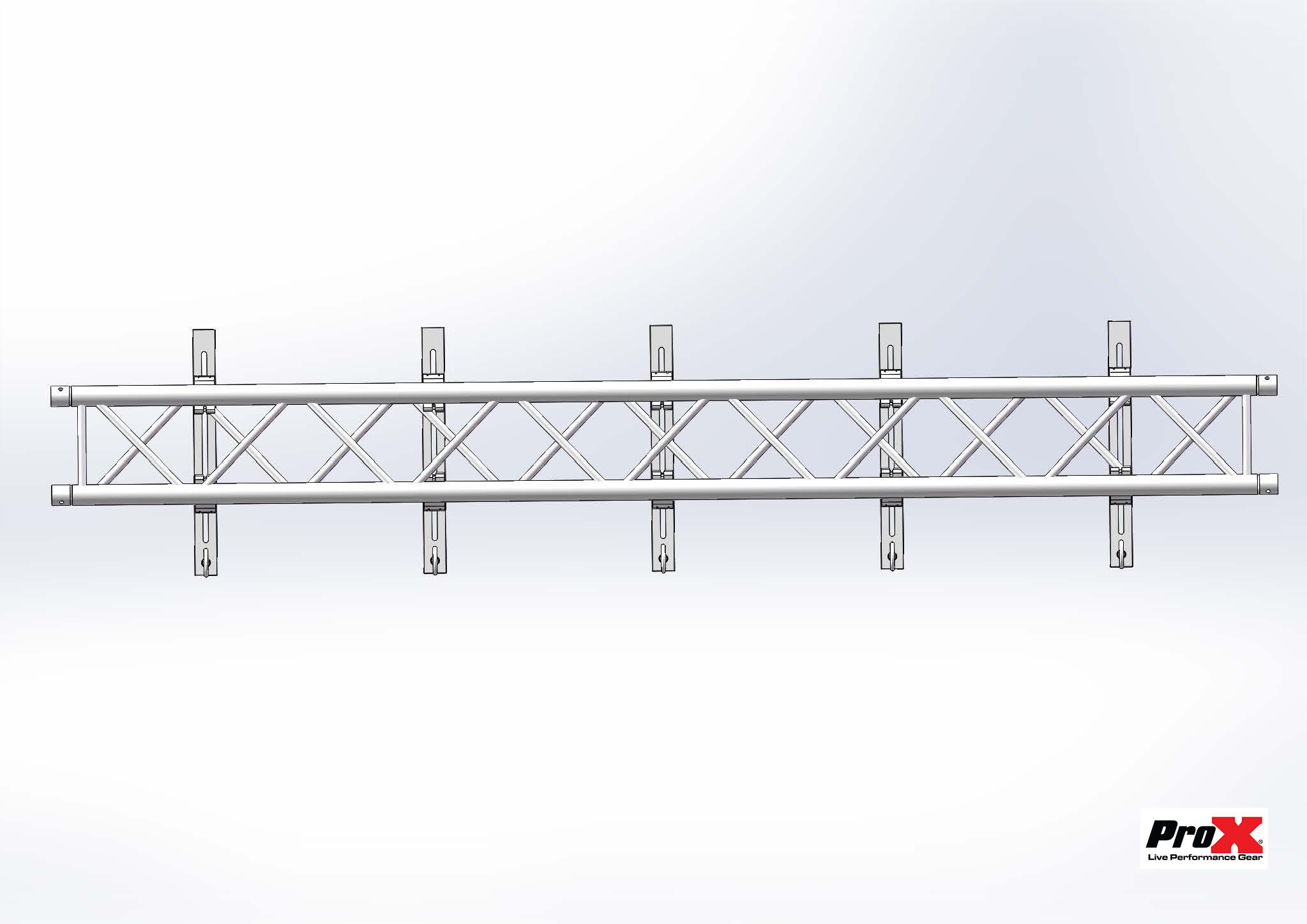

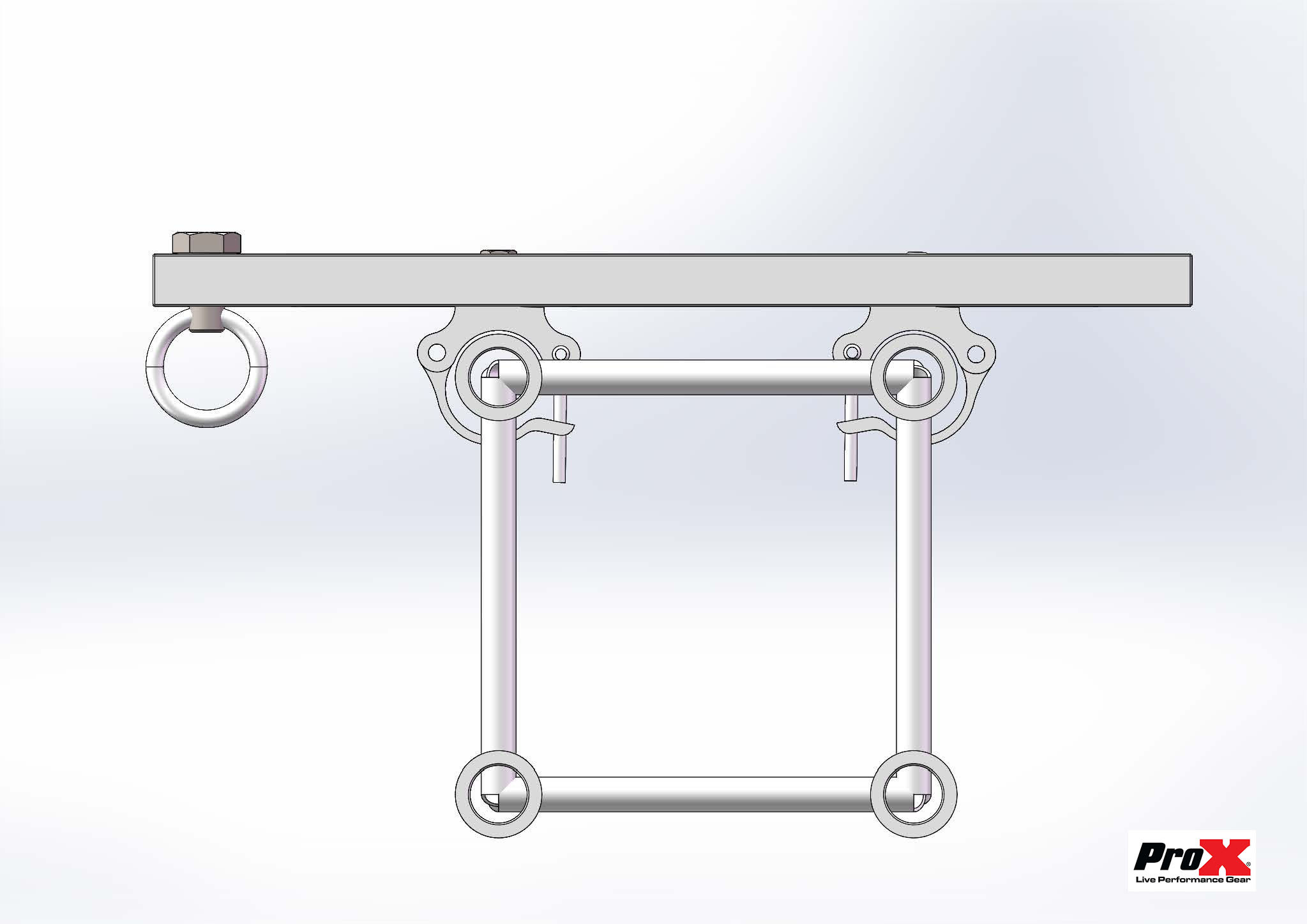

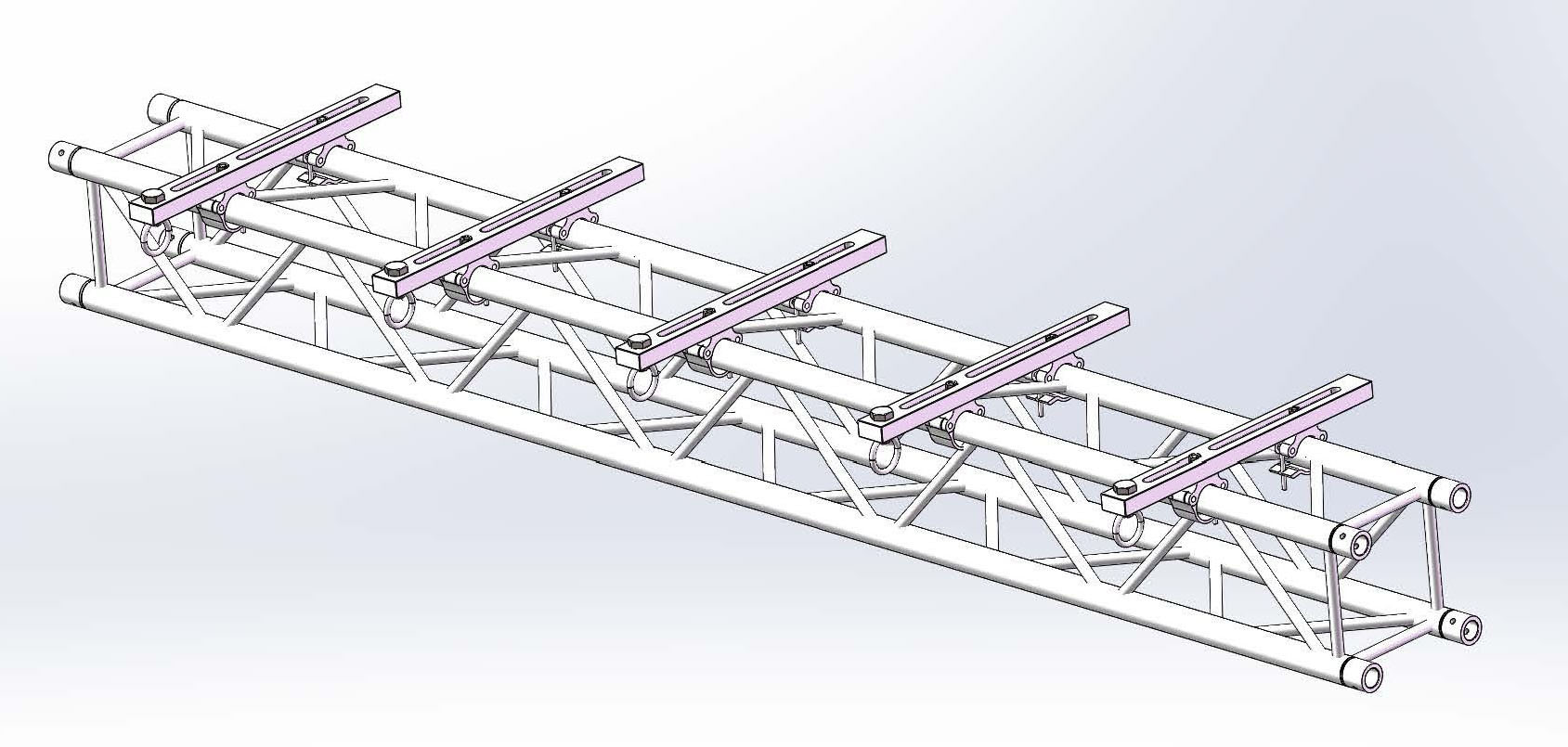

The ProXXT-TOPAPPAdjustable Panel Point for Video Walls allows you to create a stable hanging point on the upper chords of ProX XT Series (F34)truss to support video walls. The clampingpoints are adjustable to work with most box trussing.

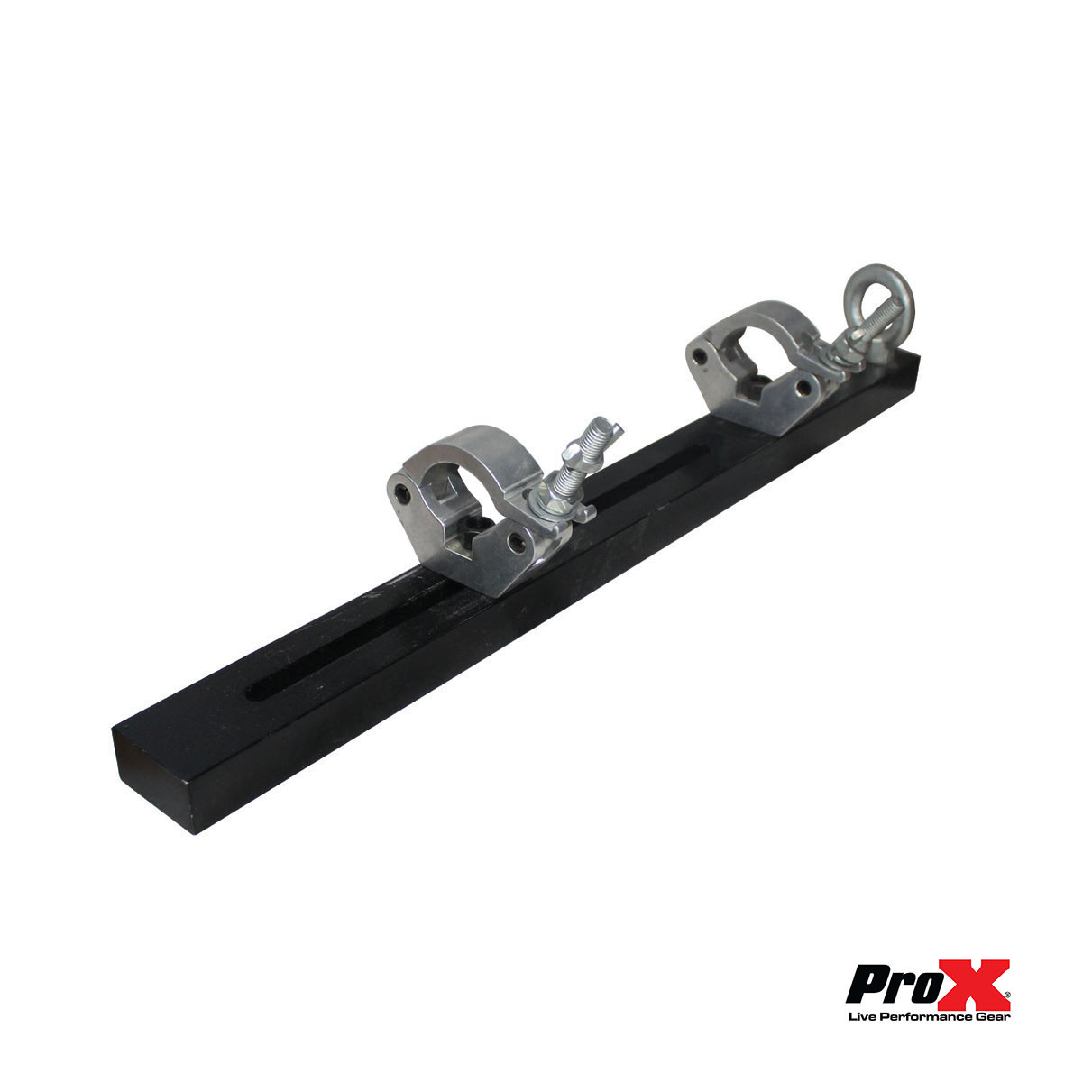

The Adjustable Panel Point forprovides a safe and secure connection and supports weights of up to 1,100 lbs. (500 kg). The permantly mounted, load rated, steel eye bolt rotates to allow quick connection to video panel rigging bars with ProX XT-USHACKLE rigging shackles, round slings, or wire rope. Made from solid bar 6061 T-6 aluminum with a permanently attached eye bolt. Includes (2) T-C4Half Coupler clamps designed to fit 2" (50mm) truss chords.
Features• Mounts almostanywhere on the truss length.
• Adjusts to fit any size box truss with2" (50mm) truss chords.
• Includes 2 ProX T-C4 load rated 360-degree wrap around style coupler clamps
• Load rated eye bolt, permanently mounted, allows easy riggingusing shackles up to 5/8"
• Made of 6061 T-6 aluminum and graded steel hardware for strength and durability
• Black Anodized Aluminum Parts to help hide on installations
• Manufactured to the exacting ProX specifications for safety and durability
To Fit:
Box Trussing from 12" to 20.5" with 2" (50mm) Chords
Dimensions: 25.50"L x 2.00"W x 6.00"H
Weight: 8.00 lbs
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
