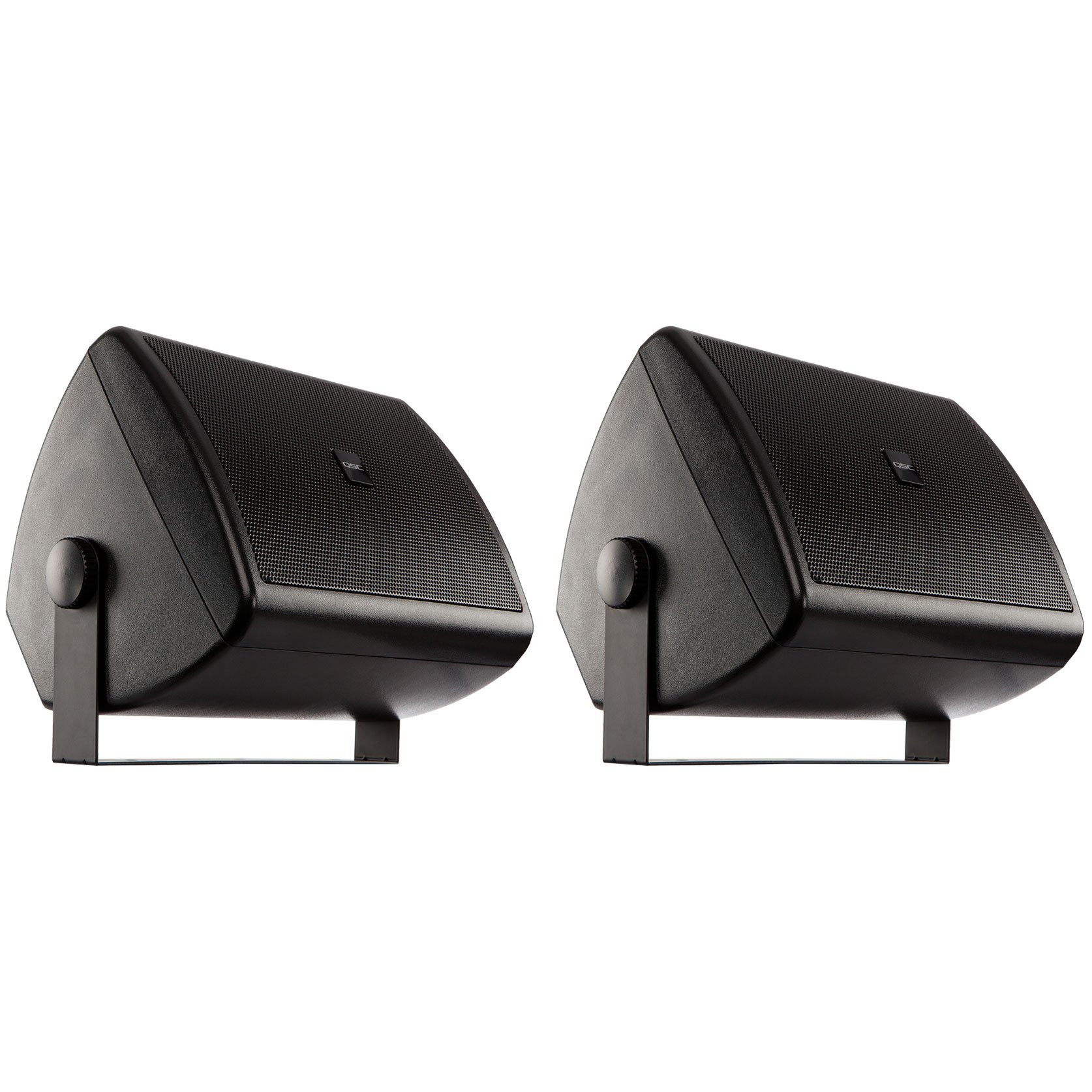

The black AC-S4T-BK AcousticCoverage Loudspeaker from QSC is a surface mounted 4" two-way loudspeaker with a 70/100V transformer, suitable for voice paging and background music sound reinforcement applications.
This loudspeaker features a 4" polypropylene cone transducer with a butyl rubber surround and a 1" aluminum dome tweeter designed to offer clarity through the critical vocal range for increased speech intelligibility. With 130 of conical coverage, the AC-S4T-BK reduces the number of loudspeakers required for even coverage in close proximity.
The UV treated high-impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 70 Hz. The AC-S4T-BK utilizes a 16W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8-ohm bypass to maintain this frequency response.
Advanced voicing via QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution. The loudspeaker features a 4-pole Euroblock connector for loop thru wiring, located on the rear of the enclosure. The Euroblock can accept four 18AWG pairs.
The AC-S4T-BK features brass inserts to accept the included yoke mount, and it is secured using the supplied thumb bolts. The grille has a spring loaded and rotatable logo for installation convenience in either horizontal or vertical deployments. To assist in successful systems integration, complete EASE, CAD, and BIM files are available for download online.
• High quality transducers provide clarity through the critical voice range
• Ported baffle for increased low frequency extension down to 70 Hz
• Low saturation 70/100V transformers with 8 ohm bypass
• 4-pole Euroblock connector eases system wiring
• Advanced voicing via QSC Intrinsic Correction, applied using Q-Sys processing or CXD amplifier platforms
• Complete EASE, CAD & BIM information available online
Specifications• Effective frequency range: 70 Hz20 kHz
Rated noise power / voltage: 16 watts / 11.3 volts rms
Broad-band sensitivity: 85 dB SPL
Coverage angle (-6 dB) : 130 conical (500 Hz5 kHz)
Directivity factor (Q): 6
Directivity Index: 8 dB
Maximum continuous SPL: 97 dB
Maximum peak SPL: 103 dB
Rated impedance: 8 ohms
Recommended amplifier power: 32 watts into 8 ohms
Transformer taps: 70V: 16, 8, 4, 2, 1 watts; 100V: 16, 8, 4, 2 watts; 8 ohm bypass
LF transducer: 100 mm (4 in) Polypropylene woofer with 25 mm (1 in) voice coil
HF transducer: 25 mm (1 in) Aluminium dome tweeter with 25 mm (1 in) voice coil
Input connector type: Euroblock connector with parallel output
Enclosure material: UV treated, high impact ABS polymer
Grille material: Powder coated steel
Yoke material: Powder coated steel with brass inserts
