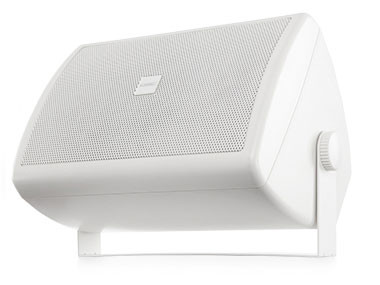

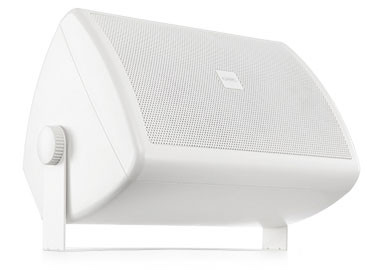

QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH)

qsc acs6twh
qsc acs6twh QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH) QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH) QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH) QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH) QSC AC-S6T-WH 6.5'' Two-way surface speaker, 70/100V, White (EACH)
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon
Priced individually, but only sold in pairs. AcousticCoverage is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products. Applications for AcousticCoverage speakers include wide area paging systems and background music and more.

• High quality transducers provide exceptional clarity through the critical voice range.
• Improved musicality often not seen in typical BGM class products.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low saturation 70/100V transformers with 8 ohm bypass.
• 4-pole Euroblock connector eases system wiring.
• Advanced voicing via QSC Intrinsic Correction', applied using Q-SYS processing or CXD amplifier platforms.
• Available in black (RAL 9011) or white (RAL 9010).
• Complete EASE, CAD & BIM information available online.

Specifications
• Effective frequency range: 60 Hz20 kHz
• Rated noise power / voltage: 30 watts / 15.5 volts rms
• Broad-band sensitivity: 86 dB SPL
• Coverage angle (-6 dB): 130 conical (500 Hz5 kHz)
• Directivity factor (Q): 6
• Directivity Index: 8 dB
• Maximum continuous SPL: 101 dB
• Maximum peak SPL: 107 dB
• Rated impedance: 8 ohms
• Recommended amplifier power: 60 watts into 8 ohms
• Transformer taps: 70V: 30, 15, 7.5, 3.7, 1.9 watts / 100V: 30, 15, 7.5, 3.8 watts / 8 ohm bypass
• LF transducer: 165 mm (6.5 in) Polypropylene woofer with 25 mm (1 in) voice coil
• HF transducer: 25 mm (1 in) Aluminium dome tweeter with 25 mm (1 in) voice coil
• Input connector type: Euroblock connector with parallel output
• Enclosure material: UV treated, high impact ABS polymer
• Grille material: Powder coated steel
• Yoke material: Powder coated steel with brass inserts
• Ingress protection: IP-44
• Operating environment: Designed for indoor use
• Operating Temperature Range: -20 to 50 C (-4 to 122 F)
• Product Dimensions (HWD) inches: 11.9 x 8.5 x 7.8
• Product Dimensions (HWD) mm: 303 215 197
• Net Weight: 8.3 lb / 3.8 kg
• Shipping weight: 8.4 kg (18.6 lb) pair packed
• Shipping Dimensions (HWD) inches: 14.1 10.5 18.5 pair packed
• Shipping Dimensions (HWD) mm: 359 x 267 x 470 pair packed
• Included accessories: Yoke mount system, euroblock connector

Additional Information

UPCN/A
SKUACS6TWH
ManufacturerQSC
Price$130.00
Product ConditionNew
