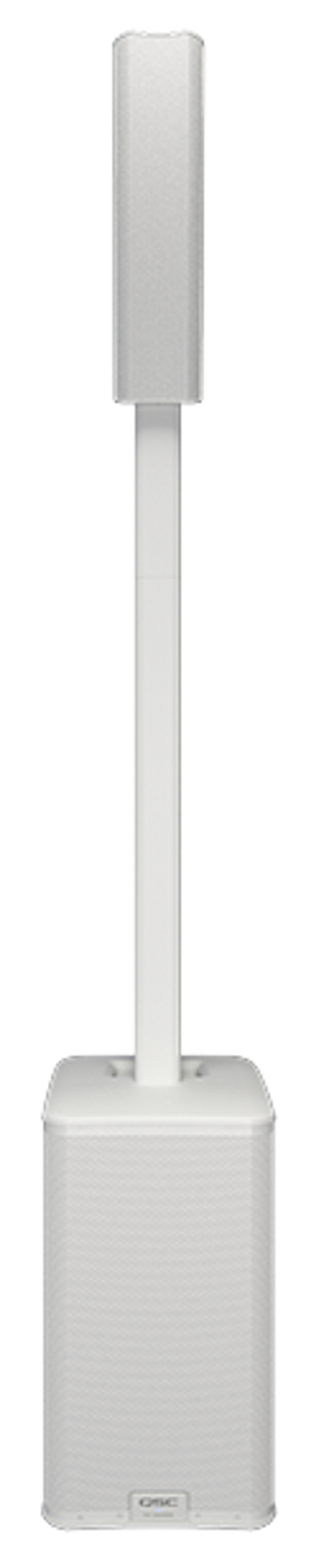

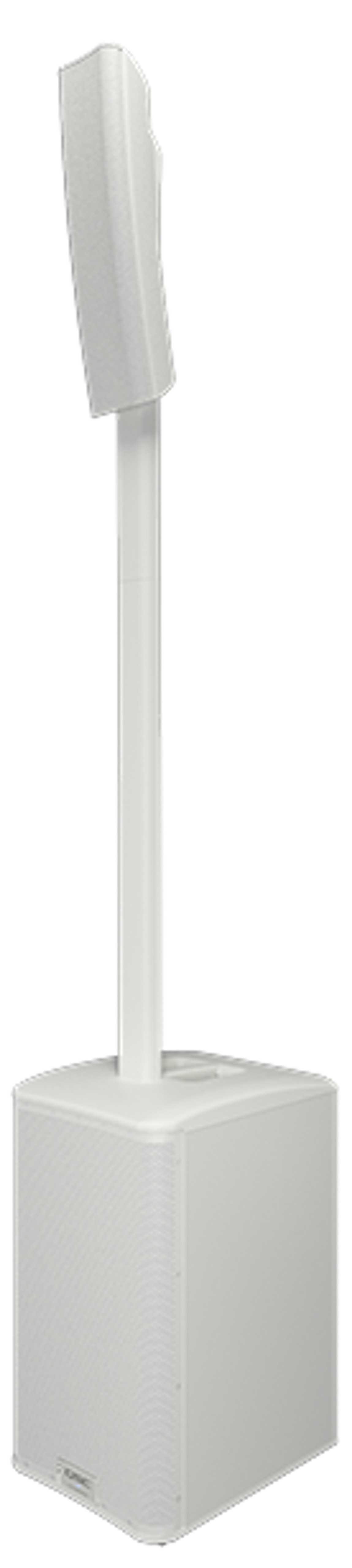

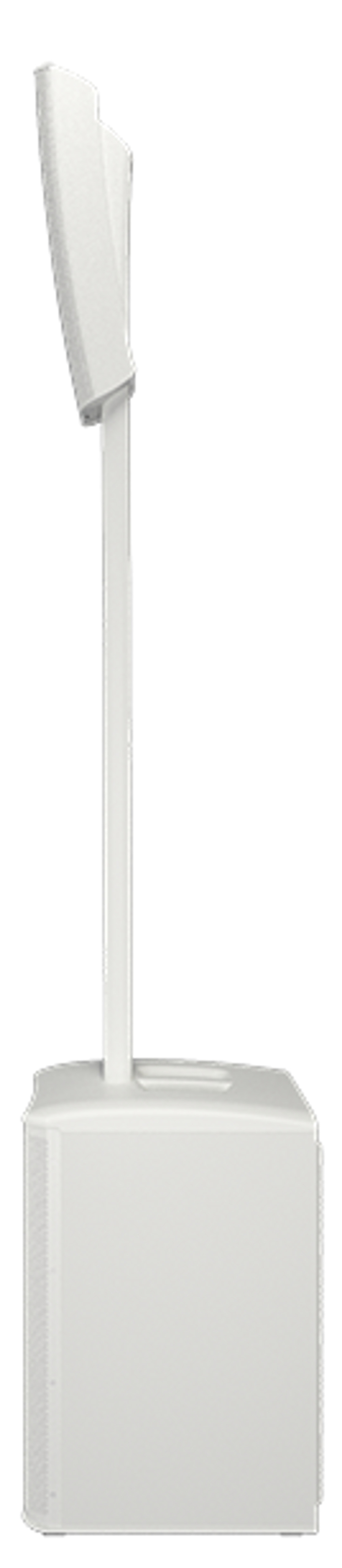

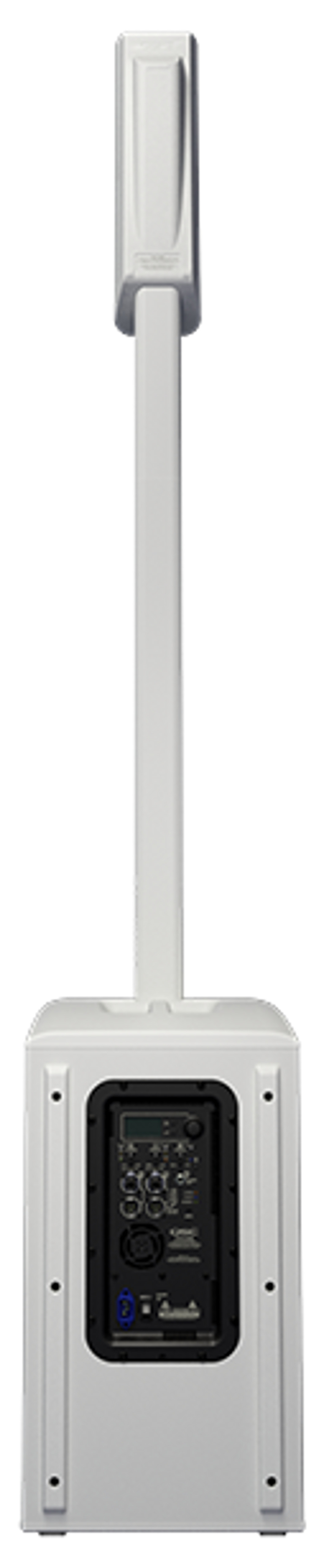

The highly portable KC12 system consists of a ported subwoofer, housing a 12-inch driver extending down to 40 Hz. The groundbreaking design of the mid/high enclosure features a 1-inch compression driver combined with the innovative QSC LEAF' (Length-Equalized Acoustic Flare) waveguide, as well as two high-excursion 4-inch midrange drivers. Thanks to this 3-way design, the system provides an outstanding full-range horizontal coverage of 145 degree, and 35 degrees of audience-directed vertical coverage, with clean and natural sound at all output levels.
Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage or riser. The KC12 is backed by an industry-best global 6-Year Extended Warranty, with product registration.
FEATURES: • 3-way loudspeaker system featuring a 12-inch (305 mm) subwoofer, two high-excursion 4-inch (102 mm) midrange drivers and a 1-inch (25.4 mm) HF compression driver combined with the proprietary QSC LEAF' waveguide.
• Very high, undistorted 132 dB maximum peak SPL.
• Energy-efficient Class D amplification featuring 3000 W of total peak power with Power Factor Correction and extremely low AC consumption
• Innovative QSC LEAF' (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (145 H x 35 V) and excellent throw.
• Two combo XLR inputs (Mic/Line/Hi-Z and Mic/Line/+48 V), with independent, assignable Factory Presets for each input, perfect for small events where two microphones are needed for different use.
• Multi-function digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth configuration, Delay (200 ms) or Reverb.
• Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
• Configured with or without its column pole, the system is ideally suited for direct deployments on a floor, stage or riser.
• Industry-best global 6-Year Extended Warranty with product registration.
Specifications: Configuration: Active 3-Way Column Loudspeaker System
LF Transducer: 305 mm (12-inch), cone
MF Transducer: 2 x 102 mm (4-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB): 45 Hz - 18.5 kHz
Frequency Range (-10 dB): 40 Hz - 20 kHz
Nominal Coverage Angle: 145 H x 35 V
Maximum Rated SPL1 (peak): 132 dB @ 1 m
Amplification (peak): Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
Cooling: Low noise, variable speed fan

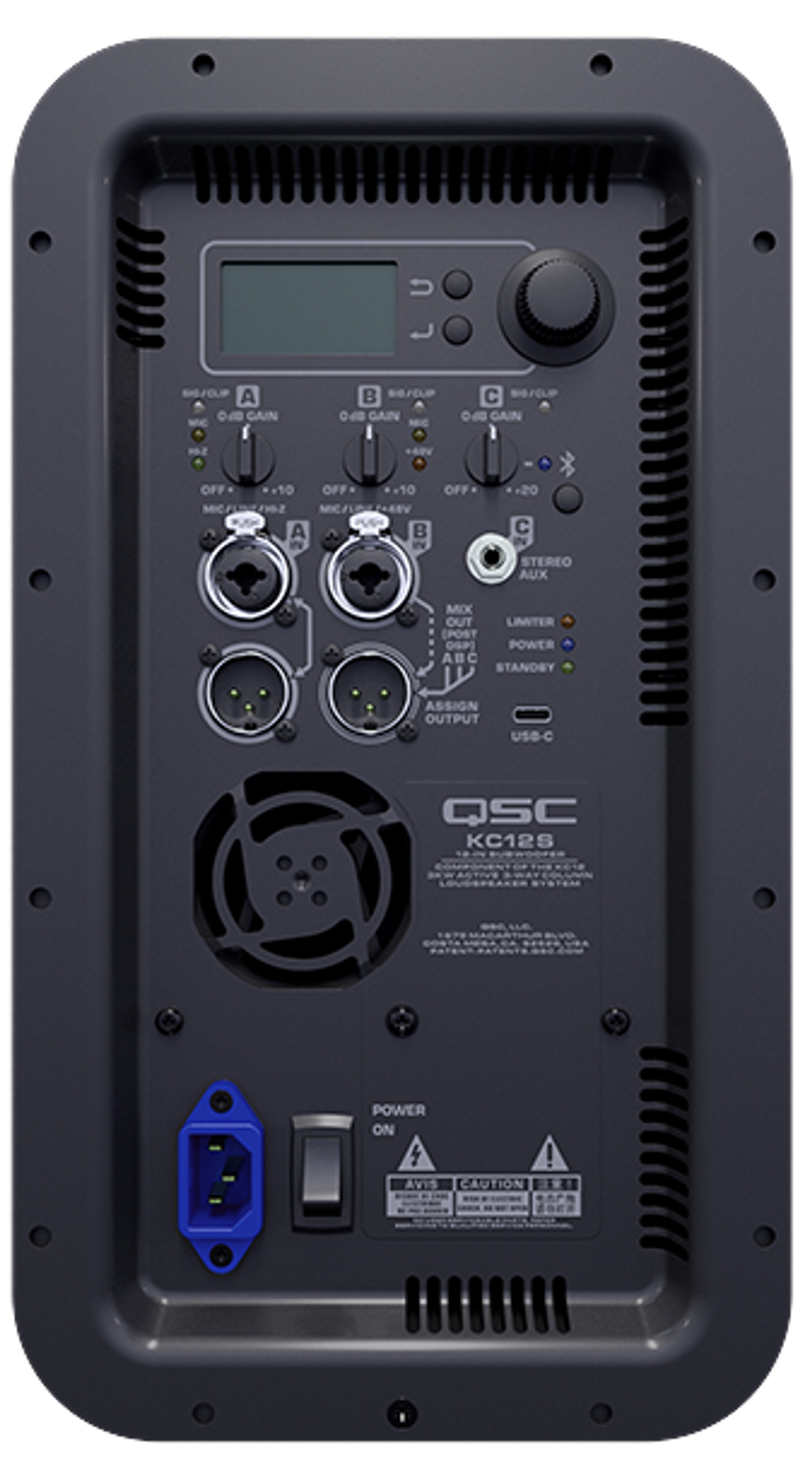

Controls: 1 x Rotary encoder and
2 x Push buttons
3 x Rotary level potentiometers
1 x AC power switch
Indicators: Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)
2 Power LEDs (blue), Subwoofer front and rear
1 x Standby LED (yellow)
1 x Limiter LED (red)
3 Input Signal/Clip LEDs: (Signal: green / Clipping: red)
Input A: Mic/Line with assignable Hi-Z selected LED
Input B: Mic/Line with assignable +48 V selected LED
Input C: Bluetooth selected LED
Connectors: 2 locking XLR/F inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)
2 XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)
1 3.5 mm TRS (Stereo Input)
1 x USB-C (Output: 5V/3A)
1 locking IEC power connector
AC Power Input: Universal power supply, 100-240 VAC, 50/60 Hz
AC Power Consumption2: 1100-240 VAC 3.7-1.8 A

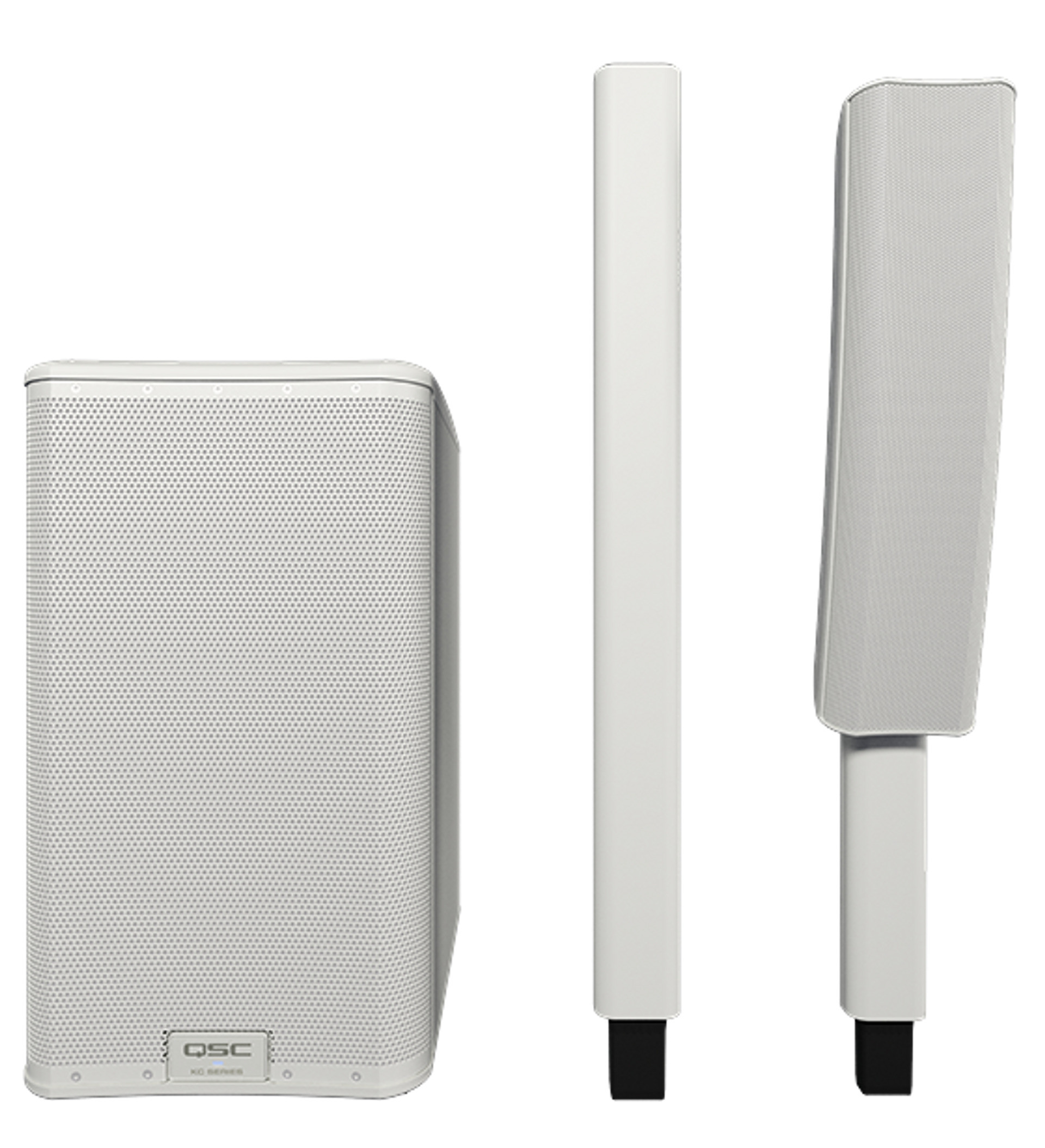

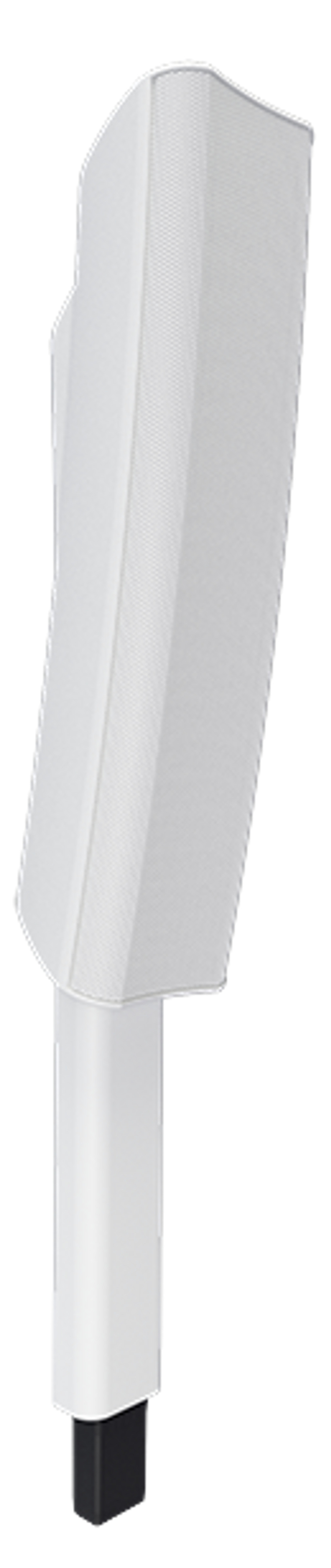

System Components: KC12T 145 Dual 4-inch Column System Loudspeaker
KC-SP32 32-inch Column System Pole
KC12S 3kW Active12-inch Column System Subwoofer
Enclosure Materials: Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Color: White (RAL 9010)
Grille: Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)
System Height: Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)
Short Deployment: 1463 mm / 57.6 in (without KC-SP32)
Dimensions (H x W x D)KC12T: 890 141 158 mm / 35 5.6 6.2 in
KC-SP32: 881 74 46 mm / 34.7 3 1.8 in
KC12S: 655 357 455 mm / 25.8 14 18 in
Net Weight: Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)
KC12T: 4.0 kg / 8.9 lb
KC-SP32: 1.3 kg / 2.9 lb
KC12S: 22.0 kg / 48.5 lb
Supplied Accessory: KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Accessory: KC12 CVR: Cover for KC12S
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
