QSC PL6.0 II PowerLight Amplifier

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

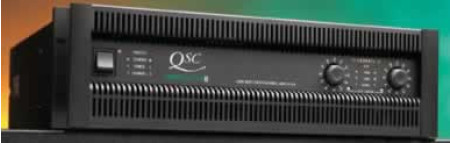

qsc pl60ii
Images may show accessories or configurations not packaged with this item.
With an unequaled reputation for sound quality and reliability, the PowerLight Series is a range of advanced-technology professional audio amplifiers designed for touring professionals. PowerLights feature QSC's exclusive PowerWave technology for extraordinary audio performance, reliability and reduced weight.

Four models offer a range of power from 725 to 3,500 watts per channel, allowing you to choose the right power for your special application.

With PowerWave technology, PowerLight amplifiers take your sound to a whole new level. Not only does it give you tighter bass and clean transparent highs, PowerWave also cuts waste heat and boosts reliability. PowerWave is a revolutionary switching power supply technology that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second though an ultra-low impedance circuit. So unlike amplifiers that use conventional supplies, the audio signal is never starved prematurely and remains crisp and clean.

PowerLight Series amplifiers also boast a set of useful features. Individually selectable clip limiters lower distortion and protect speakers, and a standby mode allows remote AC control.


FEATURES
PowerWave switching technology - for improved audio performance
High efficiency, Class H linear output circuit lowers AC current consumption and cooling requirements by 40% or more (on selected models)
DataPort for remote computer control
User defeatable clip limiter reduces distortion, protects speakers
Advanced thermal management system for superior cooling
Detented gain controls with 2 dB steps for easy resetting
Comprehensive LED status arrays
Variable speed fan for quiet operation
Remote AC power control
DC, subsonic audio, and thermal overload protection
Neutrik "Combo" (XLR & 1/4") and barrier balanced input connectors
3 year warranty plus optional 3 year extended service contract

SPECIFICATIONS
STEREO MODE (both channels driven)
8 ohms FTC 0.1% THD 20 Hz-20 kHz: 1150W
8 ohms EIA 1.0% THD 1 kHz: 1300W
4 ohms FTC 0.1% THD 20 Hz-20 kHz: 2050W
4 ohms EIA 1.0% THD 1 kHz: 2200W
2 ohms EIA 1.0% THD 1 kHz: 3500W
BRIDGED MONO MODE
8 ohms FTC 0.1% THD 20 Hz-20 kHz: 4400W
4 ohms EIA 1.0% THD 1 kHz: 7000W
Distortion (SMPTE-IM): less than 0.02%
THD (Typical): 4 ohms to 8 ohms: 0.06%
20 Hz-20 kHz,10 dB below rated power.
1.0 kHz and below, full rated power.
Damping Factor (1 kHz and below): greater than 2000
Signal to Noise (20 Hz-20 kHz): 107 dB
Input Sensitivity @ 8 ohms (in Vrms): 2.40
Voltage Gain: 40x (32 dB)
Output Circuitry: H (4-Step)
Cooling (rear to front airflow): Four Fans
Height (1 RU=1.75" (4.45cm)): 3 RU
Weight (net): 53 lbs (24 kg)
120v Current Consumption (1/8 Power Pink Noise @ 4 ohms) Multiply current by 0.5 for 230V units: 16 A

Connectors (each channel) Input: Neutrik "Combo" XLR + 1/4" TRS input and Barrier strip (eurostyle detachable headers on PL 6.0II only) Output: "Touch-proof" binding posts.

Frequency Response 20 Hz-20 kHz, 0.15 dB/ 2 Hz-50 kHz, +0, -3 dB (6.0II only) 5 Hz-60 kHz, +0, -3 dB (2.0HV, 3.4, and 4.0 only) 8 Hz-100 kHz, +0, -3 dB (all other models).

Input Impedance: 10 K ohms unbalanced, 20 K ohms balanced.

Amplifier Protection Full short circuit, open circuit, thermal, ultrasonic and RF protection. Stable into reactive or mismatched loads.

Controls Front: AC switch, Ch 1 & Ch 2 gain knobs, Ch. 1 and Ch.2 clip limiter switches Rear: Parallel/Stereo/Bridge Switch, Remote AC Control terminal strip.

Load Protection: On/off muting, DC-fault power supply shutdown.

Indicators PROT: Red LED
STANDBY: Yellow LED
PWR-ON: Green LED

(each channel)
CLIP: Red LED
LEVEL-10 dB: Yellow LED
LEVEL-20: Yellow LED
SIGNAL: Green LED

Power Requirements: 120, 230 VAC, 50-60 Hz

Dimensions: 19.0" (48.3 cm) rack mounting (all models) 17.9" (45.5 cm) deep behind front mounting rails (all models) Overall Depth on PL 6.0II (19.5")
