The PLX2 series is a range of premium quality, high-power amplifiers designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight technology, PLX2 amplifiers combine light weight, superlative audio quality and proven QSC reliability.

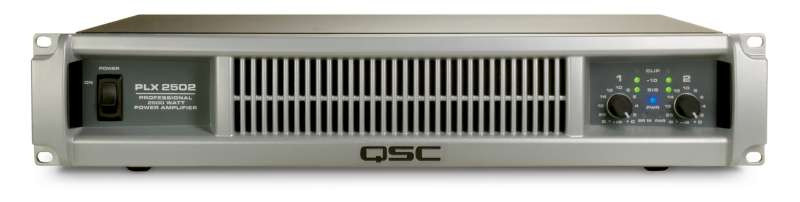

The PLX2502 is an excellent choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. The PLX2502 features built-in subwoofer processing, filter switches, and front panel indications of bridge mono status. SPECIFICATIONSSTEREO MODE, both channels driven * 8 ohms FTC 20 Hz - 20 kHz 0.05% THD: 425 W EIA 1 kHz 0.1% THD: 450 W4 ohms FTC 20 Hz - 20 kHz 0.05% THD: 675 W EIA 1 kHz 0.1% THD: 750 W 2 ohms EIA 1 kHz 1% THD: 1250 W BRIDGE MONO MODE *8 ohms 20 Hz-20 kHz 0.1% THD: 1400 W EIA 1 kHz 0.1% THD: 1500 W 4 ohms1 kHz 1% THD: 2500 W • Signal to Noise (20 Hz - 20 kHz): -106 dB • Input Sensitivity @ 8 ohms: 1.15 Vrms • Gain @ 8 ohms: 34 dB • Output Circuitry: 2-Step Class H • Distortion (SMPTE-IM): Less than 0.02% • Typical Distortion 1/8 rated power, 20 Hz-20 kHz: Less than 0.02% Full rated power, 20 Hz-20 kHz: Less than 0.02%• Frequency Response: 20 Hz-20 kHz, -0.5 dB• Damping Factor: Greater than 500 • Input Impedance:20k ohms balanced10k ohms unbalanced• Input Clipping: 11 Vrms (+21 dBu)Cooling: Variable-speed fan, rear-to-front air flow• Input Connectors, each channel: 3-pin XLR and 1/4" TRS balanced• Output Connectors, each channel: Neutrik NL4 Speakon and Touch-proof binding posts(Both channels available on Ch 1 NL4 connector)• Rear Panel Switches:Input Configuration: Bridge/Stereo/ParallelClip Limiters each channelFilters (per channel): Top 100 Hz HPF/Full/Sub 100 Hz LPF & 33 Hz HPF/Full (infrasonic)• Front Panel Controls:Detented Input Attenuator: 0 to 8 dBPower On/OffFront Panel Indicators Clip: Red LED-10: Green LEDSignal (-35 dB): Green LEDPower: Blue LEDParallel: Amber LEDBridge Mono: Amber LEDPROTECTION• Amplifier Protection: Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protectionStable into reactive or mismatched loads • Load Protection On/off muting, DC-fault power supply shutdown• Infrasonic: -3 dB, 5 Hz• DC fault: Power supply shutdown • Ultrasonic: -3 dB, 85 kHz • Short Circuit: Cutback • Thermal: Muting at 90 C • Over Current:Active clip limitingPower spply cutback• High Line: Standard +15%, survive +25%• Low Line: -33%PHYSICAL• Dimensions Height: 3.5" (8.9 cm) 2 rack spaces Width: 19" (48.3 cm) Depth, Rack mounting surface to rear panel: 12.8" (32.6 cm) Overall Depth: 14.875" (37.9 cm) Weight 21 lbs. (9.5 kg) net 26 lbs. (11.8 kg) shipping • Agency Approvals CCC, CB, CE, FCC, KETI, cUL, UL * CE versions may have up to 12% (0.5 dBw) less power due to special construction to meet EN-61000 AC harmonic limitsCURRENT CONSUMPTION• 1/8 Power (pink noise):8 ohms: 5A/120V4 ohms: 7.5A / 120V2 ohms: 11.2A / 120V • 1/3 Power (pink noise)8 ohms: 8.2A/120V4 ohms: 12.6A / 120V2 ohms: 19A / 120V• Full Power8 ohms: 15.5A/120V4 ohms: 25A / 120V2 ohms: 37A / 120V • Notes Long term, active-limited to 30A/120V
