QSC's RMX-5050 power amplifier is perfectly suited for a wide range of sound reinforcement applications, including professional touring, performing musicians and mobile entertainers. It delivers high levels of sustained power, extraordinary audio performance and road-proven reliability.
* 8 ohms: 1050 watts
* 4 ohms: 1600 watts
* 2 ohms: 2000 watts
Bridged mode at 0.1% THD
* 8 ohms, 20 Hz to 20 kHz 3200 watts
* 8 ohms, 1 kHz 3600 watts
* 4 ohms, 1 kHz, 1% THD 5000 watts
SPECIFICATIONS:* Input Sensitivity for rated power into 8 ohms 1.25 Vrms 1.42 Vrms
* Input Impedance 20 k ohm balanced, 10 k ohm unbalanced
* Voltage Gain 64x (36 dB) for 8 ohm load
* Dynamic Headroom at 4 ohms 2 dB
* Distortion, SMPTE <0.02%
* Frequency response at 1 watt 20 Hz to 20 kHz, 8 ohms, LF Filter bypassed: +0, -1 dB
5 Hz to 50 kHz, 8 ohms, LF Filter bypassed: +0, -3 dB
* Damping Factor >250, 8 ohm load
* Noise (unweighted) 100 dB below rated output from 20 Hz to 20 kHz, 8 ohm load

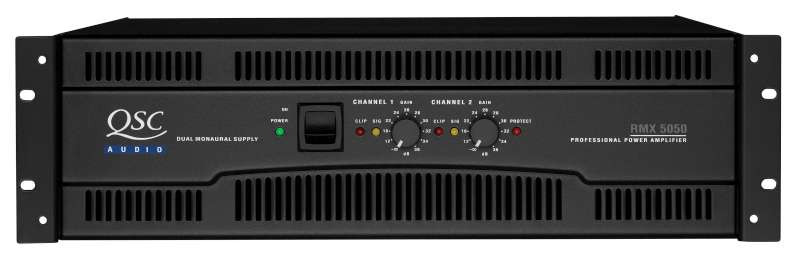

* Controls Front Panel- AC power switch, CH1 Gain control, CH2 Gain control

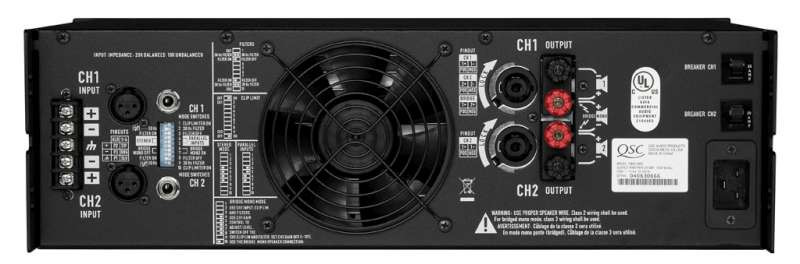

Rear Panel- 10-pole DIP switch featuring LF Filter on/off, LF Filter 30/50 Hz, Clip Limiter on/off
for each channel and switches for selecting Stereo, Parallel, or Bridge Mode. Push-button circuit breaker for each channel.
* Connectors Inputs: XLR female, TRS (1/4-inch), and barrier-strip screw terminals provided for each channel
* Outputs: binding posts and Speakon outputs (CH1 Speakon wired for bi-amp connection)
LED Indicators Power "on", green; Protect, red; Signal -35 dB, yellow (1 each channel); Clip, red (1 each channel)
* Cooling continuously variable speed fan, rear to front airflow
* Amplifier Protection short circuit, open circuit, thermal, ultrasonic, and RF protection;
stable into reactive/mismatched loads
* Load Protection turn-on and turn-off muting, DC fault output crowbar
* Power Requirements 100, 120, or 240 Volts AC (10%) 50-60 Hertz
* Circuit Breakers RMX 5050: two (one for each channel): 100 and 120 V models: 20 amp / 230 V models: 10 amp
* AC Connection detachable 3-conductor grounded, Class 1 type
