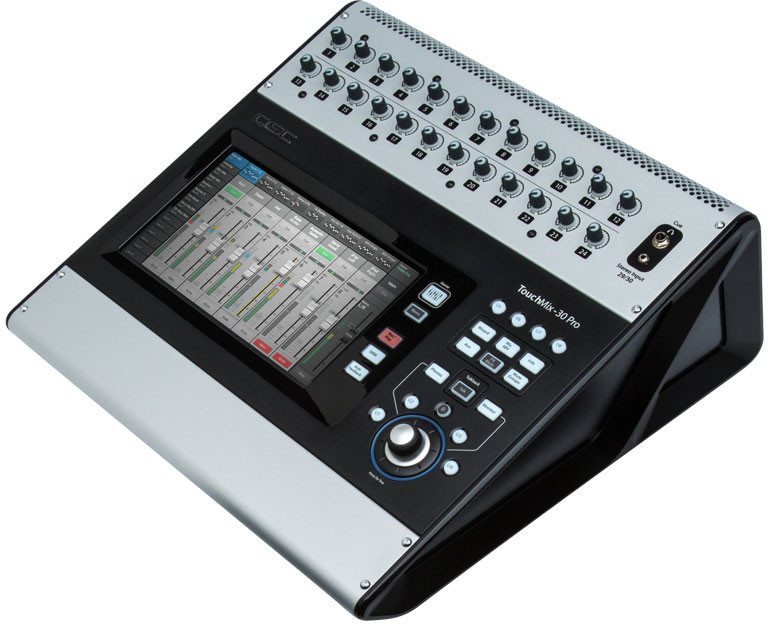

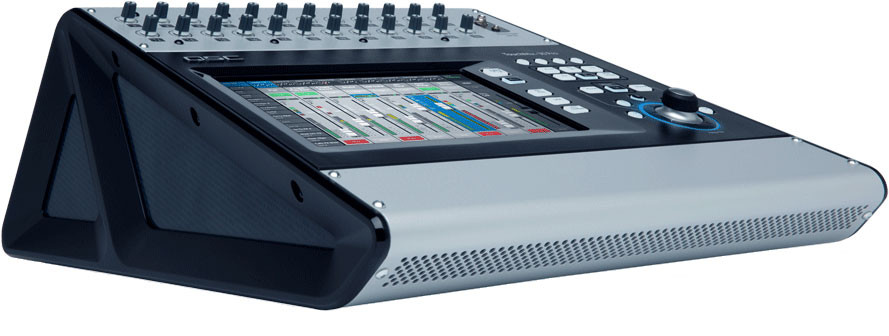

Far more than simply a higher channel count version of the TouchMix-8 and TouchMix-16, The TouchMix-30 Pro offers a host of additional, new "Pro" features including:
• Large (10-inch) multi-touch touchscreen offers more on-screen information while also providing greater hands-on control
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
• Copy and Paste function easily duplicates mixes, channels, EQ, dynamics and more.
• Touch-and-route Patch Matrix for easy "multing" and rearrangement of inputs
• Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
• 32-channel direct-to-hard drive record/playback capture and recall performances without the need for a computer
• 32-Channel DAW interface with Mac computers allows for bidirectional I/O with popular workstation software
• MP3 playback direct from USB
Additionally, the TouchMix-30 Pro offers even more of what you would expect and demand from a TouchMix Series mixer:
• 24 class-A microphone preamps deliver pristine, studio-quality audio
• Over 120 live instrument, microphone and other audio source presets created in live environments provide mix-ready channel settings
• All outputs feature 1/3 octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
• 14 mono mixes may be paired for stereo while two pairs of Auxes can drive wired in-ear monitors (IEM) directly
• Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels
QSC TouchMix-30 Pro Specs • 32 Inputs/Outputs
• Mic/Line: 24 (20 XLR, 4 XLR combo)
• Line: 6 (1/4" TRS + top panel 1/8" (3.5mm) TRS)
• USB MP3 Playback
• Talkback: 1 (XLR with 48V)
• Total Mix Outputs: 16
• Main L/R: 2 (XLR)
• Aux Mix Outputs: 14 (XLR)
• In-ear Monitor (stereo): 2 (1/4" TRS from Auxes 11/12 and 13/14
• Cue (stereo): 1 (1/4" TRS)
• Monitor (stereo): 2 (XLR)
• Equalization: 4-band Parametric EQ with Hi/Low Shelving Option, Variable 24 db/octave HPF and LPF
• Dynamics: Full featured gate and compressor
• Recording: 100 msec.
• DSP: 6 Engines (Reverb, Echo, Delay, Chorus, Pitch, Shift)
• Pitch Correct: 1 mono channel
• 1/3 Octave Graphic EQ: Main L/R, Aux 1-14
• Parametric EQ: Main L/R, Aux 1-14
• Notch Filters: 12-bands, all outputs
• Other: 100 msec. Delay, Limiter, HPF & LPF, all outputs
• Sub Group Processing: 6-band PEQ, HPF, LPF, Limiter
• USB Direct to Hard Drive multi-track: 32 x 32
• DAW / Computer interface: 32 x 32 (Core Audio, MAC OS only)
• Stereo MP3: Playback from USB
• Groups: 8 DCA, 8 Mute, 8 Subgroups
• Cue: Selectable AFL, PFL, Solo in Place
• Real Time Analyzer: 2 x 1/3 octave
• Wizards: Anti-Feedback, Room Tuning, Gain, Effects
• Preset Memory: 99 User Scenes, 120 Factory Presets, 99 User Presets
• External Control: TouchMix Control App for iPad and Android tablets controls all mixer functions via Wi-Fi.
• Wi-Fi: USB Wi-Fi dongle or Wi-Fi router
• Power Requirements: 100-240 VAC, 50-60 Hz
• Sampling Frequency: Selectable 44.1 kHz or 48 kHz
• THD: <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
• Frequency Response: 20 Hz-20 kHz +/-0.5 dB, any input to any output
• Display: 10" (254 mm), 1024 x 600 pixel, color TFT, capacitive multi-touch sensing
• Dimensions (HWD): 7.5 inches x 16.9 inches x 18.1 inches (19 cm x 42.9 cm x 46 cm)
• Weight: 17.5 pounds
