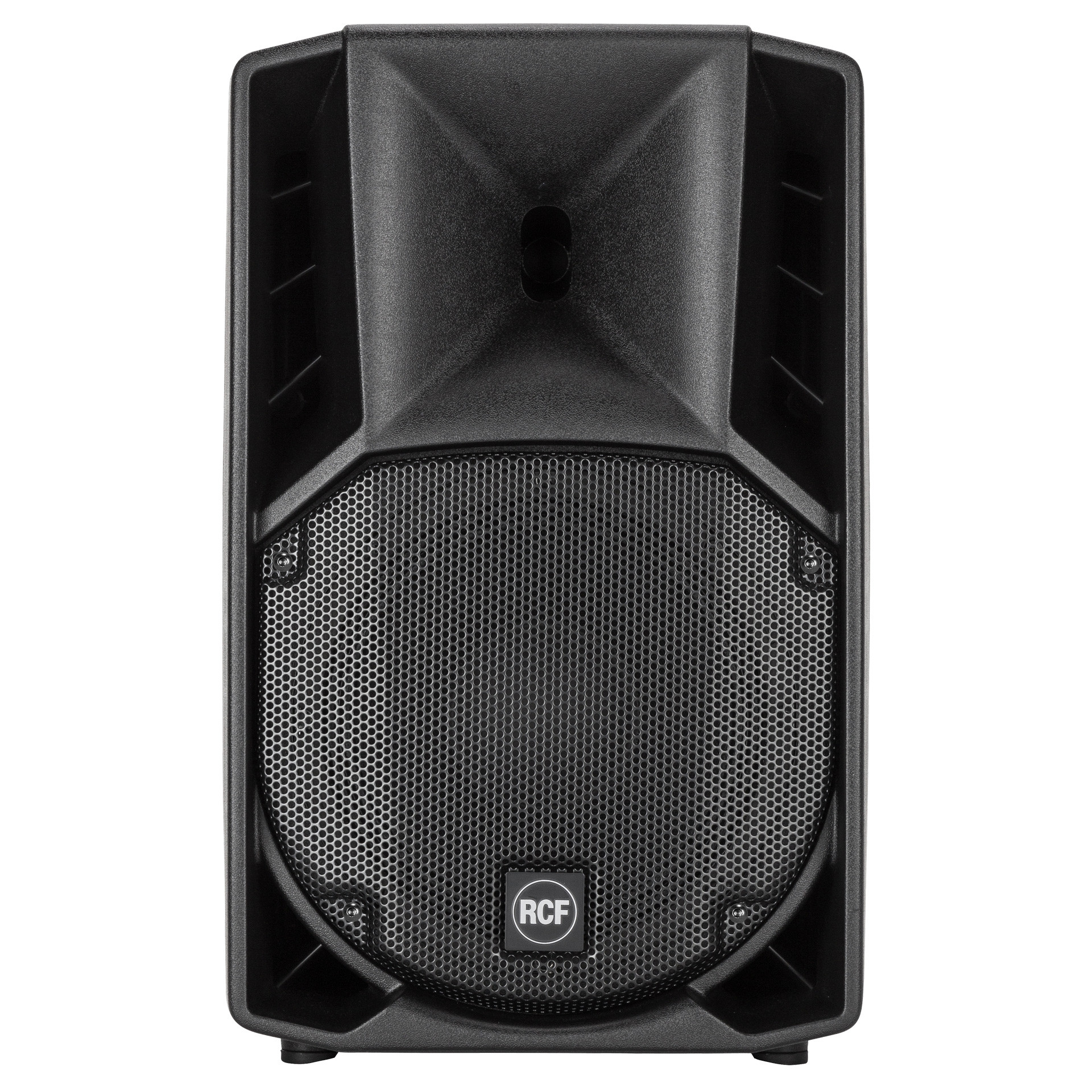

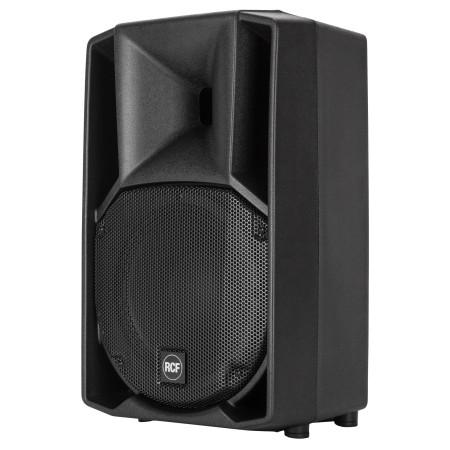

RCF ART-710A MK4 Active Powered 10" Speaker

• 129 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1" Compression Driver, 1.0" v.c.
• 10" Woofer
• 90 x 70, Wide dispersion constant directivity horn
• FiRPHASE Technology

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SUPERIOR TRANSDUCERS
Woofers and compression drivers are precision built taking advantage of RCF's technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

BRING ART WITH YOU
The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.

Specifications

Frequency Response: 50 Hz 20000 Hz
Max SPL @ 1m: 129 dB
Horizontal coverage angle: 90
Vertical coverage angle: 70
Compression Driver: 1.0'', 1.75'' v.c
Woofer: 10'', 2.5'' v.c

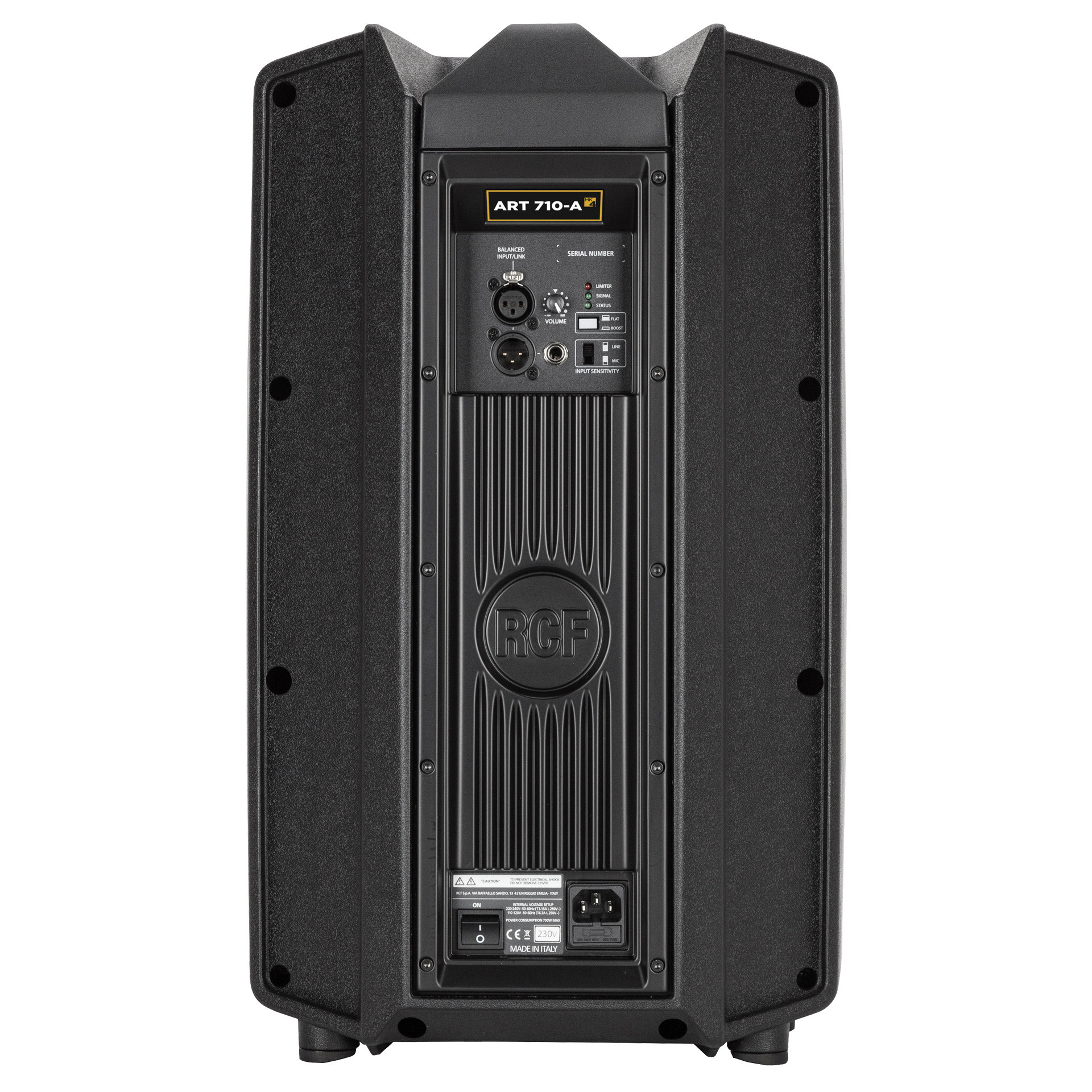

Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Crossover frequencies: 1600 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
CE marking: Yes
Cabinet/Case Material: PP Composite

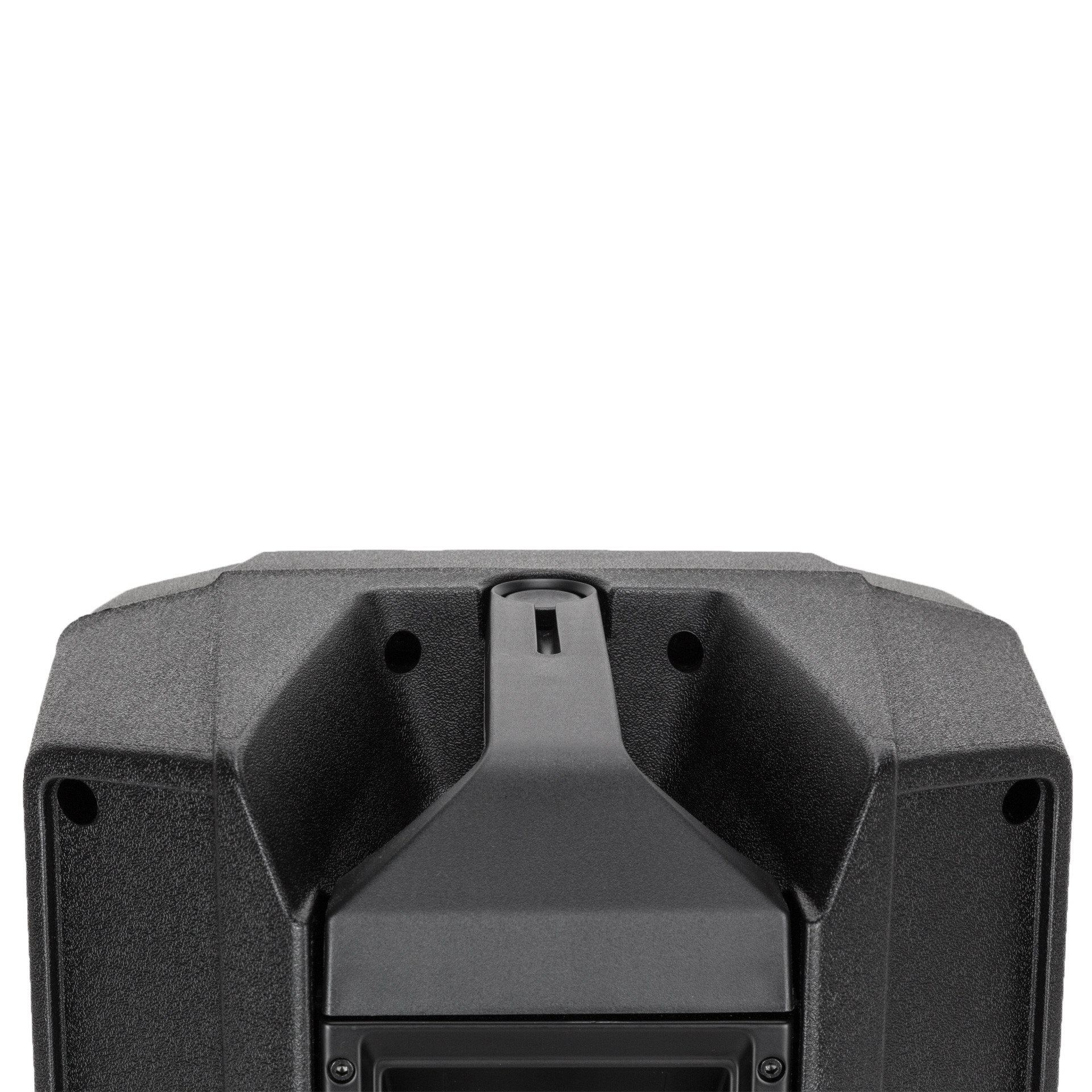

Hardware: 2 x M10
Handles: 1 Top
Grille: Steel
Color: Black
Height: 548 mm / 21.57 inches
Width: 340 mm / 13.39 inches
Depth: 305 mm / 12.01 inches
Weight: 14.2 kg / 31.31 lbs
