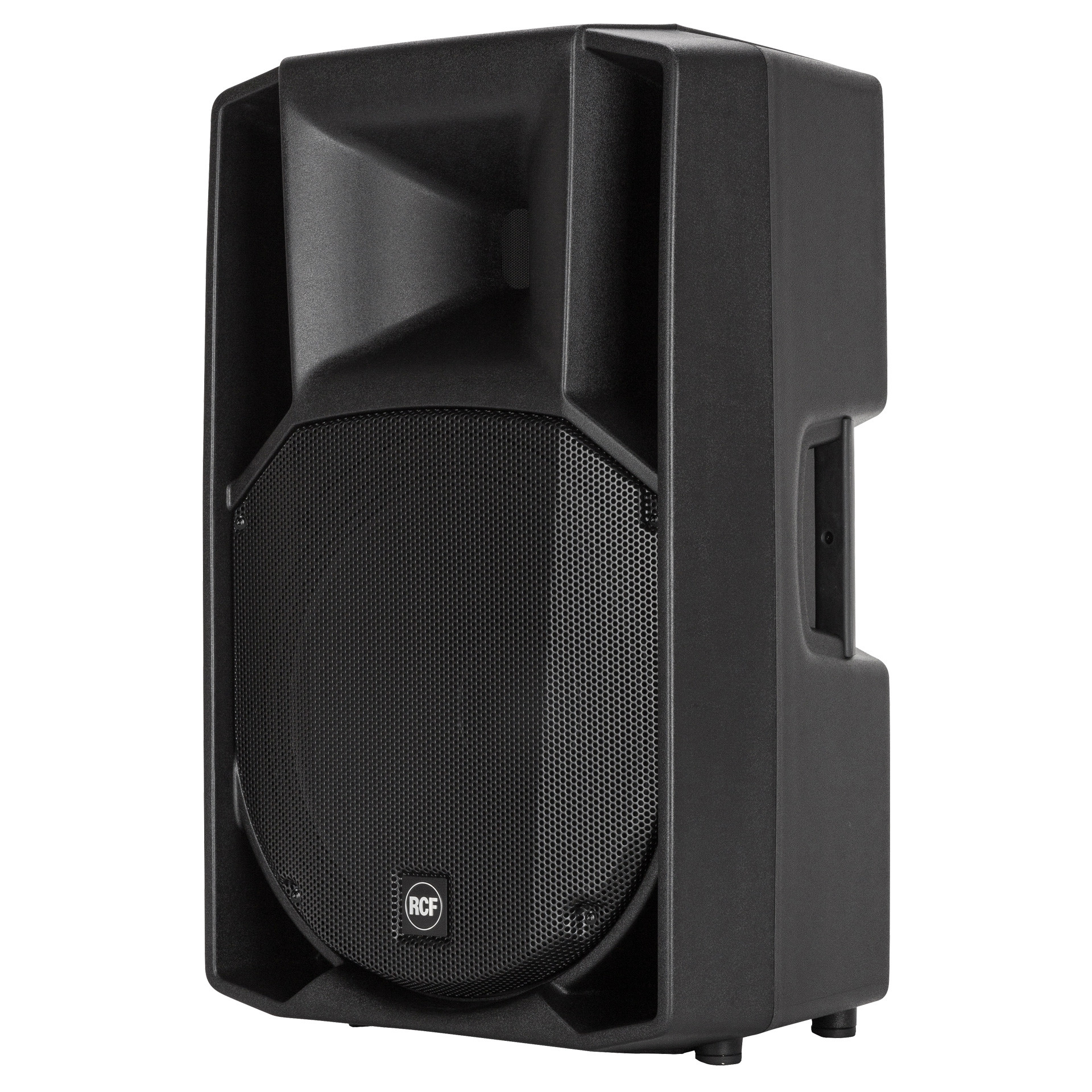

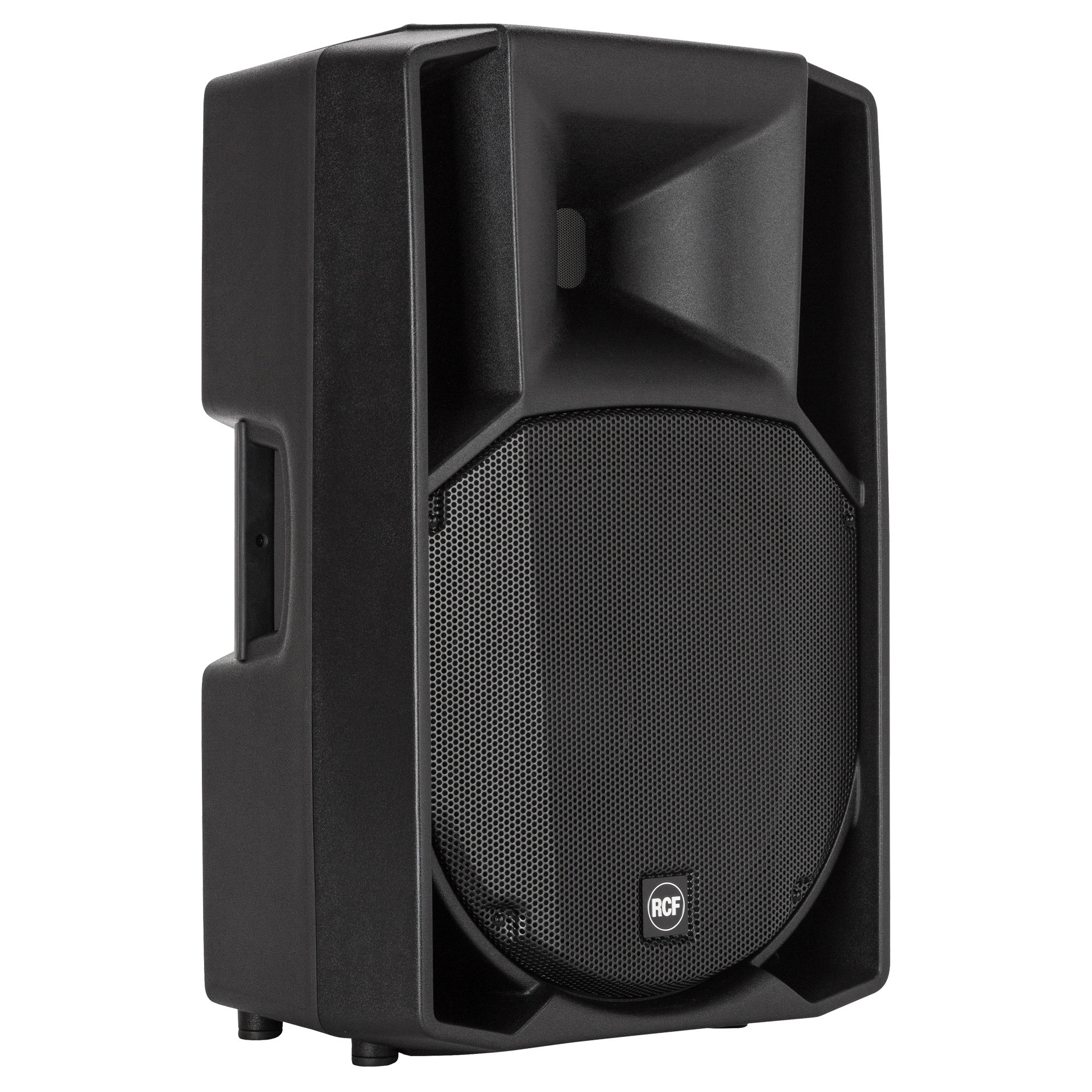

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15" neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
• 132 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 15" Woofer
• 800 Hz crossover point for perfect vocal reproduction
• 90x60, wide dispersion constant directivity horn
• FiRPHASE Technology
NEW PERSPECTIVE ON LINEARITYRCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
SUPERIOR TRANSDUCERSThe RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm' s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
POWERFUL CLASS D AMPLIFIERSRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
BRING ART WITH YOUThe RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
Specifications
Frequency Response: 45 Hz 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 90
Vertical coverage angle: 60
Compression Driver: 1.4'' neo, 3.0'' v.c
Woofer: 15'', 3.0'' v.c

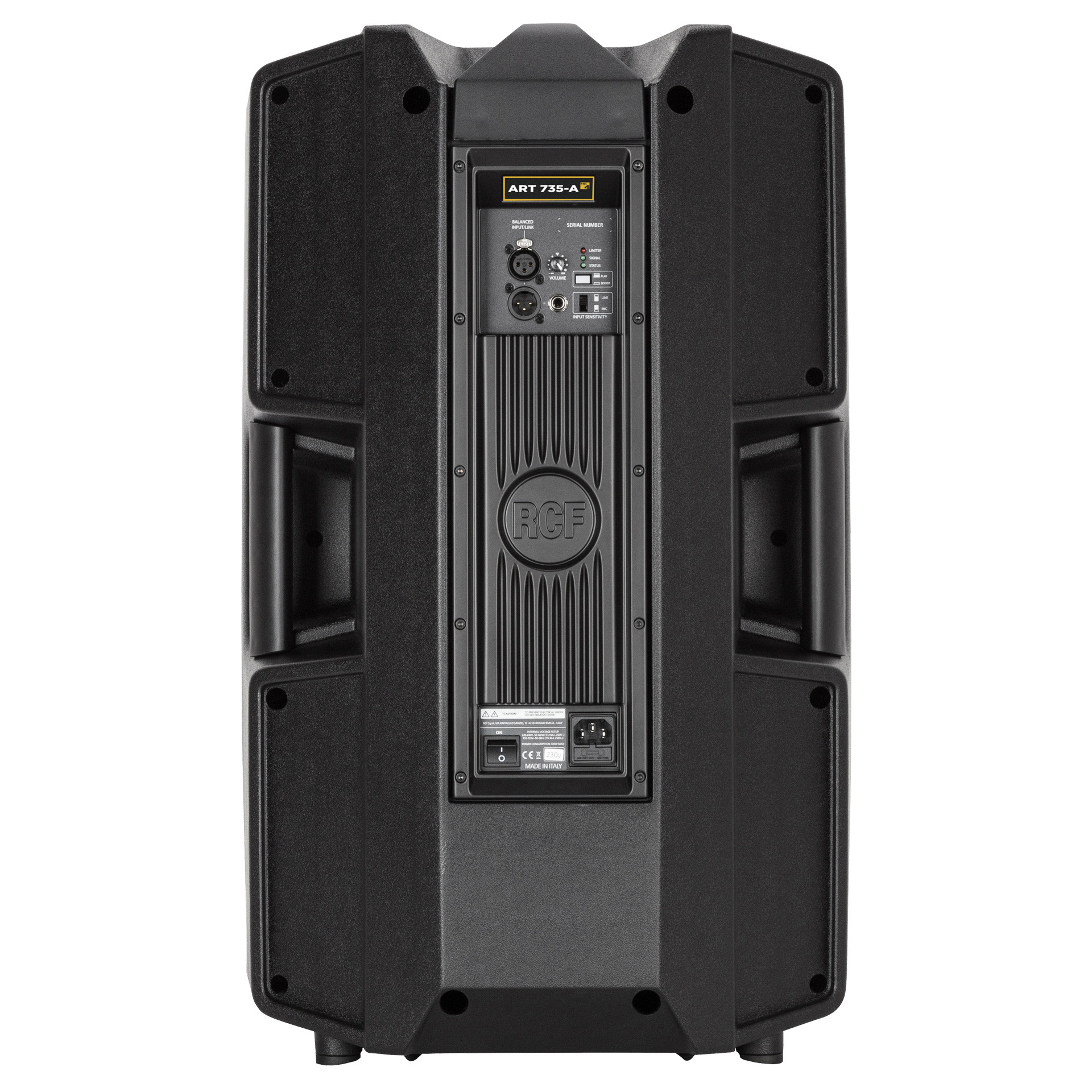

Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Crossover frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
CE marking: Yes
Cabinet/Case Material: PP Composite
Hardware: 2 x M10

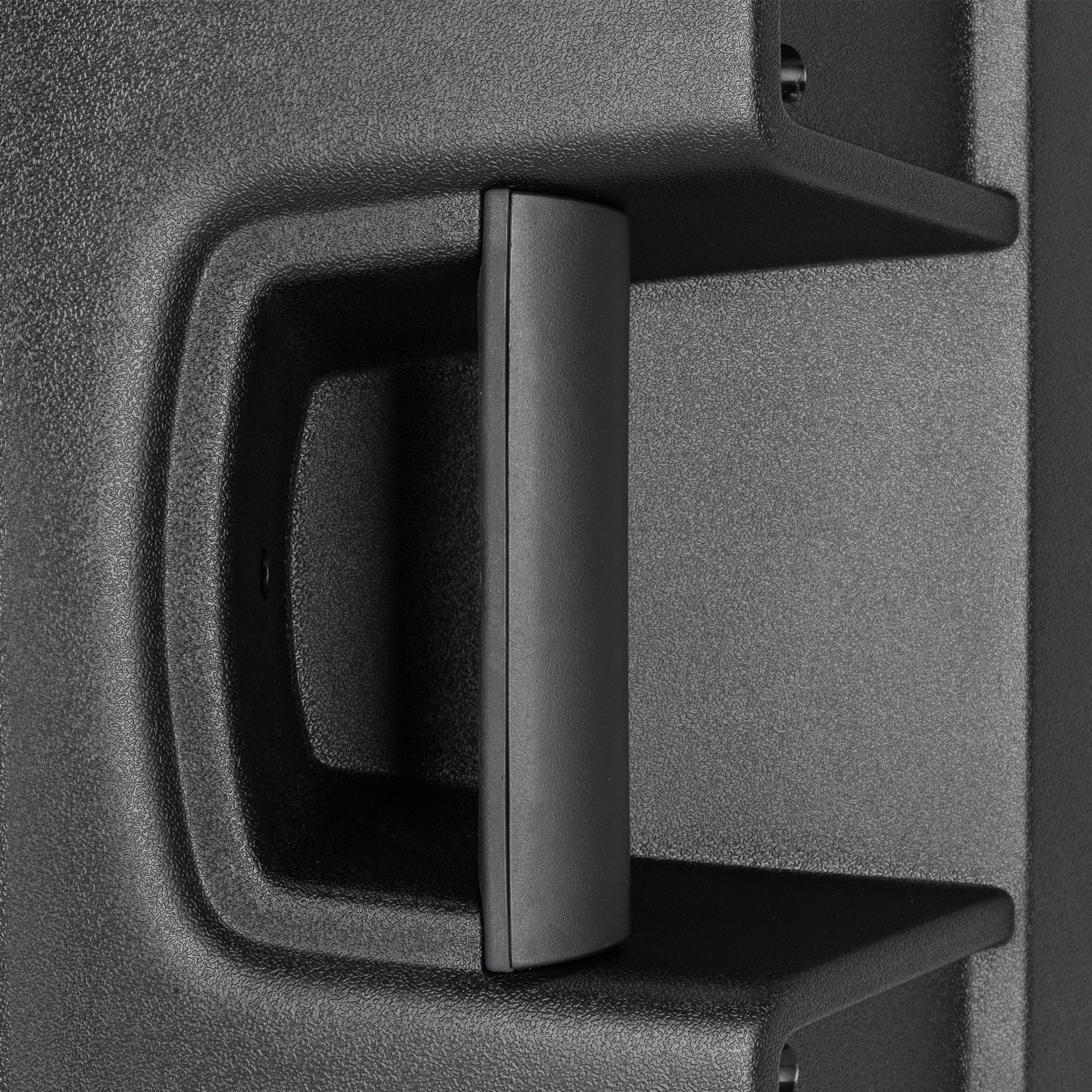

Handles: 1 Top, 2 Side

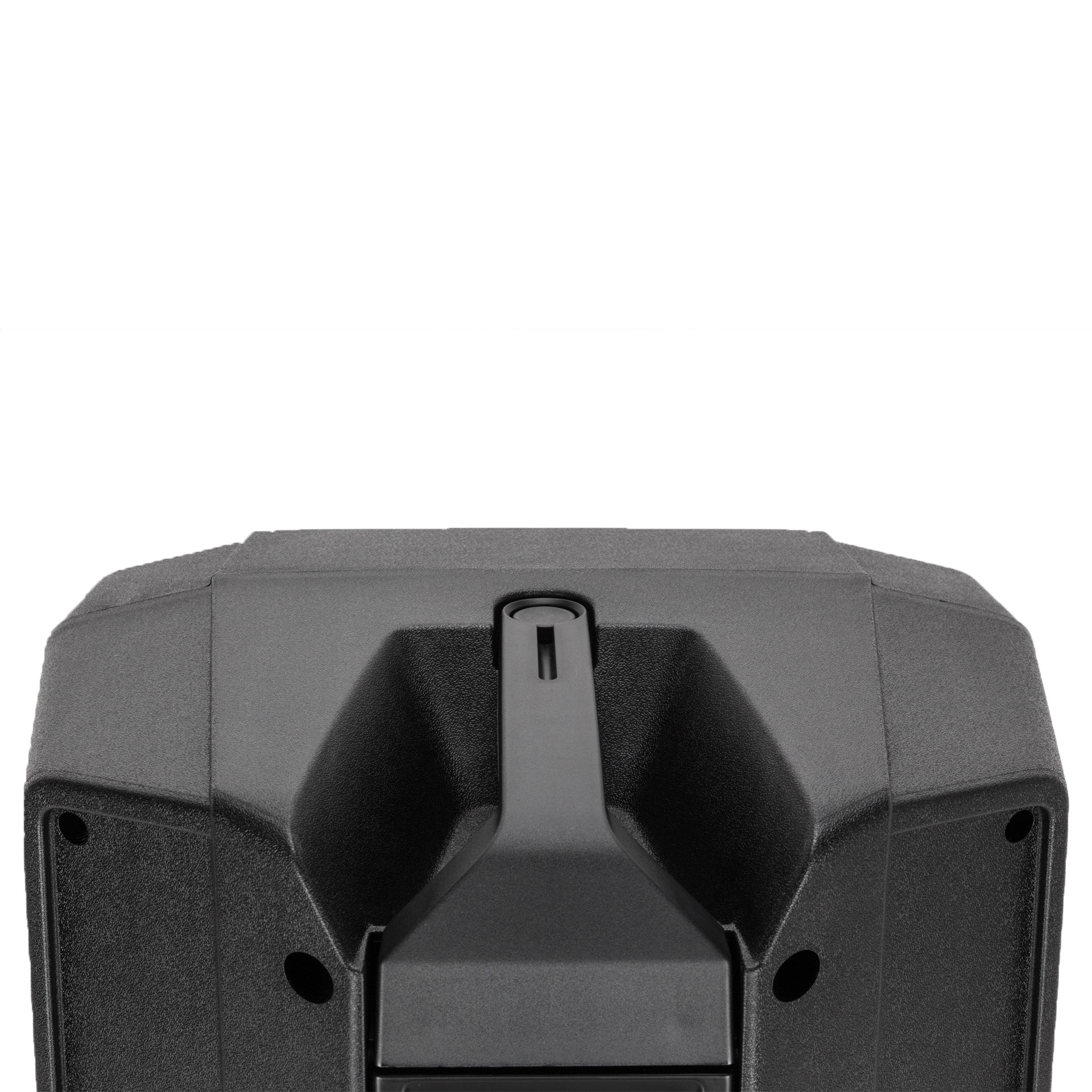

Pole mount/Cap: Yes
Grille: Steel
Color: Black
Height: 708 mm / 27.87 inches
Width: 437 mm / 17.2 inches
Depth: 389 mm / 15.31 inches
Weight: 21.4 kg / 47.18 lbs
