• 1400 Watt
• 128 dB max SPL
• 40 Hz 20 kHz frequency response
• 12" Woofer, 2.5" v.c.
• 8 x 2" Ultra compact fullrange, 1.0 v.c.
• 120 x 30 slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportationEVOX TWO-WAY ARRAYS
EVOX array design features constant horizontal directivity coverage of 120, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.DJs
Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.LIVE SOUND
Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.PORTABILITY

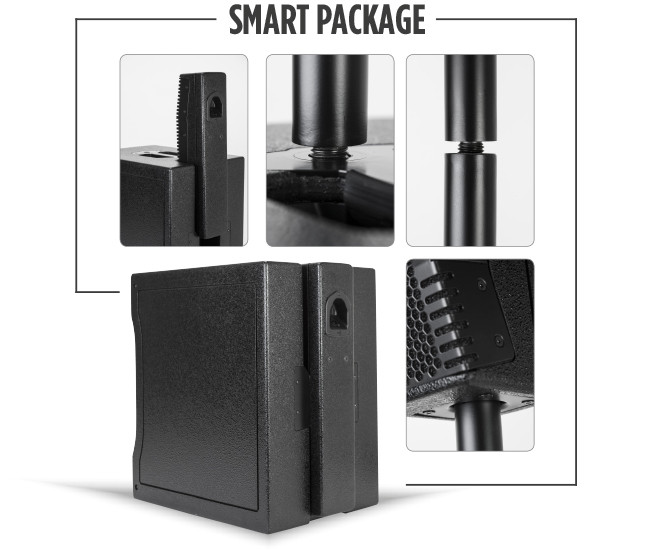

With 3 simple steps, the EVOX system is all set and ready to play! EVOX system is designed to be easily transported and quick to set up. Top, Sub, pole mount and cables all come in one package and all go in the dedicated optional transportation bag.

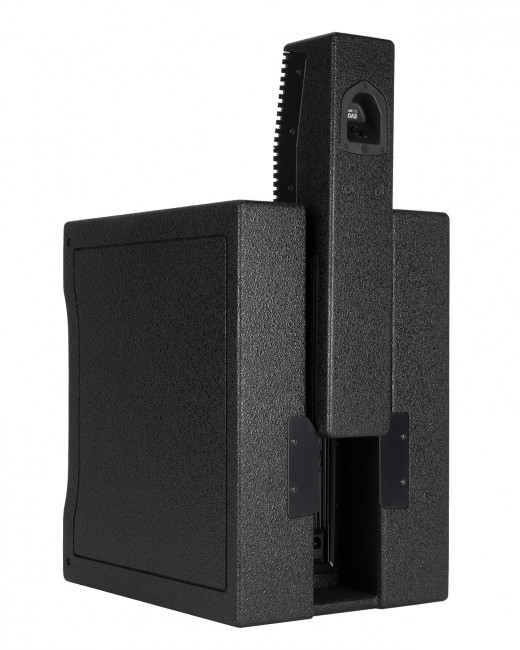

During transportation, the top column is located in a special socket in the back side of the Sub. A specifically designed rail on the sub will guide you during the insertion and extraction of the top column.
The top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.
Carrying and mounting your audio system has never been so quick!Acoustical Specifications:
• Frequency Response -3 dB: 40 Hz 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120
• Vertical coverage angle: 30
• Fullrange: 8 x 2", 1.0" v.c.
• Woofer: 12", 2.5" v.c. Input/Output Section:
• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu Processor Section:
• Crossover frequencies: 220 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, xover Amplifier Specifications:
• Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: VDE connector Cabinet:
• Cabinet Material: Baltic birch plywood
• Hardware: 2 x M6
• Handles: 1 top
• Pole Mount/Cap: Yes
• Colour: black Physical Specifications:
• Height: 530/20.86 mm/inch
• Width: 346/13.62 mm/inch
• Depth: 459/18.10 mm/inch
• Net Weight: 23.8/50.70 kg/lbs
