• 128 dB Max SPL
• 1400 Watt 2-way peak power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 24,4/53.8 kg/lbs
ONBOARD DIGITAL MIXERAll the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.
EVOX APPThe RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer's parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.
POWERFUL CLASS D AMPLIFIERRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

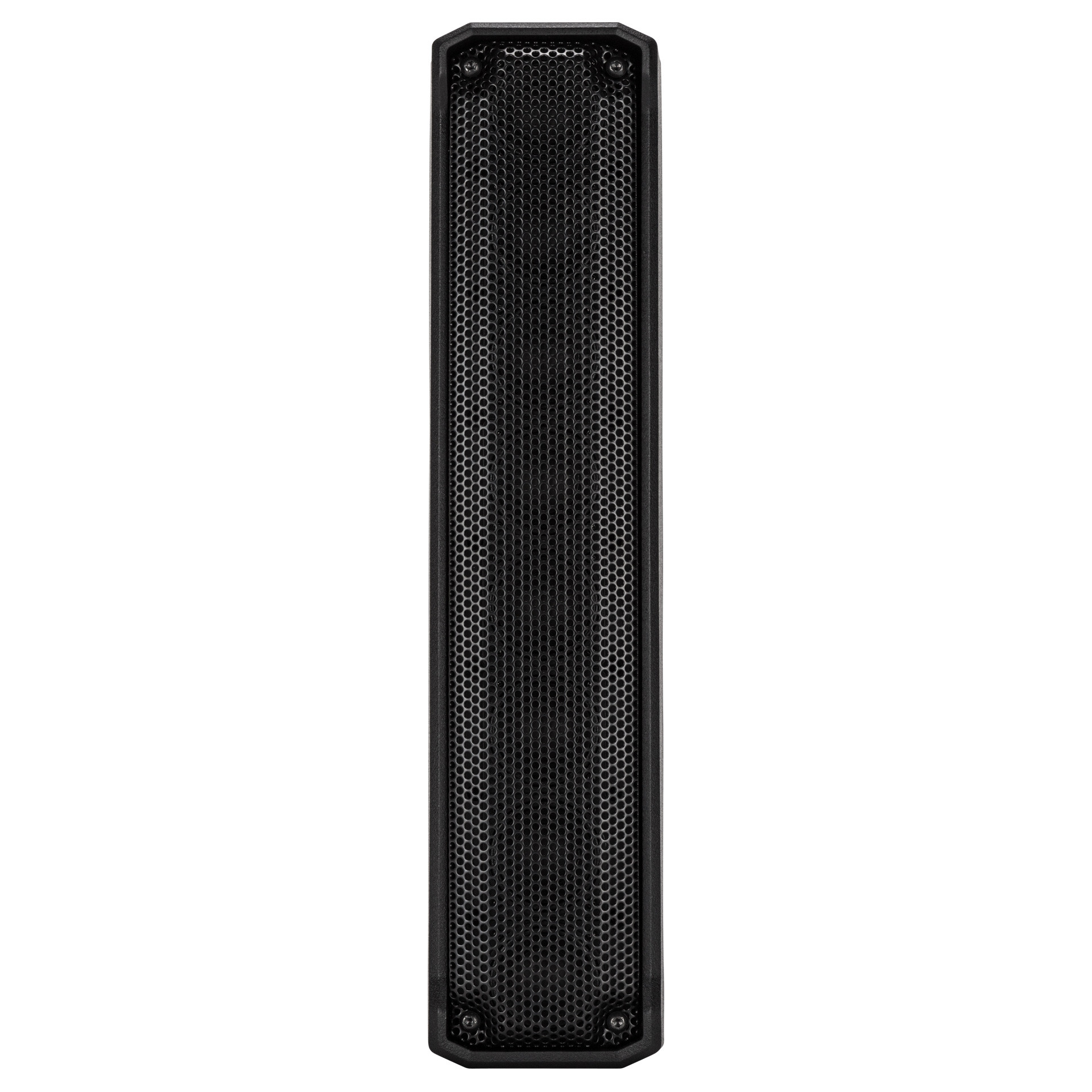

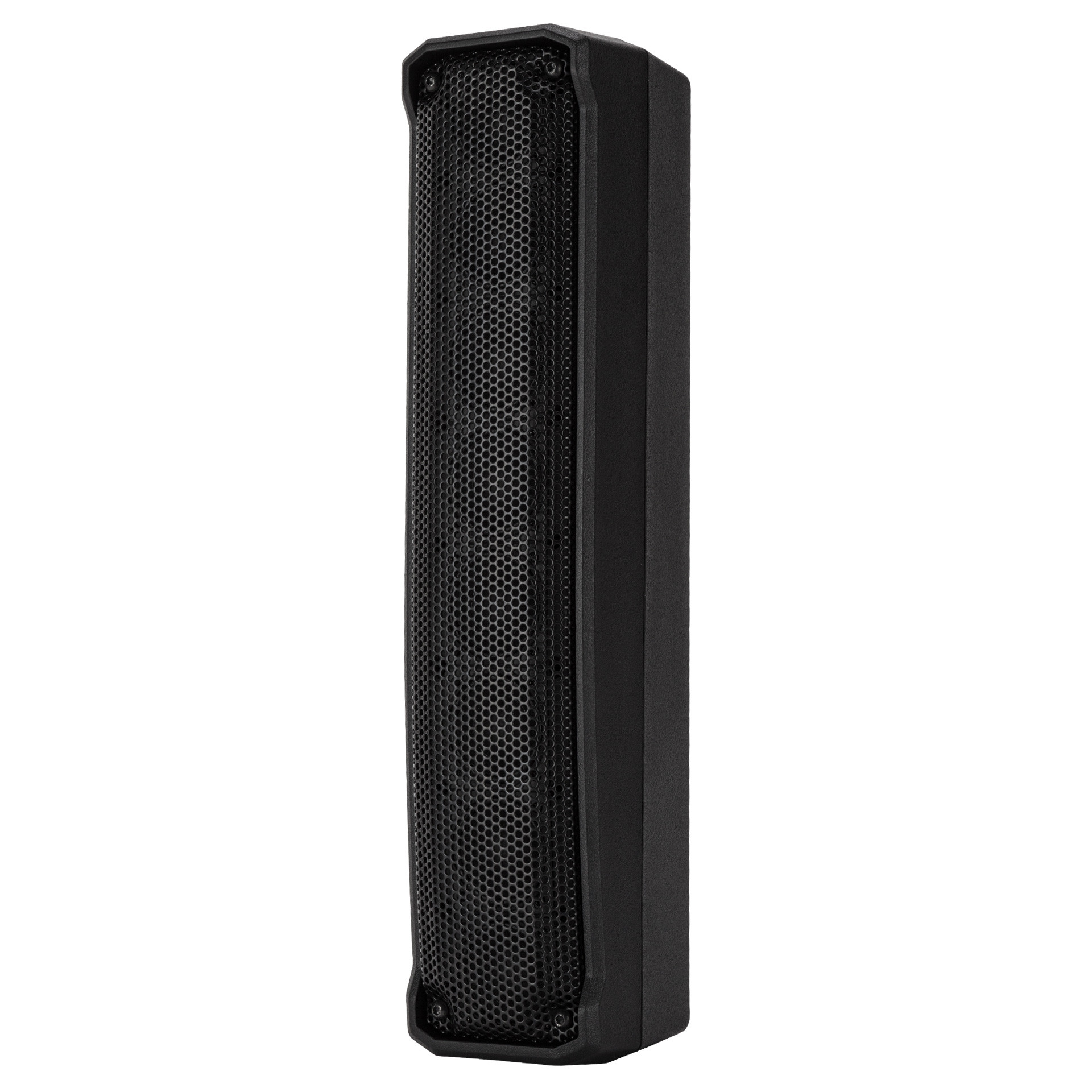

SUPERIOR TRANSDUCERSHIGH FREQUENCIES - The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance.

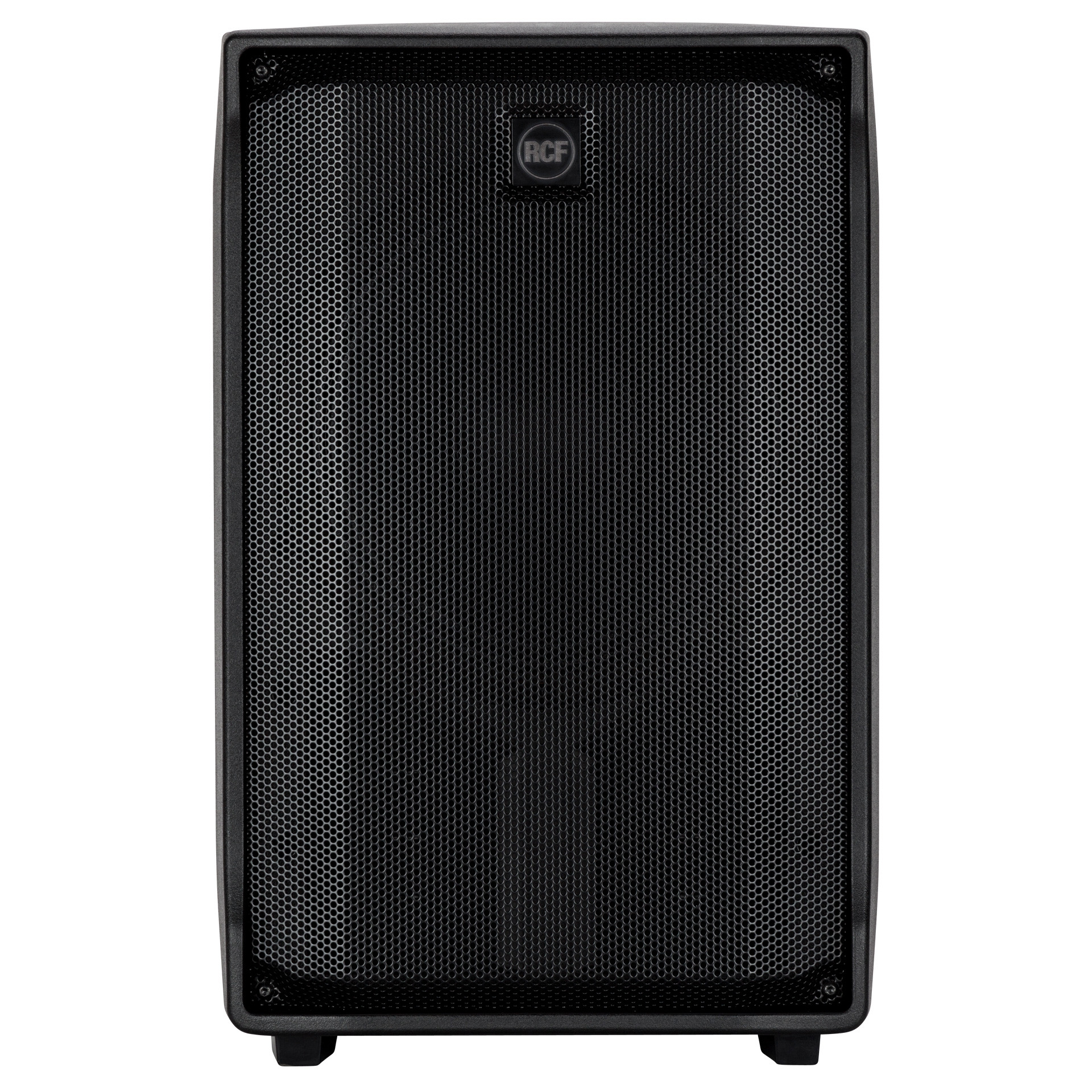

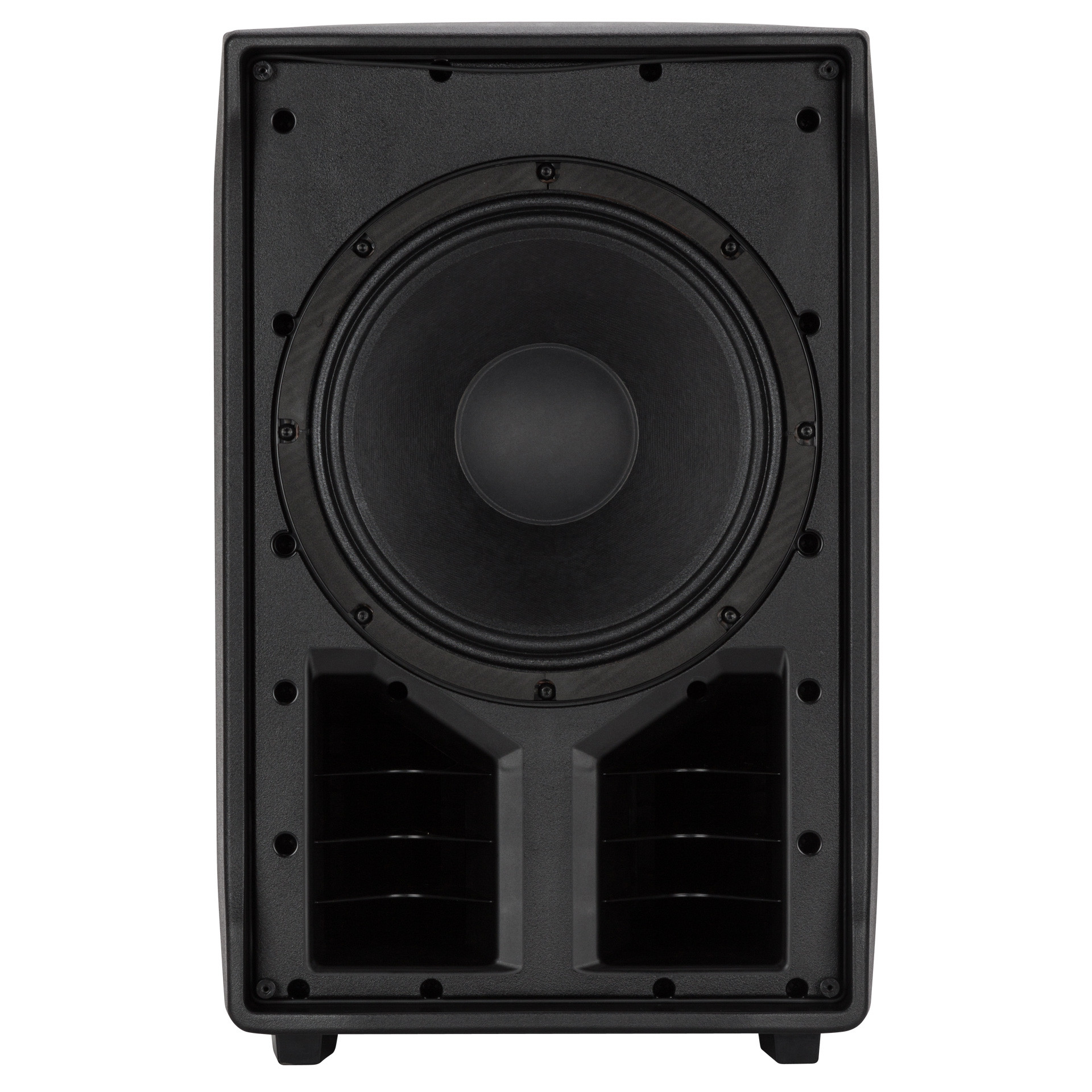

LOW FREQUENCIES - The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120x30(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

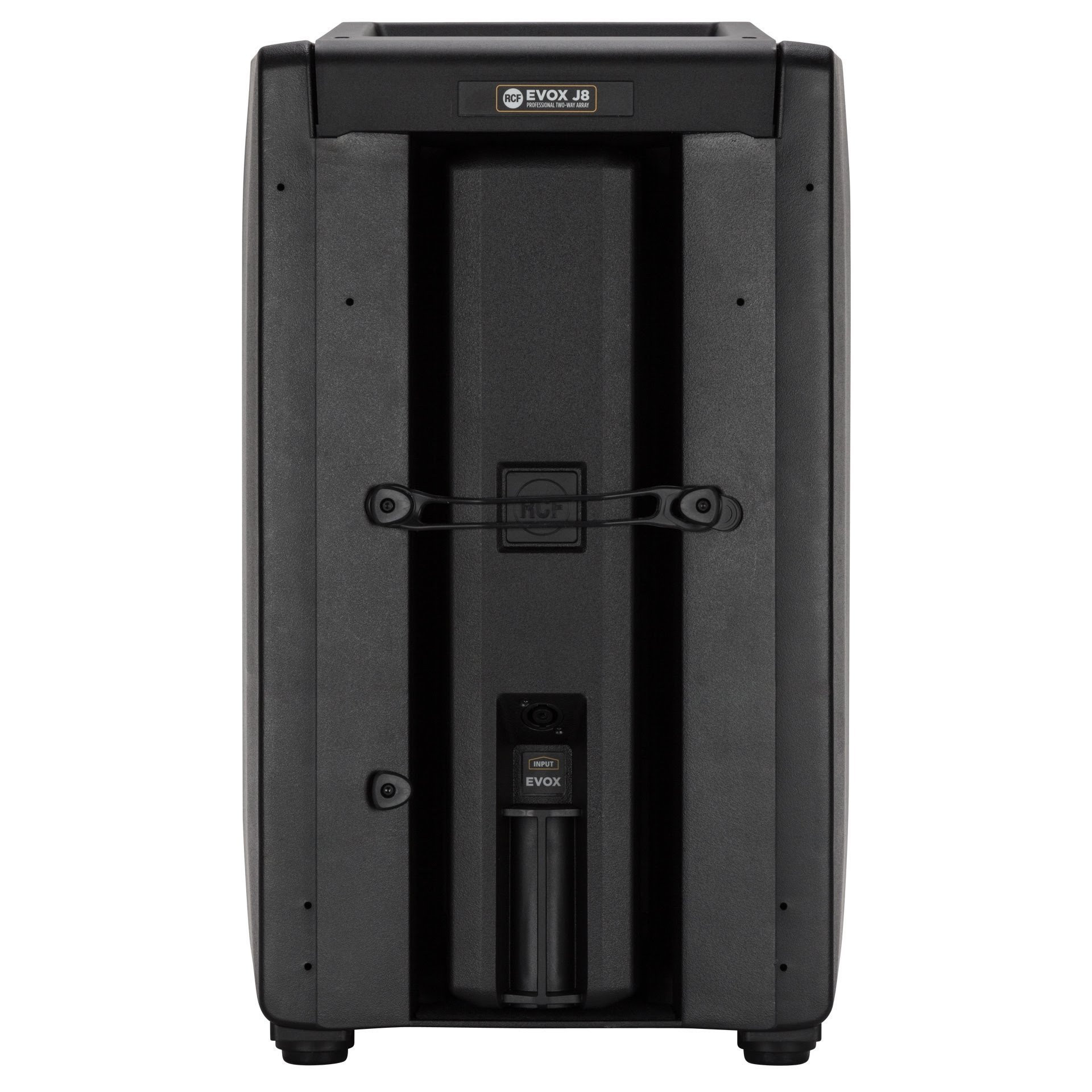

READY TO PLAY IN A FEW SIMPLE STEPSPORTABILITY - In addition to the handle on top of the woofer's cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover's handles.

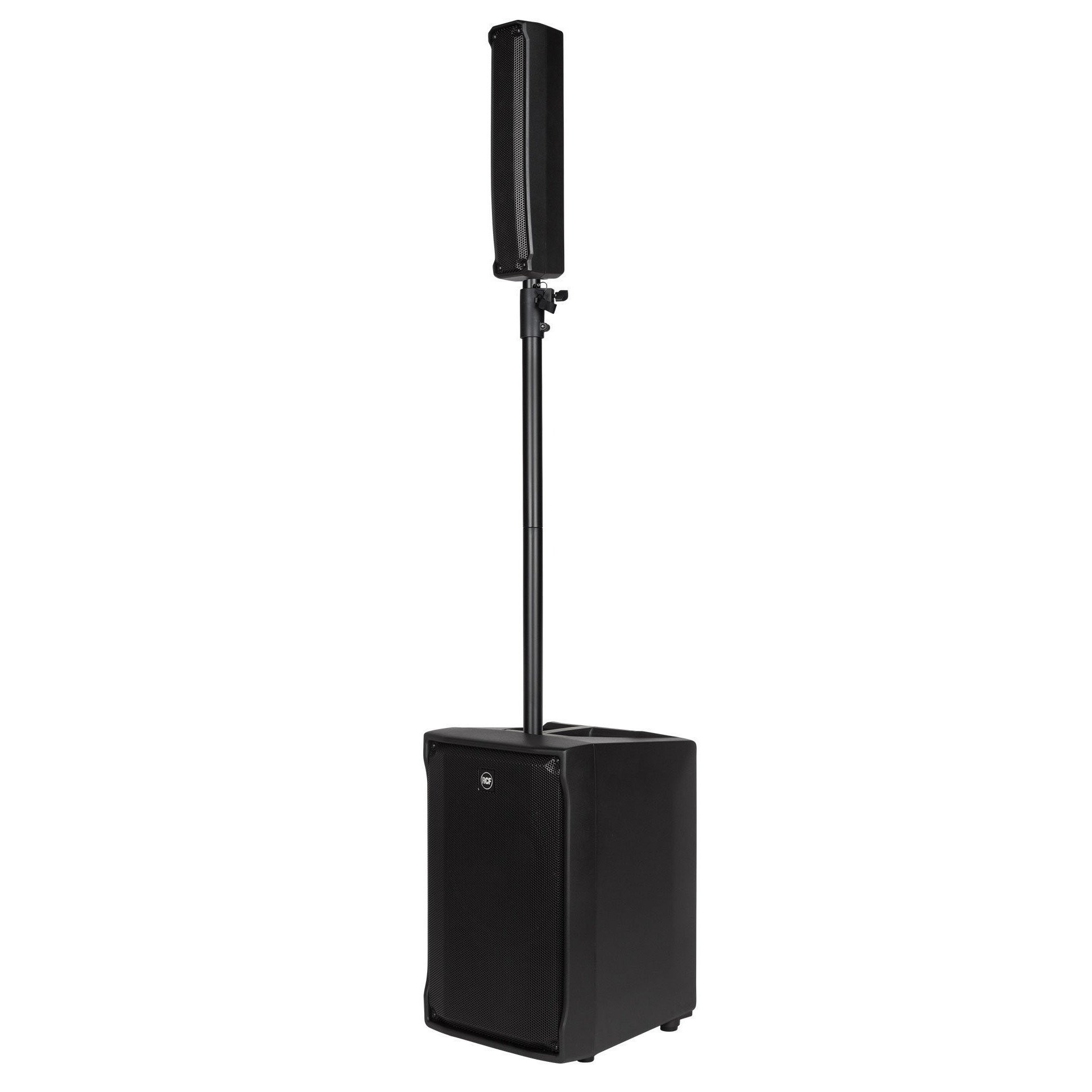

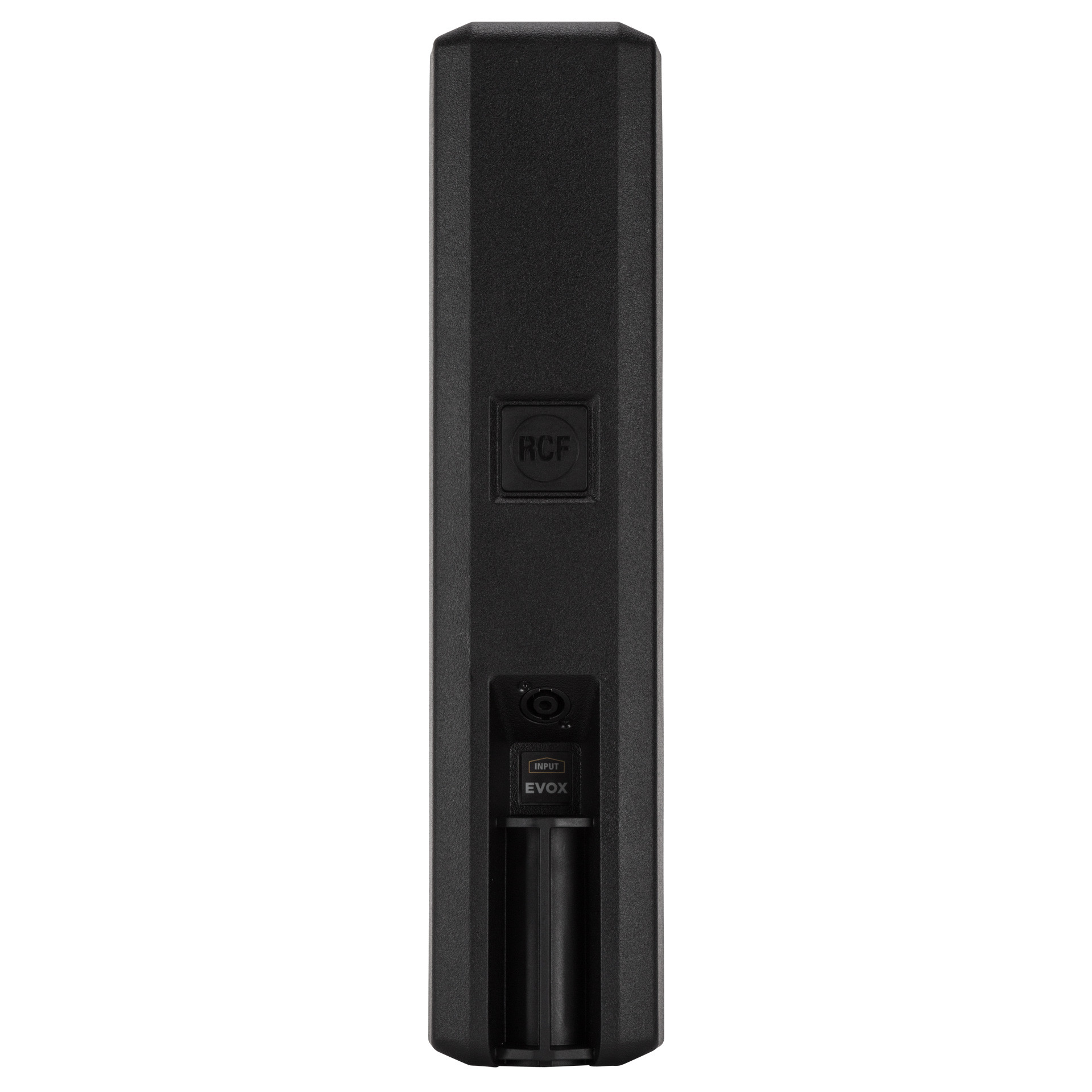

MOUNTING - Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it's done! An adjustable fastener allows the pole's length to be adapted.
PLAY! - Carrying and mounting your audio system has never been so quick.
J SYSTEM CONFIGURATIONSFrom solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0 phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
NEW PERSPECTIVE ON LINEARITYRCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
Frequency Response: 40 Hz 20000 Hz
Horizontal coverage angle: 120
Max SPL @ 1m: 128 dB
Vertical coverage angle: 30
Transducers Fullrange: 8 x 2.0'', 1.0'' v.c
Transducer Woofer: 12'', 2.5'' v.c
Input connectors: XRL, Jack
Input sensitivity: -2 dBu/+4 dBu
Input signal: bal/unbal
Output connectors: XLR
Controls: Volume, Boost, Mic/Line
Crossover Frequencies: 220 Hz
Limiter: Soft Limiter
Protections: Thermal, RMS
Connections: VDE
Cooling: Convection
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Total Power: 1400 W Peak, 700 W RMS
Frequency Response: 20 Hz 20 Hz
THD+N, 20dB gain, 0dBu out (% A-Weighted): 0.004
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic Range: 108
Processing Channels: 8
Signal Processing: 32 Bit Floating Point
A/D Dynamic range (dB): 108 dB
Gain Range: 0 dB 45 dB
Gain Selection: 0 dB 45 dB
Gain Selection: 0 dB 45 dB
HI-Z Line Inputs Impedance (MOhm): 1 Mohm
HI-Z Line Inputs: 1
Mic Inputs Impedance (KOhm): 3 kohm
Line: 4
Line Input Impedance (kOhm): 11 kohm
Low Cut: 20 Hz 1000 dB
Mic: 4
Phantom Power +48V: Yes
Remote Controlled Storable Gain: Yes
Stereo Line: 2
Stereo Line Input Impedence (kOhm): 11 kohm
AUX output: 1
AUX Send: 1
Aux Out Impedance (Ohm): 150 ohm
Aux Out Level (dBu): 19 dBu
D/A Dynamic Range (dB): 1084 dB
Main Out Impedance (Ohm): 150 ohm
Main Out Level (dBu): 19 dBu
RCF Compressors: 4 mono (6 preset)
EQ Description: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency, Graphic 7 Band EQ on Main Mix and AUX send.
Input Channels EQ: 1 Semi Parametric / 2 Shelving
AUX: 1 PRE/POST
FX POST: 1
MultiFX Insert Effects: 1
Send Effects: 1
Main OUT processors: 1
Play trk: 2
Footswitch: Yes
Power supply: Internal
CE marking: Yes
Cabinet/Case Material: PP Composite
Color: Black
Grille: Steel
Handles: 1 Top
Depth: 460 mm / 18.11 inches
Height: 623 mm / 24.53 inches
Width: 400 mm / 15.75 inches
Weight: 24.4 kg / 53.79 lbs
