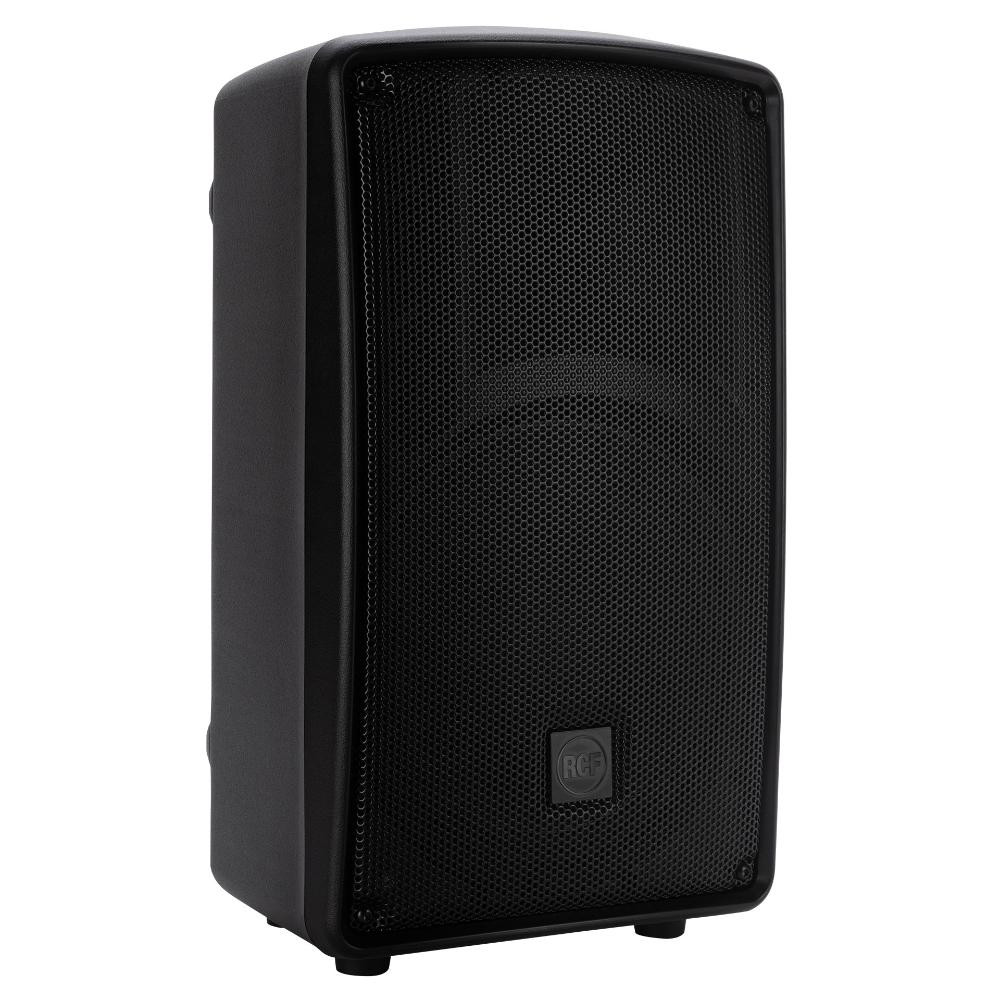

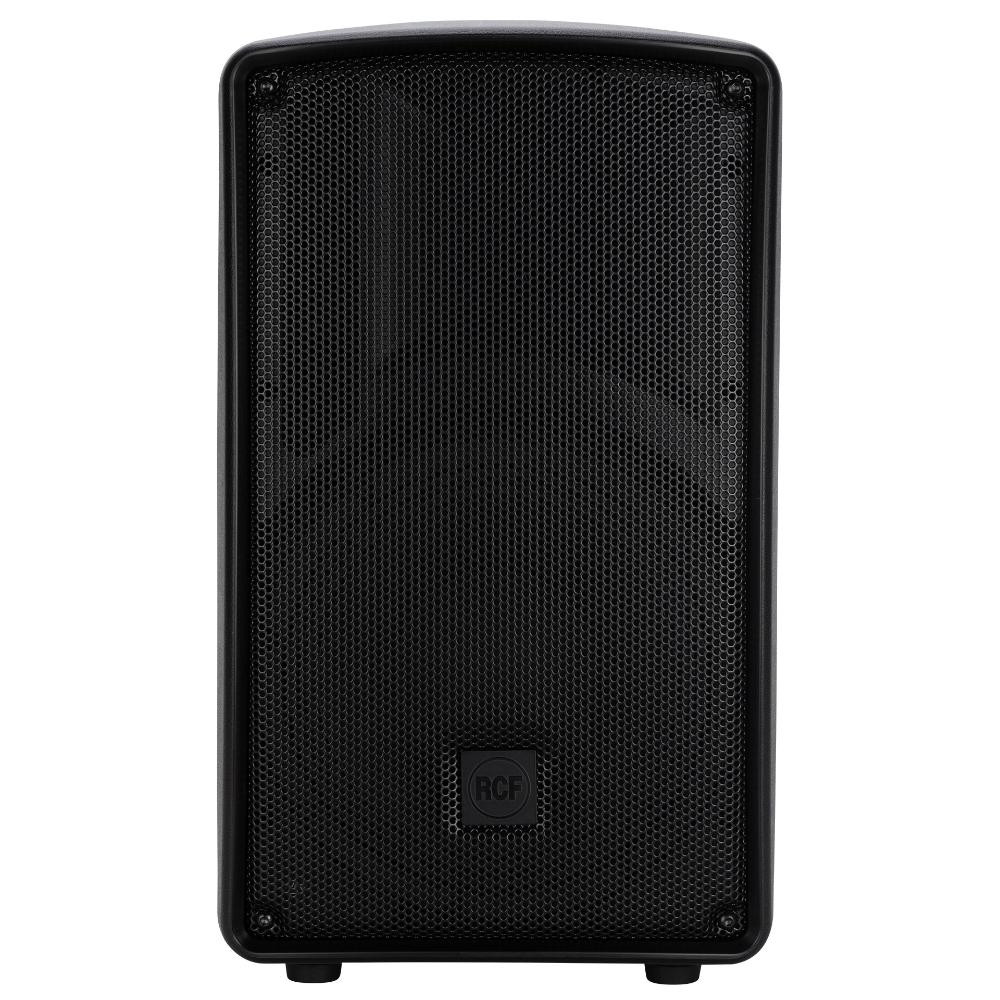

The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
Features• 128 dB Max SPL
• 800 Watts 2-way amplifier
• DSP Processing with FiRPHASE and Bass Motion Control
• 1.0" HF driver
• 10" woofer, high power, 2.0" voice coil
• 90 x 60, wide dispersion constant directivity horn
• Silent Fan-less Class-D Amplifier
• Mylar/Ferrite driver - Kapton former coil
Superior TransducersThe powerful 1.4" diaphragm compression driver of the HD 12-A mk5 features extended dispersion control and high efficiency at long distance. The 12" woofer offers an extremely linear response and a precise, deep low-frequency control. All compression drivers and transducers are precision built, taking advantage of RCF's superior knowledge and experience dedicated to achieving extremely high standards.
Powerful Class D AmplifiersRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D-Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Highly Defined PerformanceThe cabinet shape makes it easy to use the speaker for stage monitoring. Two M10 threaded inserts are available for optional mounting hardware, making the speakers perfect for use in wall-mounted or flown install applications.

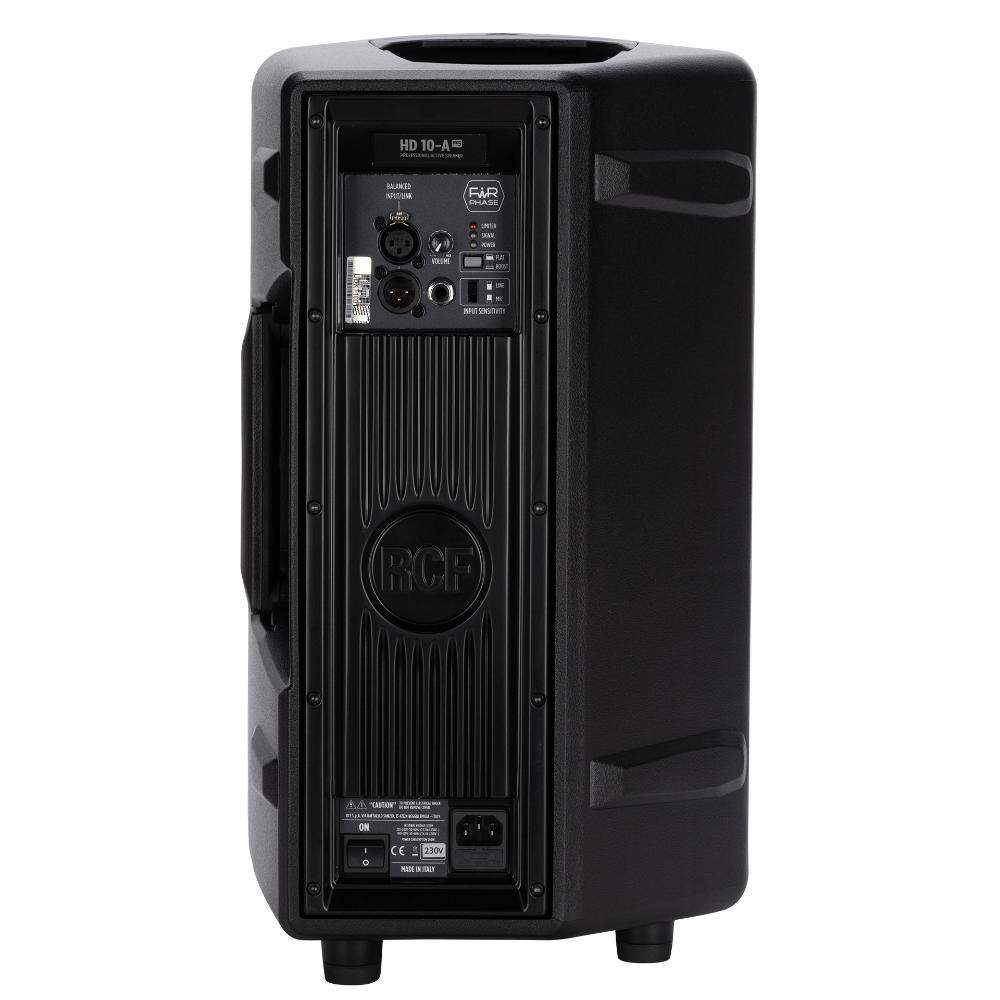

In/Out ConnectorsThe amplifier presents both XLR In/Out connectors and a Jack input for maximum connection versatility.
Switchable EQ ModeA switchable EQ Mode makes it easier to select among two different equalization presets: BOOST - Extended response switch that slightly emphasizes the bass response for playback music and low volume applications; FLAT - Linear response switch, when the speaker is used to amplify a live mix. The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.
Mic/Line SwitchA useful Mic/Line switch helps to adjust the input sensitivity. When used for speech, the (Mic) setting allows using a microphone directly with the speaker. Set the selector to (Line) when using the speaker for live music or playback.
Volume KnobAn easy-to-reach volume knob on the back allows setting the overall volume of the speaker according to its application.
Status LEDs3 status LEDs Power / Signal / Limiter are provided for monitoring the system.

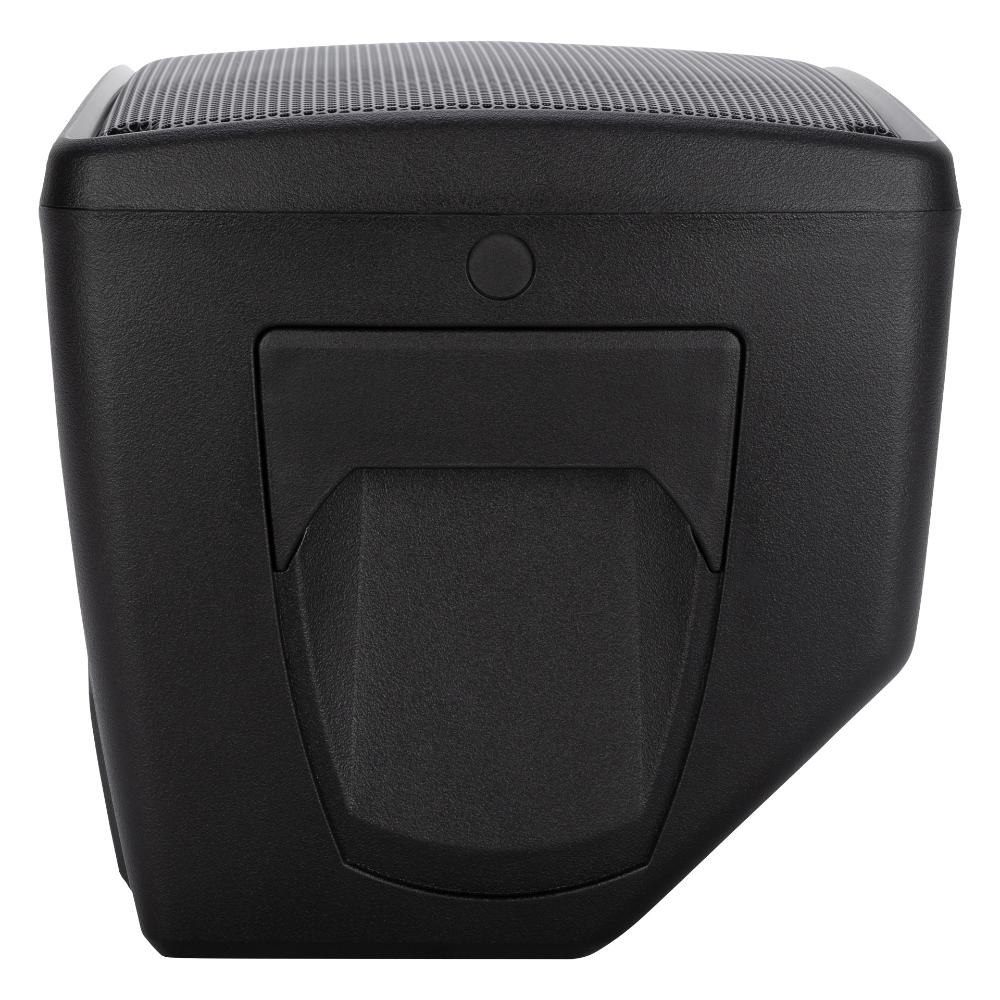

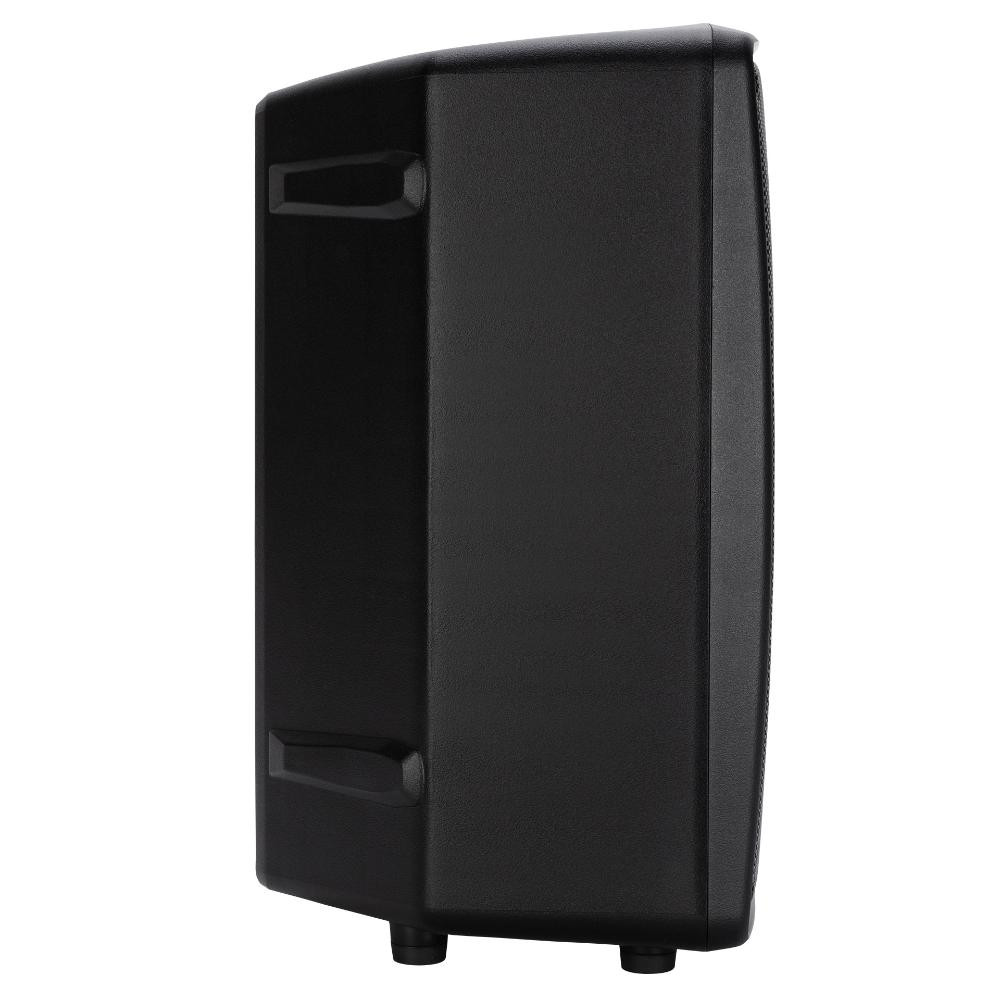

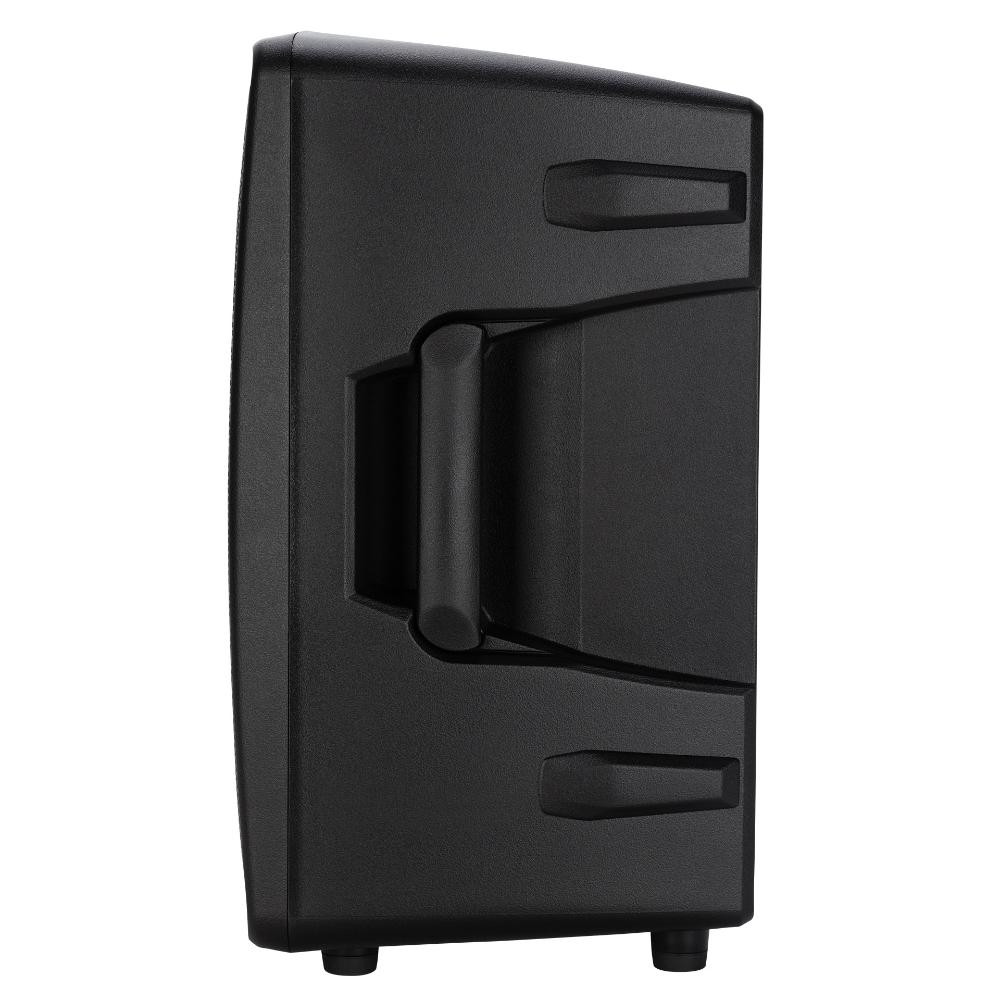

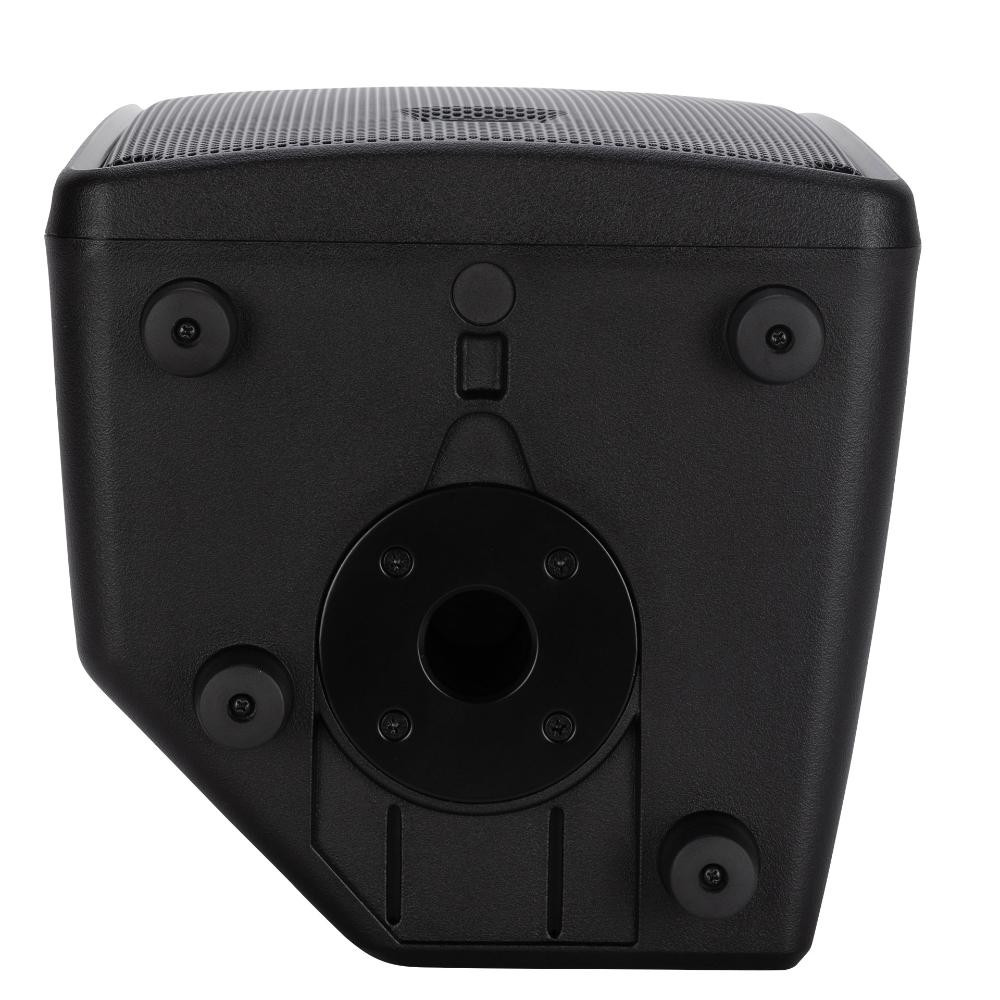

Rental ProofD-LINE cabinets are molded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers the maximum reliability and strength for use on the road. The reflex port has been resized to offer better efficiency. The RCF HD 12-A features 3 ergonomically designed forged handles with rubber handgrips, 2 on the sides, and one at the top. At the bottom, a rugged steel pole mount has been installed in all models. The new cabinet shape will allow every D-LINE model to be used as it is, standing on a pole or for stage monitoring. Two M10 threaded inserts are provided for optional mounting hardware in Installed Sound Applications.
Acoustical specificationsFrequency Response: 50 Hz 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 90
Vertical coverage angle: 60
TransducersCompression Driver: 1 x 1.0'', 1.0'' v.c
Woofer: 10'', 2.0'' v.c
Input/Output sectionInput signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor sectionCrossover frequencies: 2000 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power sectionTotal Power: 800 W Peak, 400 W RMS
High frequencies: 200 W Peak, 100 W RMS
Low frequencies: 600 W Peak, 300 W RMS
Cooling: Convection
Connections: VDE
Standard complianceSafety Agency: CE Compliant
Physical specificationsCabinet/Case Material: PP Composite
Hardware: 1 x M10 top, 1 x M10 bottom
Handles: 1 Top, 1 Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black
Size Height: 527 mm / 20.75 inches
Width: 303 mm / 11.93 inches
Depth: 303 mm / 11.93 inches
Weight: 11.8 kg / 26.01 lbs
