RCF cares about your sound. The new HD12-A MK5 speaker boosts the performance with a brand new transducer, improves the sound quality with the revolutionary FiRPHASE processing and has a renewed grille design to exalt the professional look. The vocals are natural, the sound is clear at long distances, the SPL power is stable at very high levels. The concept of the HD-Line derives from the touring industry, bringing in an elegant and compact cabinet all the experience of RCF professional sound with the maximum reliability and strength for the intensive use on the road. Connect your microphone, your device or your mixer to the speaker and turn up the volume: real plug&play. Perfect as a main front of house in small PA systems, high powered floor monitoring and unobtrusive fixed installation.
• 1400 watt 2-way peak power
• 130 dB max SPL
• Digital bi-amplification, SMPS
• DSP sound processing

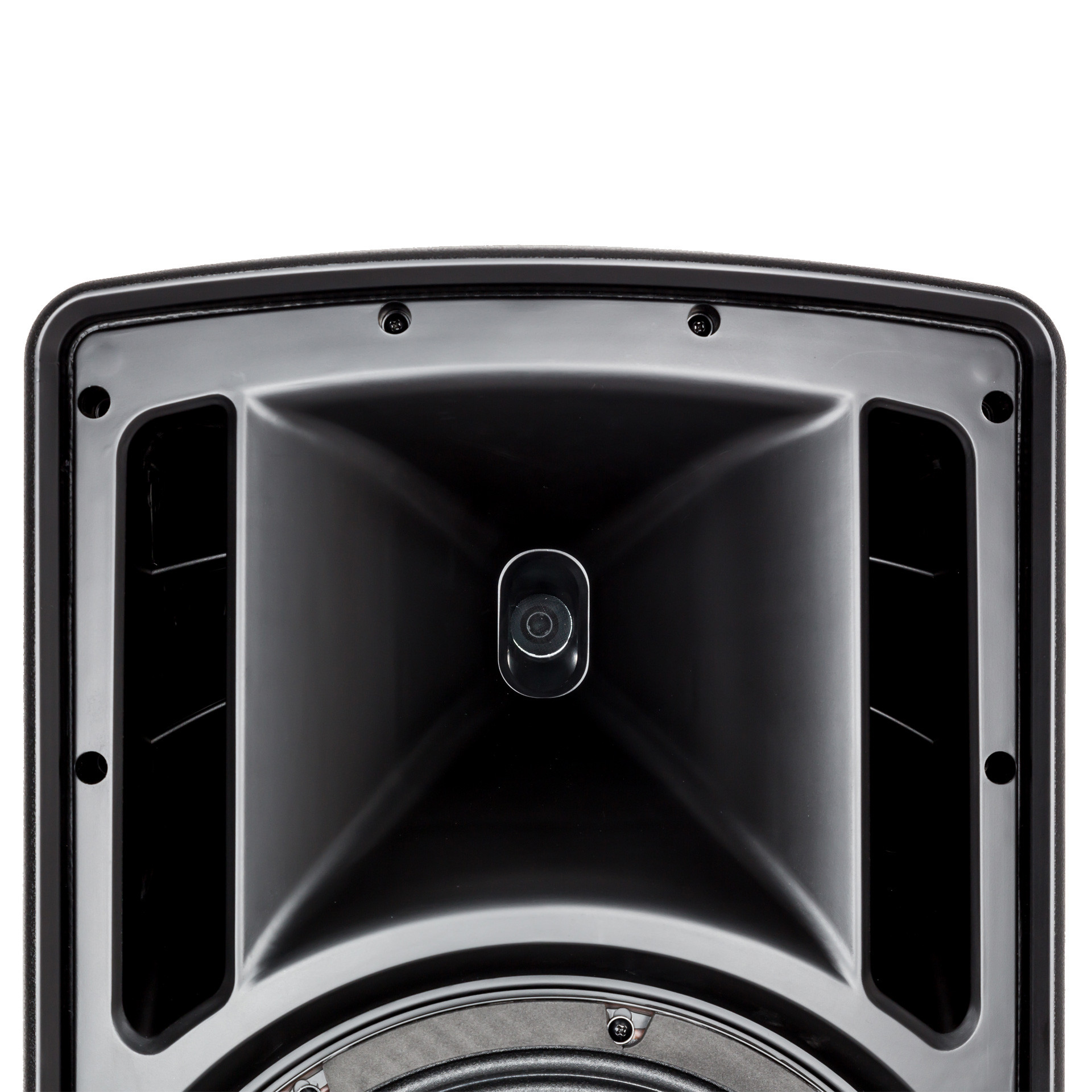

• 90 x 60, wide dispersion constant directivity horn
• 12" woofer, high power, 2.5" voice coil
• 1.0" HF driver, titanium dome, neodymium 1.5" voice coil
• FiRPHASE processing
Acoustical specificationsFrequency Response: 45 Hz 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90
Vertical coverage angle: 60
TransducersCompression Driver: 1.0'', 1.5'' v.c
Woofer: 12'', 2.5'' v.c
Input/Output sectionInput signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor sectionCrossover frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power sectionTotal Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Standard complianceCE marking: Yes
Physical specificationsCabinet/Case Material: PP Composite
Hardware: 1 x M10 top, 1 x M10 bottom, 3 x M6 bottom
Handles: 1 Top, 2 Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black
Size Height: 647 mm / 25.47 inches
Width: 380 mm / 14.96 inches
Depth: 380 mm / 14.96 inches
Weight: 18.3 kg / 40.34 lbs
