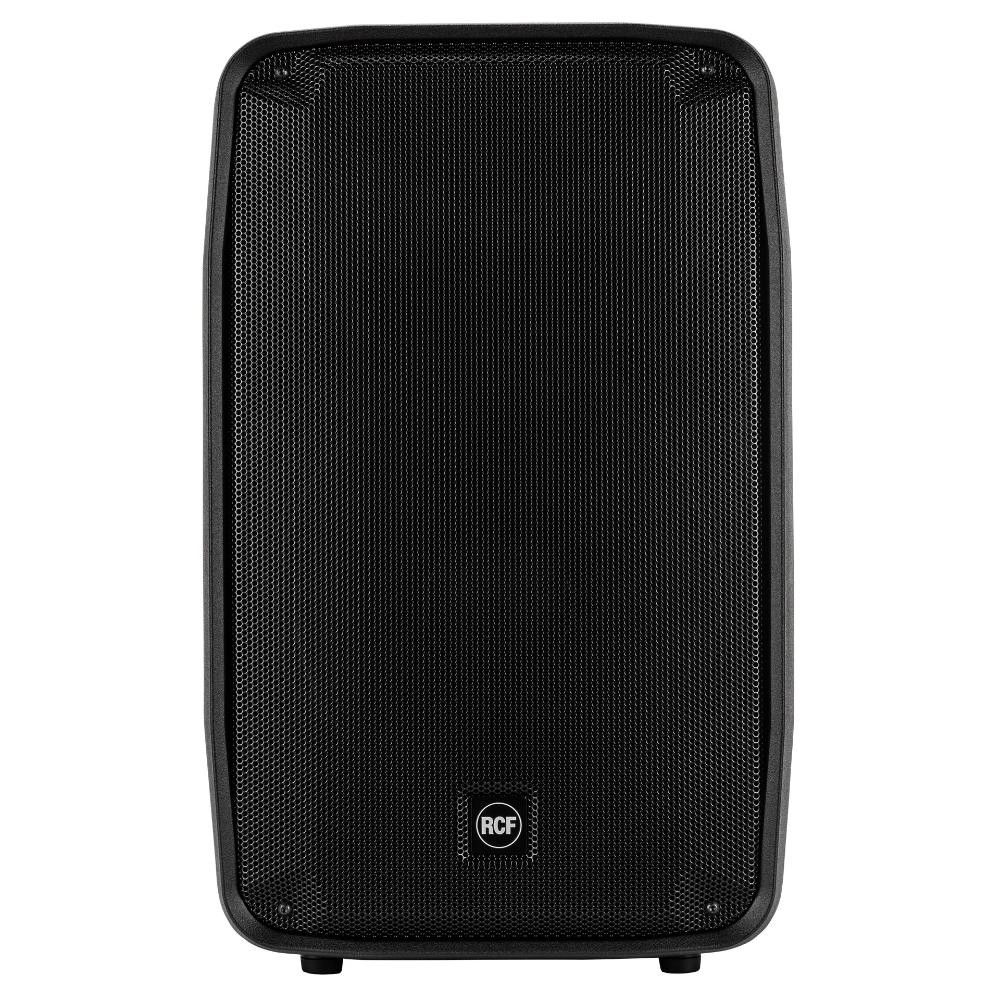

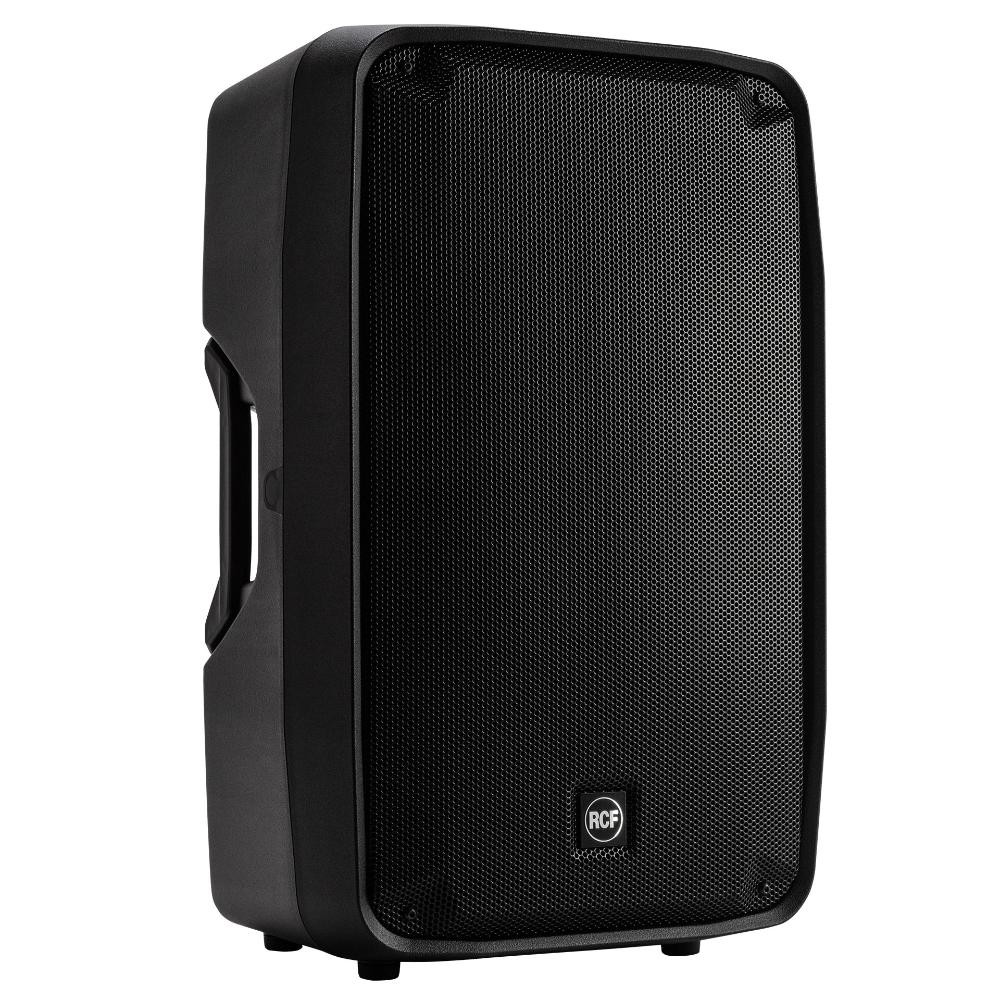

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15" high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.
Features• 130 dB Max SPL
• 1400 Watts 2-way peak power
• DSP Processing with FiRPHASE
• 1.0" Compression Driver, 1.75" v.c.
• 15" Woofer, high power
• Lightweight Composite Cabinet
• 90x60, wide dispersion constant directivity horn
• Silent Fanless Class-D Amplifier
Superior TransducersThe powerful 1.4" diaphragm compression driver of the HD 12-A mk5 features extended dispersion control and high efficiency at long distance. The 12" woofer offers an extremely linear response and a precise, deep low-frequency control. All compression drivers and transducers are precision built, taking advantage of RCF's superior knowledge and experience dedicated to achieving extremely high standards.
Powerful Class D AmplifiersRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D-Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

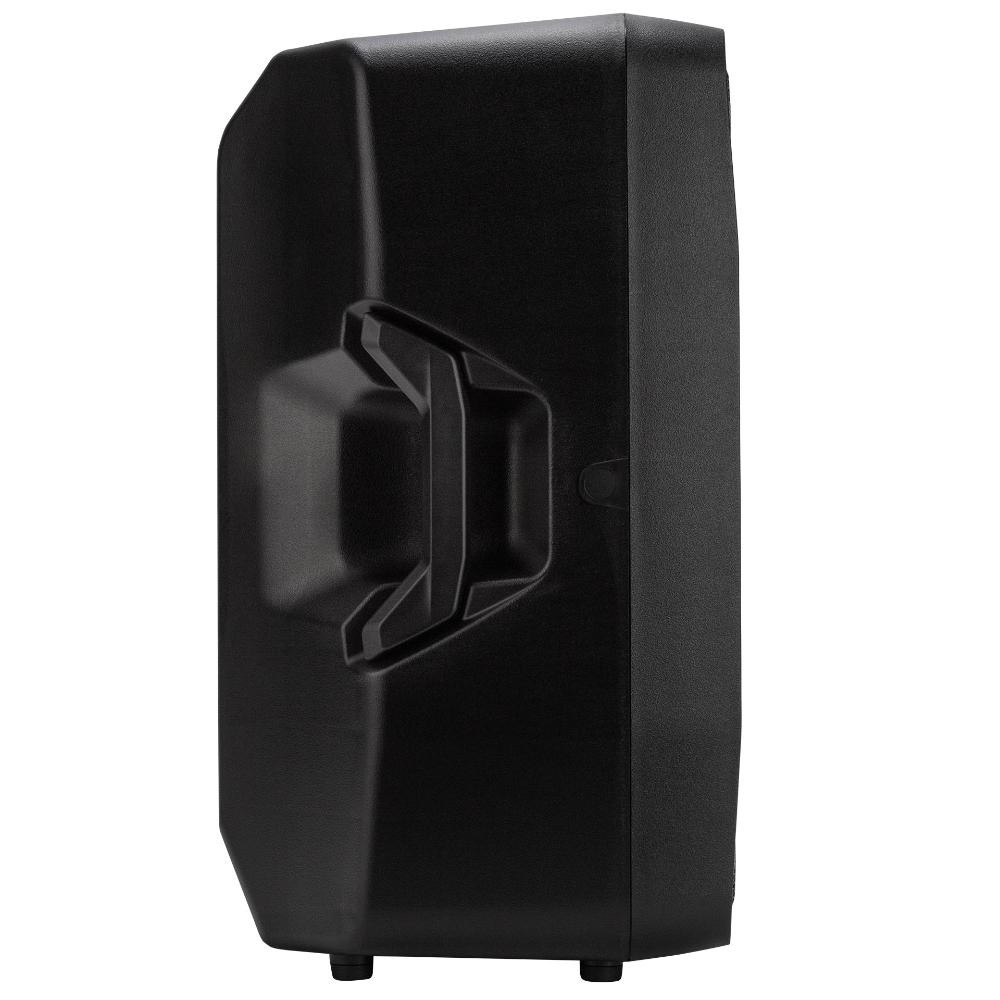

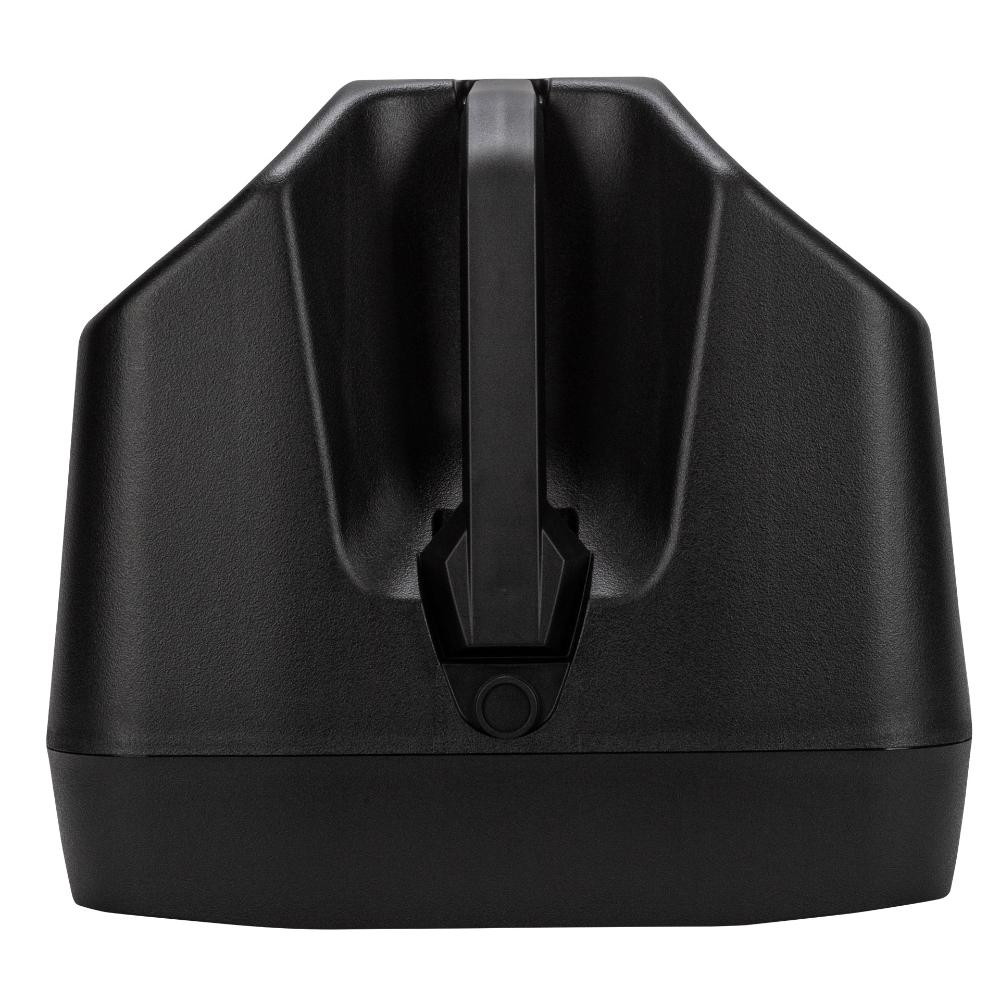

Rental ProofD LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.

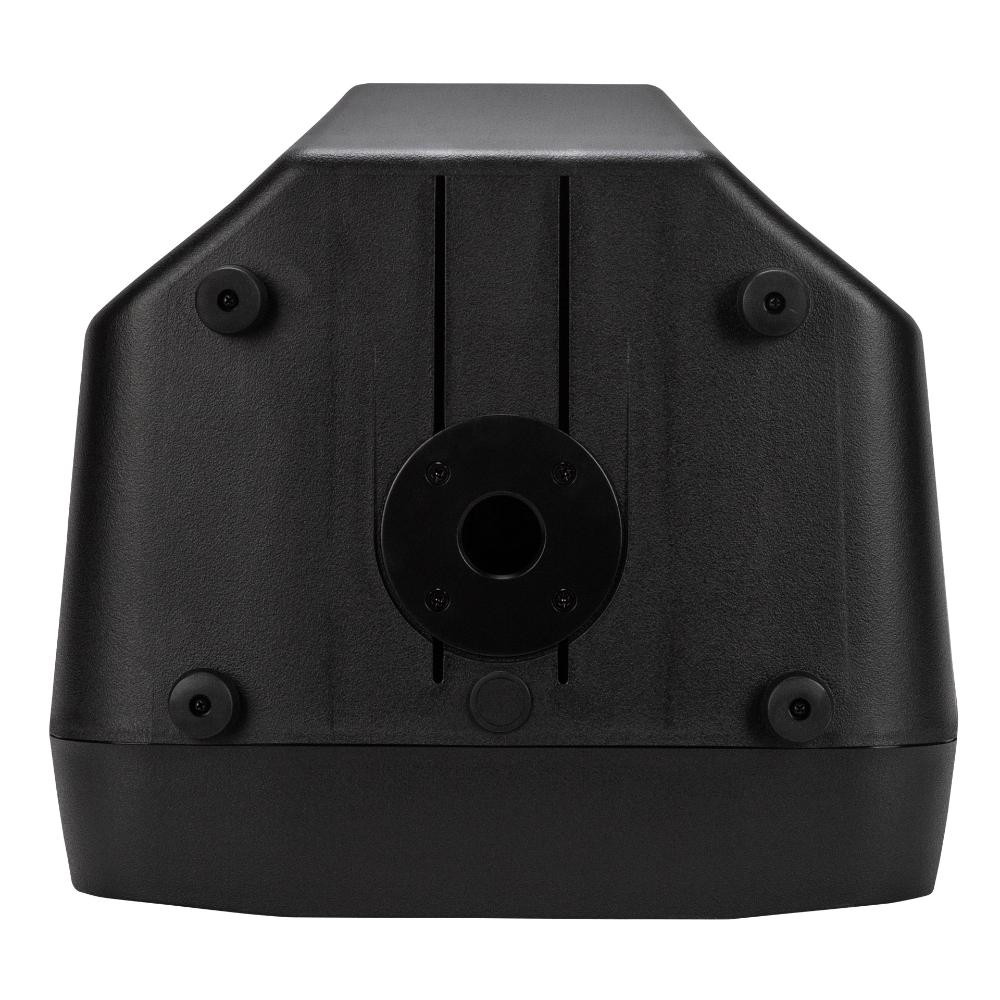

High Demand ApplicationsThe multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.
Acoustical specificationsFrequency Response: 45 Hz 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90
Vertical coverage angle: 60
TransducersCompression Driver: 1.0'', 1.75'' v.c
Woofer: 15'', 2.5'' v.c

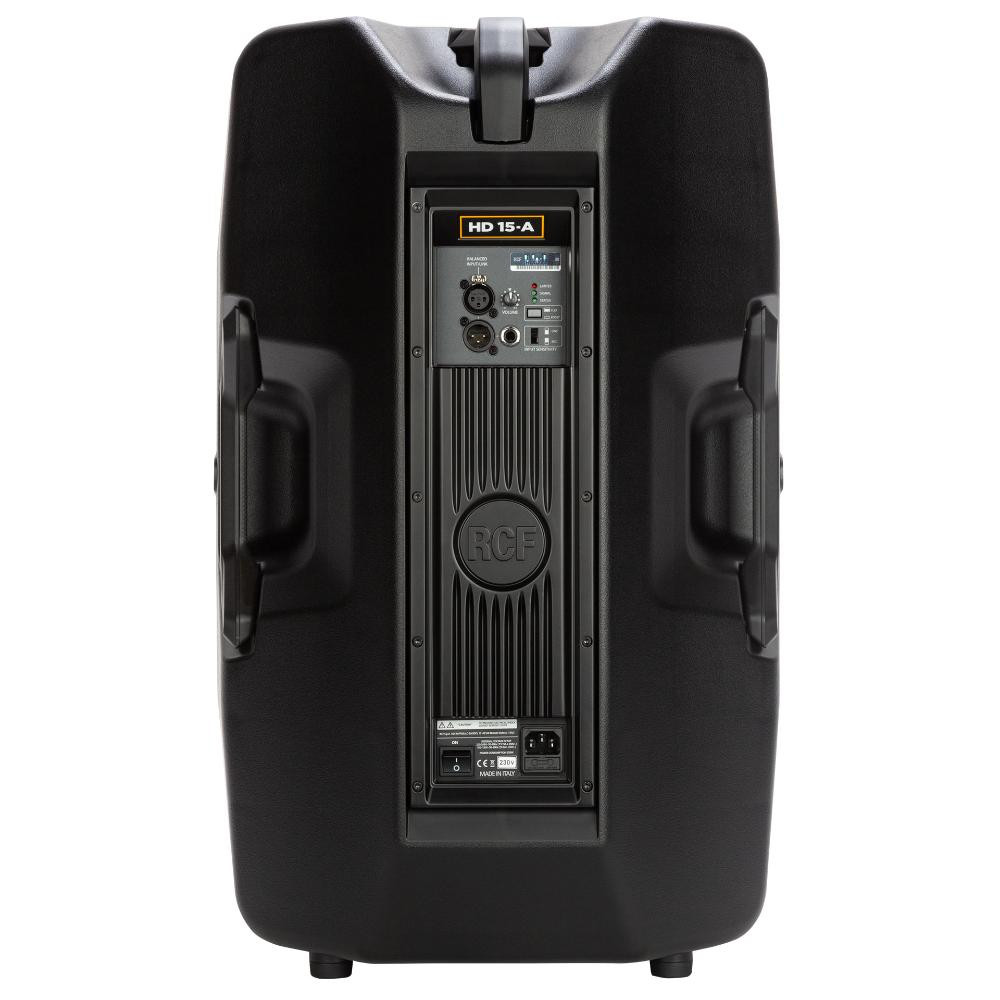

Input/Output sectionInput signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor sectionCrossover frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power sectionTotal Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Physical specificationsCabinet/Case Material: PP Composite
Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
Handles: 1 Top, 2 Side
Grille: Steel
Color: Black
Size Height: 714 mm / 28.11 inches
Width: 442 mm / 17.4 inches
Depth: 397 mm / 15.63 inches
Weight: 22 kg / 48.5 lbs
