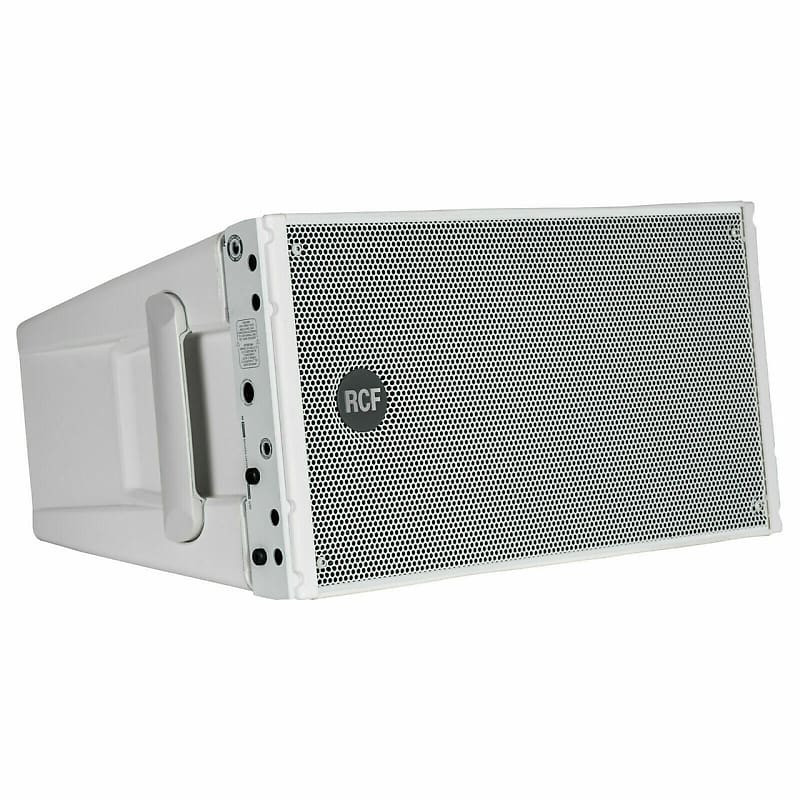

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.
• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced
TOUR SOUND IN A COMPACT SIZEThe HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
RCF PRECISION TRANSDUCERSHIGH FREQUENCIES - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5" voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.
LOW FREQUENCIES - High power woofers. Very high efficient and controlled bass reproduction.
• 2 X 8" Woofers, 2.0" Inside-Outside voice coil
• Water resistant fibre doped cone
• Polycotton M-roll surround
• High power magnetic structure

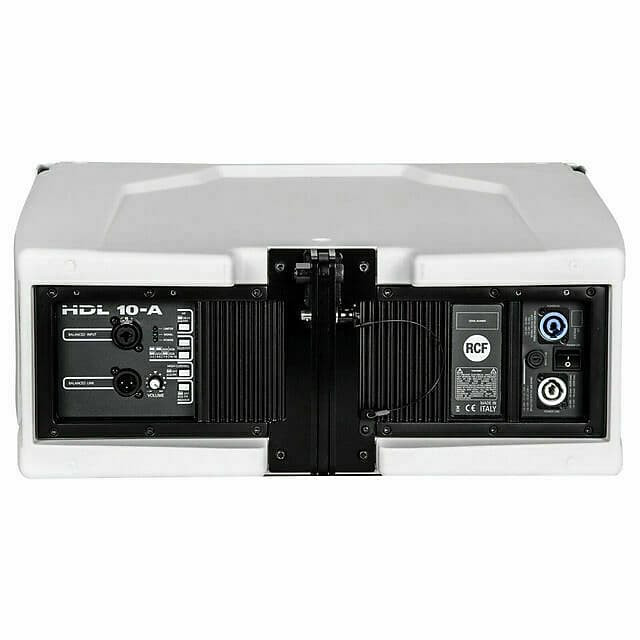

POWERFUL CLASS D AMPLIFIERRCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
Specifications
Frequency Response: 65 Hz 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 100
Vertical coverage angle: 15
Compression Driver: 2.0'', 2.5'' v.c
Woofer: 2 x 8'', 2.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side
Grille: Steel
Color: White
Height: 294 mm / 11.57 inches
Width: 569 mm / 22.4 inches
Depth: 434 mm / 17.09 inches
Weight: 20.4 kg / 44.97 lbs
